Rangitaiki 1 Details

PropertyValue
Rupture Count2,189
Ruptures Above Sect Min Mag2,189
Ruptures w/ Nonzero Rates51
Magnitude Range[6.52, 8.00]
Length Range[9, 297] km
Total Rate5.44944E-4 /yr
Multi-Fault Rate5.44944E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults39

Table Of Contents

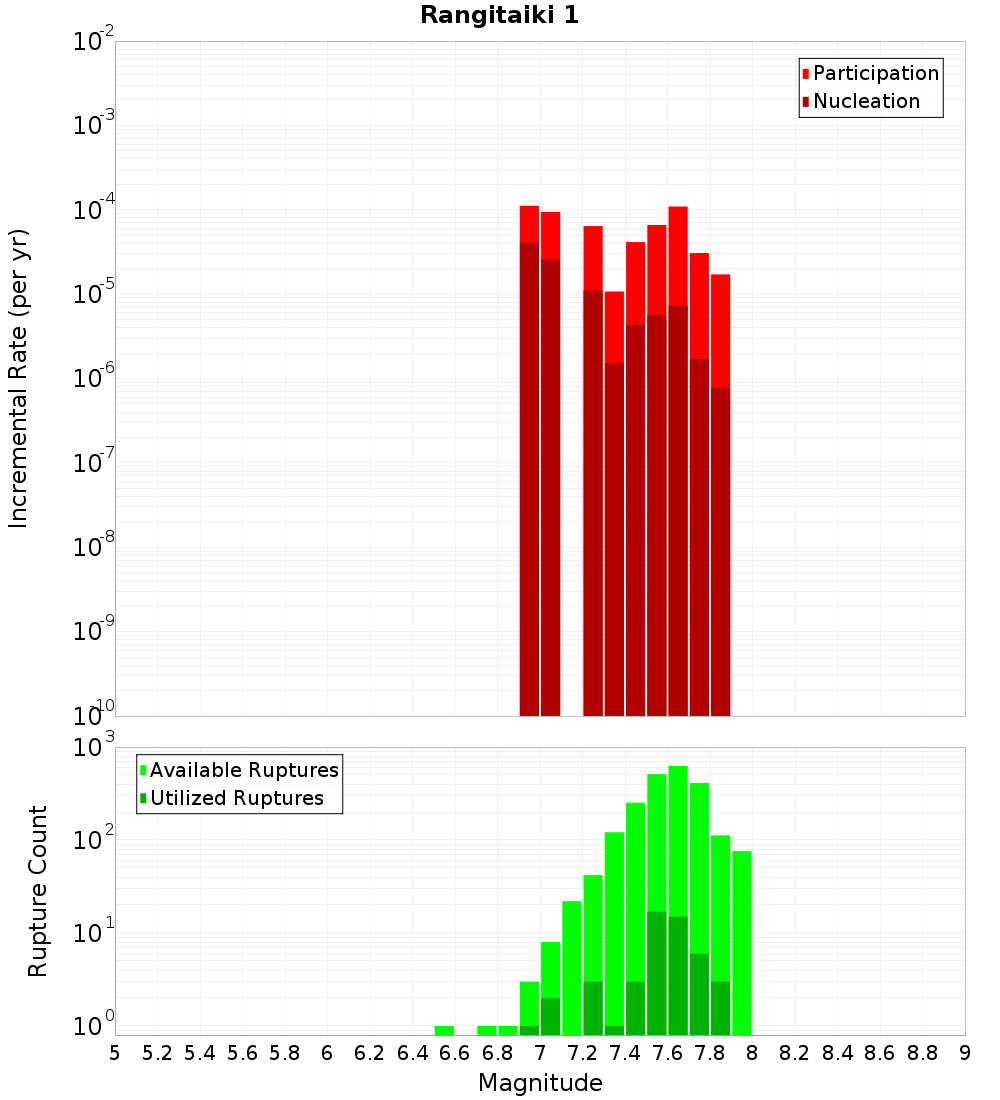

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

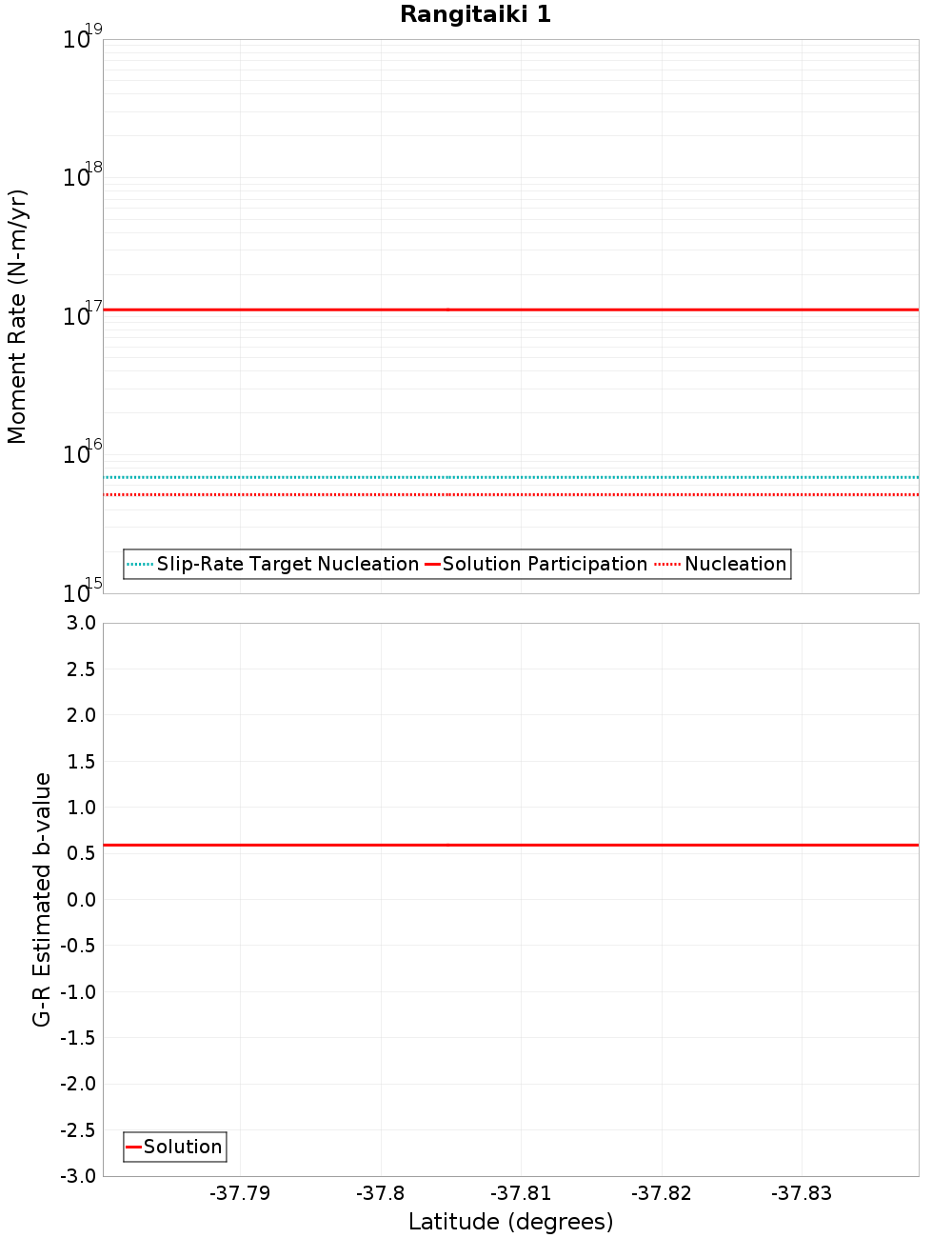

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2,057
Co-rupture Rate3.3925514E-4

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count558
Co-rupture Rate4.5826804E-5

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2,085
Co-rupture Rate5.0417933E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate2.0968146E-5

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count446
Co-rupture Rate1.4386492E-4

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,392
Co-rupture Rate1.1370064E-4

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate1.5393931E-4

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count153
Co-rupture Rate1.8101597E-4

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate1.0968594E-4

Edgecumbe 1987, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count691
Co-rupture Rate1.11431604E-4

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count799
Co-rupture Rate3.682432E-5
