Wellington Hutt Valley: 2 Details

PropertyValue
Rupture Count3,089
Ruptures Above Sect Min Mag3,087
Ruptures w/ Nonzero Rates21
Magnitude Range[6.53, 8.26]
Length Range[10, 477] km
Total Rate0.001662585 /yr
Multi-Fault Rate0.001662585 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults50

Table Of Contents

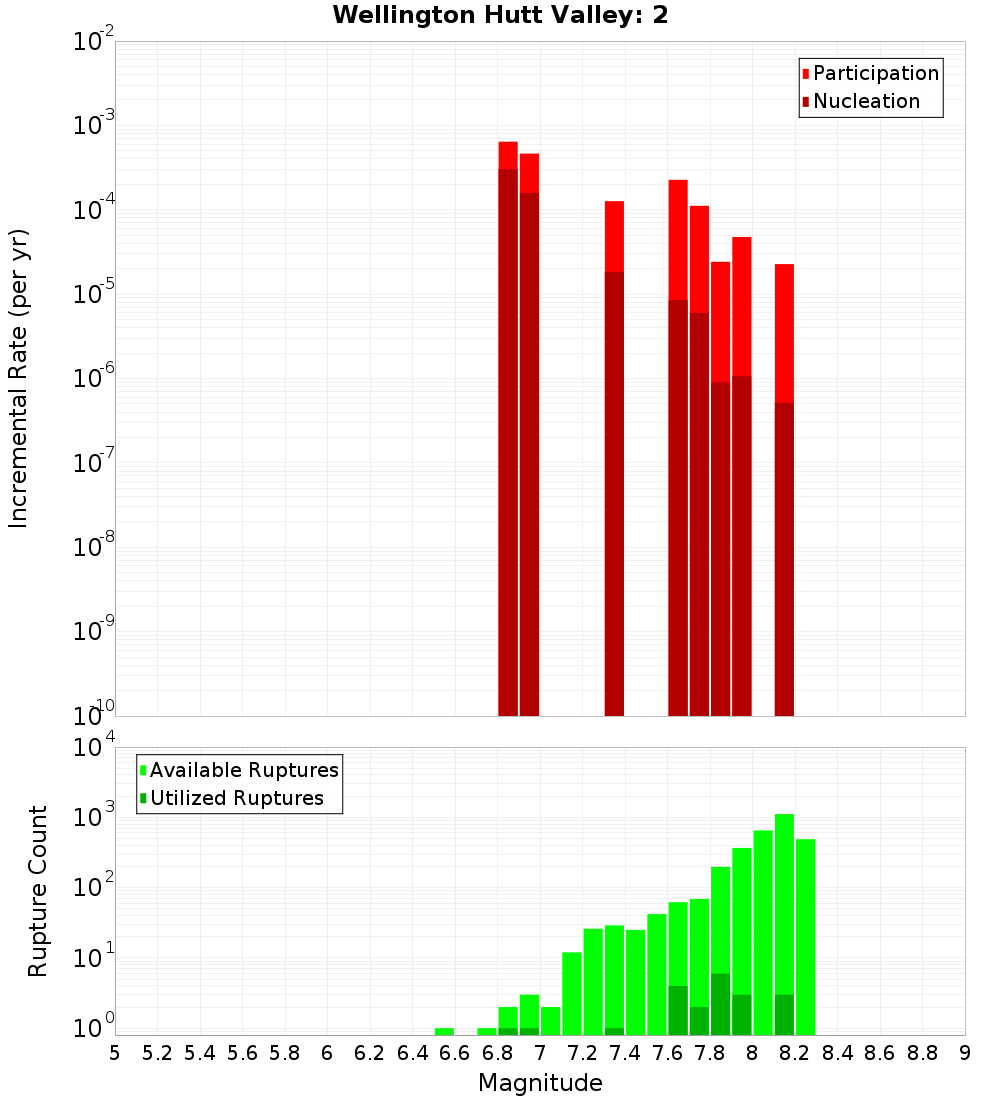

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

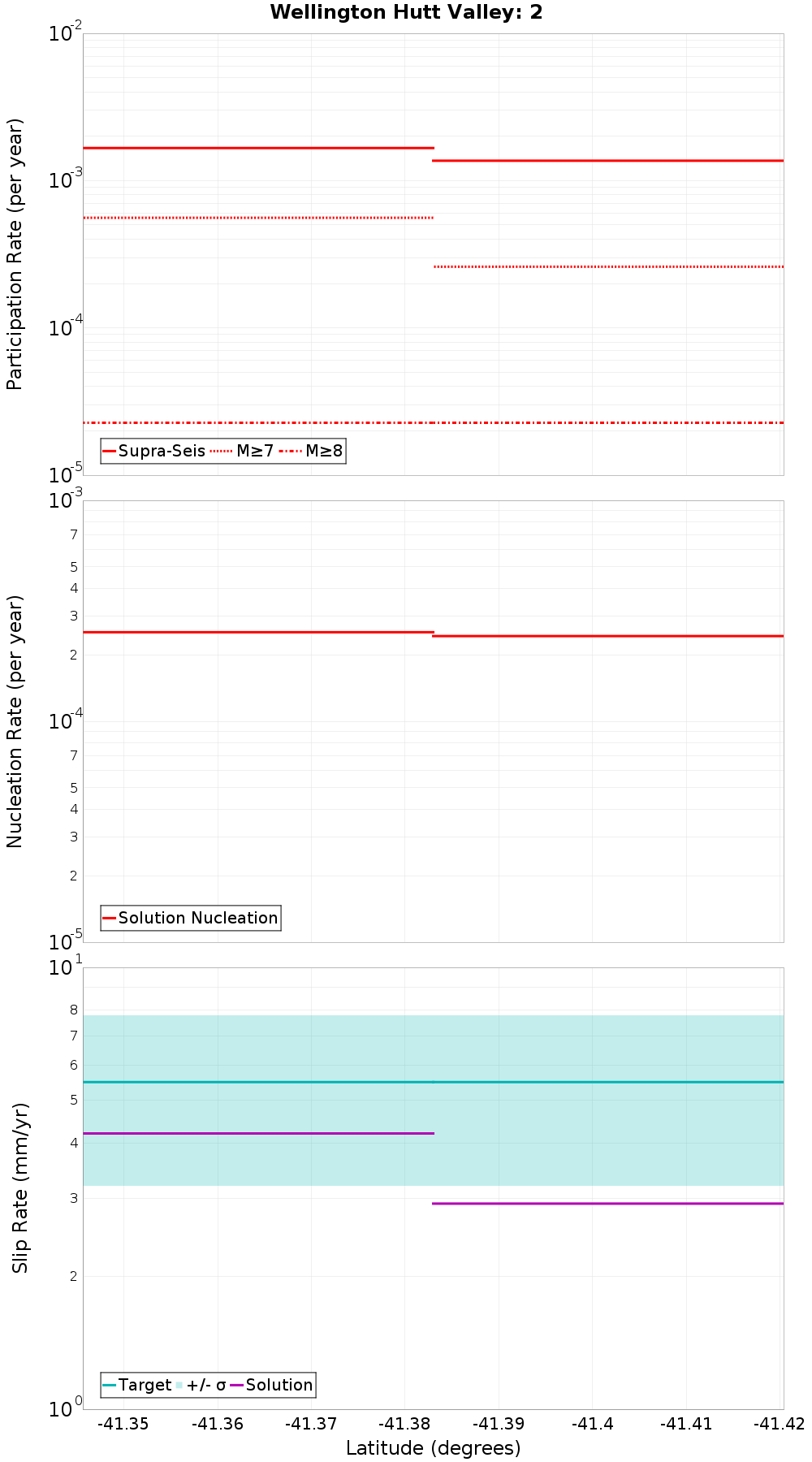

Along-Strike Values

(top)

Along-strike plot

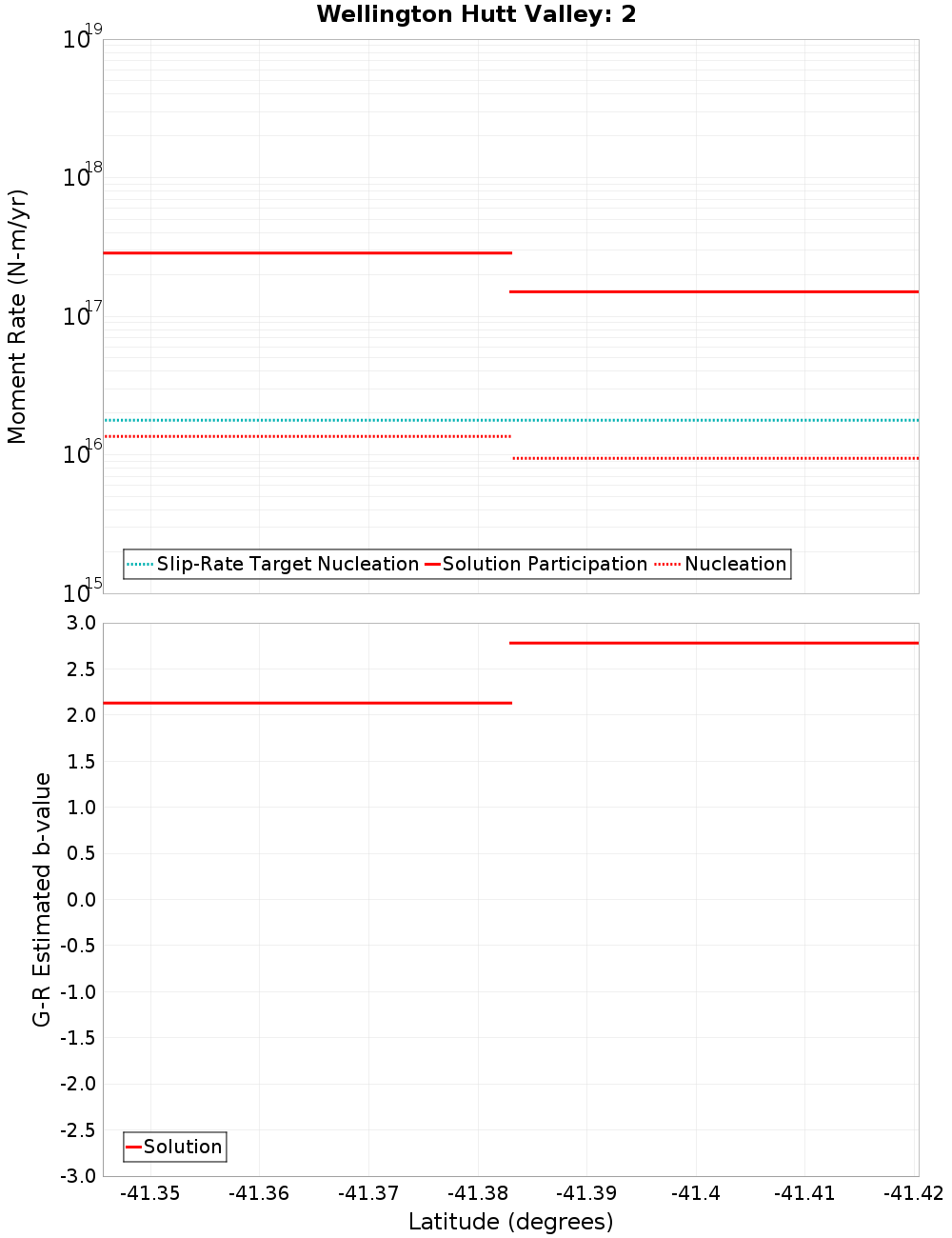

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 1, 0 km awayWhitemans Valley, 8.91 km away
Wellington Hutt Valley: 3, 0 km awayWellington Hutt Valley: 4, 10.98 km away
Ohariu, 0.3 km awayWairau 3, 11.68 km away
Ohariu South 2, 3.71 km awayWairarapa: Needles, 12.47 km away
Pukerua - Shepherds Gully: 1, 3.93 km awayWairarapa: 1, 12.7 km away
Aotea - Evans Bay, 5.99 km awayOkupe 1, 13.33 km away
Ohariu South 1, 6.74 km awayPukerua - Shepherds Gully: 3, 14.41 km away
Pukerua - Shepherds Gully: 2, 7.21 km awayMoonshine, 16.33 km away
Shepherds Gully - Mana, 7.73 km awayCloudy 3, 18.12 km away
Wharekauhau, 8.44 km awayWairau 2, 19.12 km away

Wellington Hutt Valley: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2,055
Co-rupture Rate0.0015189634

Ohariu, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count723
Co-rupture Rate8.677412E-5

Ohariu South 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count1,286
Co-rupture Rate6.8198907E-4

Pukerua - Shepherds Gully: 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count408
Co-rupture Rate8.677412E-5

Aotea - Evans Bay, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 2, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count266
Co-rupture Rate8.677412E-5

Shepherds Gully - Mana, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Whitemans Valley, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count726
Co-rupture Rate4.4209303E-4

Wairau 3, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 14.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count271
Co-rupture Rate8.677412E-5

Moonshine, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,755
Co-rupture Rate2.9881323E-5

Cloudy 3, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 2, 19.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
