Whakaari 4 Details

PropertyValue
Rupture Count15,651
Ruptures Above Sect Min Mag15,651
Ruptures w/ Nonzero Rates81
Magnitude Range[6.80, 8.00]
Length Range[18, 305] km
Total Rate4.731364E-4 /yr
Multi-Fault Rate4.731364E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults55

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

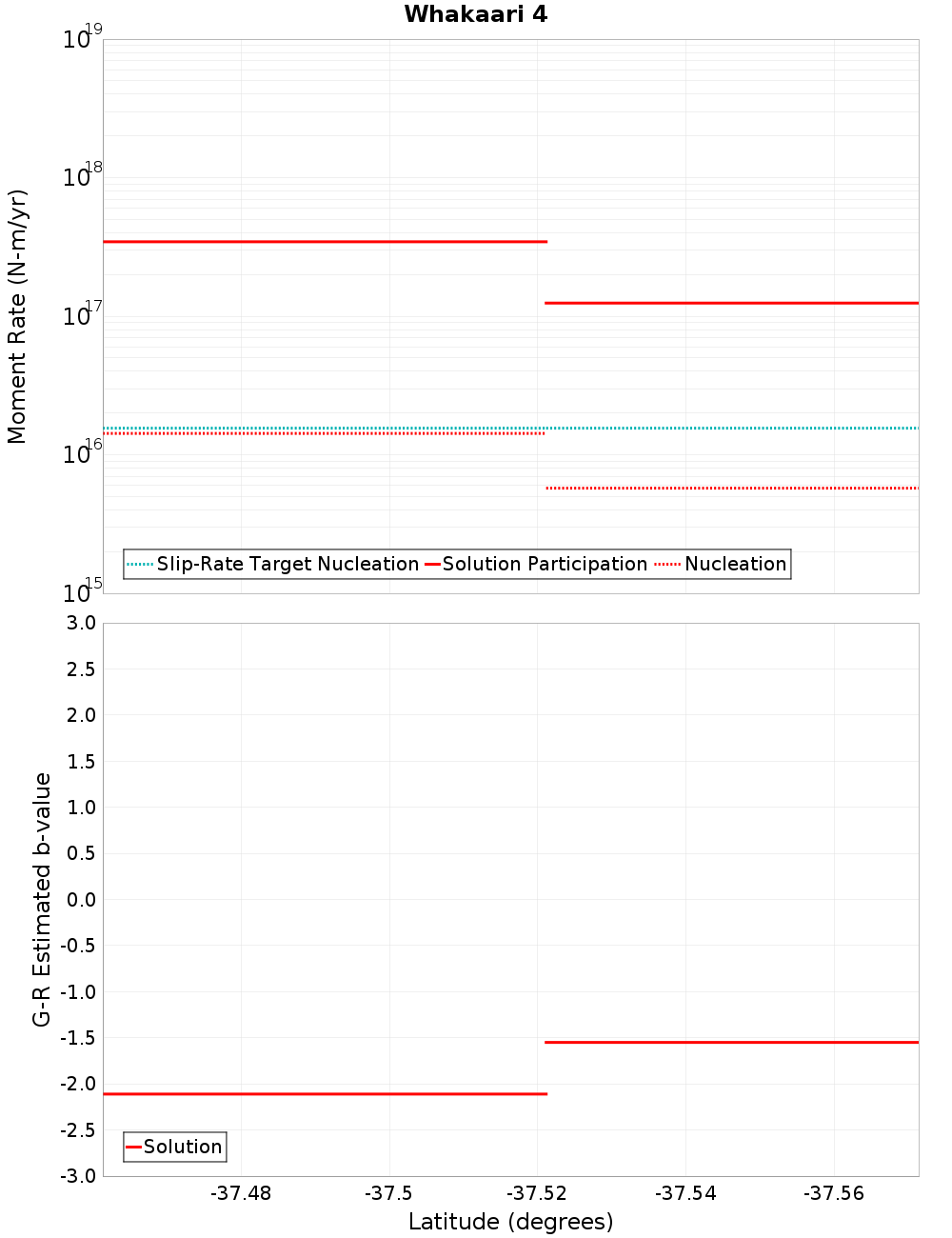

Moment-Rates and b-Values

(top)

Along-strike plot

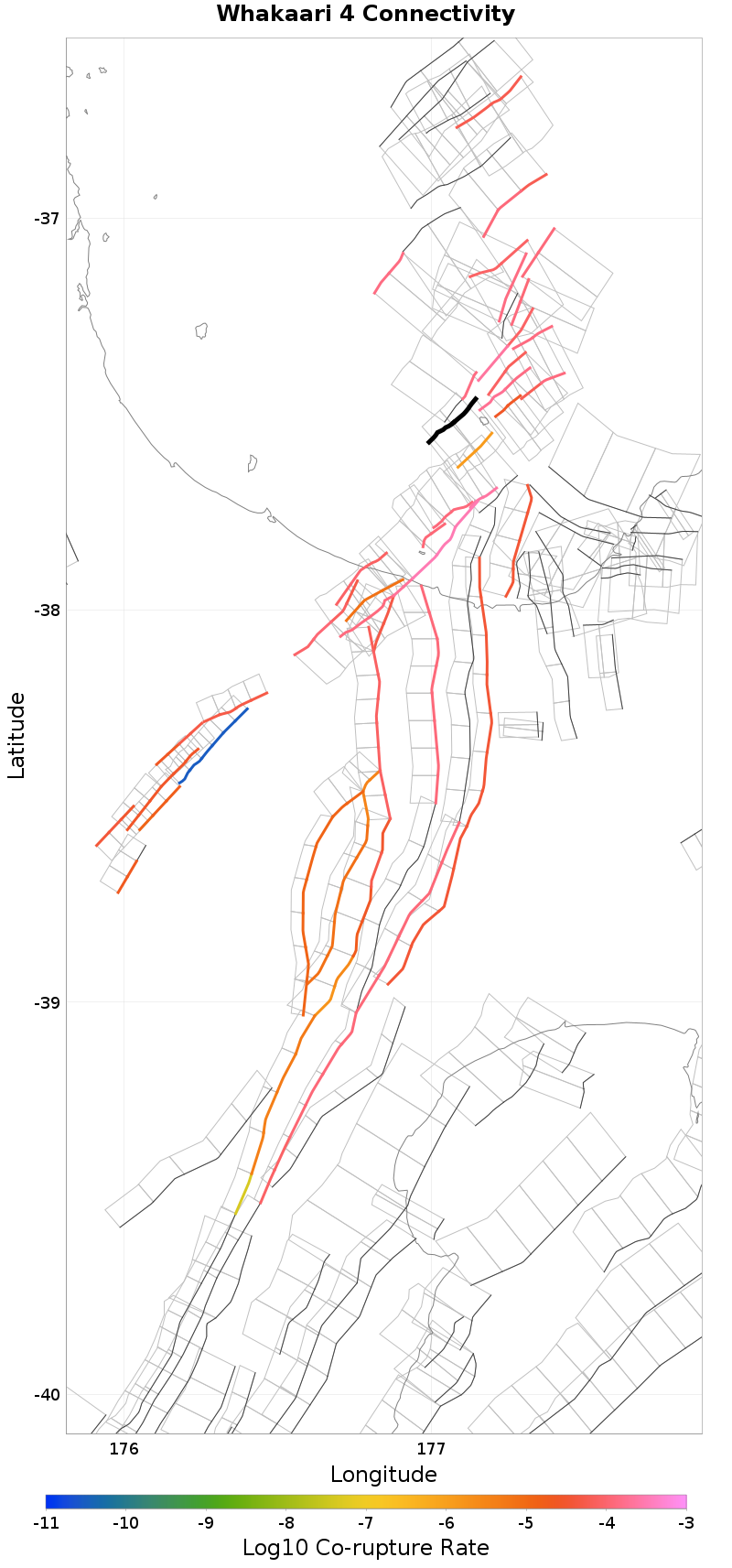

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.14 km awayWaimanawa - Waikaremoana, 7.01 km away
Calypso 2, 0.2 km awayOpotiki 3, 8.08 km away
Rangitaiki 2, 0.45 km awayRangitaiki 1, 10.86 km away
White Island 2, 0.45 km awayTuatoru 2, 11.04 km away
White Island 1, 1.52 km awayTe Arawa 3, 14.7 km away
Volkner 3, 1.58 km awayWaimana: North, 15.48 km away
Te Arawa 1, 2.25 km awayHariki, 17.21 km away
Te Arawa 2, 3.86 km awayOhae 1, 17.38 km away
Volkner 4, 5.31 km awayOtara West 1, 18.82 km away
Tuatoru 1, 5.84 km away

Ohiwa 1, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count7,637
Co-rupture Rate2.3749744E-4

Calypso 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count473
Co-rupture Rate1.2222296E-6

Rangitaiki 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count5,357
Co-rupture Rate1.2271047E-4

White Island 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count706
Co-rupture Rate0.0

White Island 1, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count14,004
Co-rupture Rate3.1445659E-4

Volkner 3, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count901
Co-rupture Rate1.384128E-4

Te Arawa 1, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count5,590
Co-rupture Rate1.7953527E-4

Te Arawa 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count3,878
Co-rupture Rate8.144314E-5

Volkner 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count2,968
Co-rupture Rate2.2340551E-4

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?true
Co-rupture Count1,755
Co-rupture Rate2.4728257E-5

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count267
Co-rupture Rate3.597578E-5

Rangitaiki 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,392
Co-rupture Rate1.1370064E-4

Tuatoru 2, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count5,955
Co-rupture Rate1.2828172E-4

Te Arawa 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count1,325
Co-rupture Rate1.3195148E-4

Waimana: North, 15.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 17.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?true
Directly Connected?false
Co-rupture Count236
Co-rupture Rate0.0

Ohae 1, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 18.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMDZkU3Nt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
