Awakeri Details

PropertyValue
Rupture Count6,150
Ruptures Above Sect Min Mag6,150
Ruptures w/ Nonzero Rates13
Magnitude Range[6.66, 8.00]
Length Range[17, 297] km
Total Rate6.776697E-5 /yr
Multi-Fault Rate6.776697E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults50

Table Of Contents

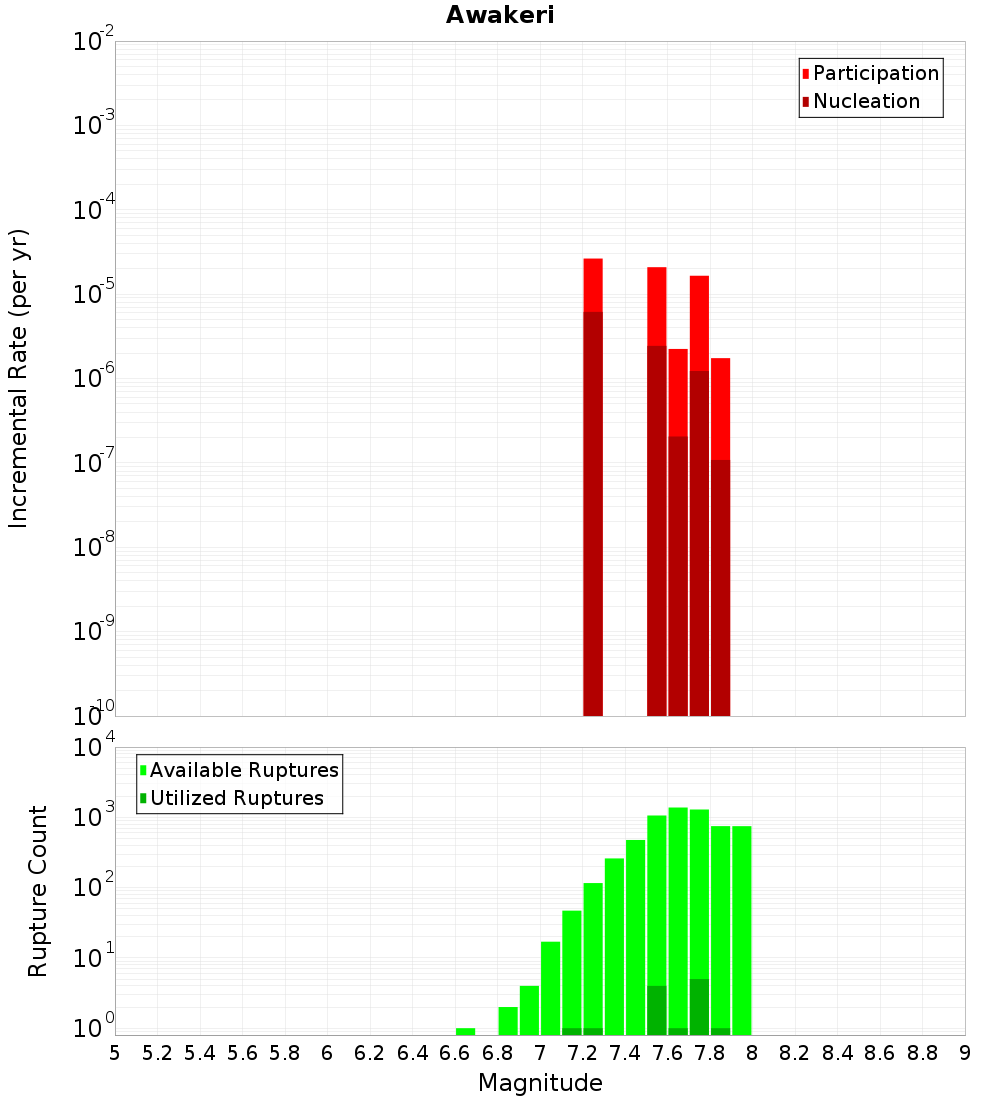

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

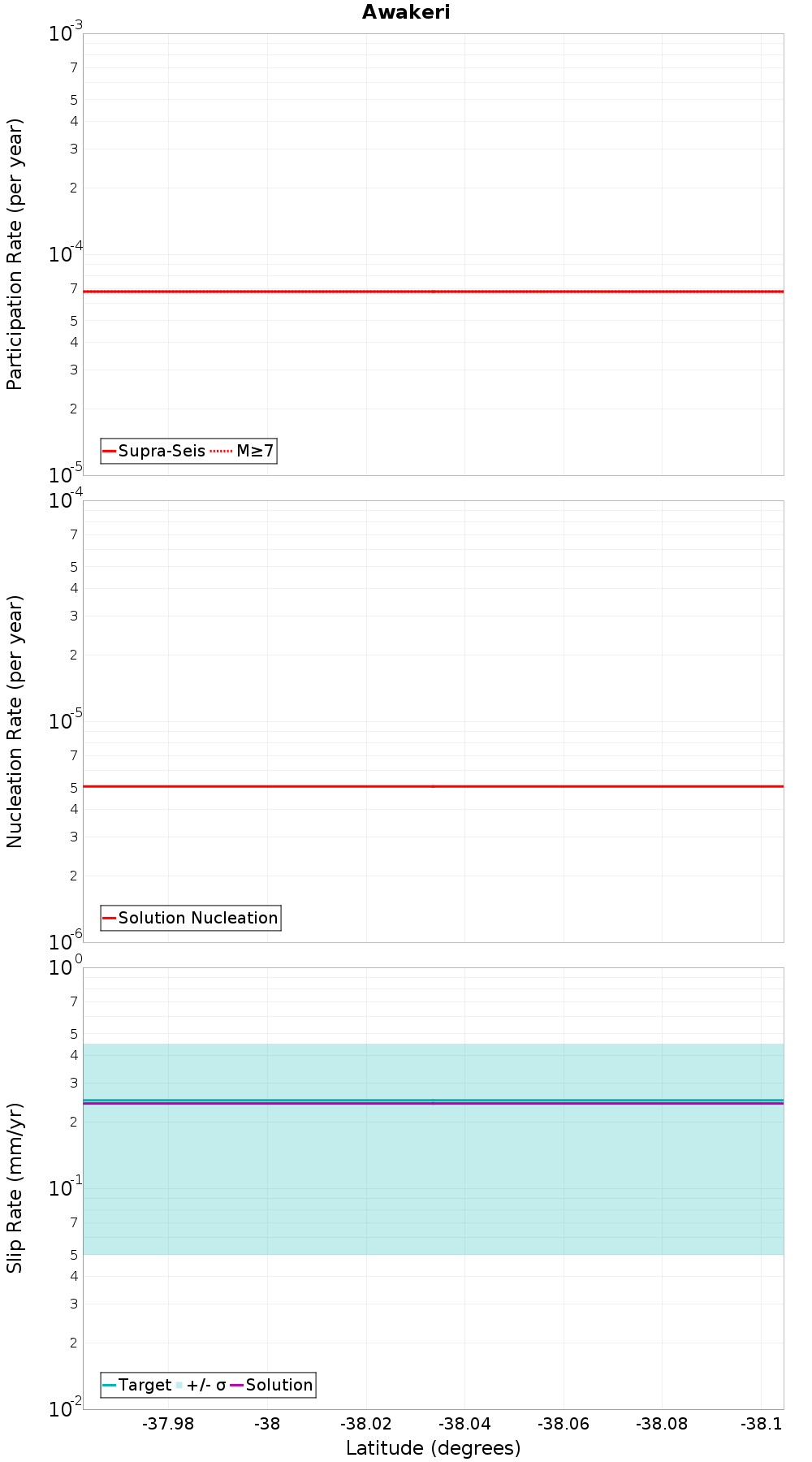

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

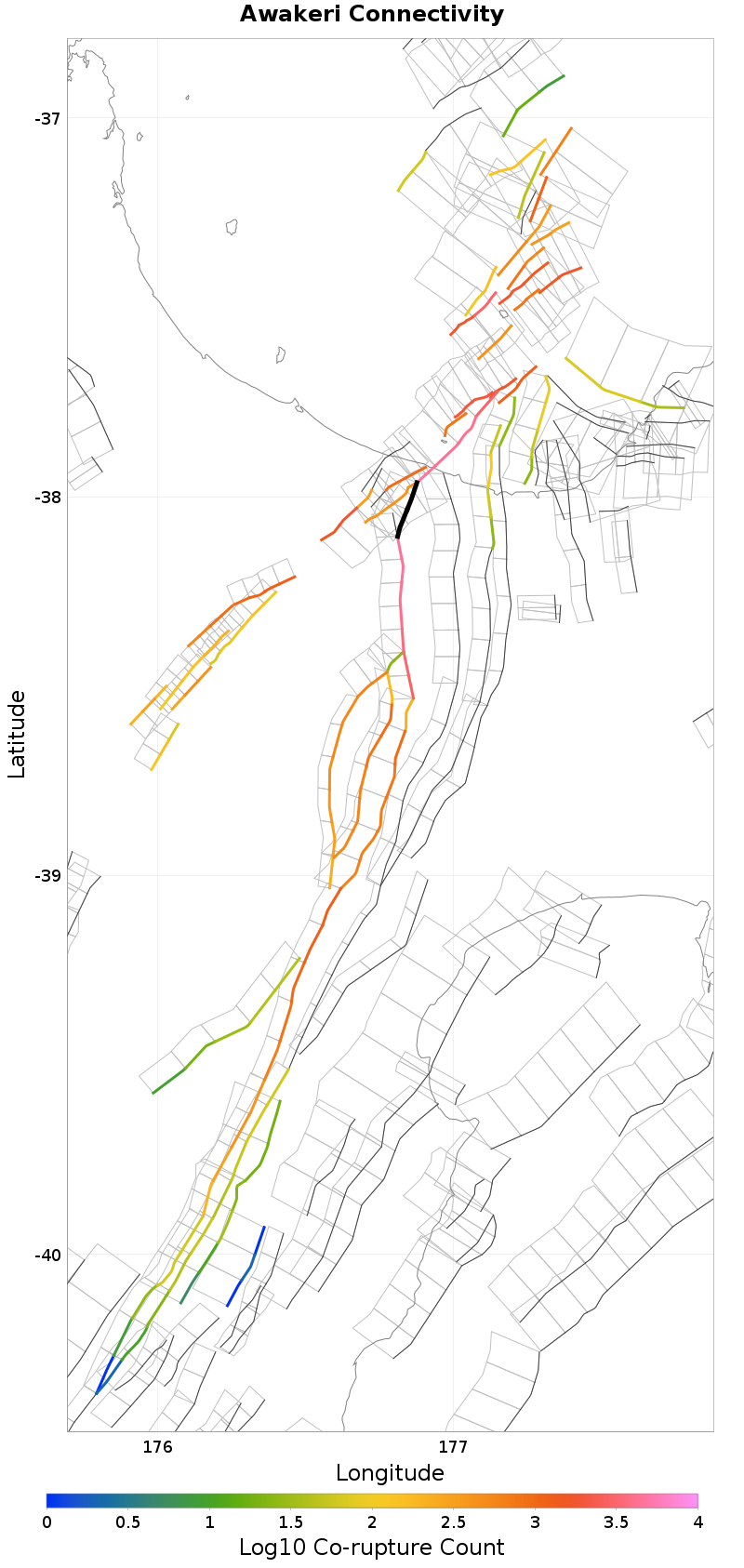

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate2.640789E-5

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?true
Co-rupture Count4,740
Co-rupture Rate6.776696E-5

Braemar, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?true
Co-rupture Count1,784
Co-rupture Rate4.2013384E-5

Otakiri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?true
Co-rupture Count969
Co-rupture Rate0.0

Waiohau: North, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?true
Co-rupture Count4,557
Co-rupture Rate1.4000982E-5

Matata, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?false
Co-rupture Count4,234
Co-rupture Rate8.243807E-6

Whakatane: North, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MDcuMExHNXcz
Connected?true
Directly Connected?false
Co-rupture Count799
Co-rupture Rate3.3115262E-5
