Kaikoura - Mangamaunu Details

PropertyValue
Rupture Count4,517
Ruptures Above Sect Min Mag4,510
Ruptures w/ Nonzero Rates17
Magnitude Range[6.54, 8.54]
Length Range[13, 889] km
Total Rate1.2995796E-4 /yr
Multi-Fault Rate1.2995796E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

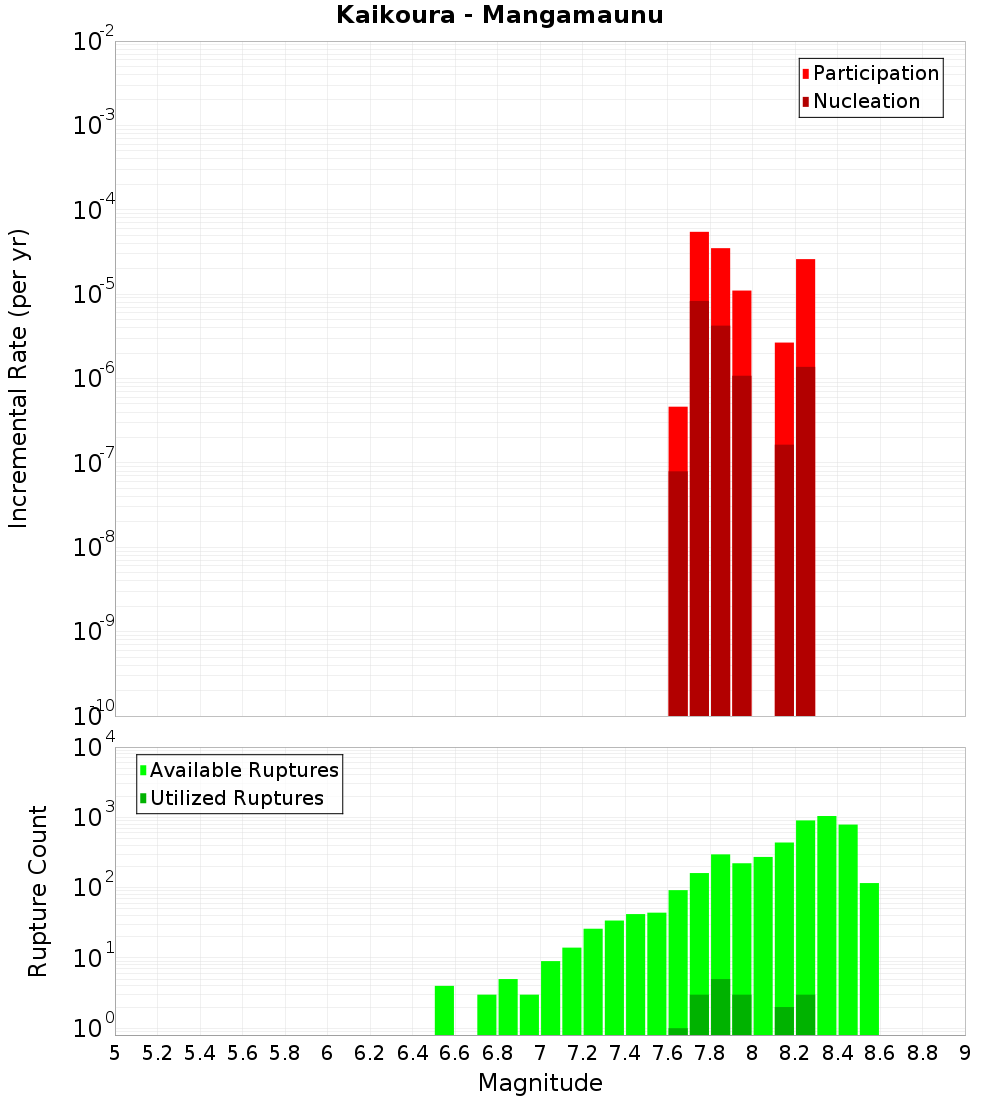

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Seaward, 1.03 km away
Jordan, 2.75 km away
Hope: Conway, 3.18 km away
Papatea, 4.97 km away
Upper Slope, 6.47 km away
Kekerengu Bank, 7.75 km away
Hope: Te Rapa, 8.9 km away
Marlborough Slope 2, 11.74 km away
Marlborough Slope 4, 13.21 km away
Hundalee, 17.62 km away

Hope: Seaward, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count1,628
Co-rupture Rate0.0

Jordan, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Hope: Conway, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count4,444
Co-rupture Rate1.2995796E-4

Papatea, 4.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

Hope: Te Rapa, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 2, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate0.0

Marlborough Slope 4, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 17.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate5.5221197E-5
