Patoka - Rangiora Details

Property	Value
Rupture Count	4,228
Ruptures Above Sect Min Mag	4,225
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.91, 8.34]
Length Range	[22, 601] km
Total Rate	6.908151E-4 /yr
Multi-Fault Rate	5.485724E-4 /yr (79.41%)
Directly-Connected Faults	4
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

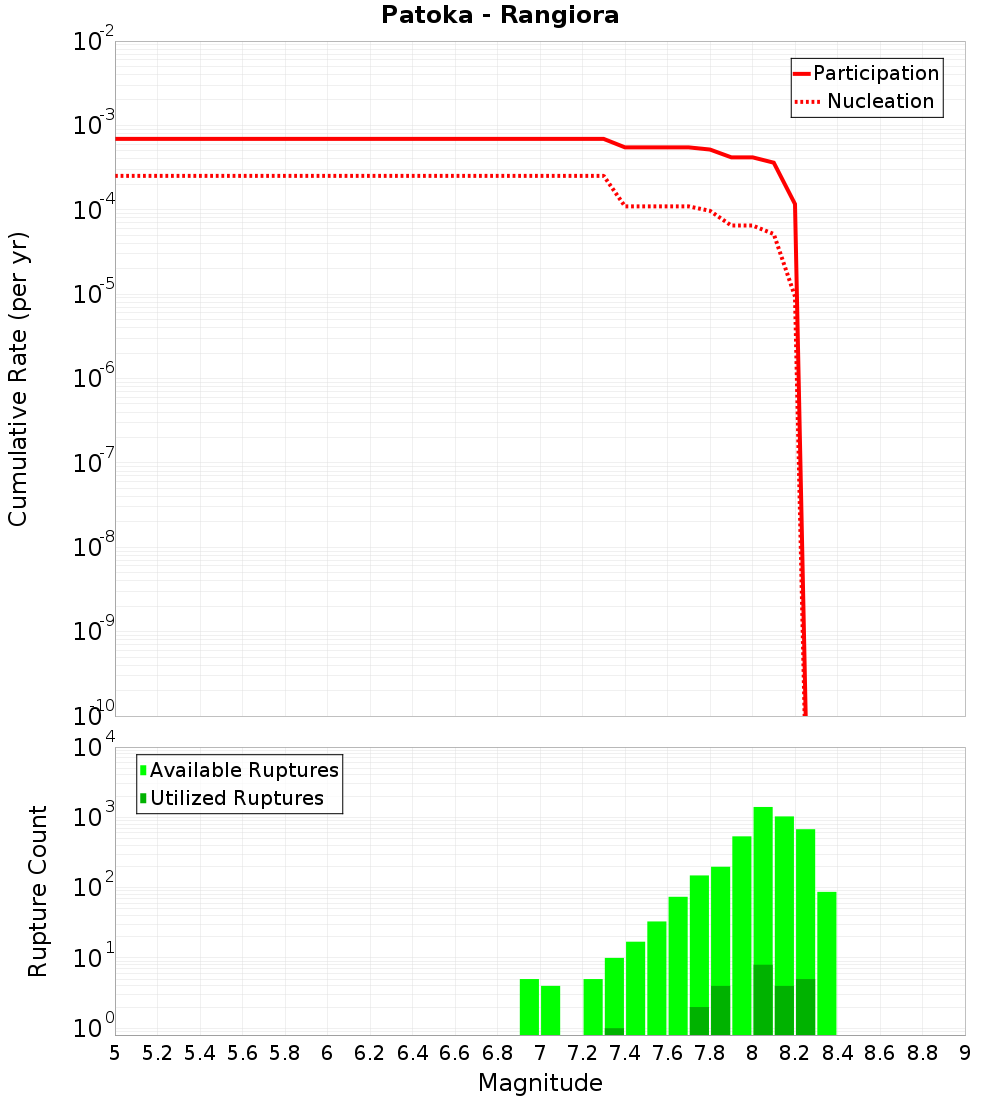

Magnitude-Frequency Distribution

Incremental	Cumulative

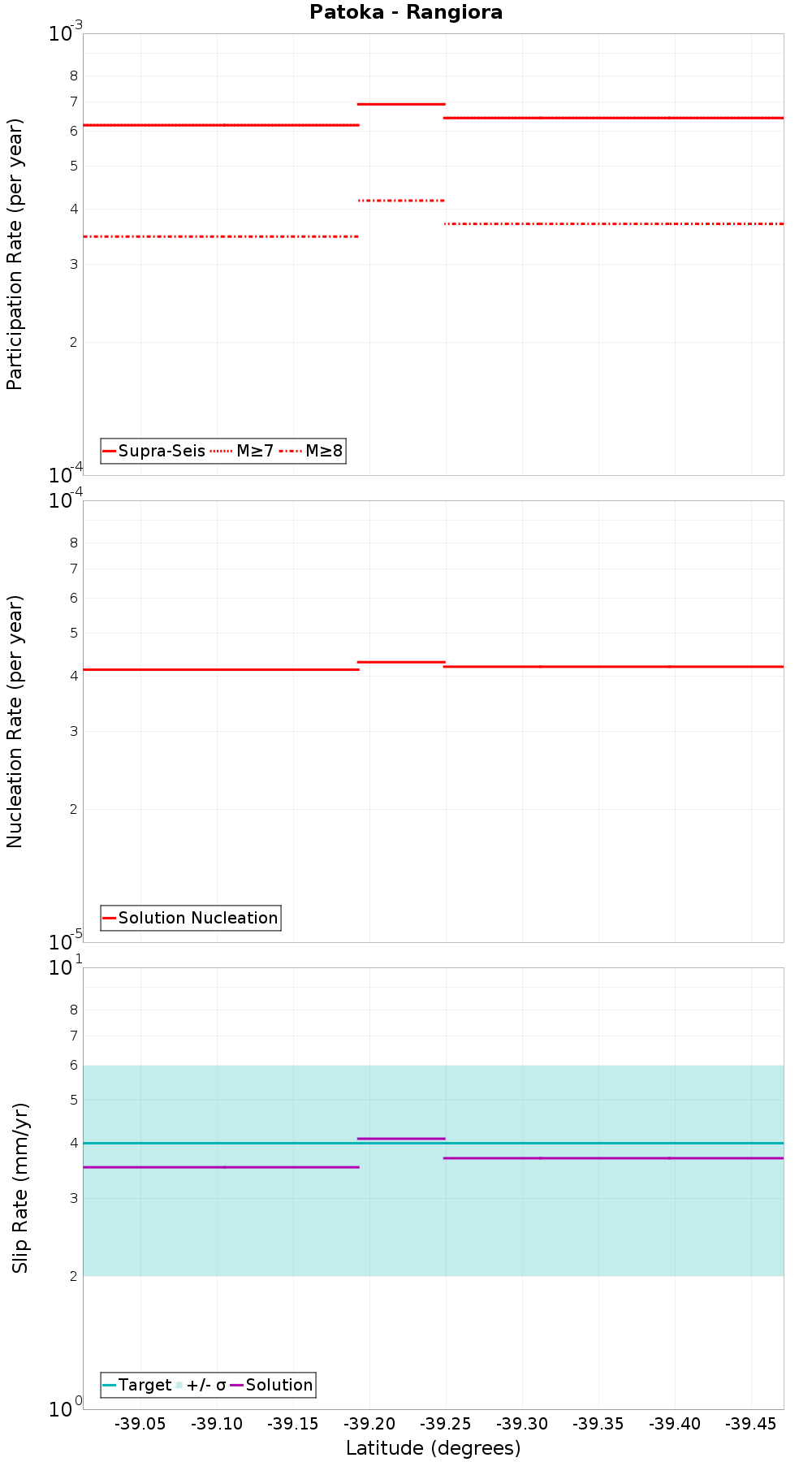

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mohaka: North, 0.41 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.72 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Hawke Bay 1, 12.96 km away
Wakarara, 14.99 km away
Kaweka, 15.89 km away
Te Heka, 17.57 km away
Waiohau: South, 19.65 km away

Mohaka: North, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	true
Co-rupture Count	793
Co-rupture Rate	1.3540461E-4

Awanui, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	true
Co-rupture Count	857
Co-rupture Rate	1.1909682E-4

Mohaka: South, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,492
Co-rupture Rate	4.8882794E-4

Ruahine: North, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0

Waiotahi: South, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	8.771122E-5

Waimana: South, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	44
Co-rupture Rate	0.0

Whakatane: South, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Ruahine: Central, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Hawke Bay 1, 12.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	true
Co-rupture Count	42
Co-rupture Rate	3.9844147E-10

Wakarara, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	193
Co-rupture Rate	7.398441E-6

Kaweka, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 17.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	84
Co-rupture Rate	0.0

Waiohau: South, 19.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0
