Waipukaka Details

Property	Value
Rupture Count	117
Ruptures Above Sect Min Mag	114
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.59, 8.17]
Length Range	[14, 437] km
Total Rate	1.2304536E-4 /yr
Multi-Fault Rate	1.2304536E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

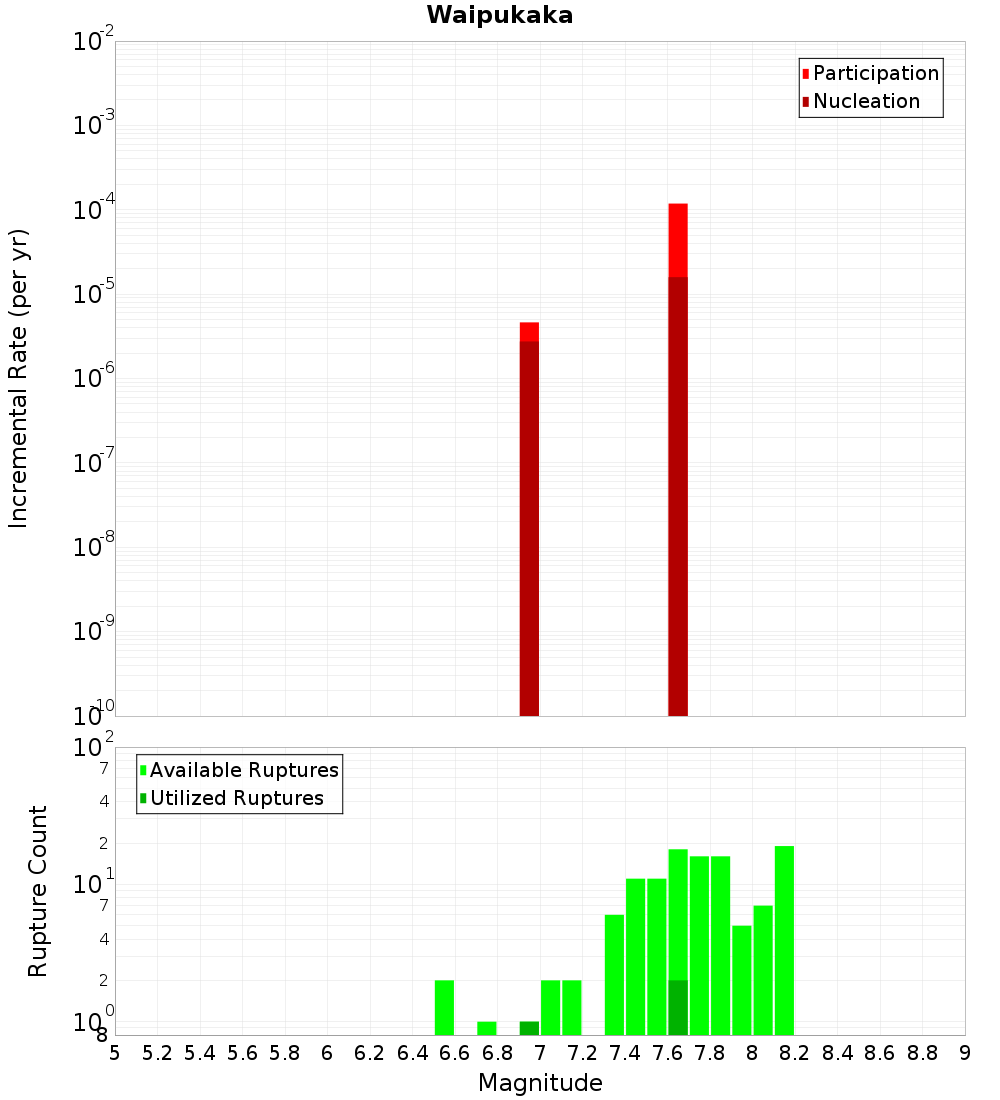

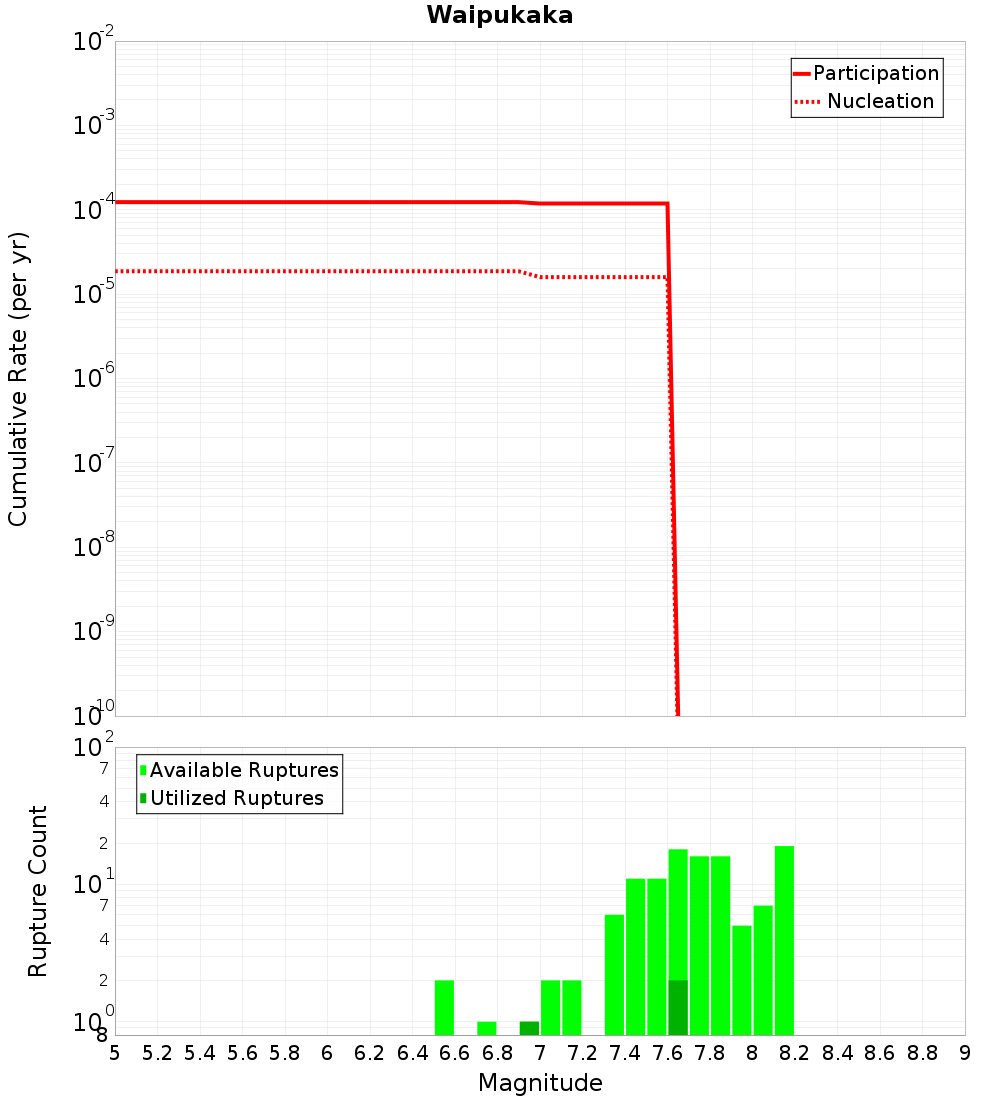

Magnitude-Frequency Distribution

Incremental	Cumulative

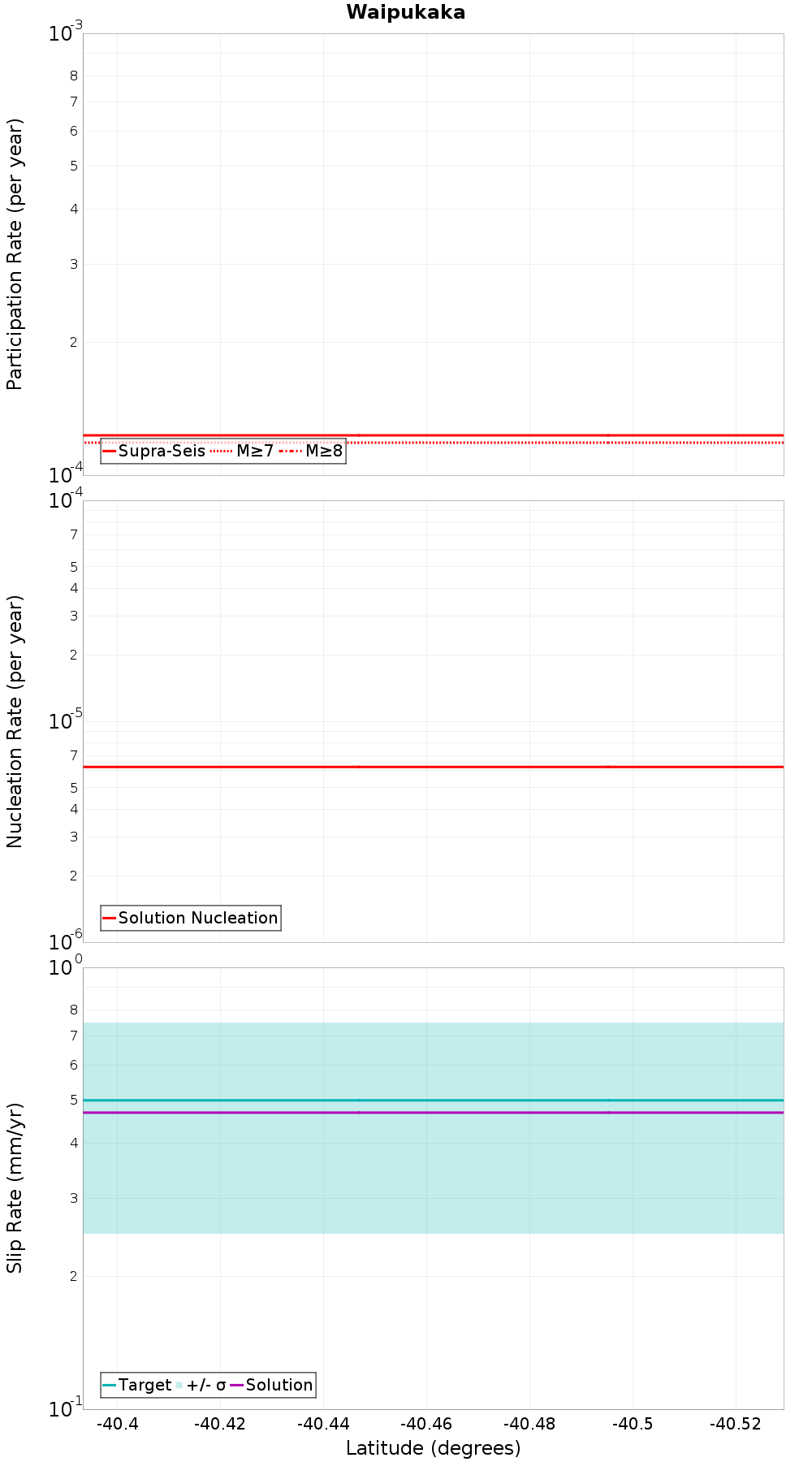

Along-Strike Values

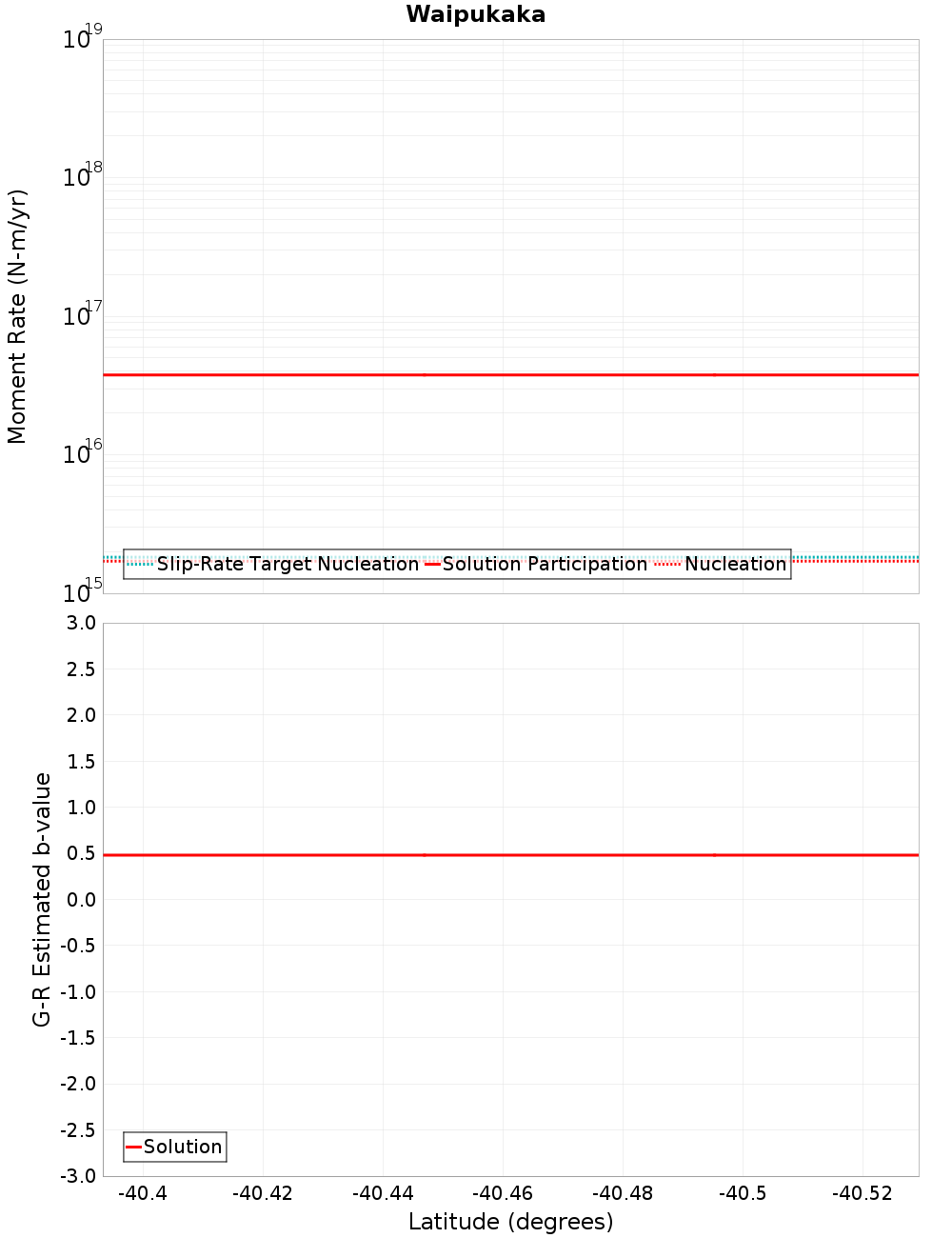

Moment-Rates and b-Values

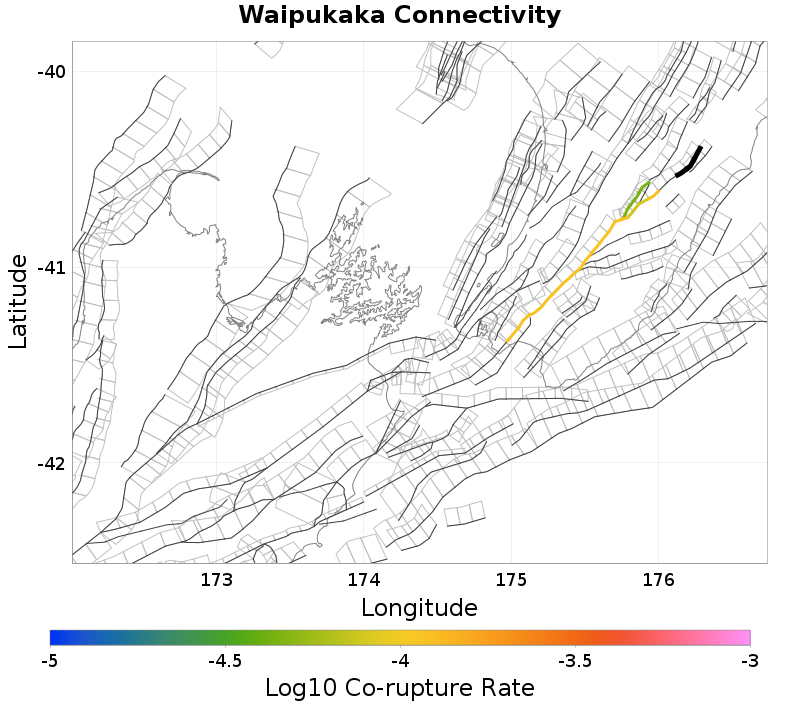

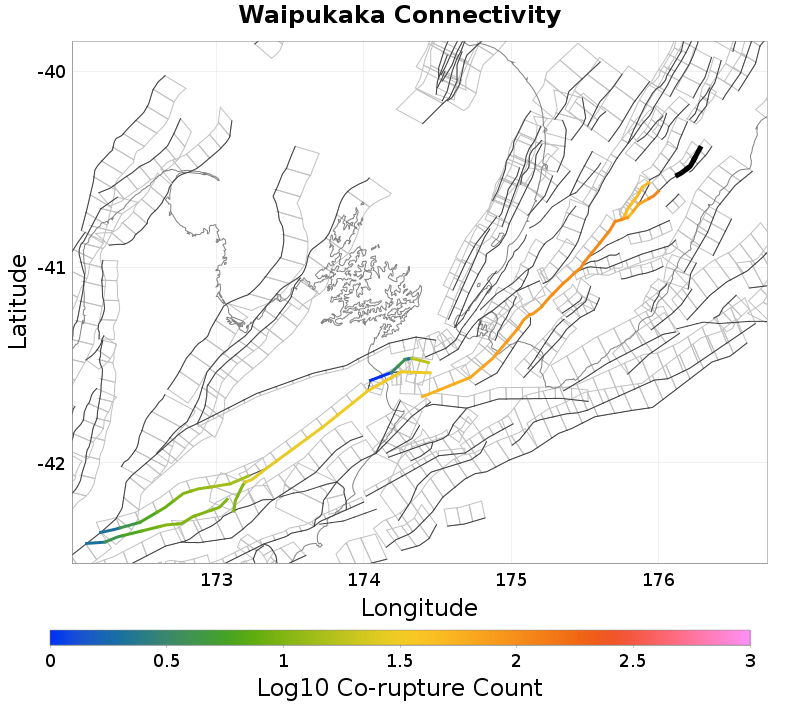

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0.29 km away
Pongaroa - Weber, 2.27 km away
Makuri - Waewaepa, 8.28 km away
Clear Hills - Waikopiro, 10.24 km away
Waitawhiti, 10.86 km away
Waewaepa, 10.91 km away
Oruawharo - Mangatoro, 12.74 km away
Mataikona, 15.32 km away
Pa Valley, 15.6 km away
Alfredton North, 15.91 km away
Maunga, 19.61 km away

Saunders Road, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	true
Co-rupture Count	114
Co-rupture Rate	1.2304536E-4

Pongaroa - Weber, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 8.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 10.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitawhiti, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona, 15.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 15.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	4.4290442E-5

Alfredton North, 15.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 19.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
