Woodville Details

PropertyValue
Rupture Count151
Ruptures Above Sect Min Mag151
Ruptures w/ Nonzero Rates6
Magnitude Range[6.86, 8.09]
Length Range[21, 322] km
Total Rate1.2081464E-4 /yr
Multi-Fault Rate1.4581273E-6 /yr (1.21%)
Directly-Connected Faults2
All Co-Rupturing Faults25

Table Of Contents

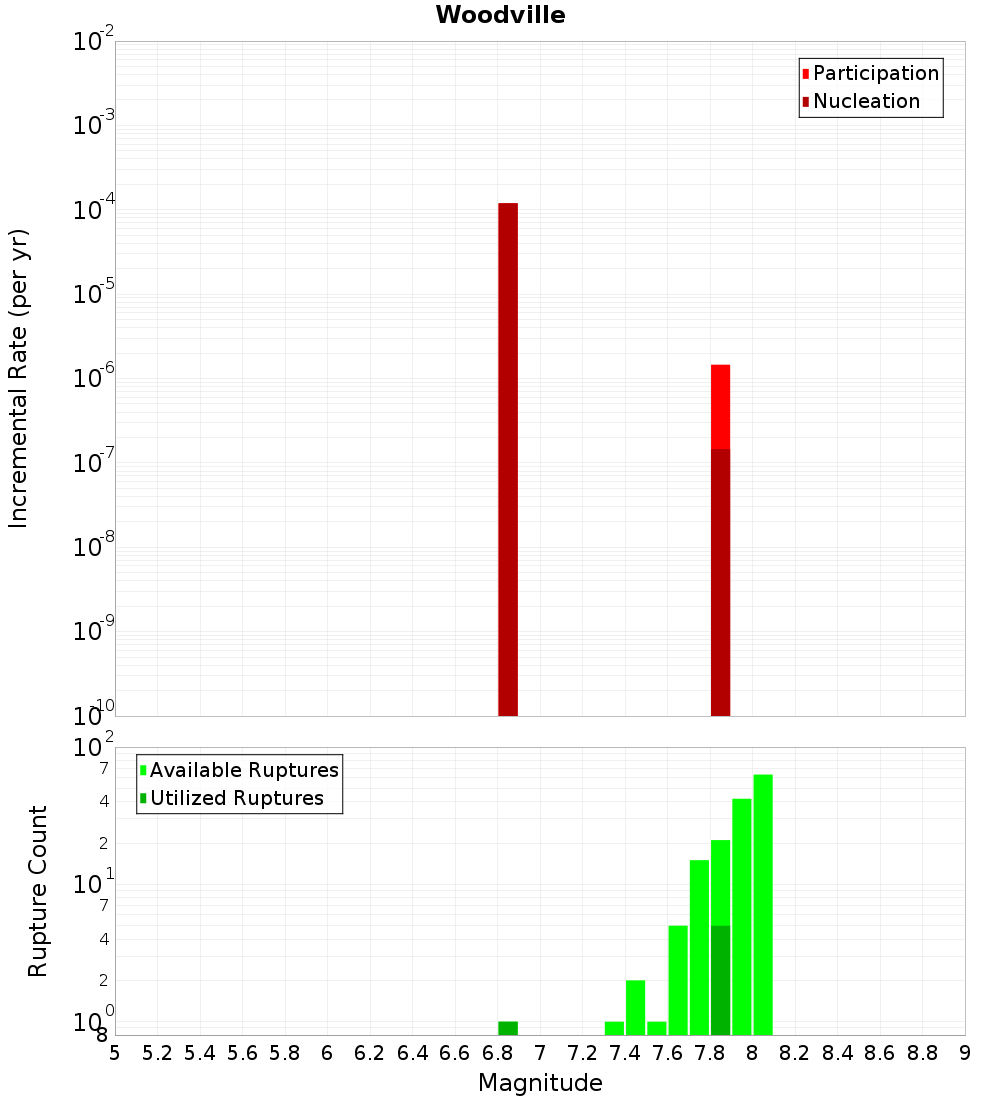

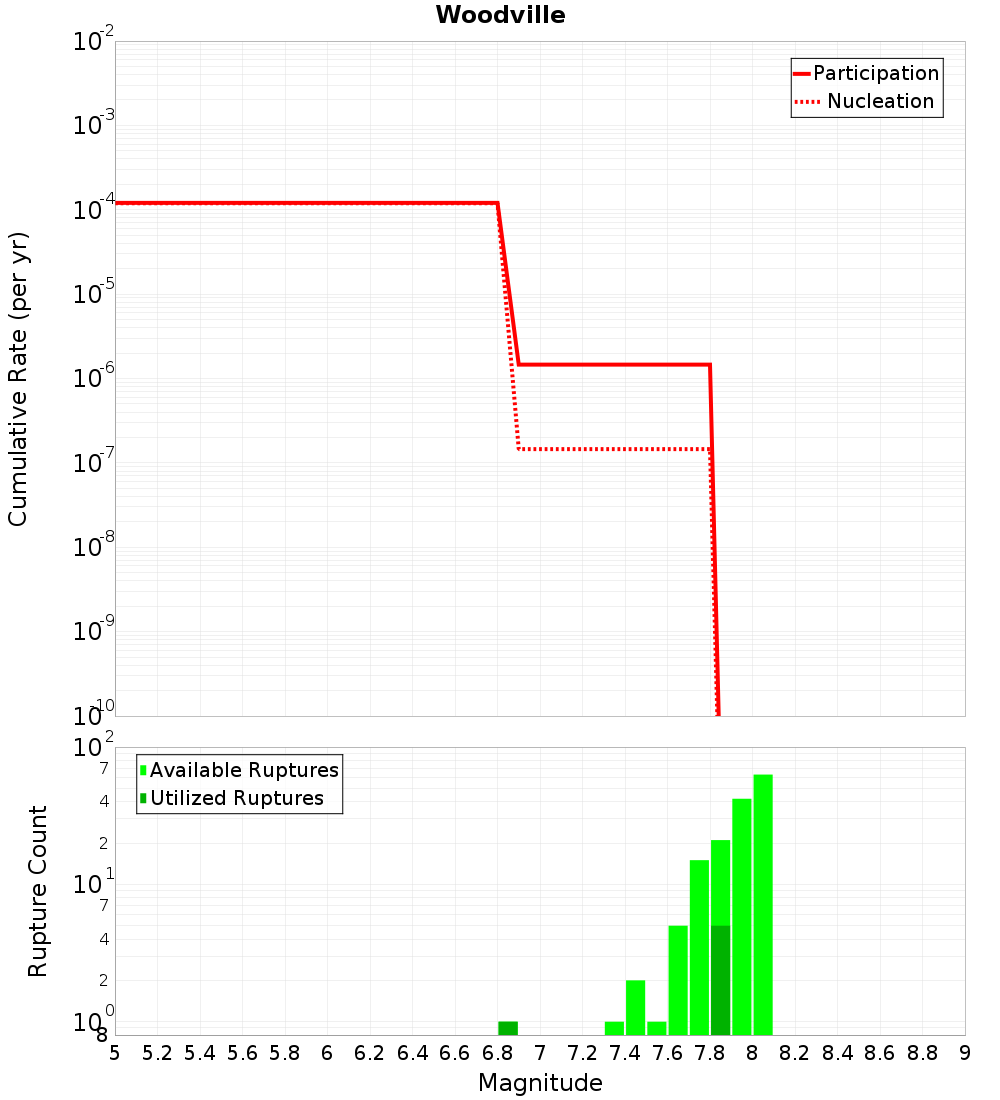

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

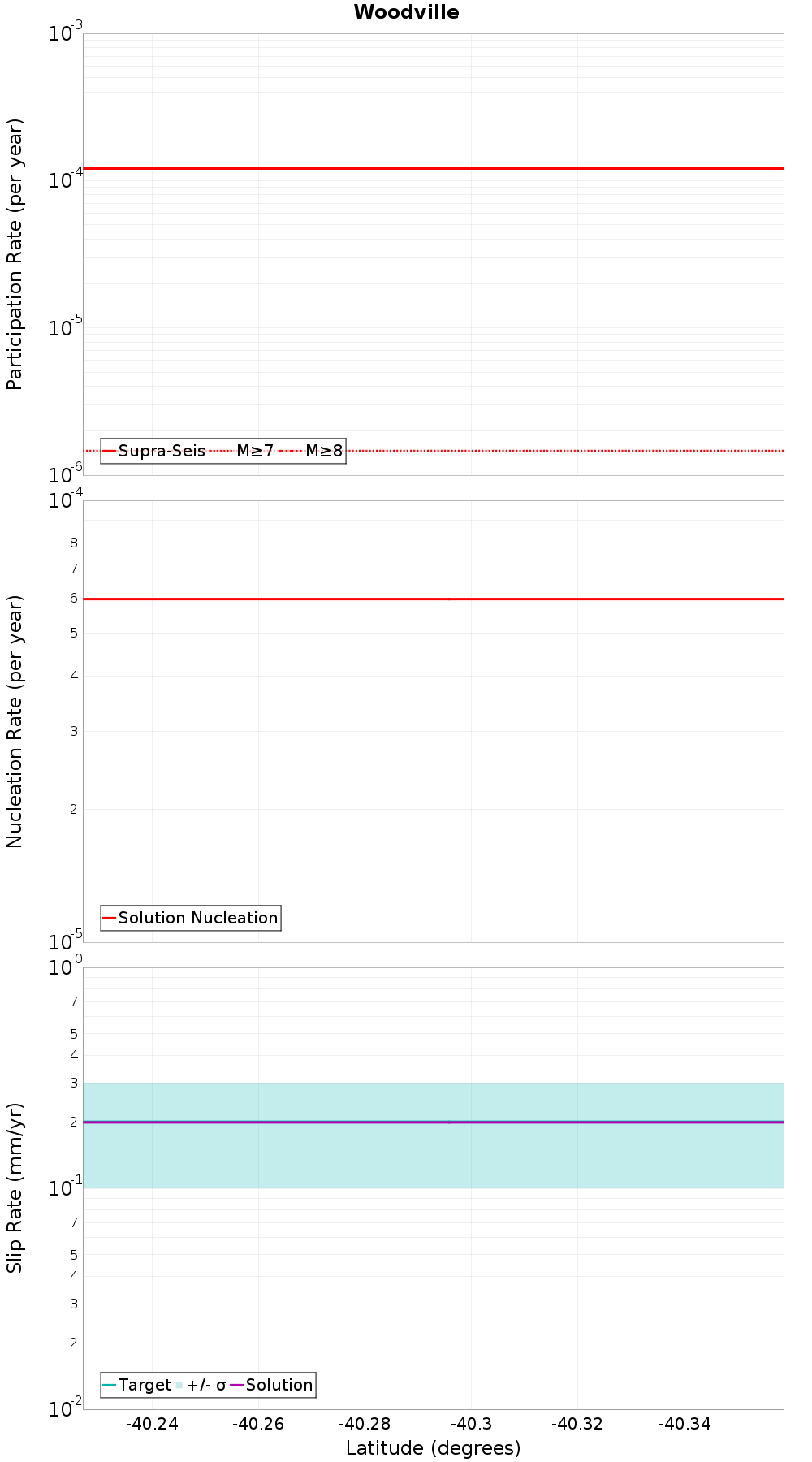

Along-Strike Values

(top)

Along-strike plot

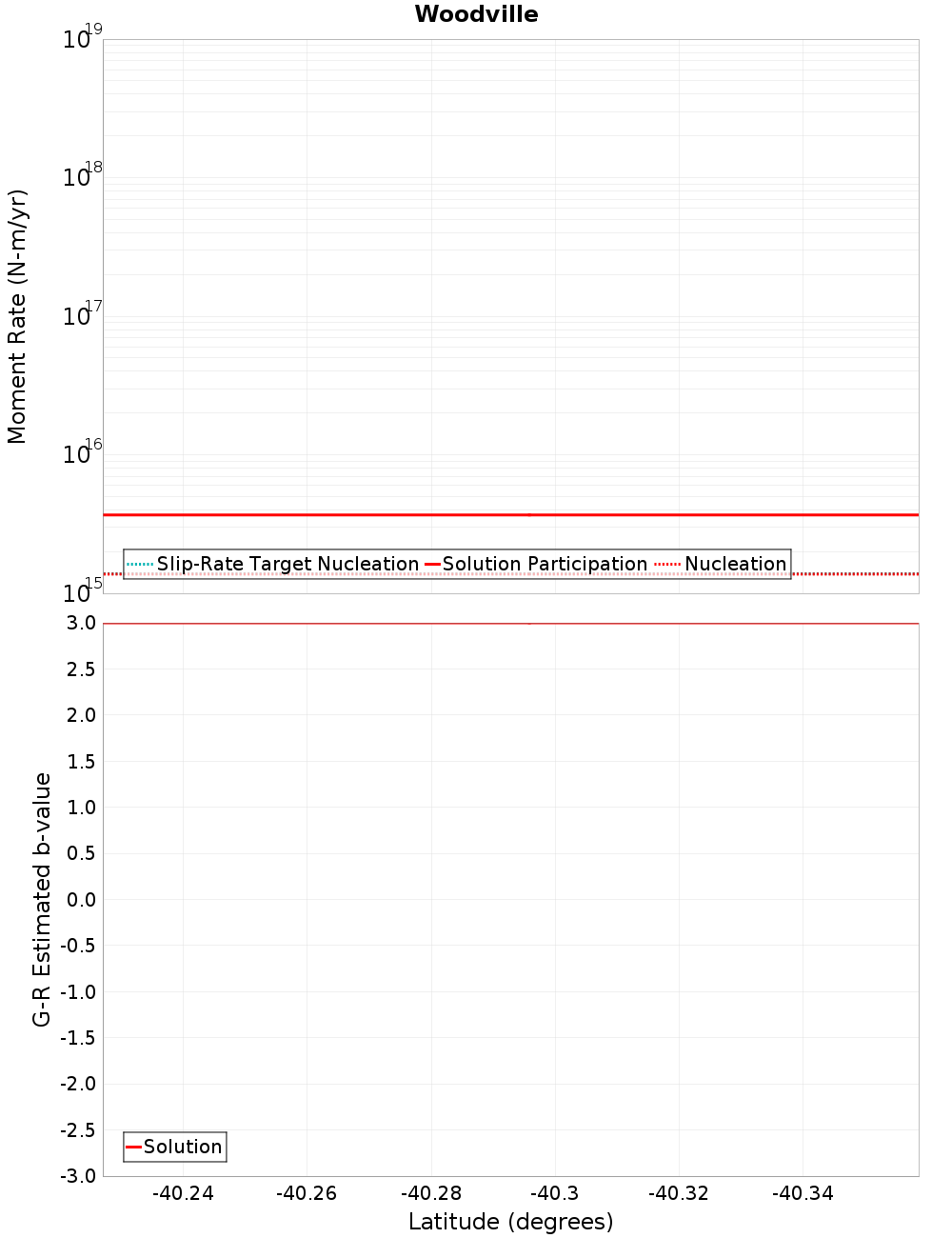

Moment-Rates and b-Values

(top)

Along-strike plot

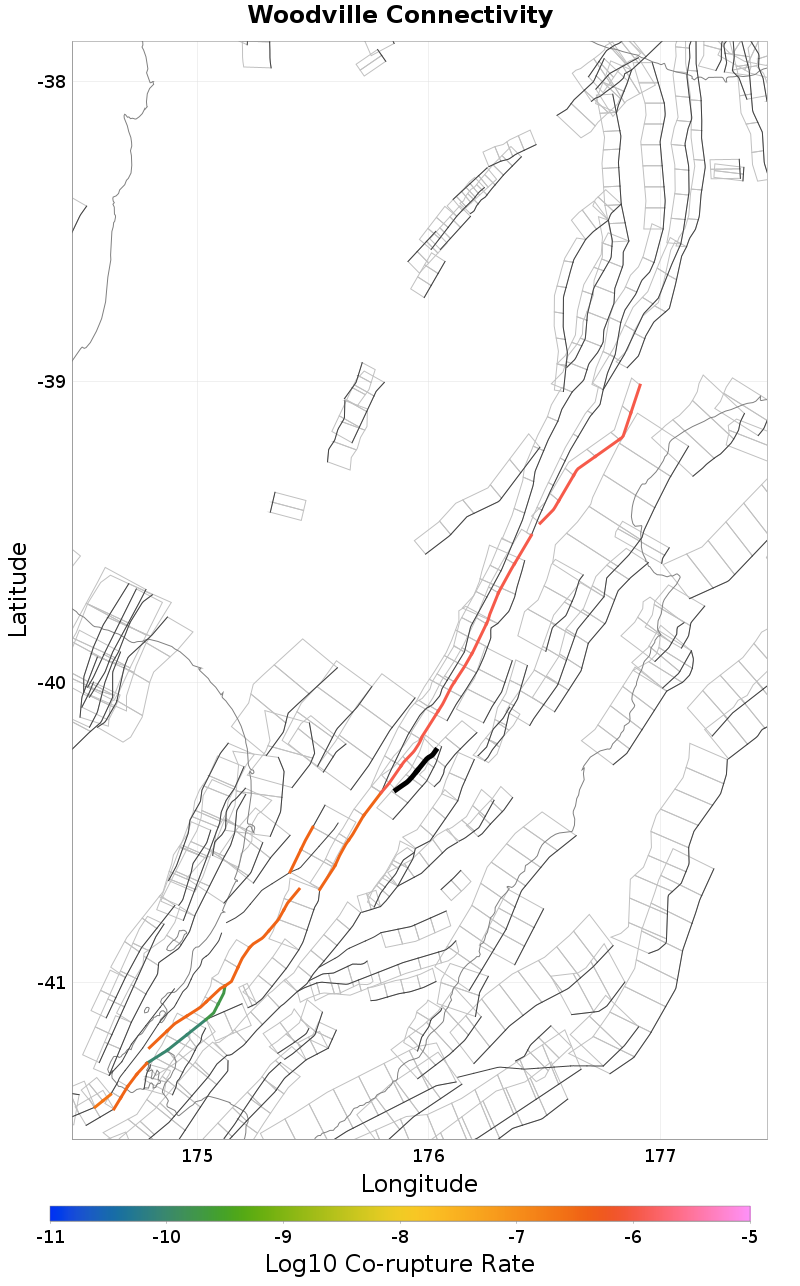

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0.4 km away
Pahiatua, 1.01 km away
Ruahine: South, 1.31 km away
Wellington: Pahiatua, 5.06 km away
Maunga, 5.91 km away
Rangefront, 10.84 km away
Pohangina, 12.61 km away
Waewaepa, 13.08 km away
Clear Hills - Waikopiro, 15.61 km away
Ruataniwha, 16.07 km away
Makuri - Waewaepa, 17.43 km away
Oruawharo - Mangatoro, 17.77 km away
Tokomaru, 19.71 km away

Mohaka: South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count137
Co-rupture Rate1.0925312E-6

Pahiatua, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: South, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.655961E-7

Maunga, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangefront, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 13.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clear Hills - Waikopiro, 15.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruataniwha, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 17.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 17.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MTUuMHFvNGI2
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate3.655961E-7
