Te Arawa 1 Details

PropertyValue
Rupture Count9,167
Ruptures Above Sect Min Mag9,167
Ruptures w/ Nonzero Rates16
Magnitude Range[6.87, 8.00]
Length Range[19, 305] km
Total Rate4.3611444E-4 /yr
Multi-Fault Rate4.3611444E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults51

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

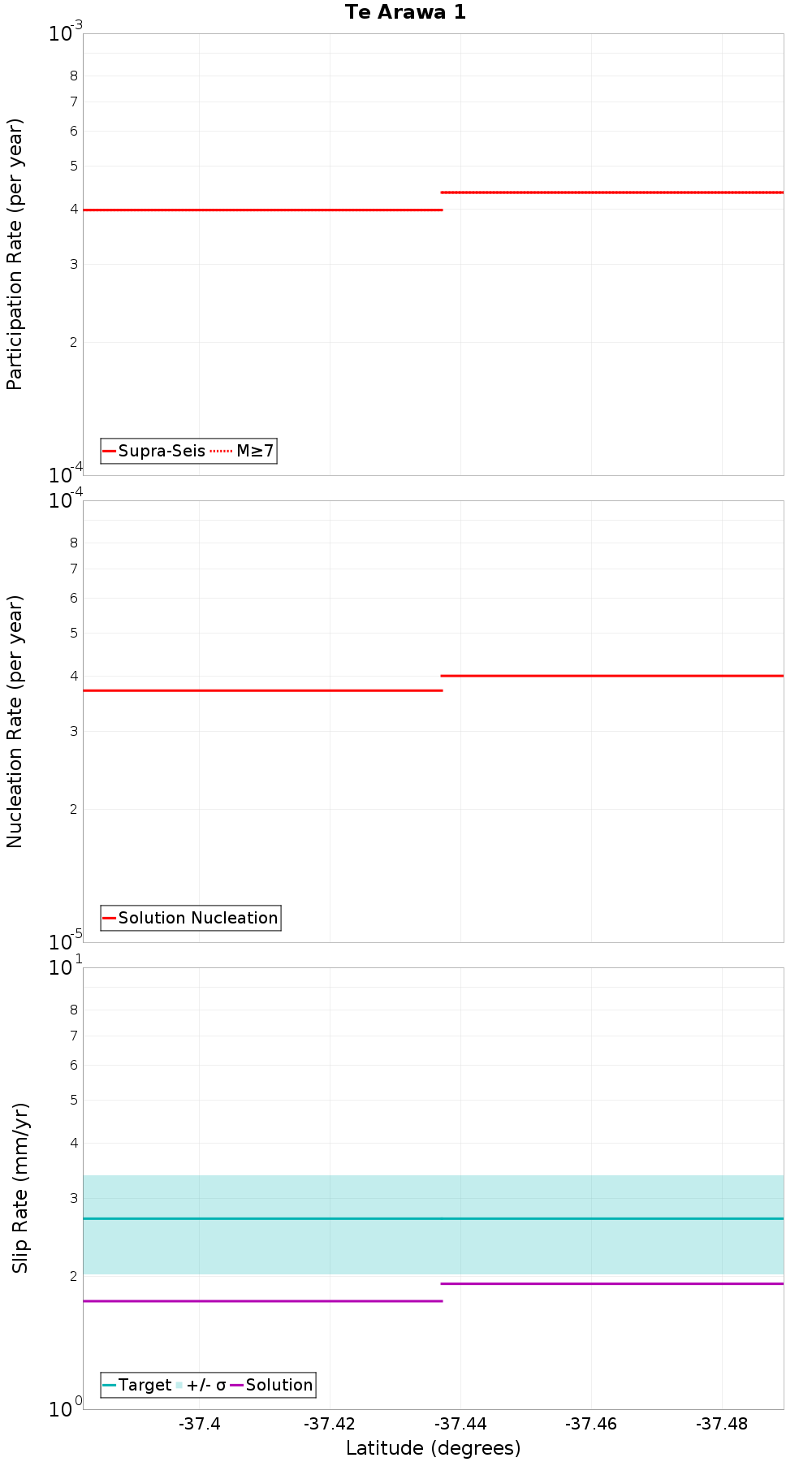

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuatoru 2, 0.34 km awayOpotiki 3, 7.5 km away
Te Arawa 2, 1.19 km awayOhiwa 1, 8.65 km away
Calypso 2, 1.54 km awayOtara West 1, 11.56 km away
Whakaari 4, 2.25 km awayOtara East 1, 11.84 km away
Hariki, 2.72 km awayOtara West 2, 15.92 km away
Tuatoru 1, 3.09 km awayRangitaiki 2, 16.46 km away
White Island 2, 3.53 km awayWaimanawa - Waikaremoana, 16.98 km away
Te Arawa 3, 5.29 km awayOhae 1, 17.93 km away
Volkner 3, 5.74 km awayWhite Island 1, 18.12 km away
Volkner 4, 6.45 km away

Tuatoru 2, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count3,561
Co-rupture Rate1.6211734E-4

Te Arawa 2, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.3608728E-5

Calypso 2, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count1,307
Co-rupture Rate1.516043E-4

Whakaari 4, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count5,590
Co-rupture Rate1.5471934E-4

Hariki, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count293
Co-rupture Rate1.6649473E-6

Tuatoru 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count3,570
Co-rupture Rate1.12939044E-4

Te Arawa 3, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count1,832
Co-rupture Rate2.4956703E-4

Volkner 3, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Opotiki 3, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?true
Co-rupture Count698
Co-rupture Rate5.489054E-5

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count2,375
Co-rupture Rate8.917975E-5

Otara West 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count2,734
Co-rupture Rate1.6211734E-4

Otara West 2, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count3,698
Co-rupture Rate1.6958002E-4

Waimanawa - Waikaremoana, 16.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

White Island 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHN0bnFo
Connected?true
Directly Connected?false
Co-rupture Count8,059
Co-rupture Rate1.10413705E-4
