Ohena 3 Details
| Property | Value |
|---|---|
| Rupture Count | 13 |
| Ruptures Above Sect Min Mag | 12 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.03, 7.46] |
| Length Range | [23, 67] km |
| Total Rate | 6.06783E-5 /yr |
| Multi-Fault Rate | 6.06783E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

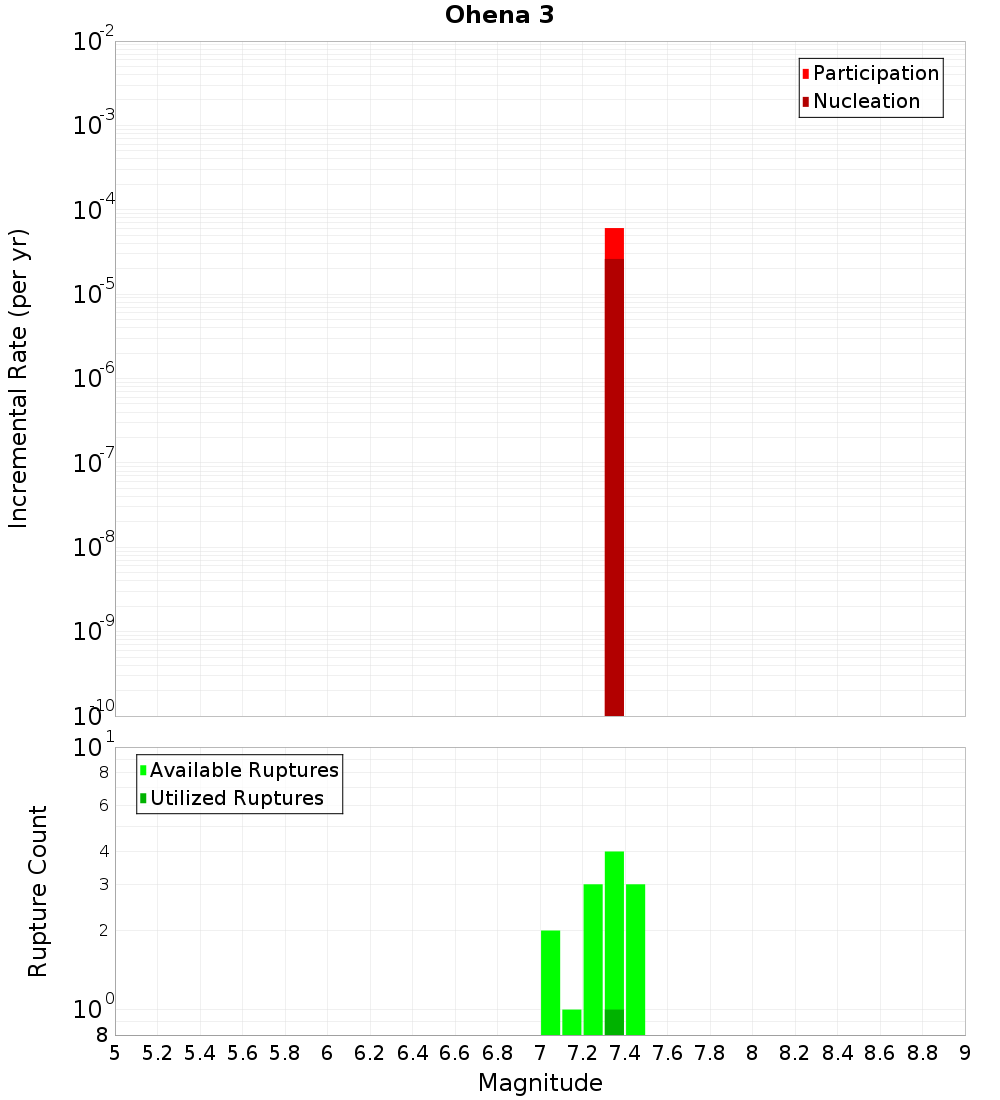

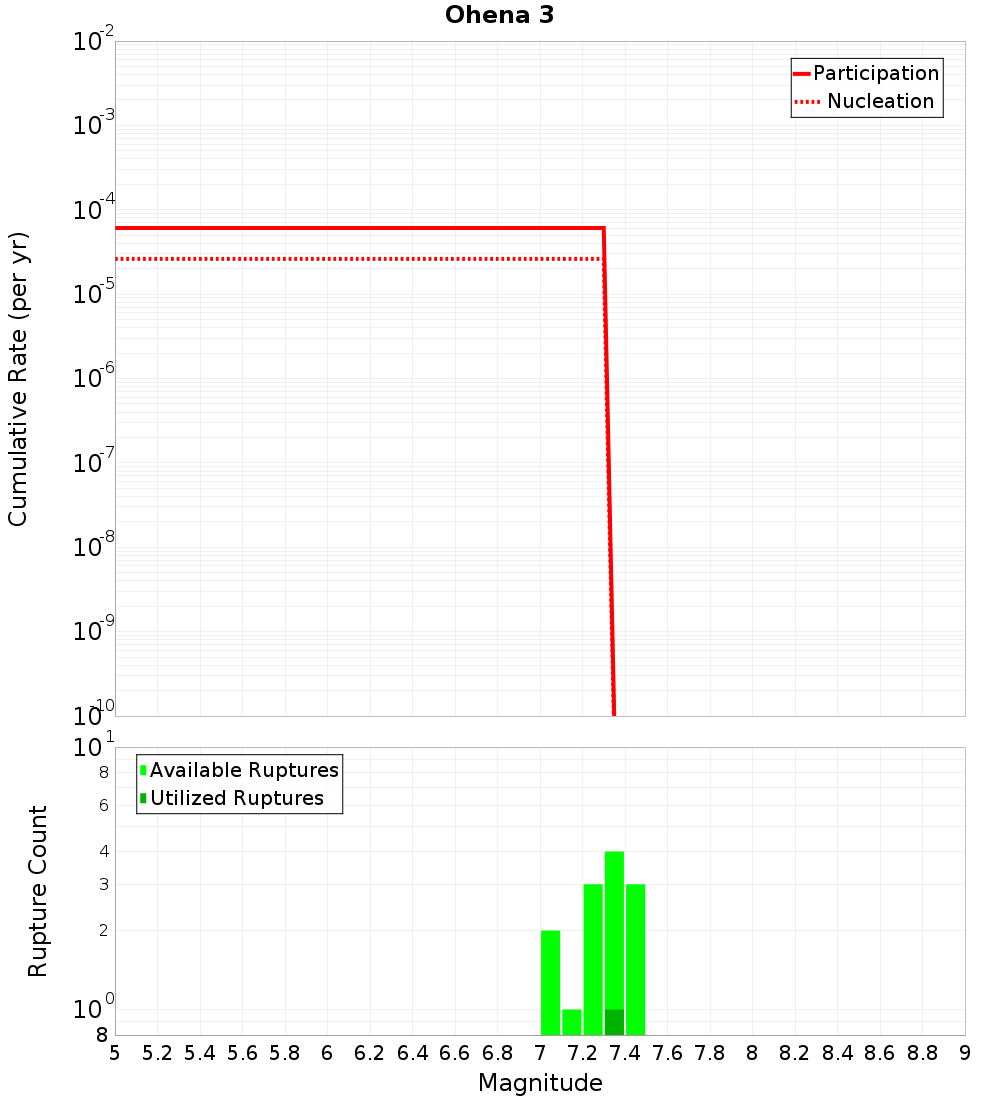

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

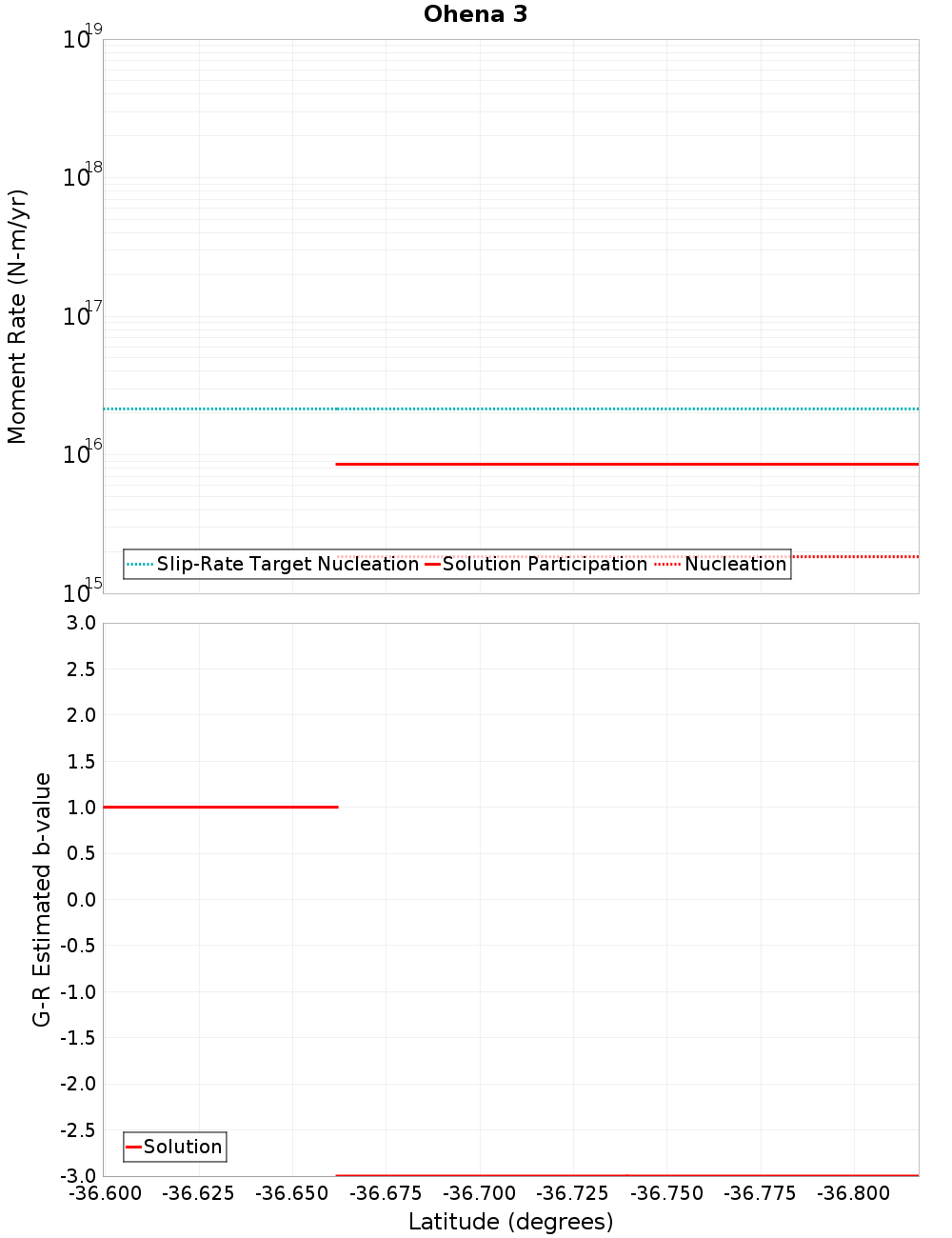

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Ngatoro South 5, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 6.06783E-5 |
Ohena 2, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Ohena 4, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Tauranga Trough East 2, 5.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ngatoro South 2, 9.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.06783E-5 |
Otara West 2, 13.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
