Pukerua - Shepherds Gully: 3 Details

PropertyValue
Rupture Count2,417
Ruptures Above Sect Min Mag2,415
Ruptures w/ Nonzero Rates17
Magnitude Range[6.78, 8.29]
Length Range[17, 505] km
Total Rate3.69195E-4 /yr
Multi-Fault Rate3.69195E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults49

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

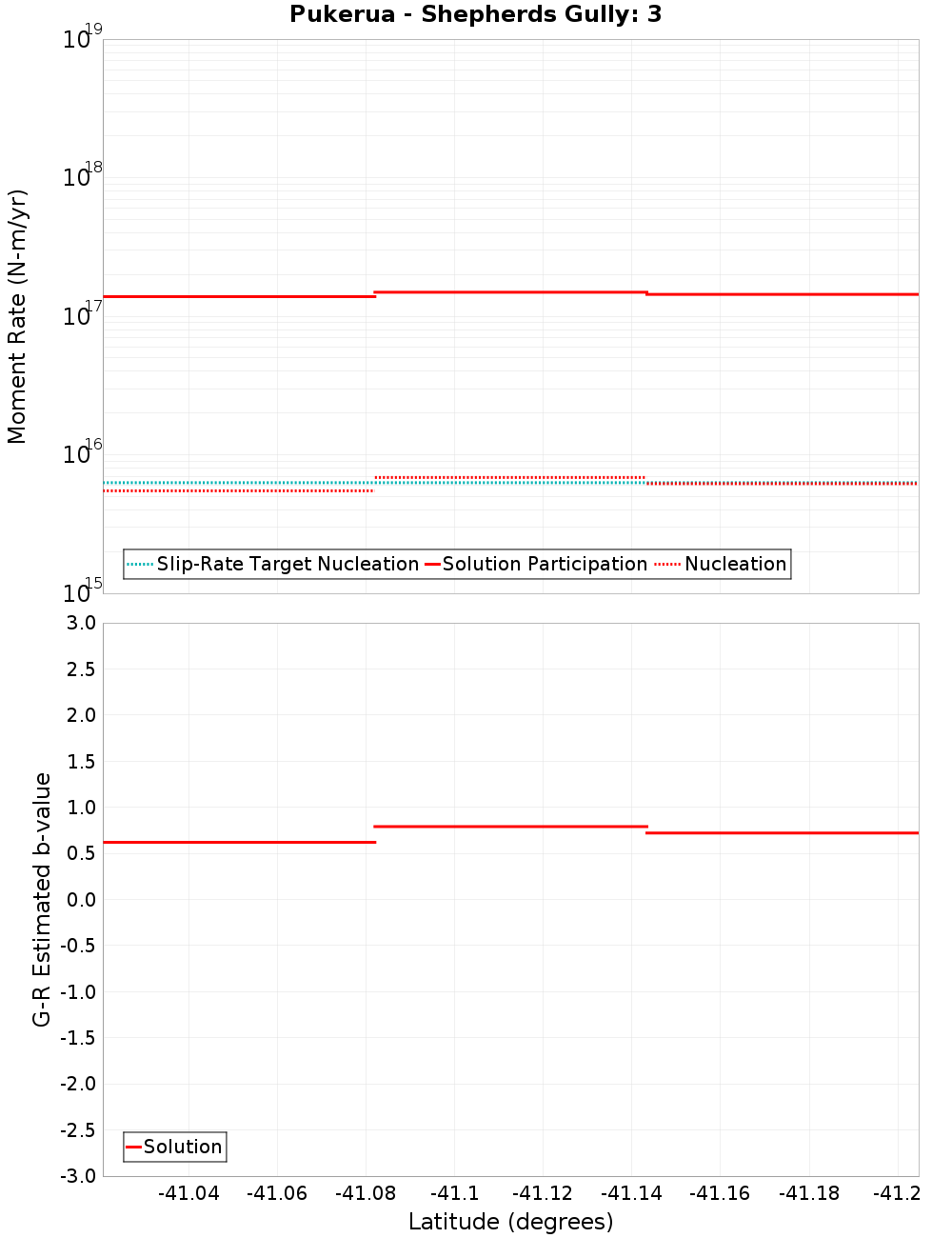

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pukerua - Shepherds Gully: 2, 0 km awayAotea - Evans Bay, 10.27 km away
Shepherds Gully - Mana, 3.11 km awayAkatarawa, 10.58 km away
Ohariu, 3.18 km awayFisherman 1, 13.16 km away
Otaheke South, 4.95 km awayWharekauhau, 13.66 km away
Moonshine, 5.97 km awayOtaki Forks: 1, 14.2 km away
Whitemans Valley, 6.29 km awayWellington Hutt Valley: 2, 14.41 km away
Pukerua - Shepherds Gully: 1, 7.39 km awayWellington Hutt Valley: 5, 16 km away
Okupe 1, 7.9 km awayFisherman 2, 16.71 km away
Wellington Hutt Valley: 3, 8.98 km awayOhariu South 2, 17.6 km away
Wellington Hutt Valley: 4, 8.98 km awayWellington Hutt Valley: 1, 19.99 km away

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?true
Co-rupture Count1,392
Co-rupture Rate1.3128457E-4

Shepherds Gully - Mana, 3.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Ohariu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?true
Co-rupture Count3,054
Co-rupture Rate2.4823388E-4

Otaheke South, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate1.5946912E-11

Whitemans Valley, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count786
Co-rupture Rate7.231264E-5

Okupe 1, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?true
Co-rupture Count298
Co-rupture Rate2.2078892E-4

Wellington Hutt Valley: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count162
Co-rupture Rate4.1393418E-5

Wellington Hutt Valley: 4, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Akatarawa, 10.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 1, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate1.8360467E-4

Wharekauhau, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate0.0

Otaki Forks: 1, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 14.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count271
Co-rupture Rate4.13934E-5

Wellington Hutt Valley: 5, 16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 16.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count483
Co-rupture Rate4.13934E-5

Wellington Hutt Valley: 1, 19.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjQuMHRCZkJ2
Connected?true
Directly Connected?false
Co-rupture Count267
Co-rupture Rate4.1144693E-5
