Alpine: Nancy Details

PropertyValue
Rupture Count30,067
Ruptures Above Sect Min Mag30,066
Ruptures w/ Nonzero Rates61
Magnitude Range[6.65, 8.62]
Length Range[12, 1,204] km
Total Rate0.0015628295 /yr
Multi-Fault Rate0.0015628295 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults126

Table Of Contents

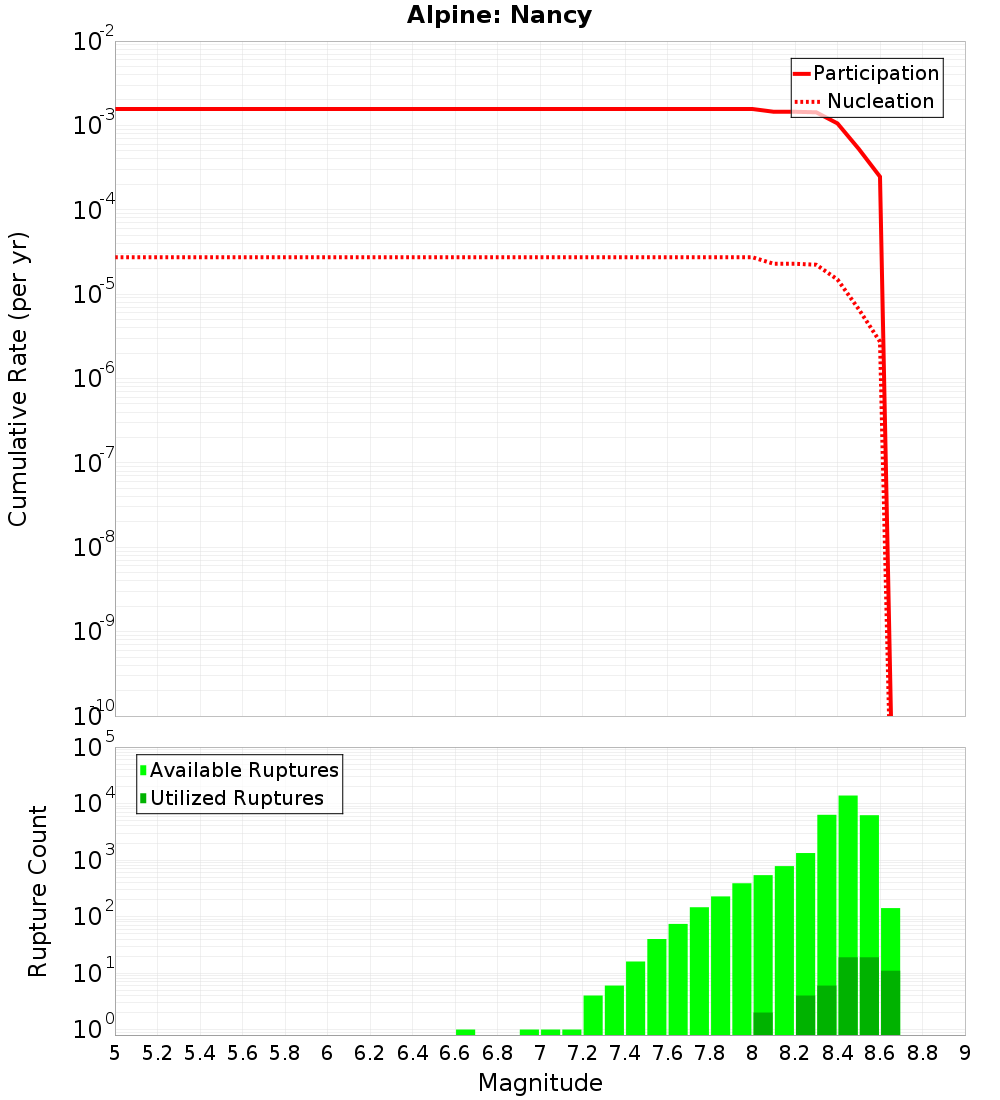

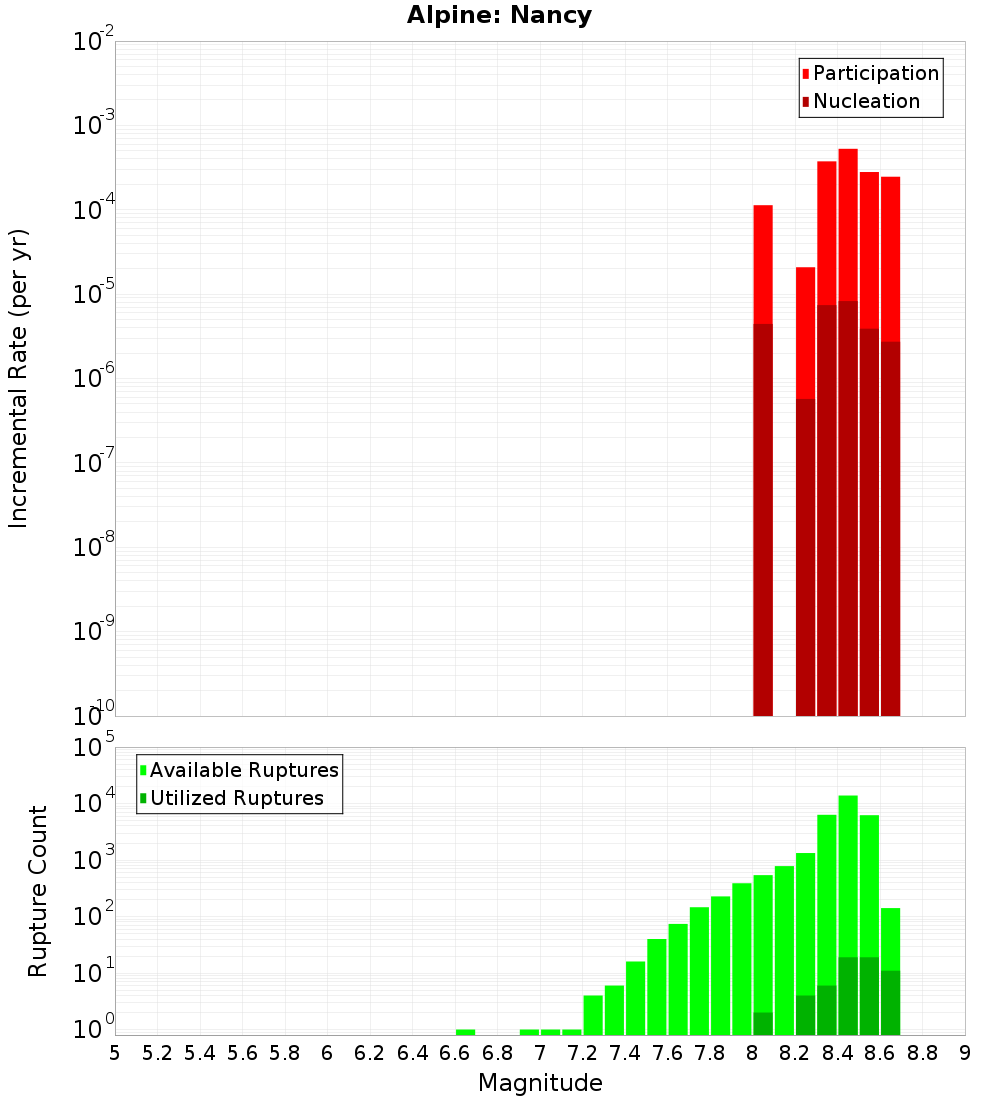

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

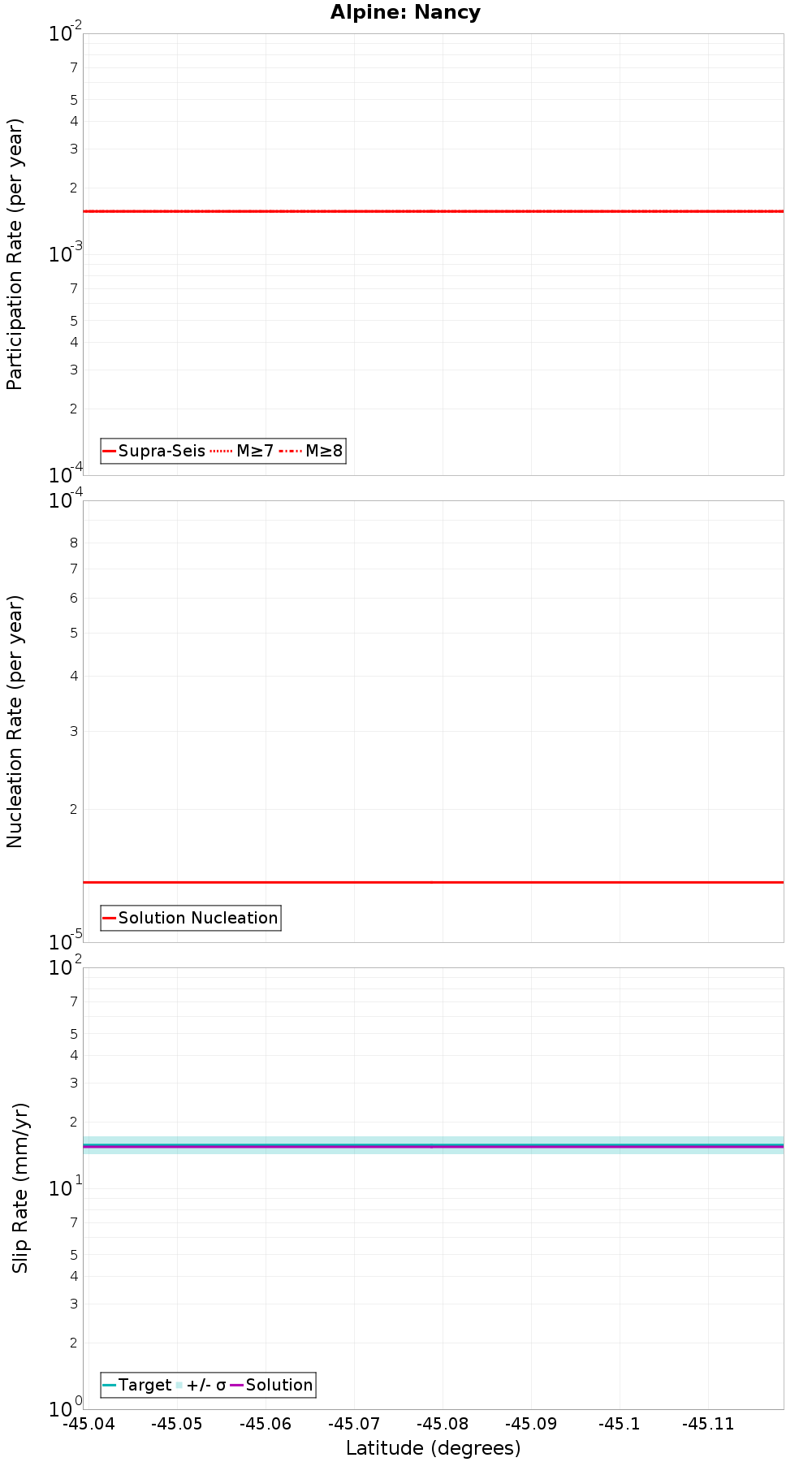

Along-Strike Values

(top)

Along-strike plot

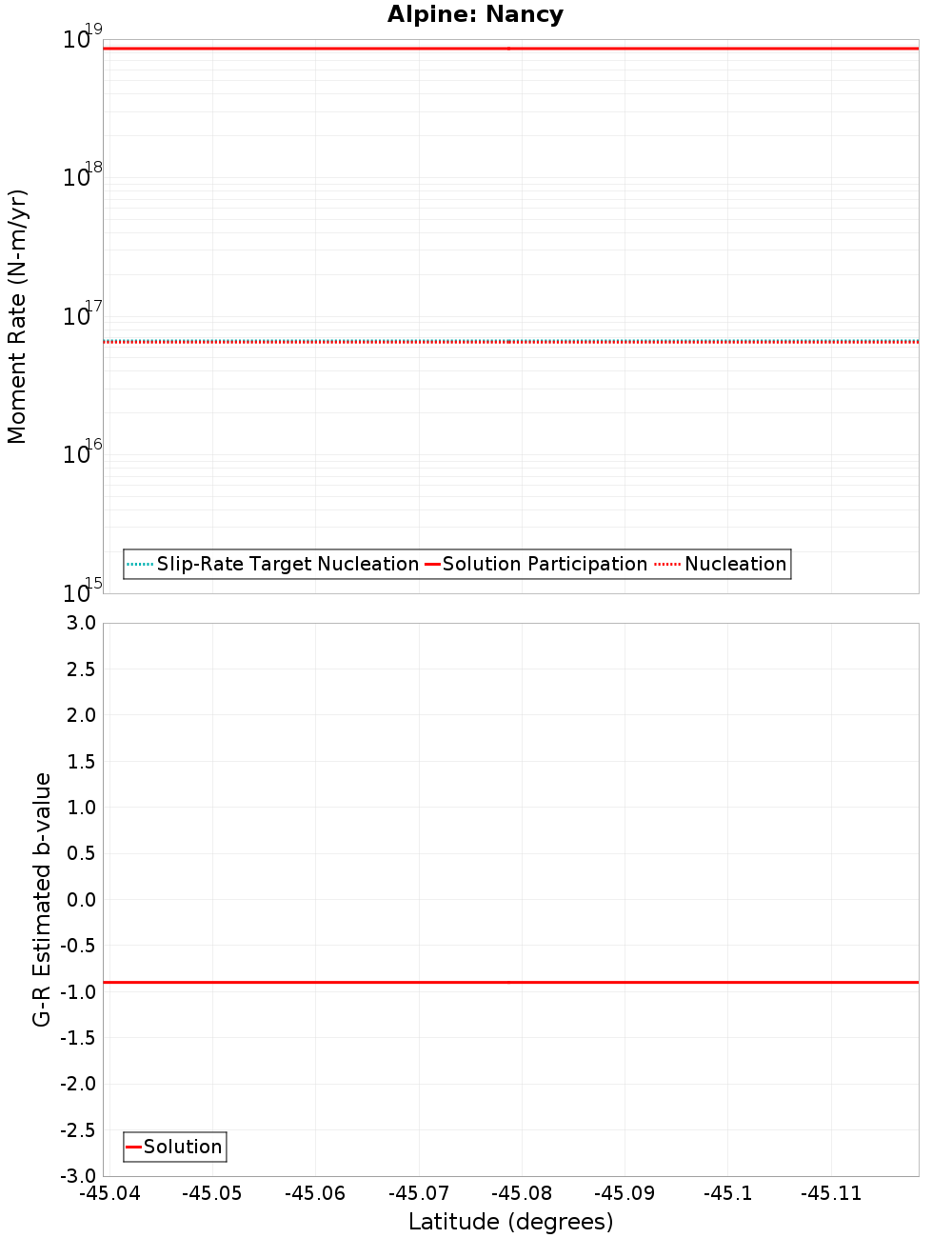

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
South Wedge 2, 0.07 km away
Central Wedge 4 - South Wedge 411, 0.38 km away
Alpine: Resolution - Charles, 2.58 km away
Alpine: Resolution - Dagg, 2.58 km away
Central Wedge 1 & 2 & 3, 3.81 km away
South Wedge 1, 8.89 km away
South Wedge 5, 14.35 km away
South Wedge 3-6-10, 14.88 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?true
Co-rupture Count30,001
Co-rupture Rate0.0015628295

South Wedge 2, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?false
Co-rupture Count280
Co-rupture Rate7.027994E-6

Alpine: Resolution - Charles, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?true
Co-rupture Count296
Co-rupture Rate0.0

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?true
Co-rupture Count27,885
Co-rupture Rate0.0015628295

Central Wedge 1 & 2 & 3, 3.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate0.0

South Wedge 1, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?false
Co-rupture Count872
Co-rupture Rate0.0

South Wedge 5, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?true
Directly Connected?false
Co-rupture Count2,629
Co-rupture Rate1.1095154E-4
