Otakiri Details

Property	Value
Rupture Count	863
Ruptures Above Sect Min Mag	862
Ruptures w/ Nonzero Rates	41
Magnitude Range	[6.60, 7.50]
Length Range	[13, 132] km
Total Rate	5.4707157E-4 /yr
Multi-Fault Rate	5.4707157E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	34

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

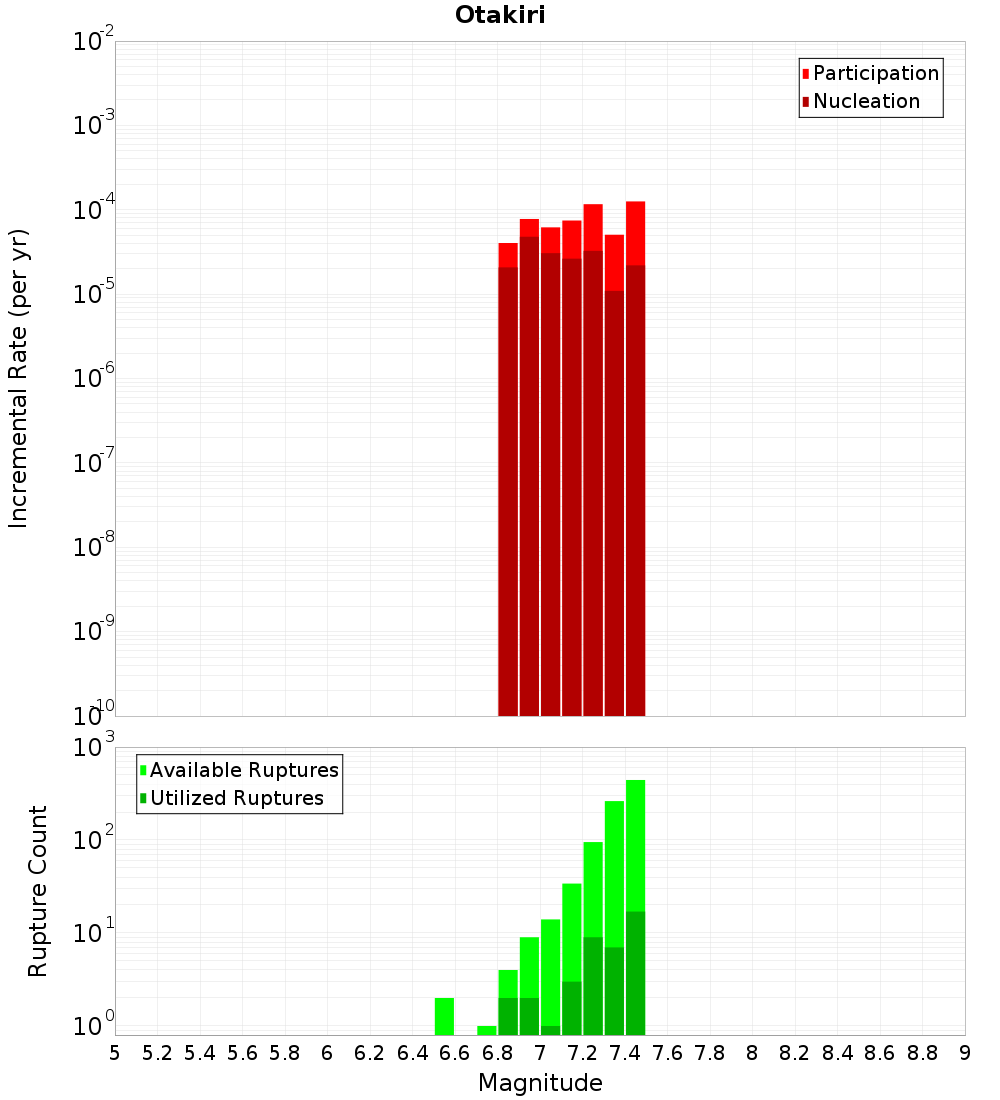

Magnitude-Frequency Distribution

Incremental	Cumulative

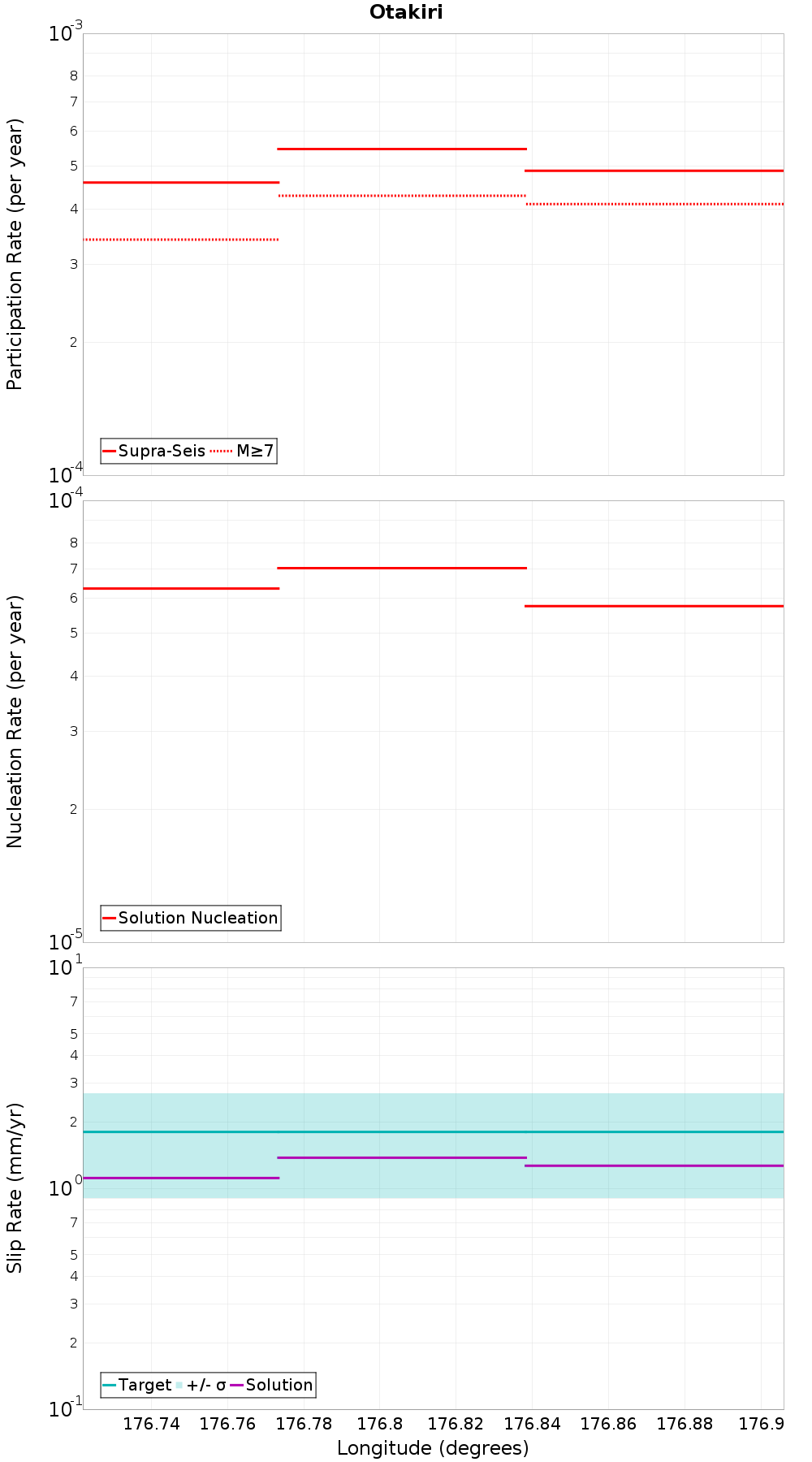

Along-Strike Values

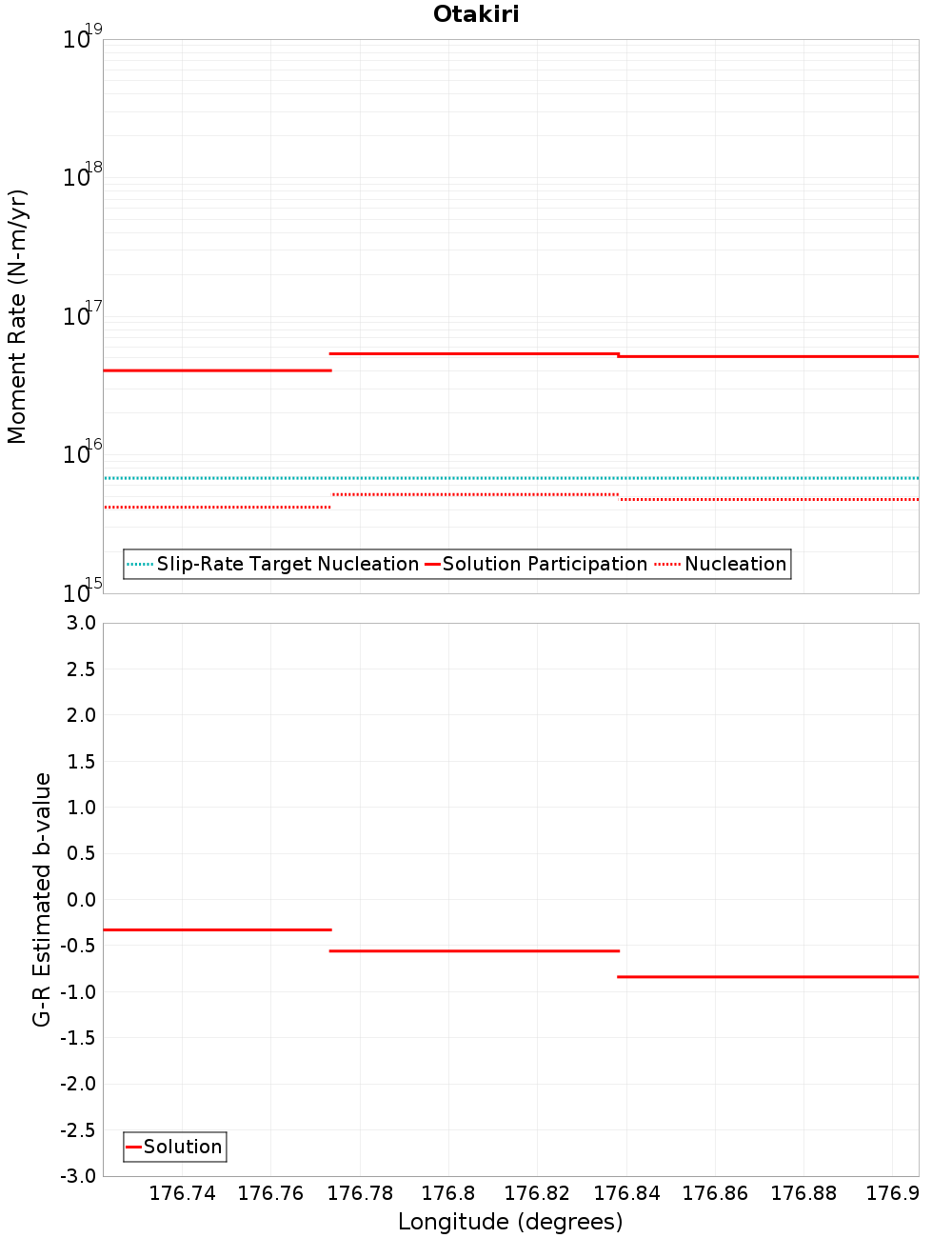

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	148
Co-rupture Rate	1.501427E-4

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	185
Co-rupture Rate	2.1227039E-5

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	7.146883E-5

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	false
Co-rupture Count	82
Co-rupture Rate	2.5537516E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	433
Co-rupture Rate	2.0078372E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	238
Co-rupture Rate	9.240608E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	426
Co-rupture Rate	7.4187315E-5

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	5.337536E-5

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	true
Co-rupture Count	95
Co-rupture Rate	1.2837129E-4

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	1.2460518E-4

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	false
Co-rupture Count	166
Co-rupture Rate	6.275651E-5

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MjUuMDhXdmtm
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
