Logan Burn Details

PropertyValue
Rupture Count30
Ruptures Above Sect Min Mag29
Ruptures w/ Nonzero Rates8
Magnitude Range[6.96, 7.96]
Length Range[21, 186] km
Total Rate1.6114105E-5 /yr
Multi-Fault Rate1.1973972E-5 /yr (74.31%)
Directly-Connected Faults3
All Co-Rupturing Faults15

Table Of Contents

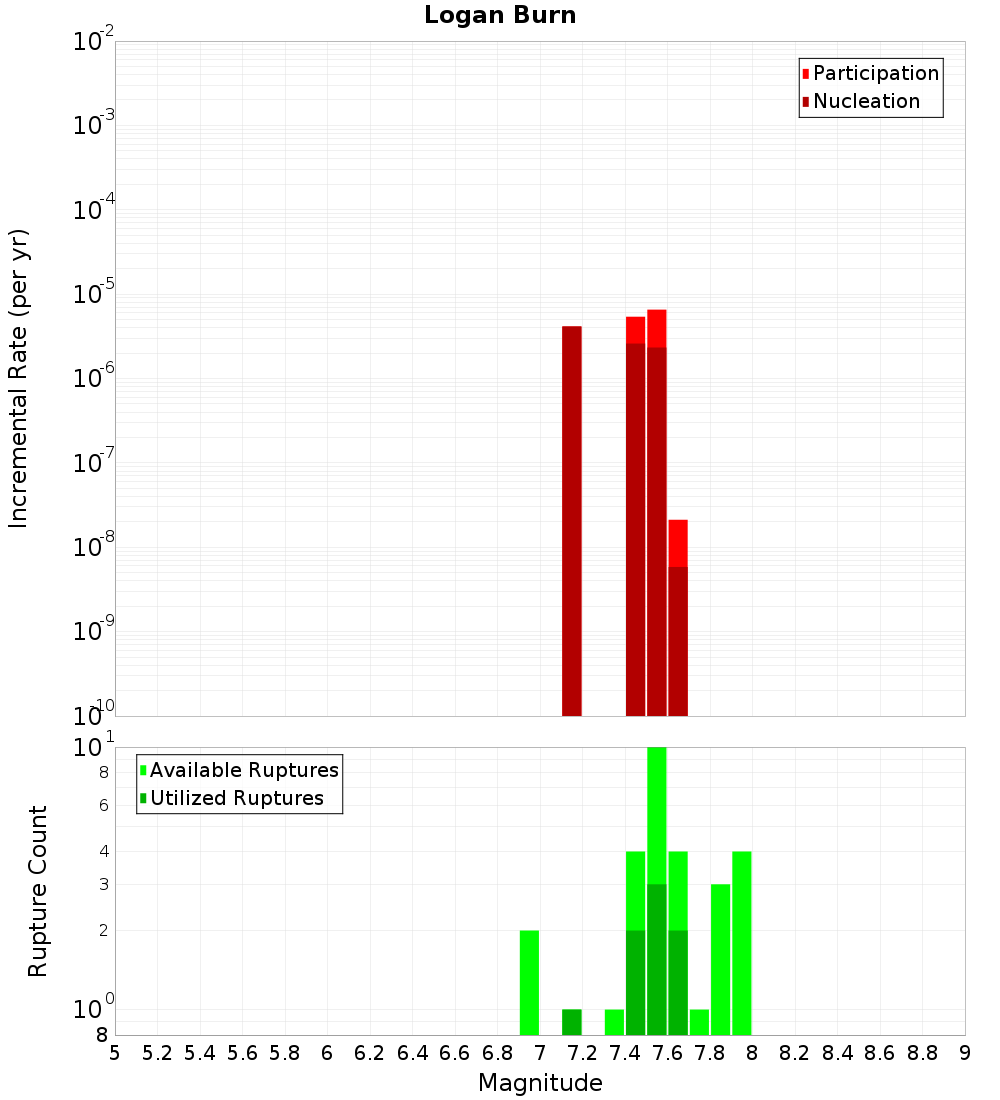

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

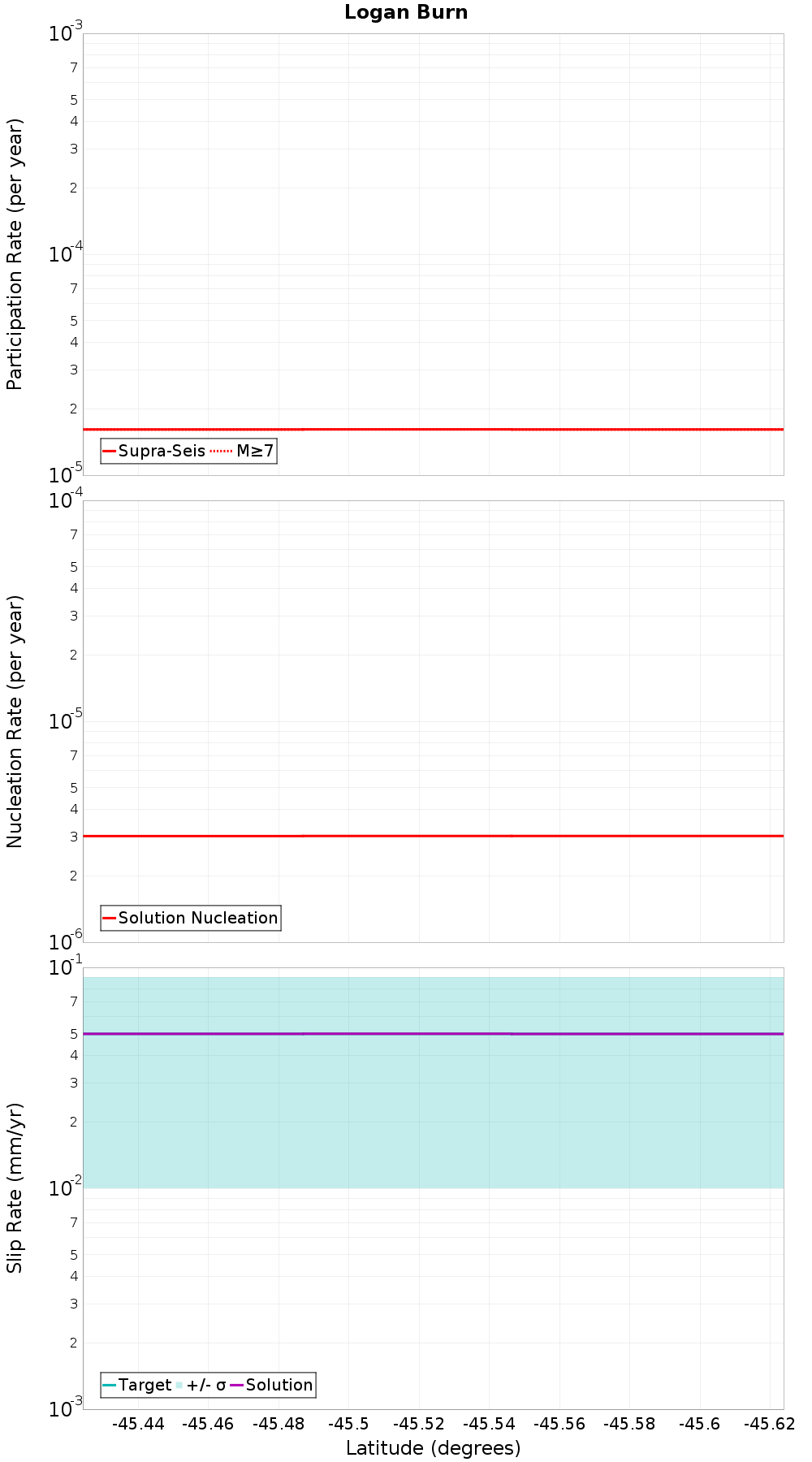

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

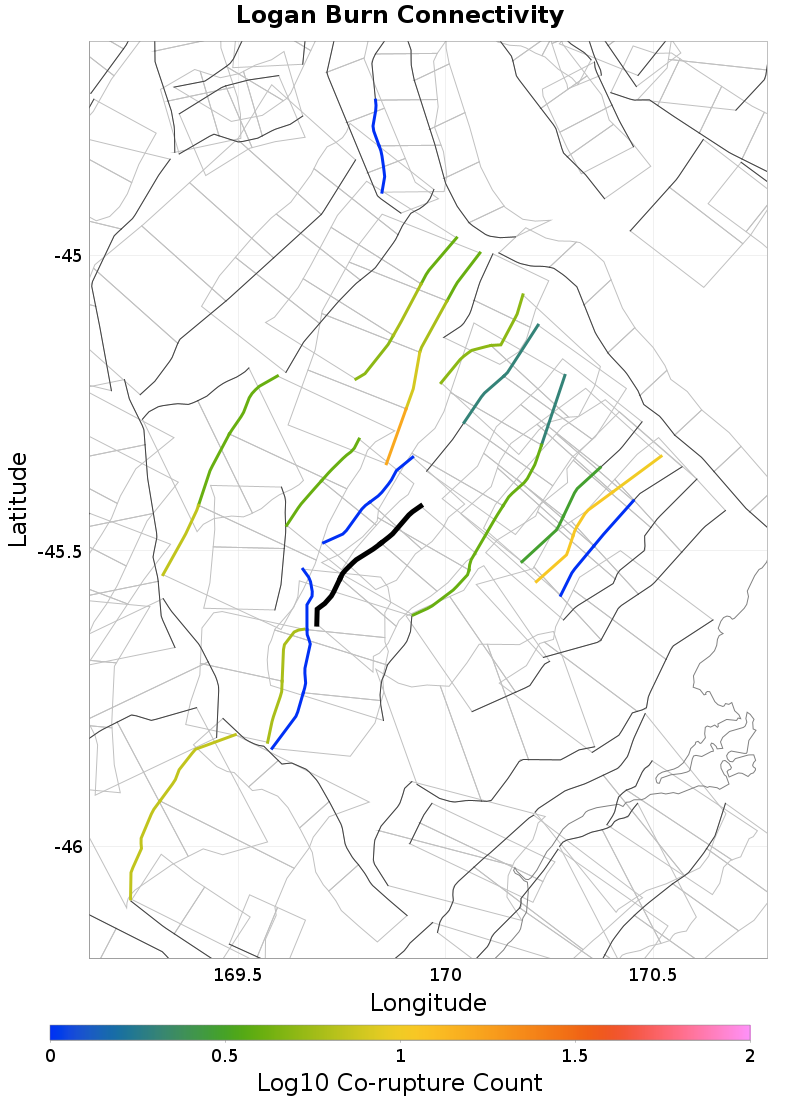

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hyde North, 0.07 km awayPylap, 4.69 km away
Beaumont River, 0.16 km awayWaipiata, 6.25 km away
Hyde South - The Twins, 0.19 km awayFlat Stream - Glenpark, 6.4 km away
Maungatua - North Taieri, 0.95 km awayLake Onslow, 7.67 km away
Nichols Rock, 1.4 km awayGimmerburn, 10.21 km away
Backbone, 2.62 km awayLong Valley, 12.01 km away
Dunback Hill, 3.59 km awayLittle Valley, 15.57 km away
Billys Ridge, 3.75 km awaySliver Stream - Merton, 19.41 km away
Horse Flat, 3.91 km awayRanfurly, 19.66 km away
Murphys Creek, 4.58 km away

Hyde North, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate6.5334075E-6

Beaumont River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hyde South - The Twins, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 0.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 1.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Dunback Hill, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Billys Ridge, 3.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate5.4427933E-6

Horse Flat, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.110688E-8

Murphys Creek, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Pylap, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waipiata, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Flat Stream - Glenpark, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 7.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.7093857E-8

Long Valley, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Little Valley, 15.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Sliver Stream - Merton, 19.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate4.0429313E-8
