Mohaka: North Details

Property	Value
Rupture Count	34,996
Ruptures Above Sect Min Mag	34,993
Ruptures w/ Nonzero Rates	186
Magnitude Range	[6.88, 8.60]
Length Range	[20, 1,119] km
Total Rate	4.9942994E-4 /yr
Multi-Fault Rate	4.9248524E-4 /yr (98.61%)
Directly-Connected Faults	6
All Co-Rupturing Faults	129

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

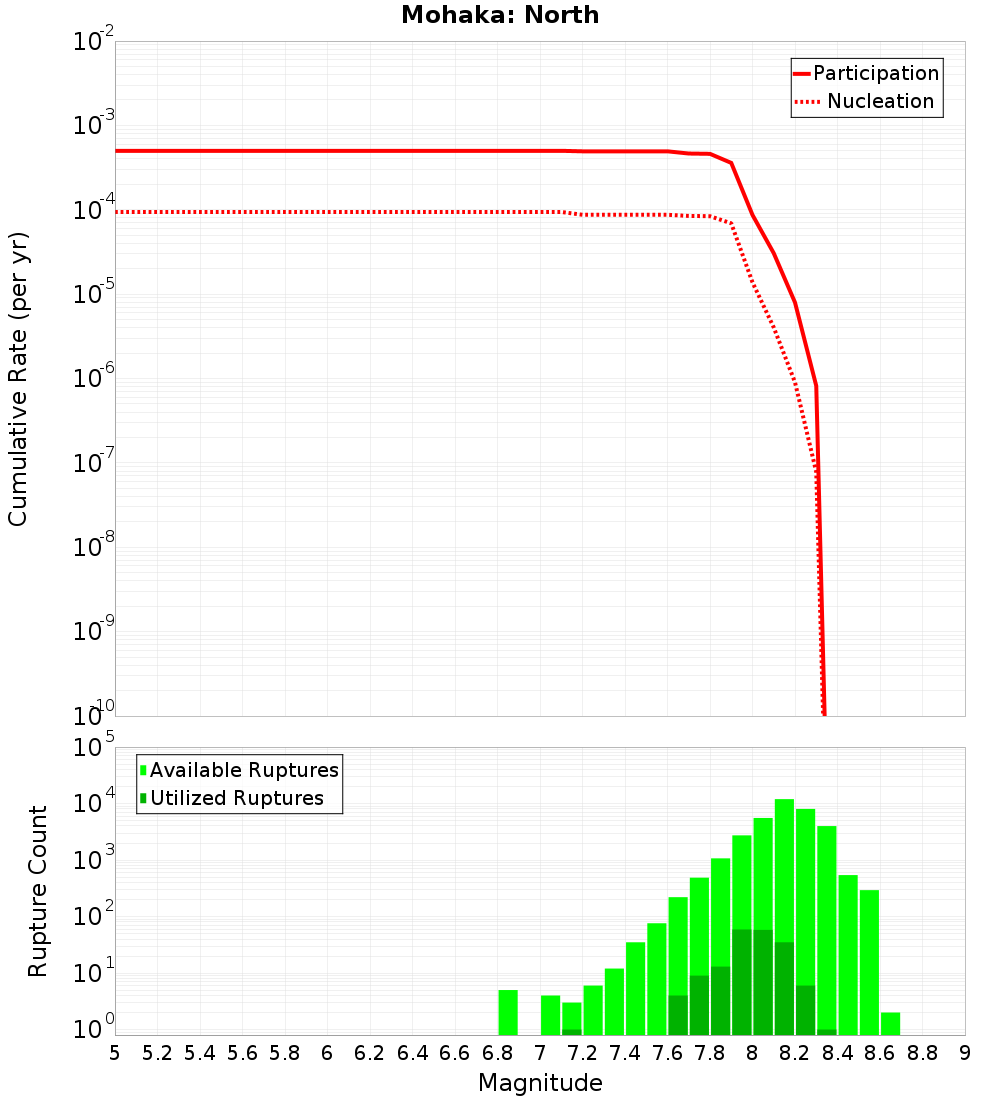

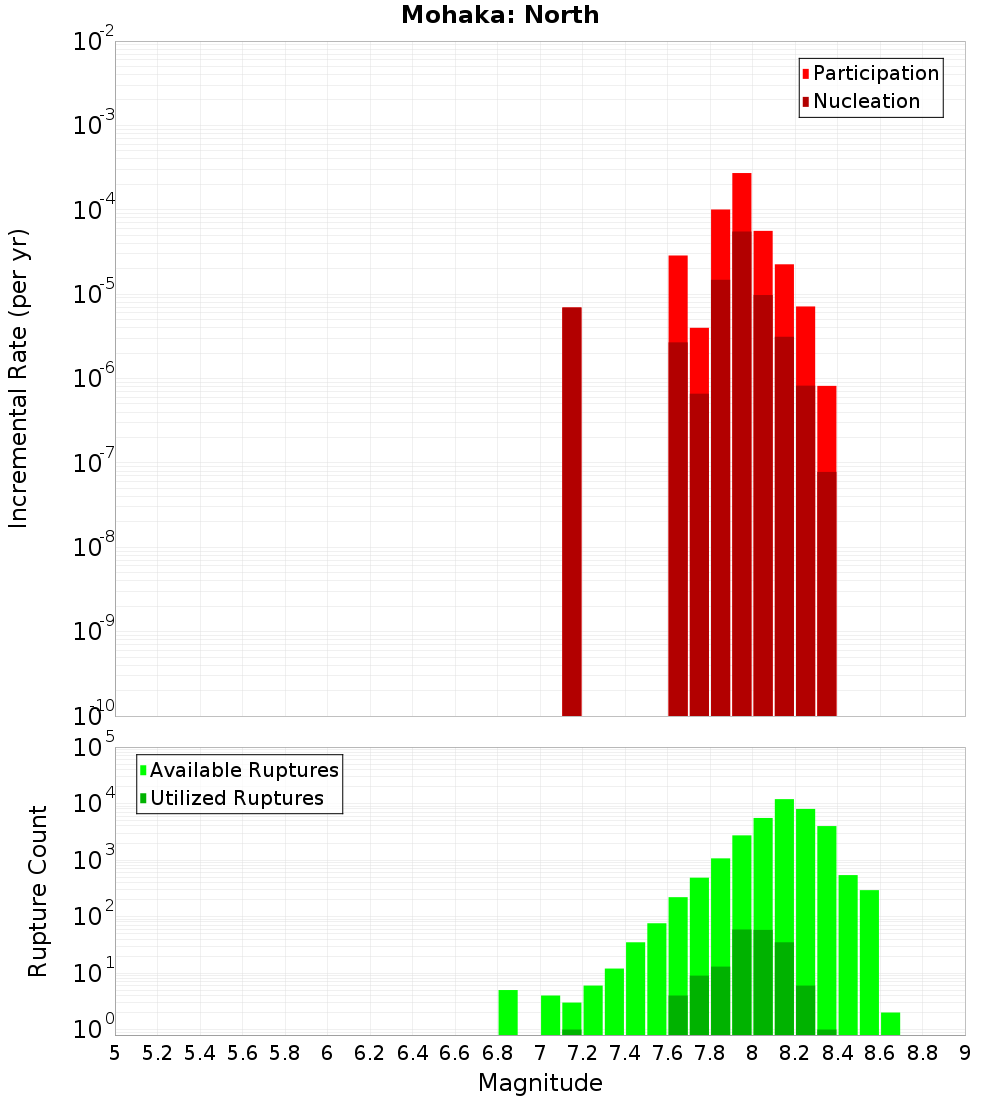

Magnitude-Frequency Distribution

Incremental	Cumulative

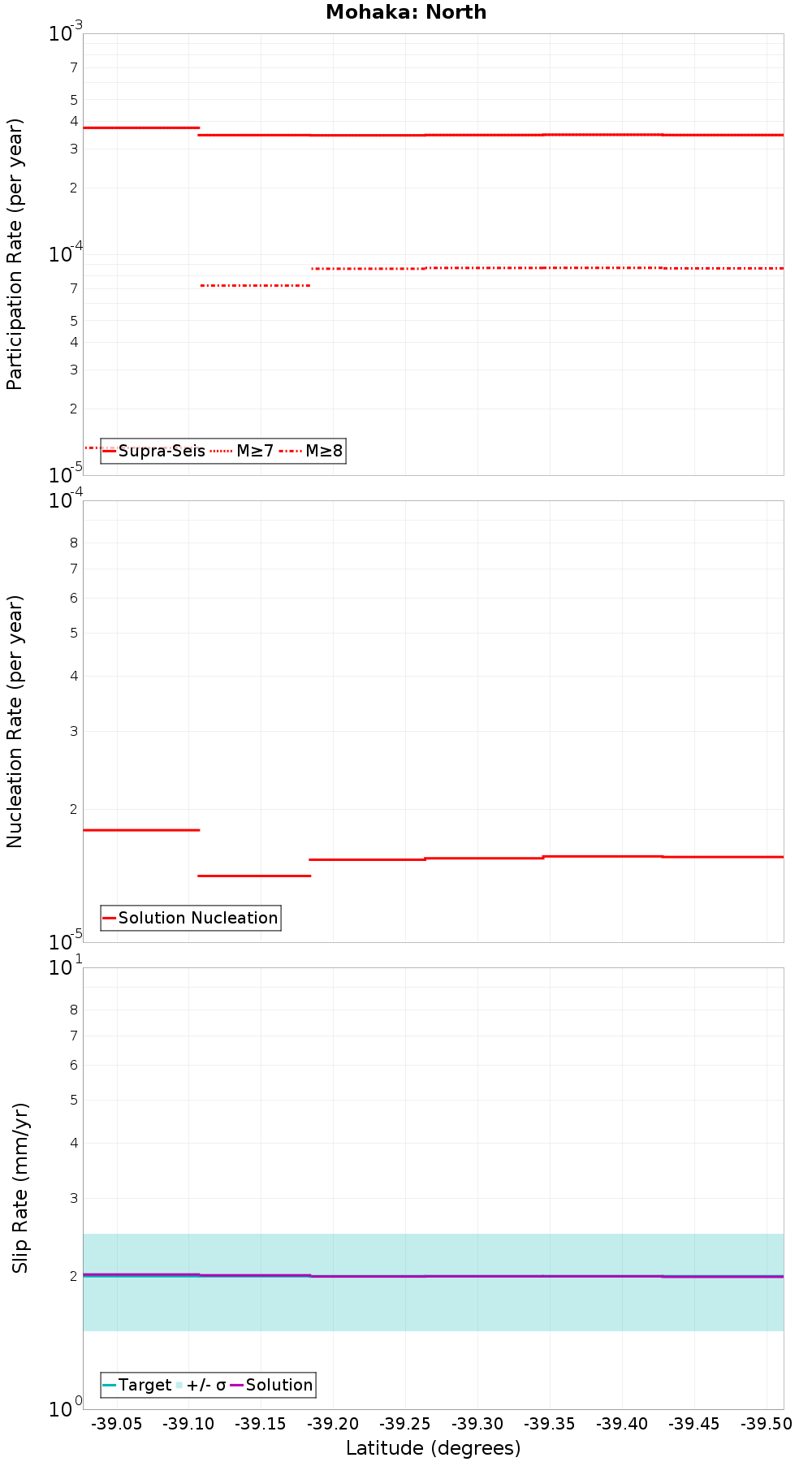

Along-Strike Values

Moment-Rates and b-Values

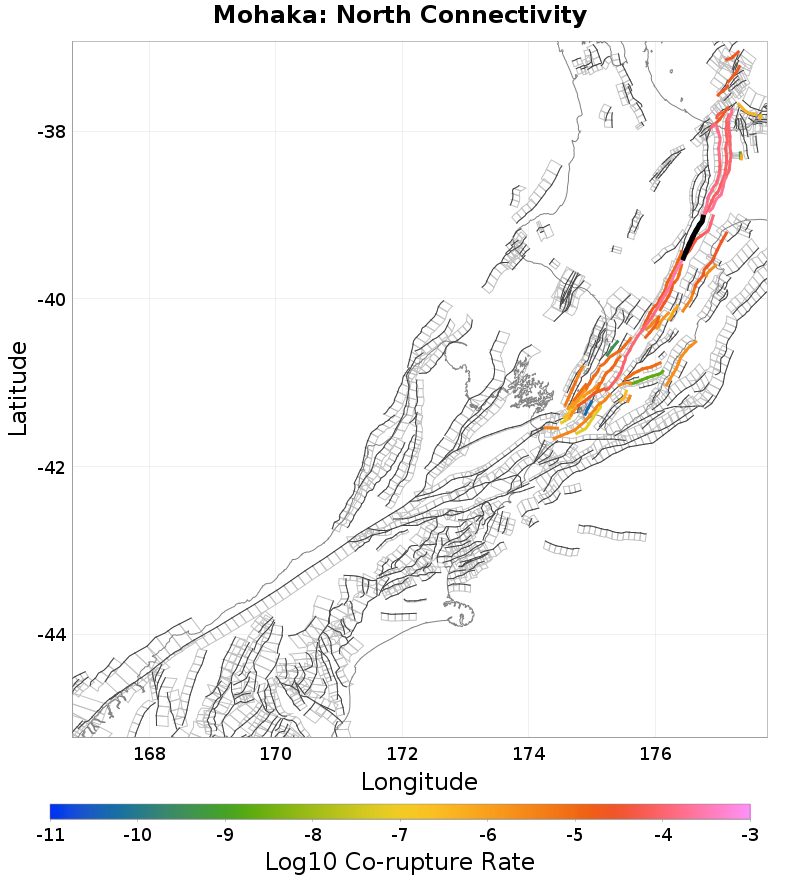

Connectivity

Nearby Sections

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.41 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Awanui, 11.19 km away
Waiotahi: South, 11.48 km away
Wheao: South, 13.51 km away
Te Heka, 14.28 km away
Te Whaiti South, 15.34 km away

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	33,623
Co-rupture Rate	3.218712E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,964
Co-rupture Rate	1.8303284E-4

Waimana: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	20,069
Co-rupture Rate	7.574503E-5

Patoka - Rangiora, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	822
Co-rupture Rate	1.0326408E-4

Ruahine: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,135
Co-rupture Rate	1.2226156E-5

Ruahine: Central, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	5,113
Co-rupture Rate	1.2226156E-5

Waiohau: South, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	0.0

Wakarara, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	3,053
Co-rupture Rate	8.998003E-6

Kaweka, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awanui, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	410
Co-rupture Rate	2.4621413E-5

Waiotahi: South, 11.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	7,005
Co-rupture Rate	2.0088308E-4

Wheao: South, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	0.0

Te Whaiti South, 15.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	37
Co-rupture Rate	0.0
