Otaki Forks: 1 Details

PropertyValue
Rupture Count11,404
Ruptures Above Sect Min Mag11,403
Ruptures w/ Nonzero Rates205
Magnitude Range[6.76, 8.29]
Length Range[17, 521] km
Total Rate1.6618156E-4 /yr
Multi-Fault Rate1.6618156E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults54

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

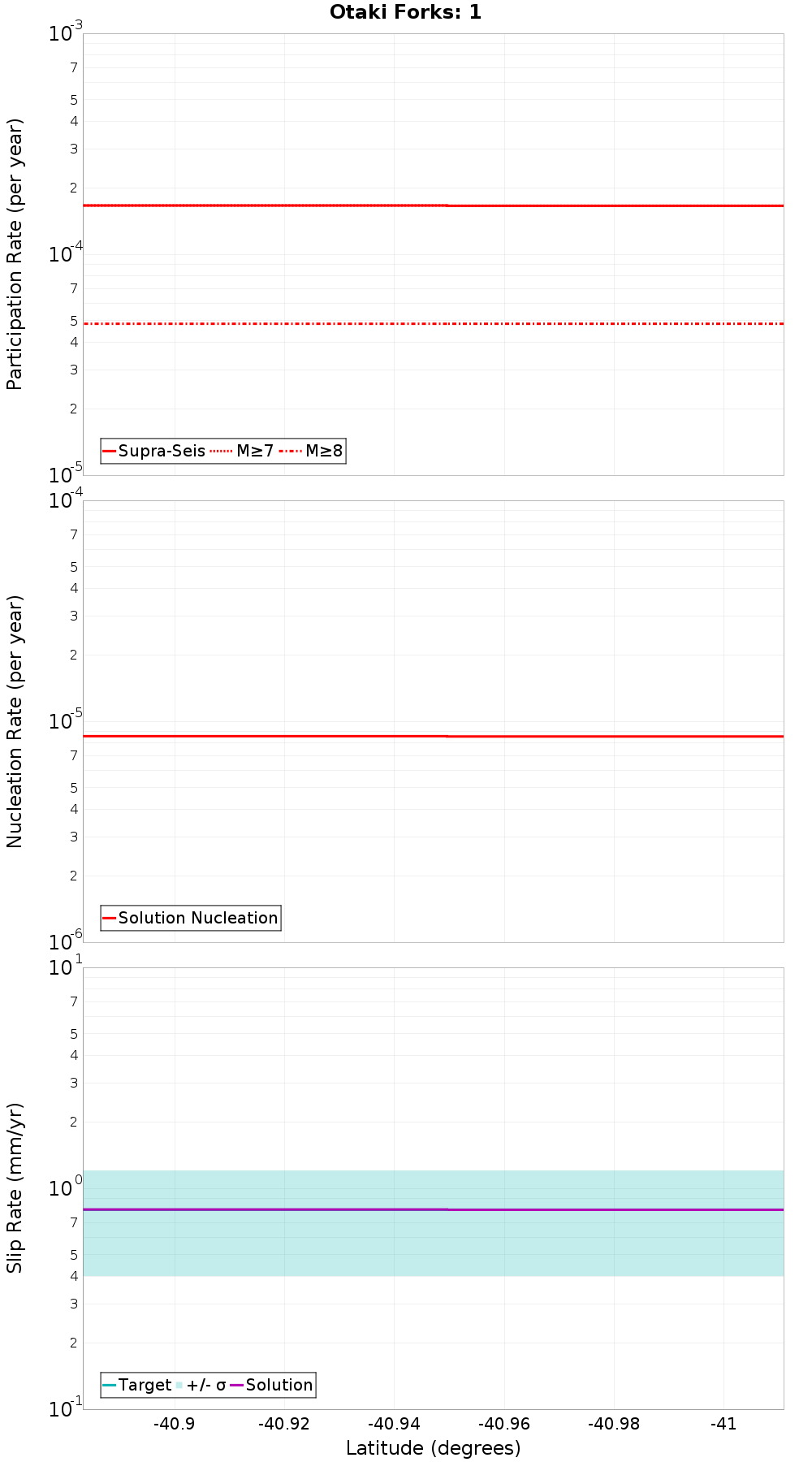

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Moonshine, 0 km away
Akatarawa, 0 km away
Otaki Forks: 2, 0 km away
Ohariu, 5.13 km away
Northern Ohariu, 7.3 km away
Wellington: Tararua 1, 7.89 km away
Wellington Hutt Valley: 5, 8.56 km away
Wellington: Tararua 2, 10.09 km away
Wellington: Tararua 3, 11.36 km away
Wellington Hutt Valley: 4, 14.19 km away
Pukerua - Shepherds Gully: 3, 14.2 km away
Wairarapa: 2, 16.84 km away
Whitemans Valley, 17.17 km away
Poroutawhao, 18.43 km away

Moonshine, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count7,067
Co-rupture Rate4.0047245E-5

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count5,460
Co-rupture Rate1.2516291E-4

Otaki Forks: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count11,208
Co-rupture Rate1.5977772E-4

Ohariu, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count1,861
Co-rupture Rate2.0227293E-5

Northern Ohariu, 7.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count151
Co-rupture Rate2.4983947E-5

Wellington: Tararua 1, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 8.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate2.4883986E-5

Wellington: Tararua 2, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.719815E-7

Wellington Hutt Valley: 4, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count1,912
Co-rupture Rate1.2516246E-4

Pukerua - Shepherds Gully: 3, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairarapa: 2, 16.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 17.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count552
Co-rupture Rate2.7534333E-10

Poroutawhao, 18.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
