Ruahine: South Details

Property	Value
Rupture Count	27,198
Ruptures Above Sect Min Mag	27,195
Ruptures w/ Nonzero Rates	309
Magnitude Range	[6.99, 8.60]
Length Range	[24, 1,113] km
Total Rate	1.9417137E-4 /yr
Multi-Fault Rate	1.9417137E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	111

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

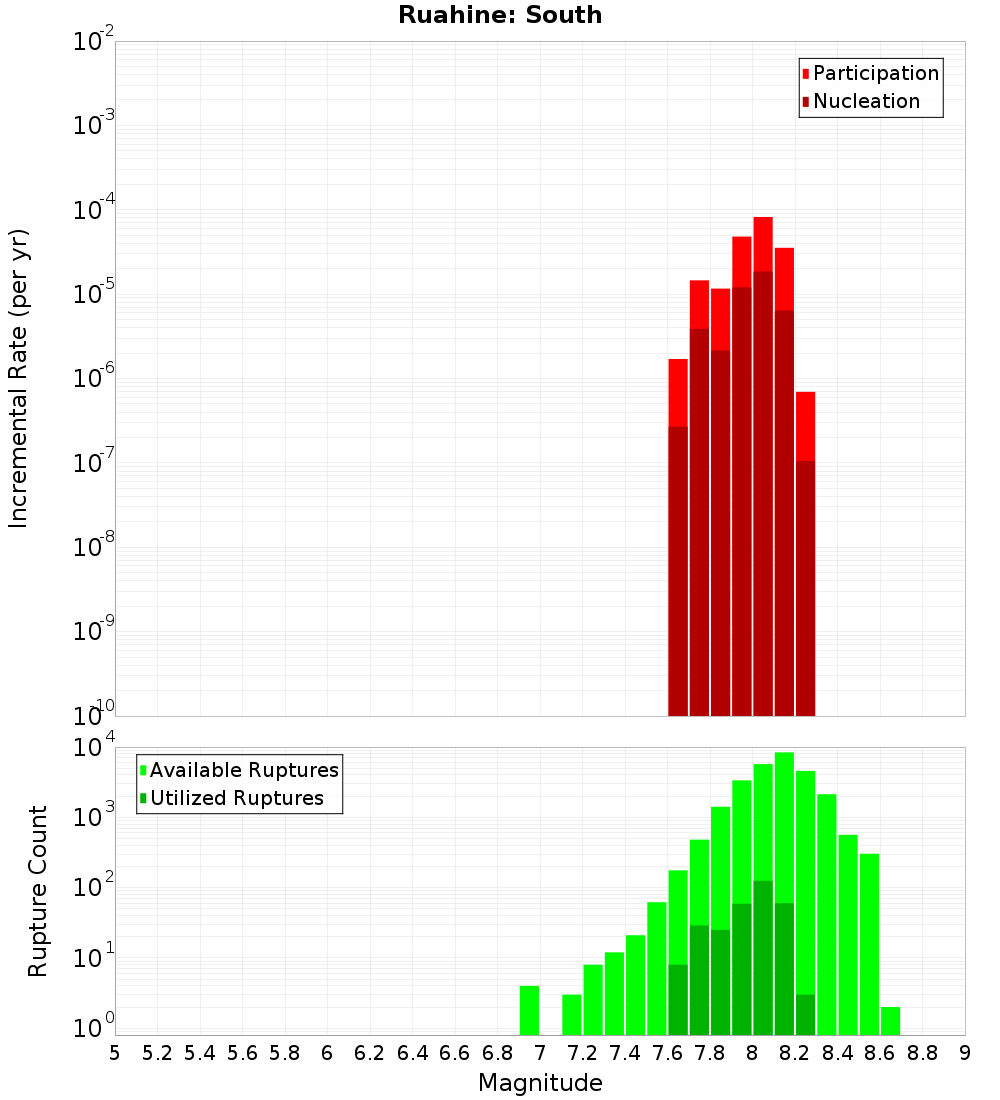

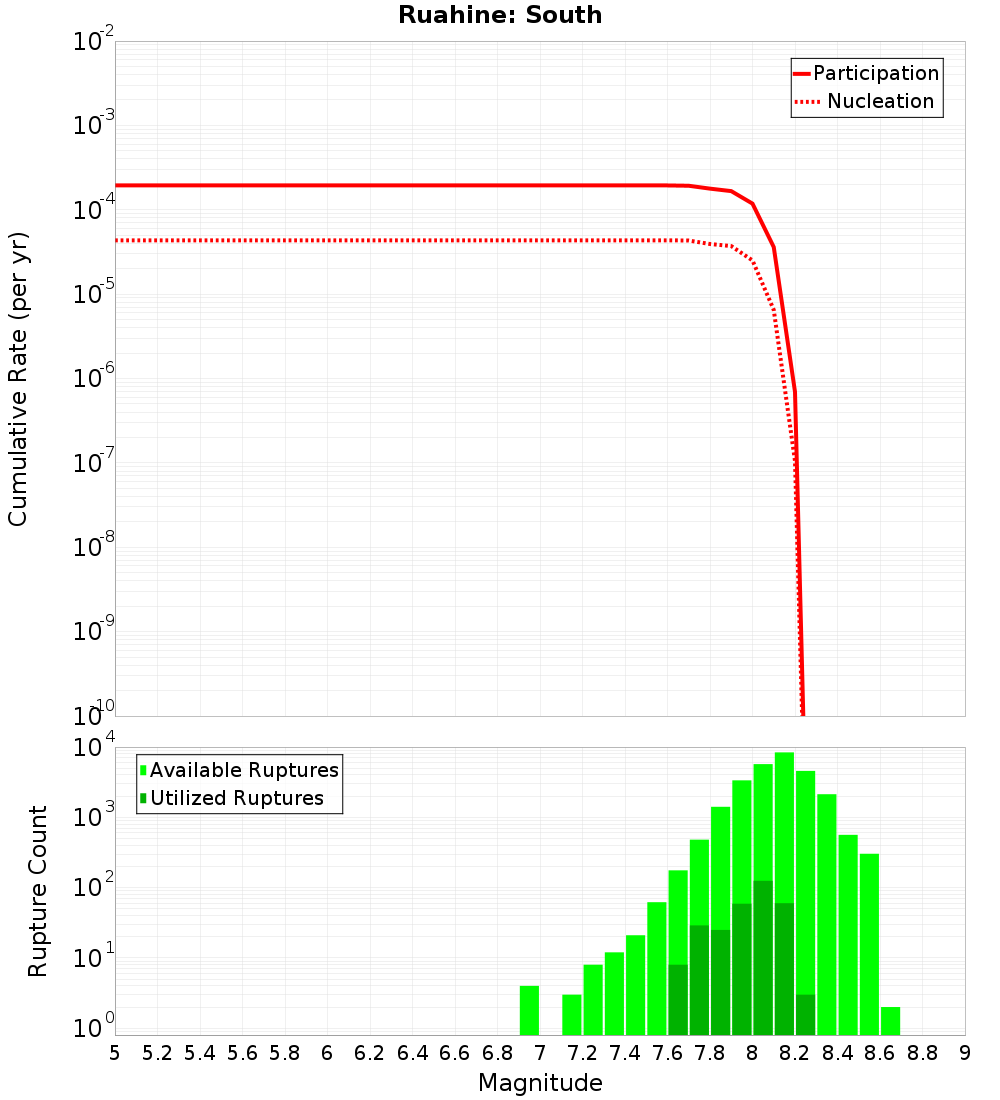

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

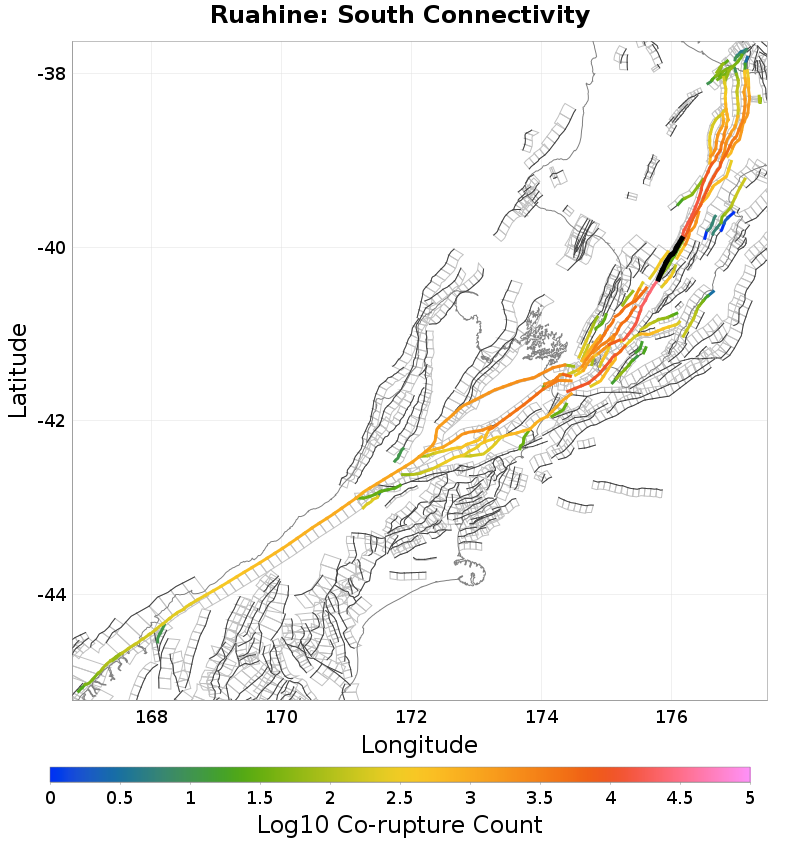

Connectivity

Nearby Sections

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	25,317
Co-rupture Rate	1.816074E-4

Mohaka: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	7,897
Co-rupture Rate	6.985827E-5

Ruahine: Central, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	14,544
Co-rupture Rate	1.0220367E-4

Rangefront, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	2,355
Co-rupture Rate	1.6755908E-5

Woodville, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	348
Co-rupture Rate	1.0309369E-5

Pahiatua, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	true
Co-rupture Count	502
Co-rupture Rate	8.8467283E-7

Ruataniwha, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 13.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	1,768
Co-rupture Rate	3.6400131E-6

Tokomaru, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	2,106
Co-rupture Rate	7.728975E-6

Northern Ohariu, 18.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	true
Directly Connected?	false
Co-rupture Count	4,817
Co-rupture Rate	3.934327E-5

Taonui, 18.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
