Wairarapa: Needles Details

PropertyValue
Rupture Count48,936
Ruptures Above Sect Min Mag48,935
Ruptures w/ Nonzero Rates233
Magnitude Range[6.85, 8.63]
Length Range[19, 1,119] km
Total Rate0.002203722 /yr
Multi-Fault Rate0.002203722 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults135

Table Of Contents

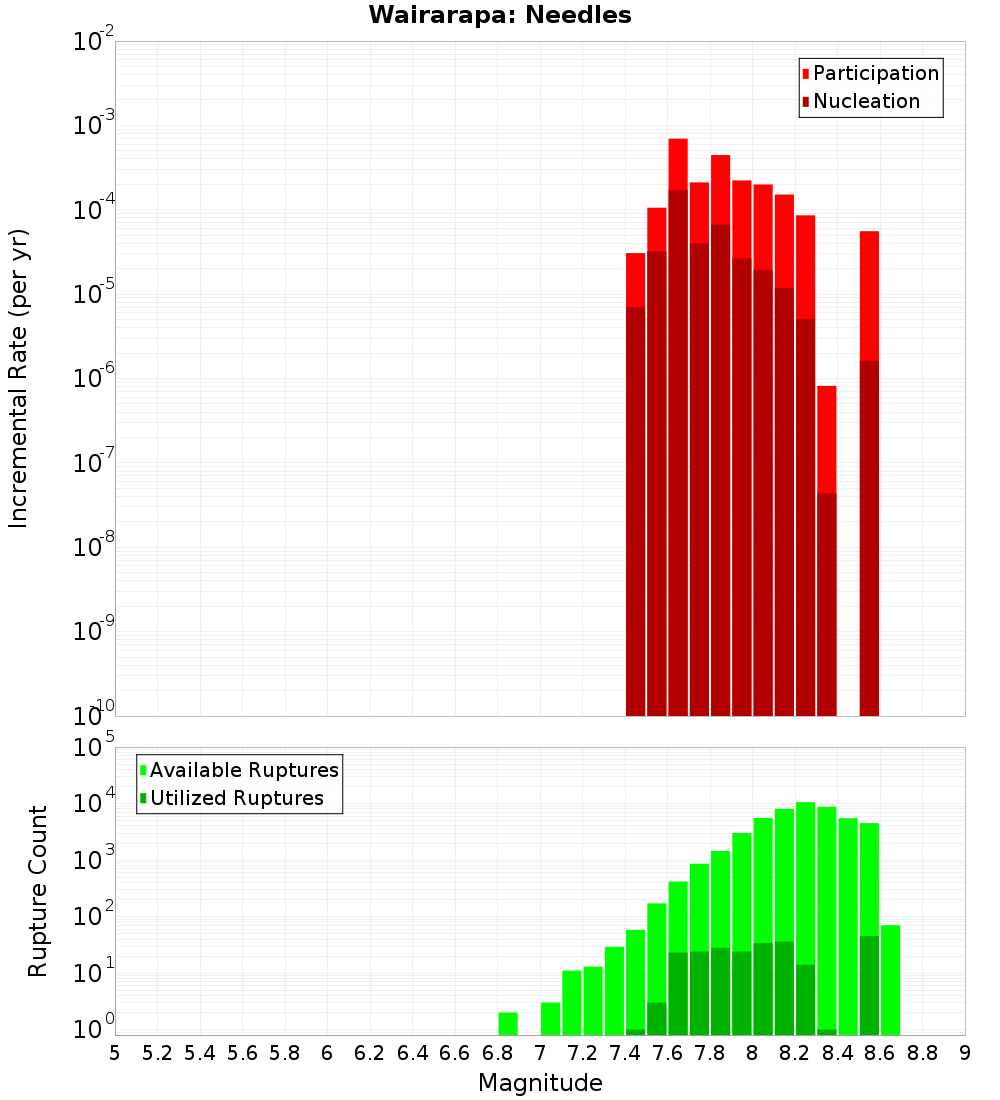

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

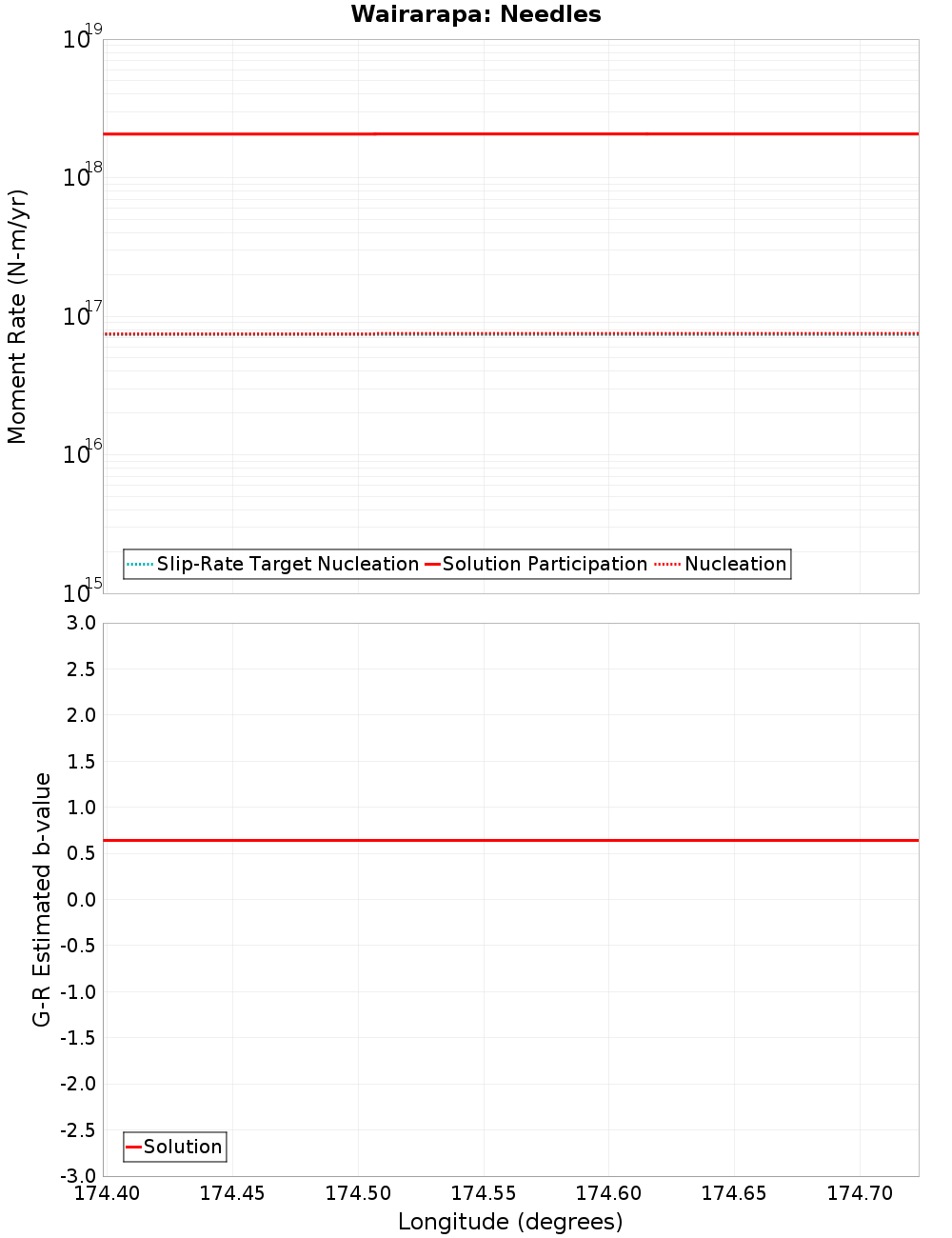

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayNeedles East 2, 12.75 km away
Cloudy 3, 0.29 km awayVernon 2, 14.03 km away
Wharekauhau, 0.3 km awayWellington Hutt Valley: 1, 14.52 km away
Vernon 4, 0.42 km awayAwatere: Northeast 2, 14.79 km away
Needles, 4.57 km awayOhariu, 14.92 km away
BooBoo, 5.6 km awayCampbell Bank, 15.41 km away
Cloudy 2, 6.58 km awayWellington Hutt Valley: 3, 16.88 km away
Vernon 3, 9.01 km awayWairau 2, 18.8 km away
London Hill, 9.47 km awayOhariu South 1, 19.05 km away
Wairau 3, 9.87 km awayOhariu South 2, 19.11 km away
Cloudy 1, 10.84 km awayVernon 1, 19.36 km away
Wellington Hutt Valley: 2, 12.47 km awayAotea - Evans Bay, 19.45 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count45,735
Co-rupture Rate0.0018904326

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count32,897
Co-rupture Rate1.9497627E-4

Wharekauhau, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count2,997
Co-rupture Rate3.3203058E-4

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count7,781
Co-rupture Rate1.9517615E-4

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count6,041
Co-rupture Rate7.8150525E-4

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate0.0

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count537
Co-rupture Rate0.0

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count224
Co-rupture Rate3.526168E-5

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?true
Co-rupture Count500
Co-rupture Rate9.411141E-4

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count12,385
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count209
Co-rupture Rate4.0334146E-11

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count8,947
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count11,831
Co-rupture Rate3.526168E-5

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate0.0

Campbell Bank, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 16.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.818245E-6

Wairau 2, 18.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count17,173
Co-rupture Rate1.9237825E-4

Ohariu South 1, 19.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count115
Co-rupture Rate0.0

Aotea - Evans Bay, 19.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3MzMuMDdMQ1dR
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate9.285326E-5
