Braemar Details

PropertyValue
Rupture Count9,901
Ruptures Above Sect Min Mag9,899
Ruptures w/ Nonzero Rates78
Magnitude Range[6.59, 8.00]
Length Range[14, 305] km
Total Rate0.0010067128 /yr
Multi-Fault Rate0.0010067128 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults54

Table Of Contents

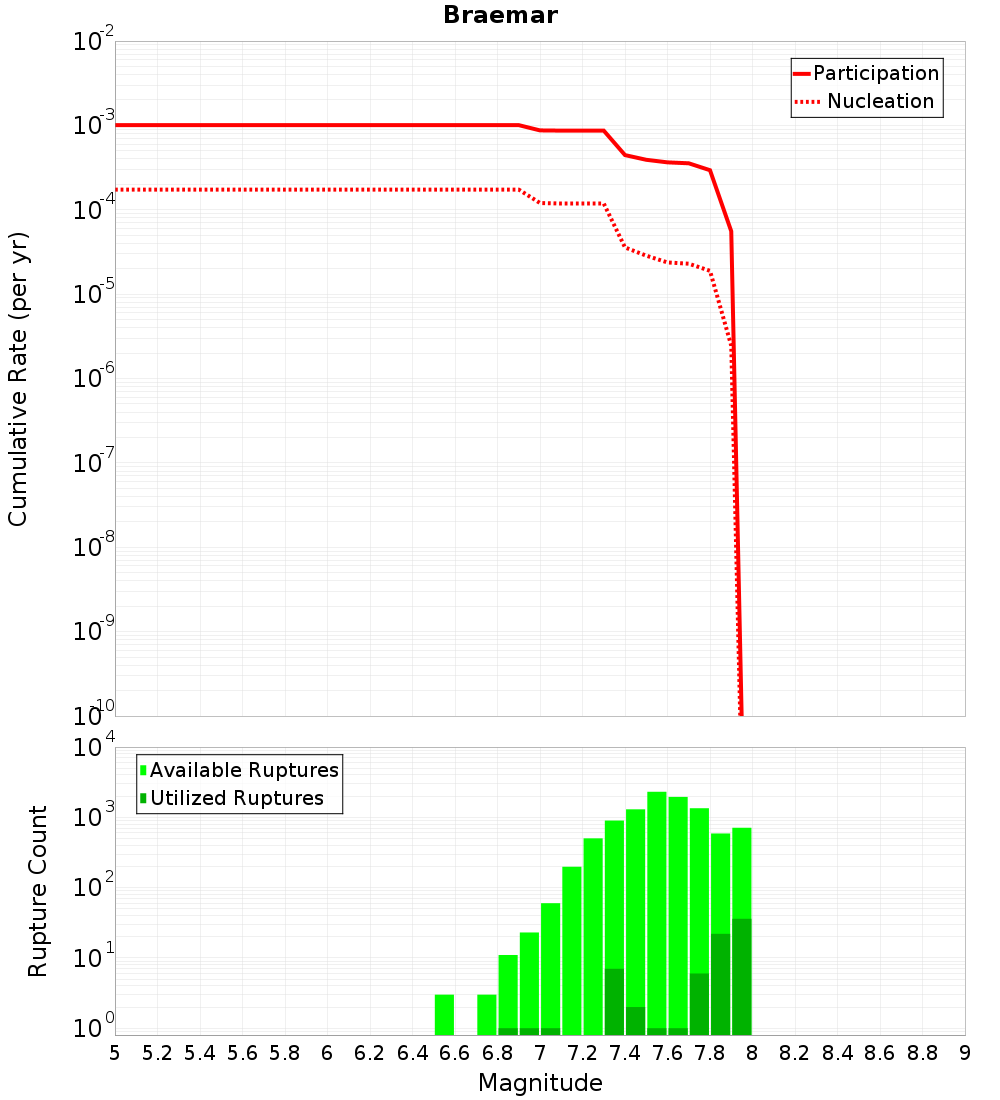

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

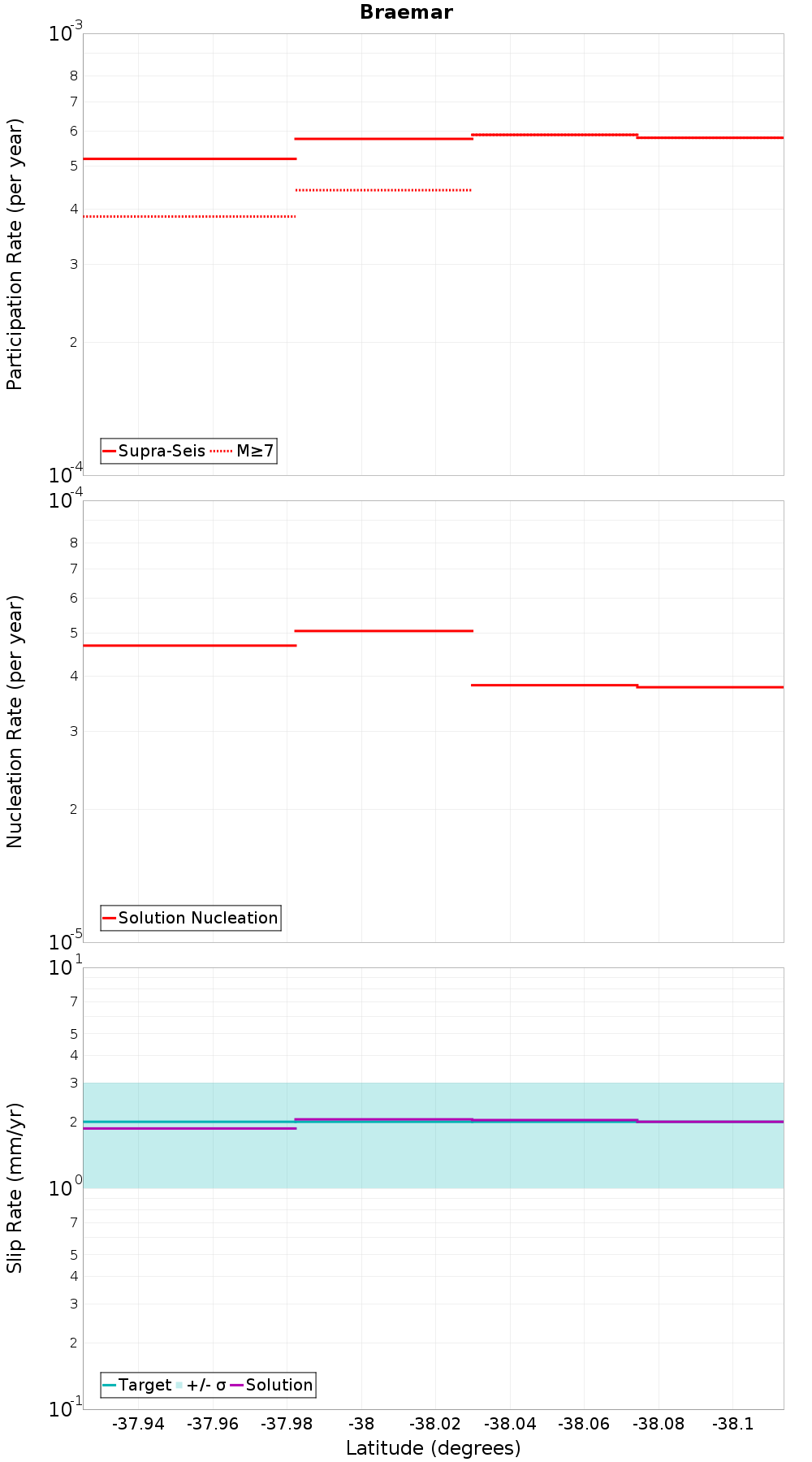

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

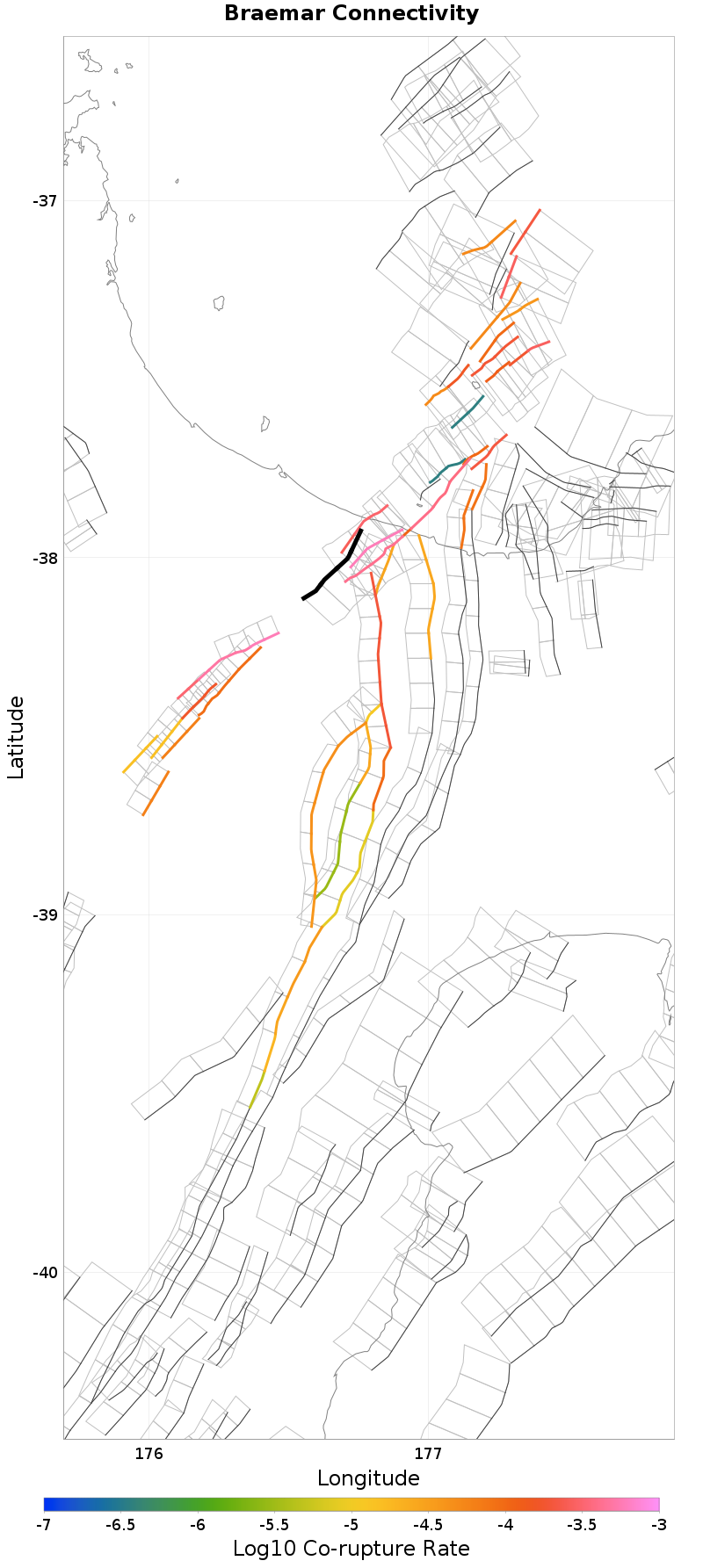

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count1,784
Co-rupture Rate2.7505612E-5

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count2,848
Co-rupture Rate1.9965004E-4

Otakiri, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count975
Co-rupture Rate5.89469E-4

Edgecumbe 1987, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count2,690
Co-rupture Rate4.117233E-4

Matata, 0.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count4,074
Co-rupture Rate3.0576074E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count4,197
Co-rupture Rate4.285086E-4

Whakatane: North, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate2.6498068E-5

White Island 1, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count7,147
Co-rupture Rate3.909136E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count5,453
Co-rupture Rate5.800578E-4

Waimana: North, 18.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate8.279781E-5
