Nichols Rock Details

PropertyValue
Rupture Count203
Ruptures Above Sect Min Mag203
Ruptures w/ Nonzero Rates53
Magnitude Range[6.94, 8.02]
Length Range[18, 216] km
Total Rate1.2071415E-5 /yr
Multi-Fault Rate1.2071415E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults22

Table Of Contents

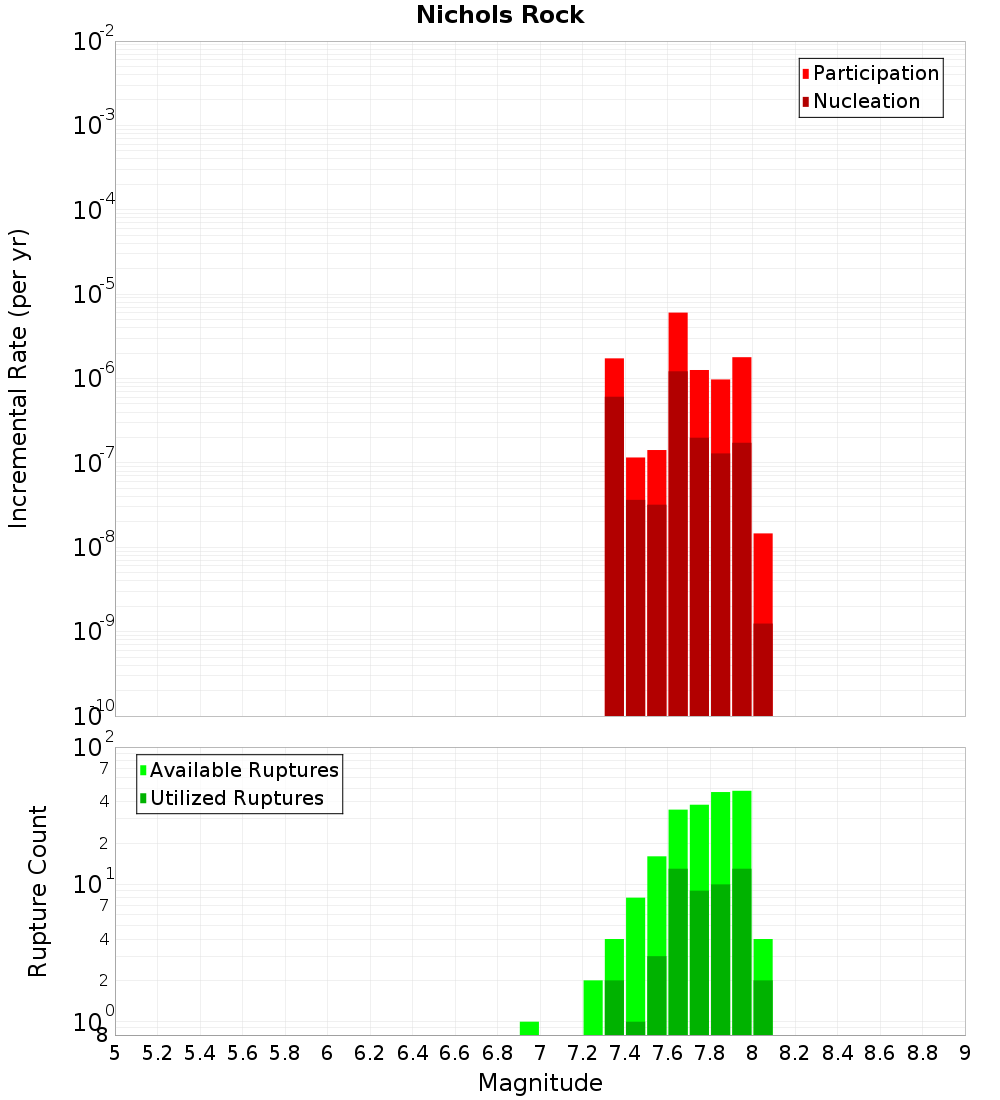

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Flat Stream - Glenpark, 0.34 km awaySliver Stream - Merton, 12.31 km away
Logan Burn, 1.4 km awayHorse Flat, 12.8 km away
Dunback Hill, 3.53 km awayHyde South - The Twins, 12.84 km away
Beaumont River, 5.01 km awayHyde North, 13.72 km away
Pylap, 6.94 km awayLong Valley, 14.93 km away
Murphys Creek, 7.39 km awayWaitahuna 1, 16.47 km away
Maungatua - North Taieri, 8.44 km awayWaitahuna 2, 18.79 km away
Waipiata, 8.44 km awayLittle Valley, 19.77 km away
Billys Ridge, 9.84 km away

Flat Stream - Glenpark, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count97
Co-rupture Rate4.288036E-6

Logan Burn, 1.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate1.0685037E-5

Beaumont River, 5.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count169
Co-rupture Rate3.3755375E-6

Pylap, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.1252318E-6

Murphys Creek, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate2.0074056E-8

Maungatua - North Taieri, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate5.566949E-9

Waipiata, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate1.0001679E-5

Billys Ridge, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.1286027E-6

Sliver Stream - Merton, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate6.293347E-8

Horse Flat, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.2775599E-10

Hyde South - The Twins, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.210403E-6

Hyde North, 13.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.210403E-6

Long Valley, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 16.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 19.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
