Volkner 4 Details

PropertyValue
Rupture Count2,987
Ruptures Above Sect Min Mag2,987
Ruptures w/ Nonzero Rates30
Magnitude Range[7.13, 8.00]
Length Range[26, 301] km
Total Rate8.9112384E-4 /yr
Multi-Fault Rate8.9112384E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults39

Table Of Contents

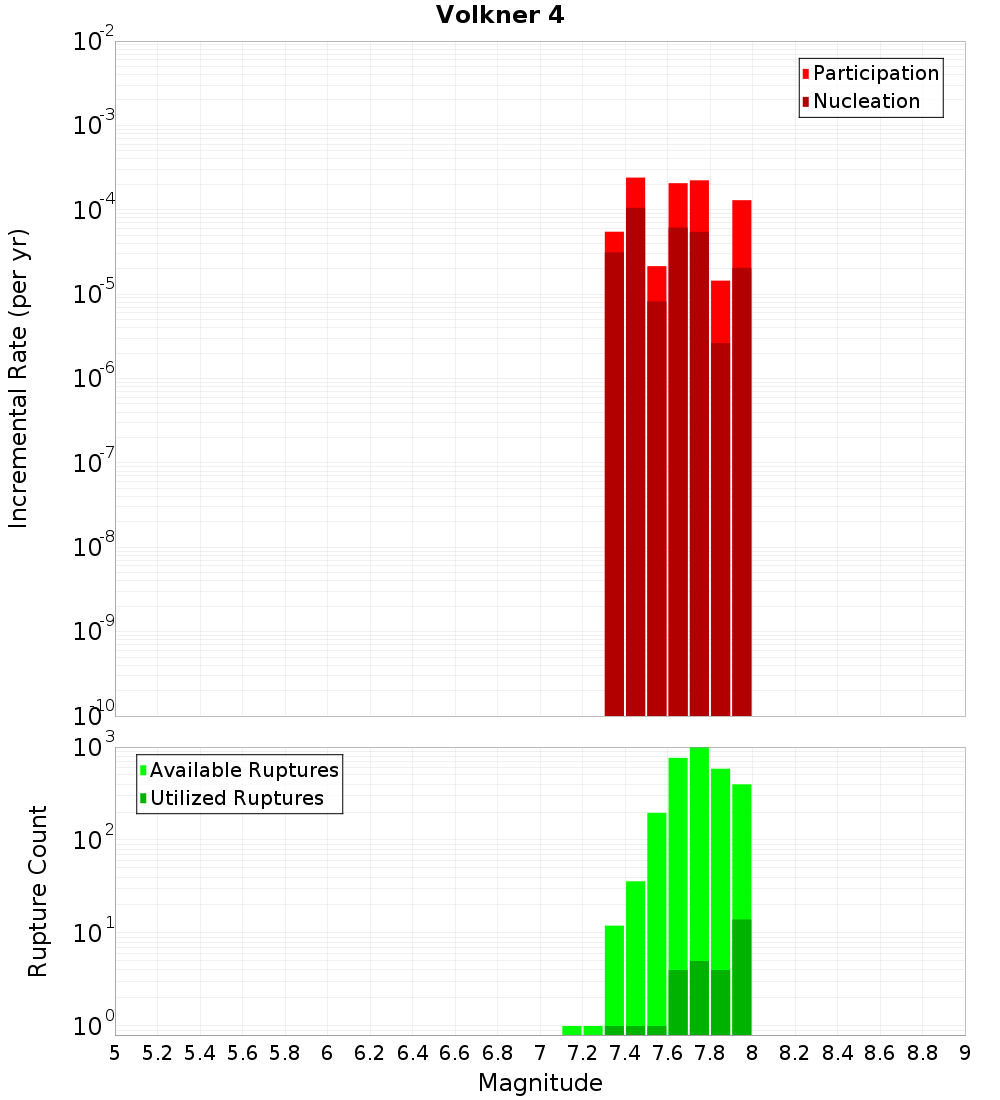

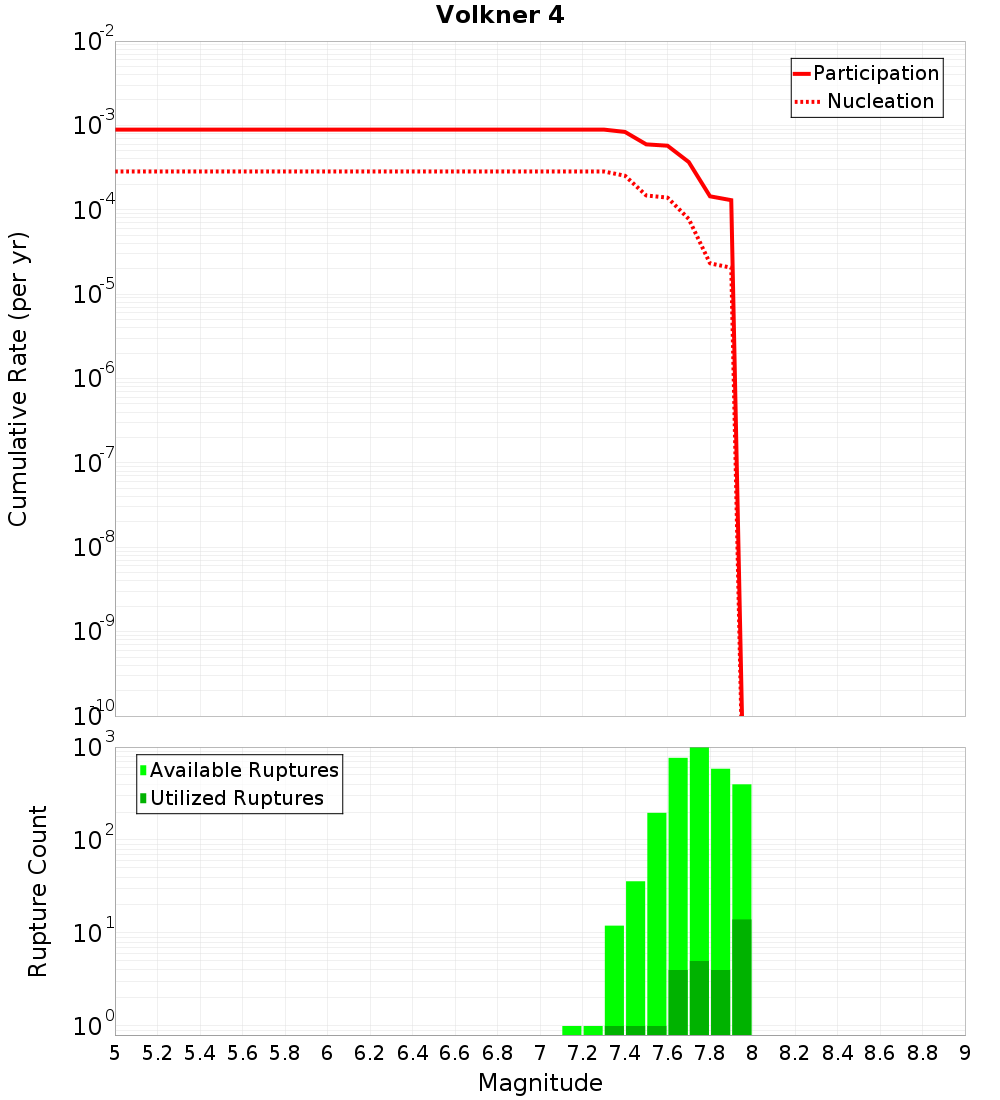

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuakana 7, 0.13 km awayOtara West 2, 4.44 km away
Otara West 3, 0.2 km awayWhakaari 4, 5.31 km away
Otara East 1, 0.22 km awayOtara East 2, 5.35 km away
Tuakana 6, 0.33 km awayTe Arawa 1, 6.45 km away
Volkner 3, 1.38 km awayTuatoru 2, 10.03 km away
Otara West 1, 1.39 km awayTuatoru 1, 11.02 km away
Te Arawa 3, 1.79 km awayCalypso 2, 11.95 km away
Te Arawa 2, 4.02 km awayTauranga Trough East 2, 19.49 km away

Tuakana 7, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 3, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count741
Co-rupture Rate4.3044396E-4

Otara East 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count530
Co-rupture Rate2.852823E-4

Tuakana 6, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count335
Co-rupture Rate1.753976E-4

Volkner 3, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count914
Co-rupture Rate4.1598422E-4

Otara West 1, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate2.6094014E-4

Te Arawa 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Otara West 2, 4.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count240
Co-rupture Rate1.753976E-4

Whakaari 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count2,968
Co-rupture Rate4.2020064E-4

Otara East 2, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?true
Co-rupture Count792
Co-rupture Rate2.1733058E-4

Te Arawa 1, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.7952225E-5

Tuatoru 2, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Tuatoru 1, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough East 2, 19.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDAuMG42blln
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate1.5393787E-4
