Kaiapo Details

Property	Value
Rupture Count	753
Ruptures Above Sect Min Mag	750
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.29, 7.50]
Length Range	[10, 143] km
Total Rate	0.00108747 /yr
Multi-Fault Rate	0.00108747 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	16

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

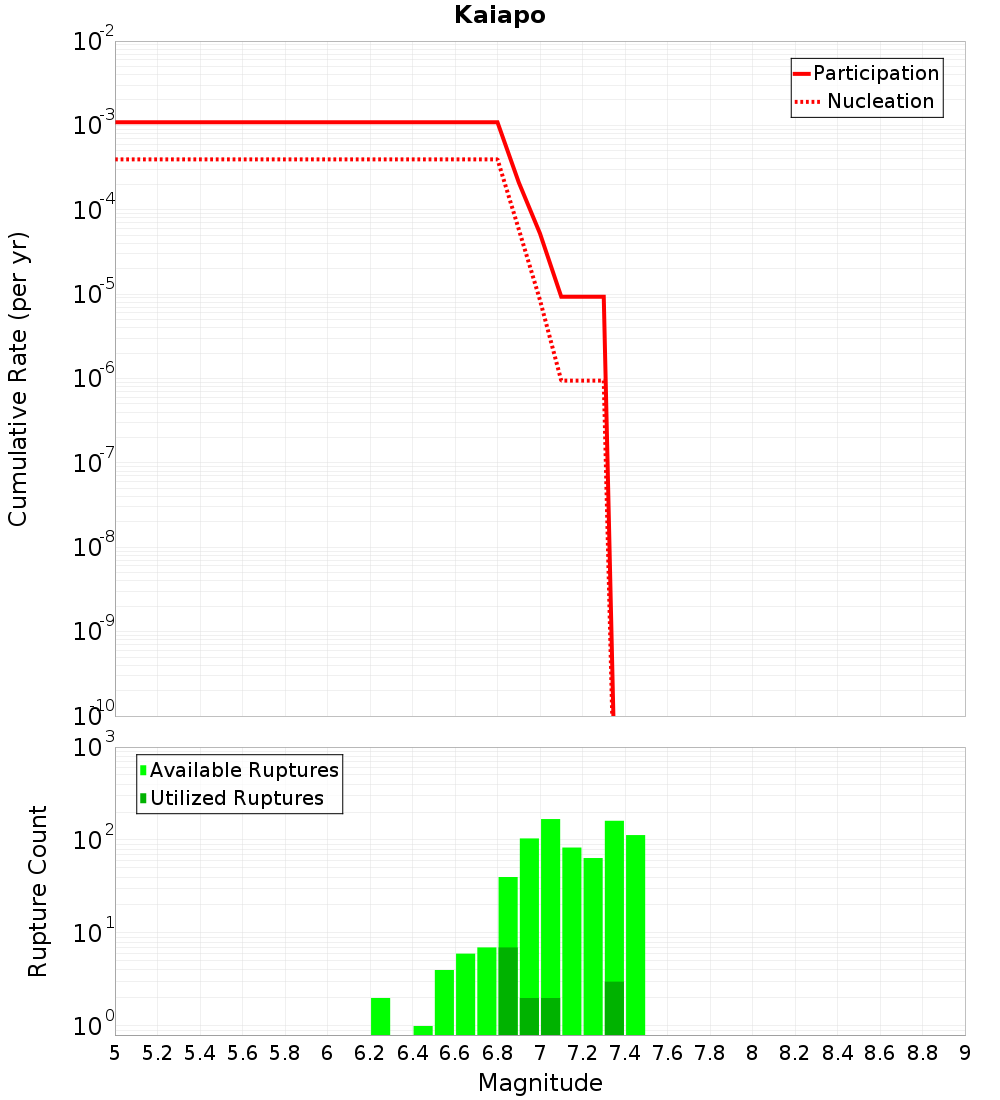

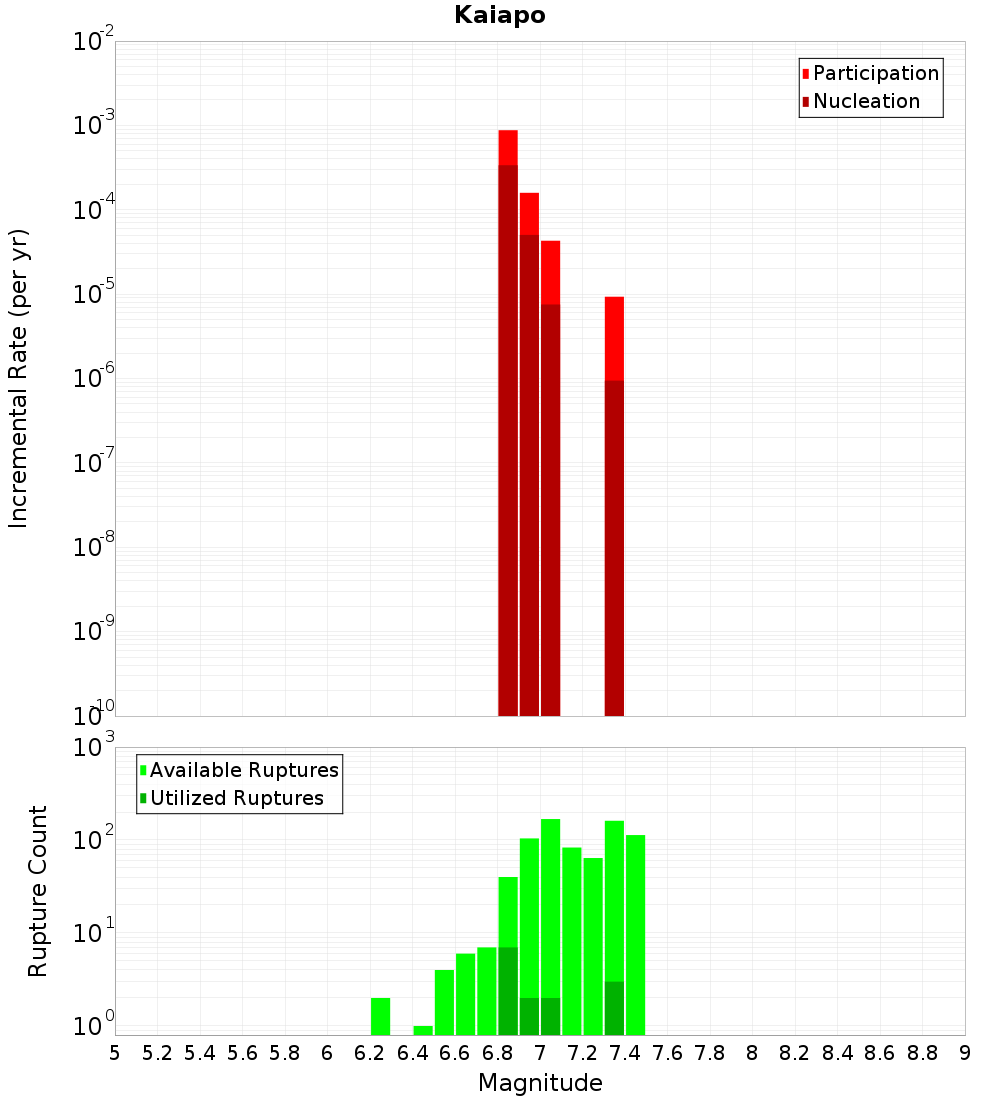

Magnitude-Frequency Distribution

Incremental	Cumulative

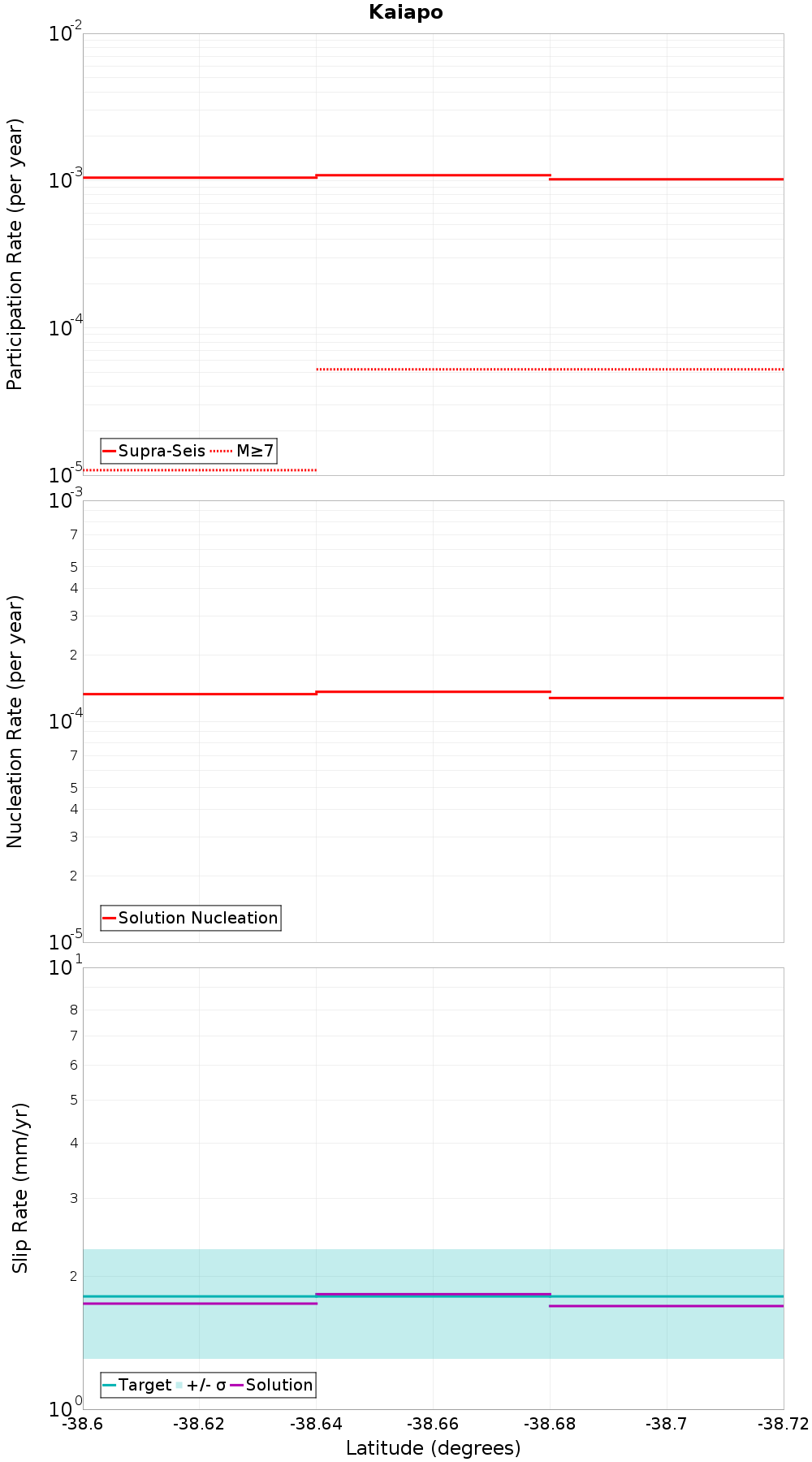

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Whangamata West, 0.25 km away
Orakeikorako, 4.37 km away
Puketerata, 5.96 km away
Puketerata North, 17.13 km away
Maleme, 19.42 km away

Whangamata West, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	439
Co-rupture Rate	4.145914E-5

Orakeikorako, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	592
Co-rupture Rate	9.498617E-4

Puketerata, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	202
Co-rupture Rate	1.3760827E-4

Puketerata North, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	false
Co-rupture Count	291
Co-rupture Rate	1.4056731E-4

Maleme, 19.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	false
Co-rupture Count	469
Co-rupture Rate	9.200902E-4
