Mataikona Details

Property	Value
Rupture Count	1,174
Ruptures Above Sect Min Mag	1,167
Ruptures w/ Nonzero Rates	67
Magnitude Range	[6.74, 8.25]
Length Range	[18, 496] km
Total Rate	0.0014562214 /yr
Multi-Fault Rate	0.0012573006 /yr (86.34%)
Directly-Connected Faults	7
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

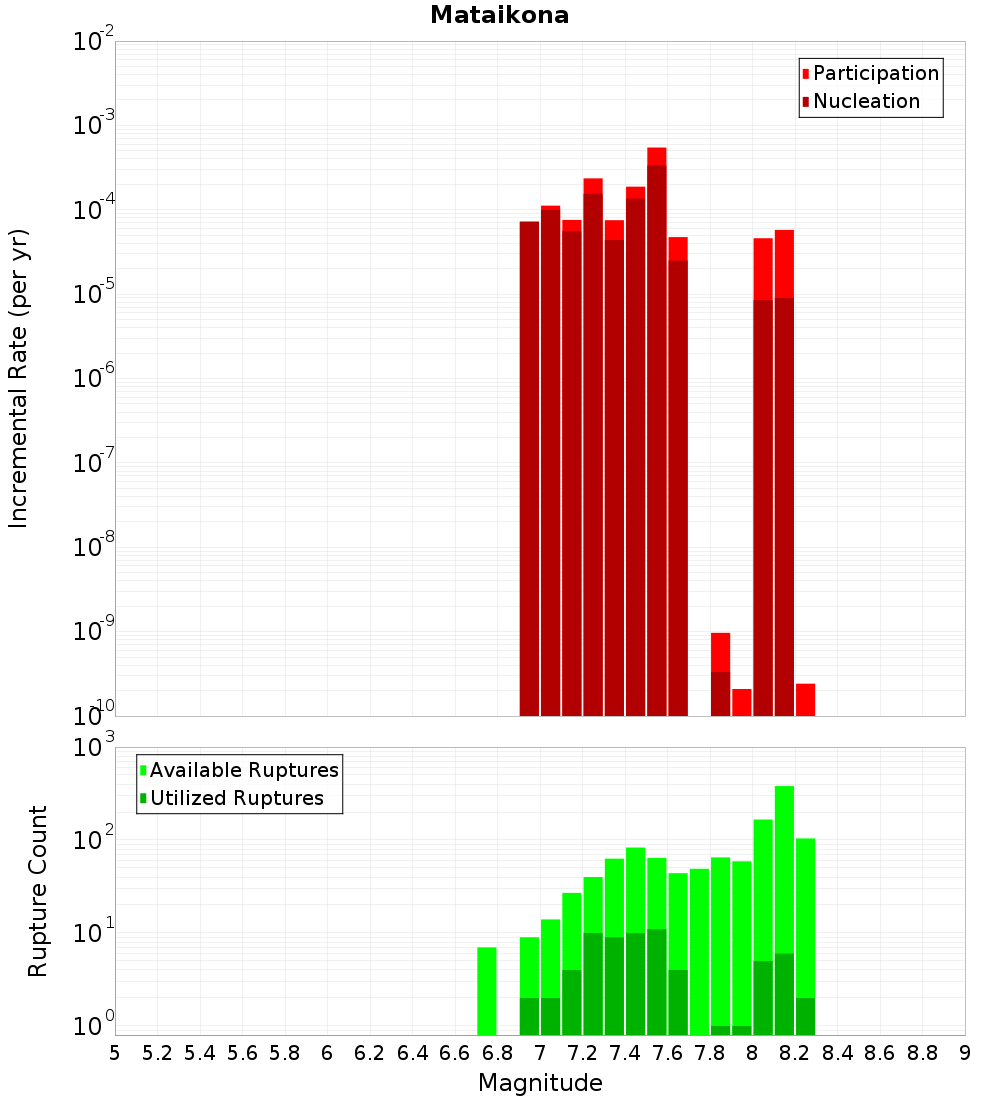

Magnitude-Frequency Distribution

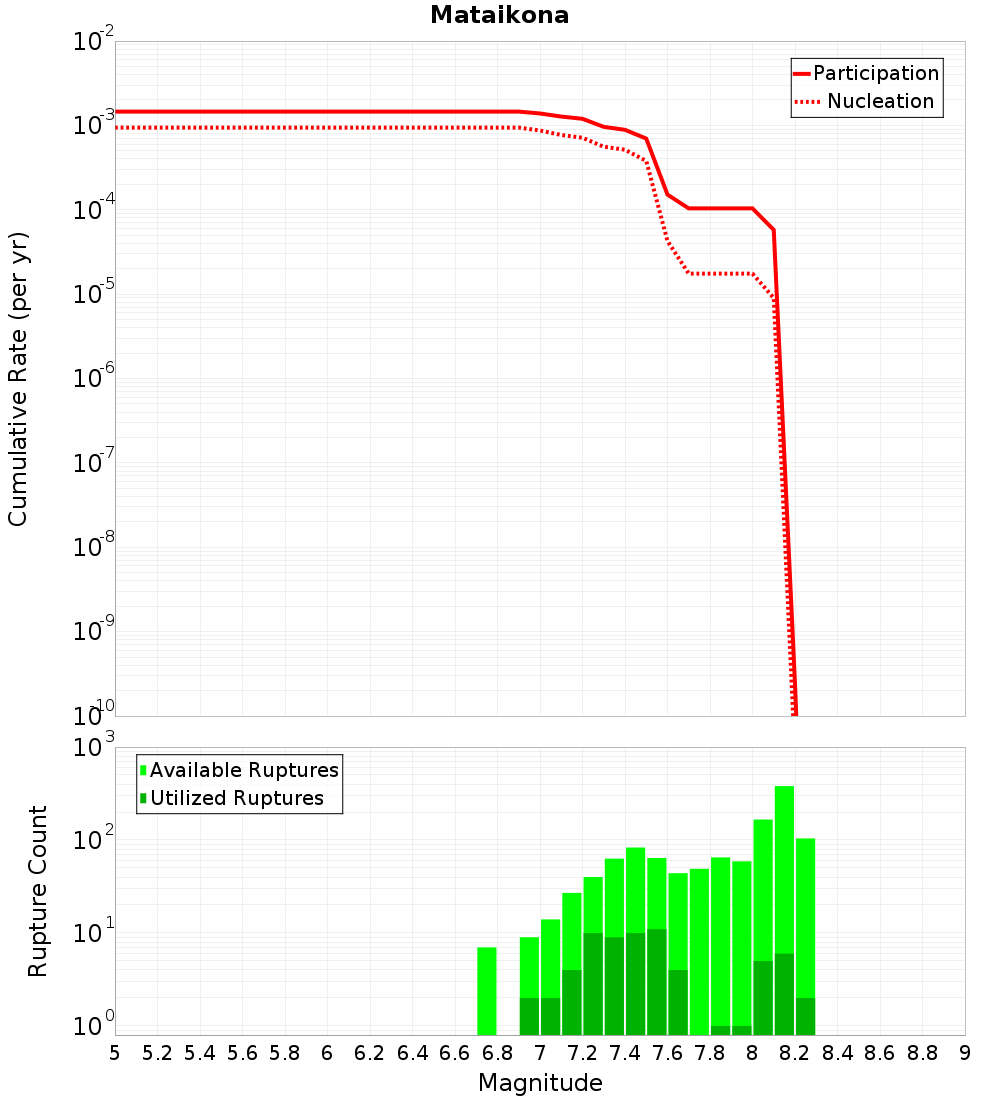

Incremental	Cumulative

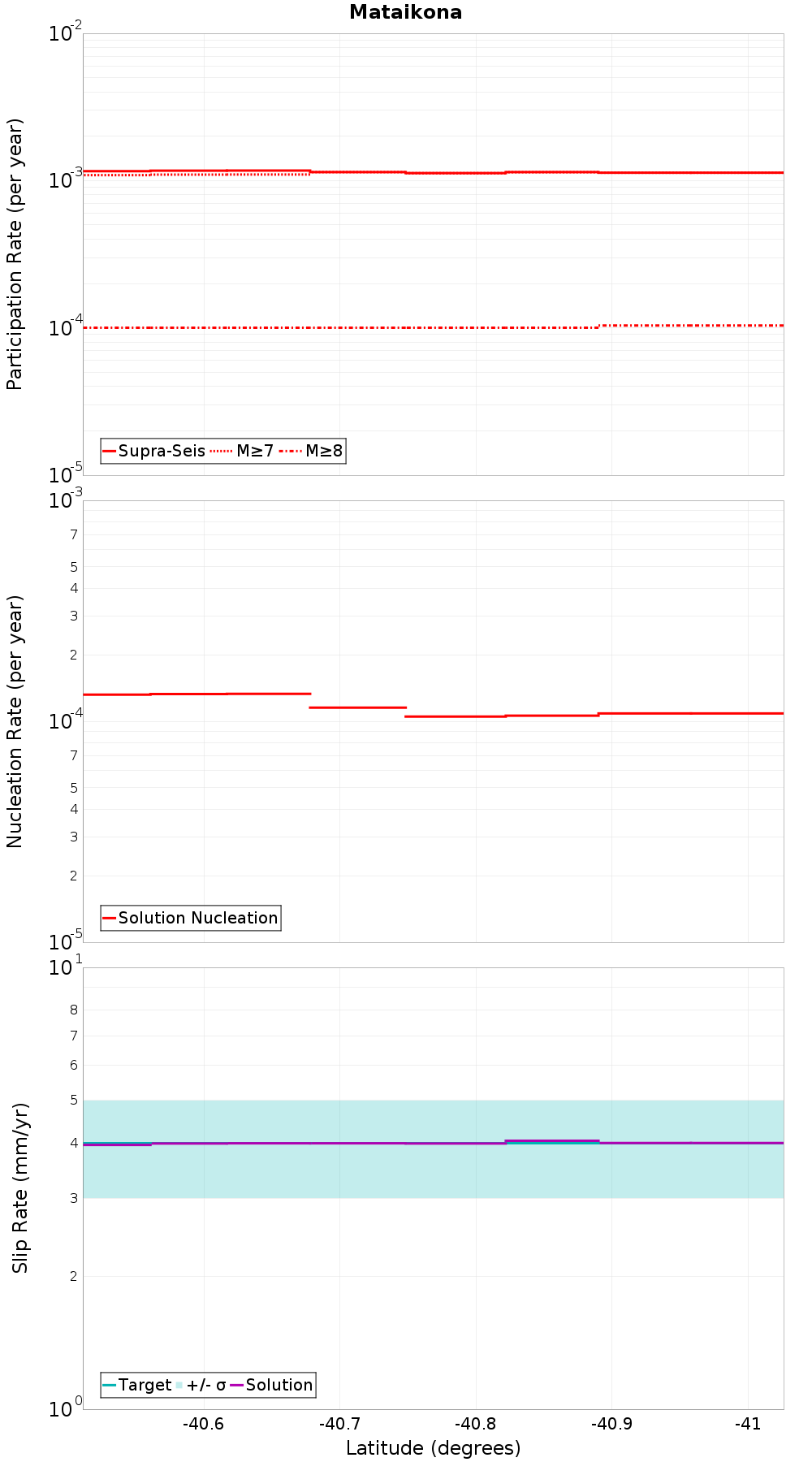

Along-Strike Values

Moment-Rates and b-Values

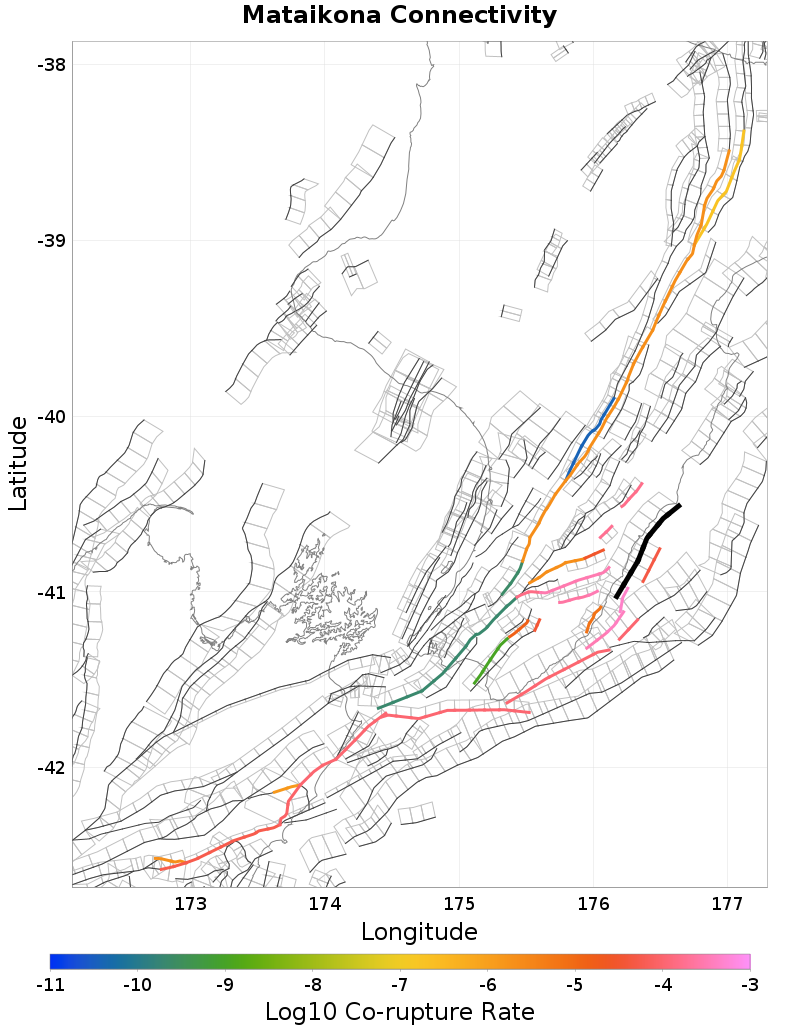

Connectivity

Nearby Sections

Fault Section
Carterton, 0.32 km away
Kaumingi, 1.19 km away
Riversdale North, 2.18 km away
Mokonui Northeast, 3.45 km away
Waitawhiti, 4.15 km away
Mataikona East, 5.61 km away
Riversdale, 6.53 km away
Uruti Point, 11.35 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.8 km away
Waipukaka, 15.32 km away
Saunders Road, 17.63 km away

Carterton, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	535
Co-rupture Rate	3.0624392E-4

Kaumingi, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	3.2713835E-4

Riversdale North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	303
Co-rupture Rate	4.4883476E-4

Mokonui Northeast, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	2.8817483E-5

Waitawhiti, 4.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	1.795546E-4

Mataikona East, 5.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	42
Co-rupture Rate	4.8365517E-5

Riversdale, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	false
Co-rupture Count	123
Co-rupture Rate	3.9081727E-4

Uruti Point, 11.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	6.8655045E-6

Whareama Bank, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	false
Co-rupture Count	296
Co-rupture Rate	1.0158759E-4

Pongaroa - Weber, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	1.5859691E-4

Waipukaka, 15.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 17.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
