Ngatoro South 2 Details
| Property | Value |
|---|---|
| Rupture Count | 9 |
| Ruptures Above Sect Min Mag | 9 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.99, 7.44] |
| Length Range | [24, 62] km |
| Total Rate | 8.5925846E-4 /yr |
| Multi-Fault Rate | 3.850407E-4 /yr (44.81%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

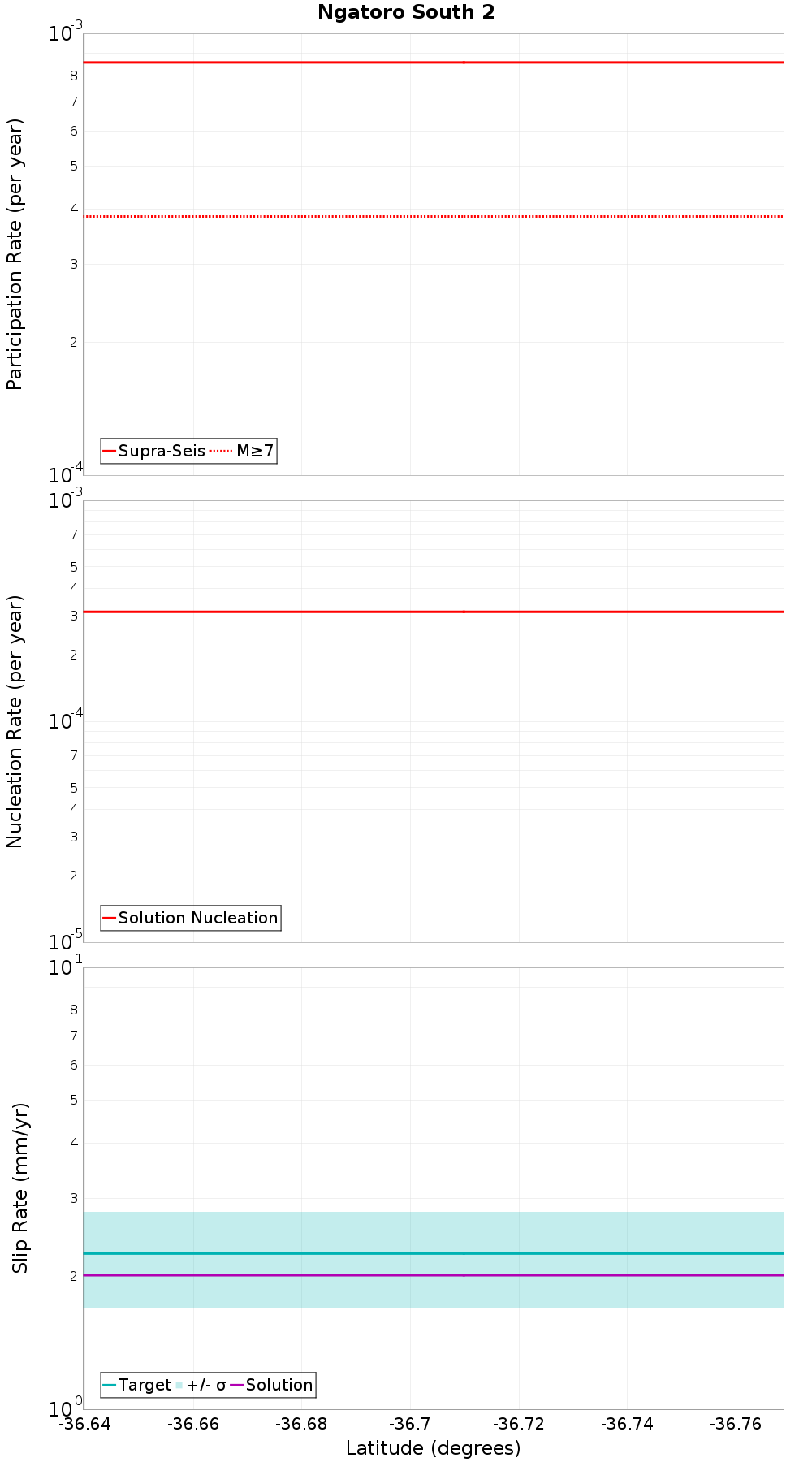

Along-Strike Values

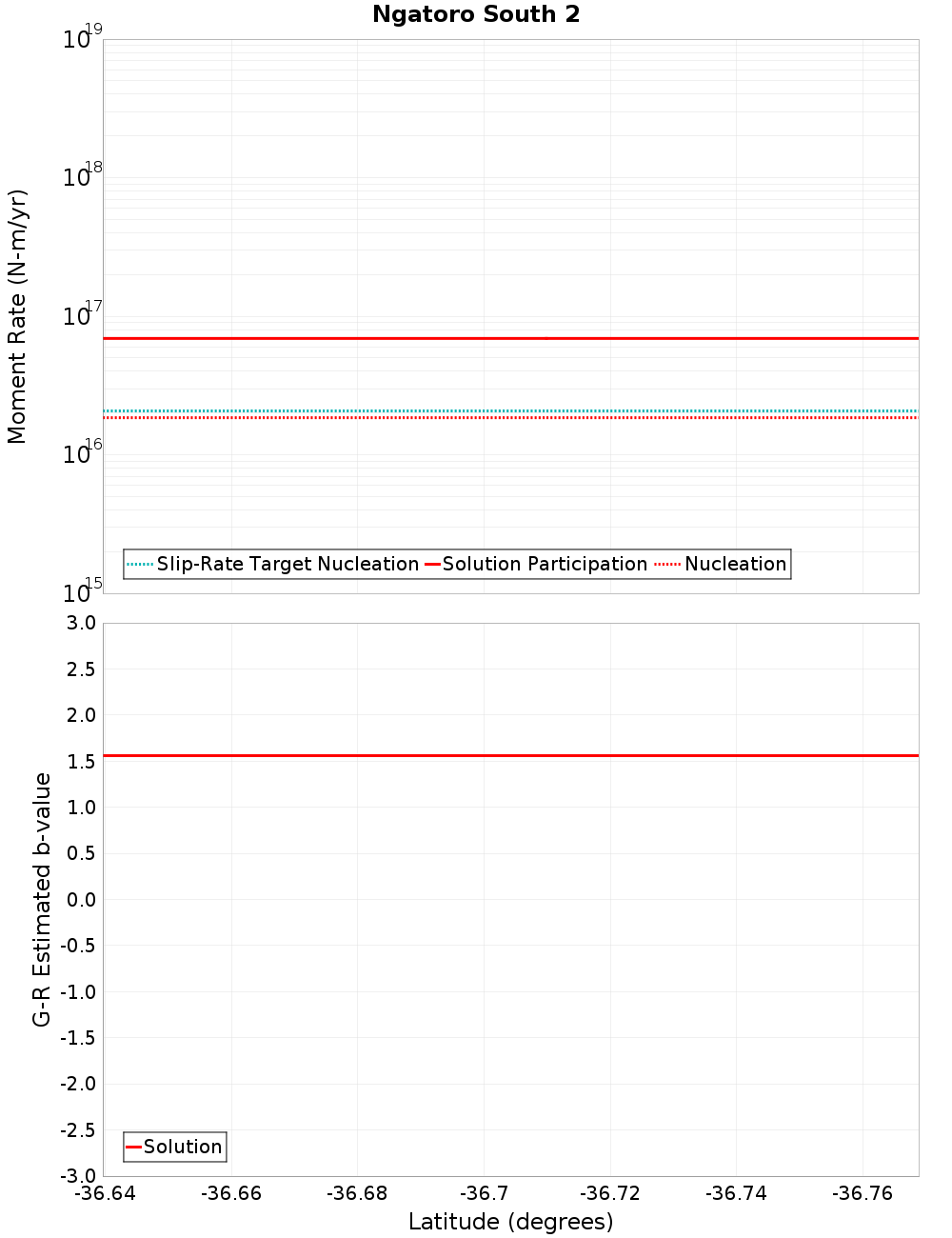

Moment-Rates and b-Values

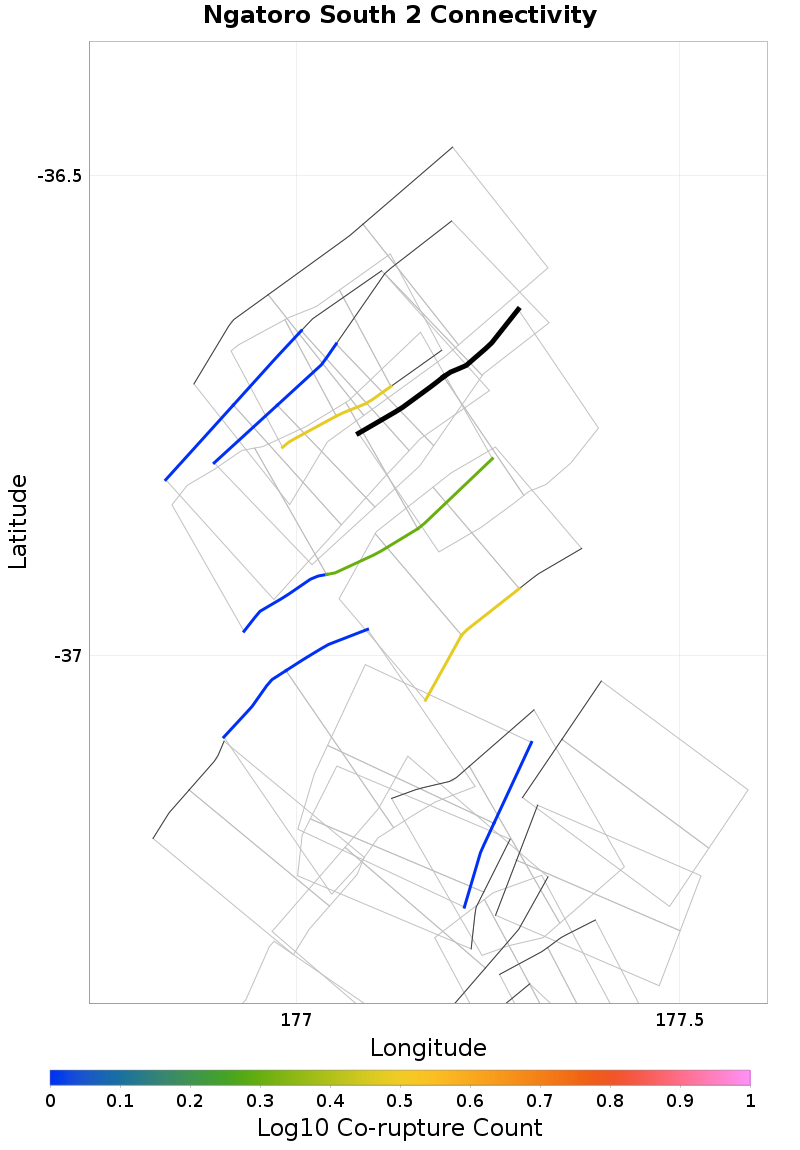

Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.8634508E-4 |
Tauranga Trough East 2, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Ngatoro South 5, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 9.869564E-5 |
Ohena 2, 6.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ohena 3, 9.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 9.869564E-5 |
Ohena 4, 14.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 15.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Tuakana 7, 19.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
