Pa Valley Details

PropertyValue
Rupture Count3,573
Ruptures Above Sect Min Mag3,571
Ruptures w/ Nonzero Rates42
Magnitude Range[6.68, 8.63]
Length Range[17, 1,112] km
Total Rate3.1261522E-4 /yr
Multi-Fault Rate3.1261522E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults68

Table Of Contents

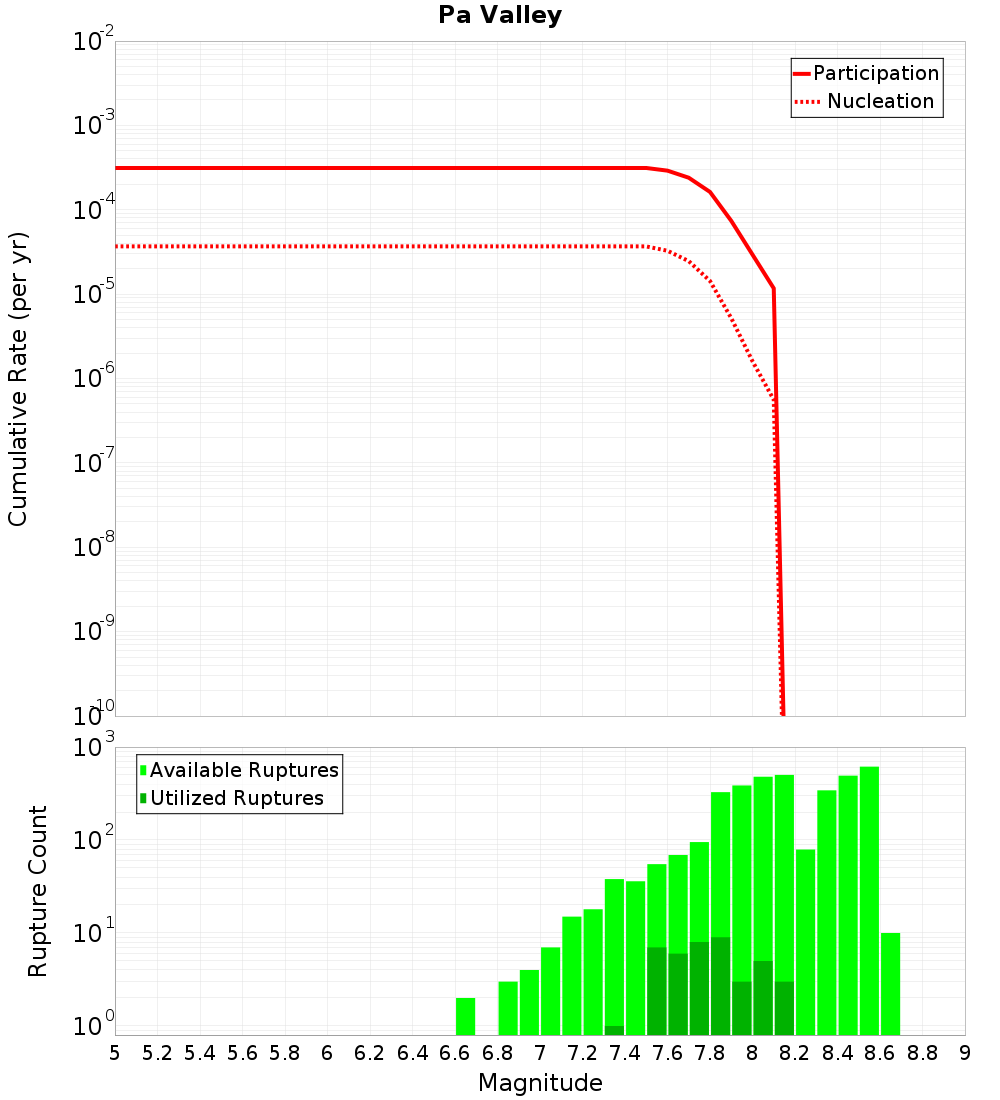

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

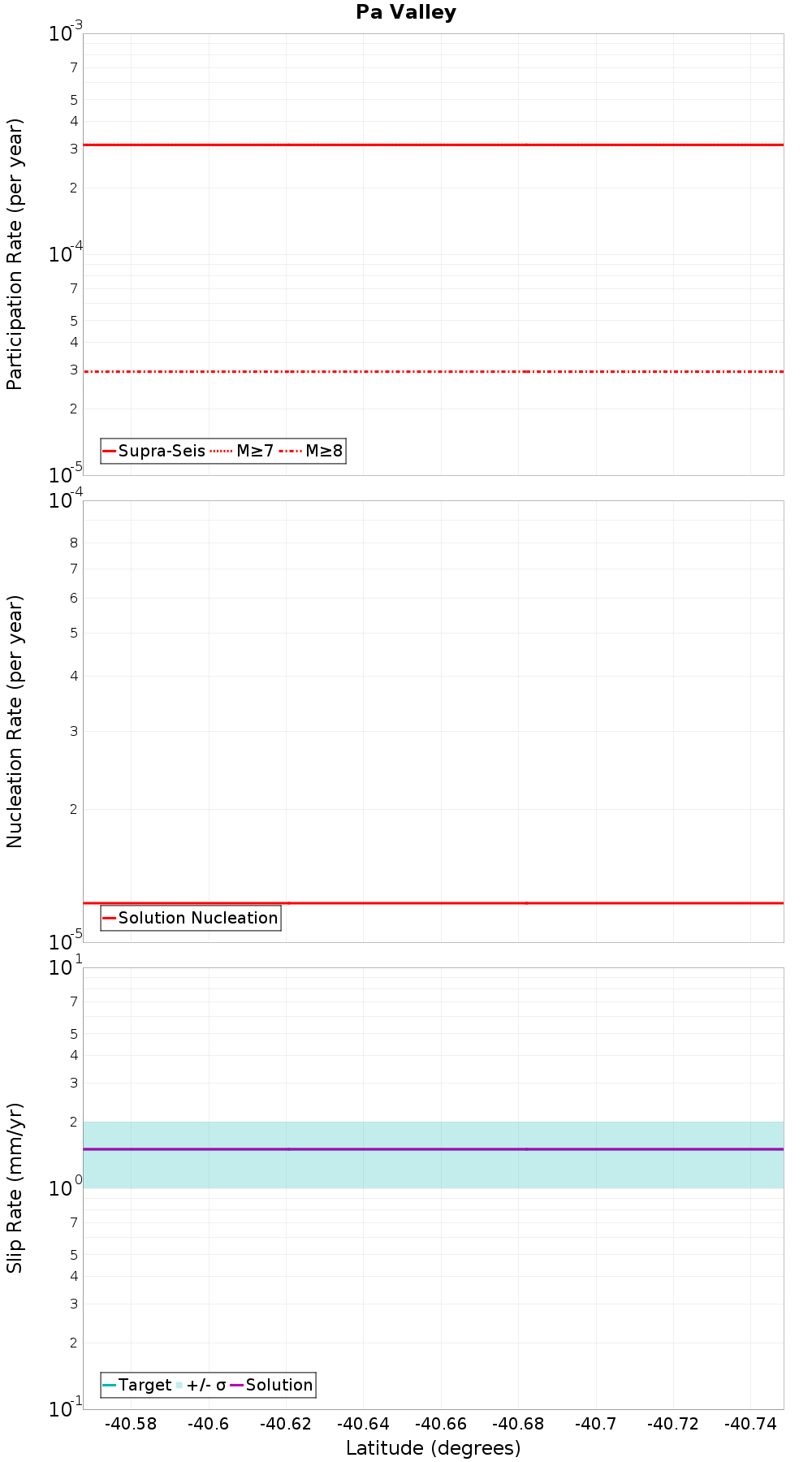

Along-Strike Values

(top)

Along-strike plot

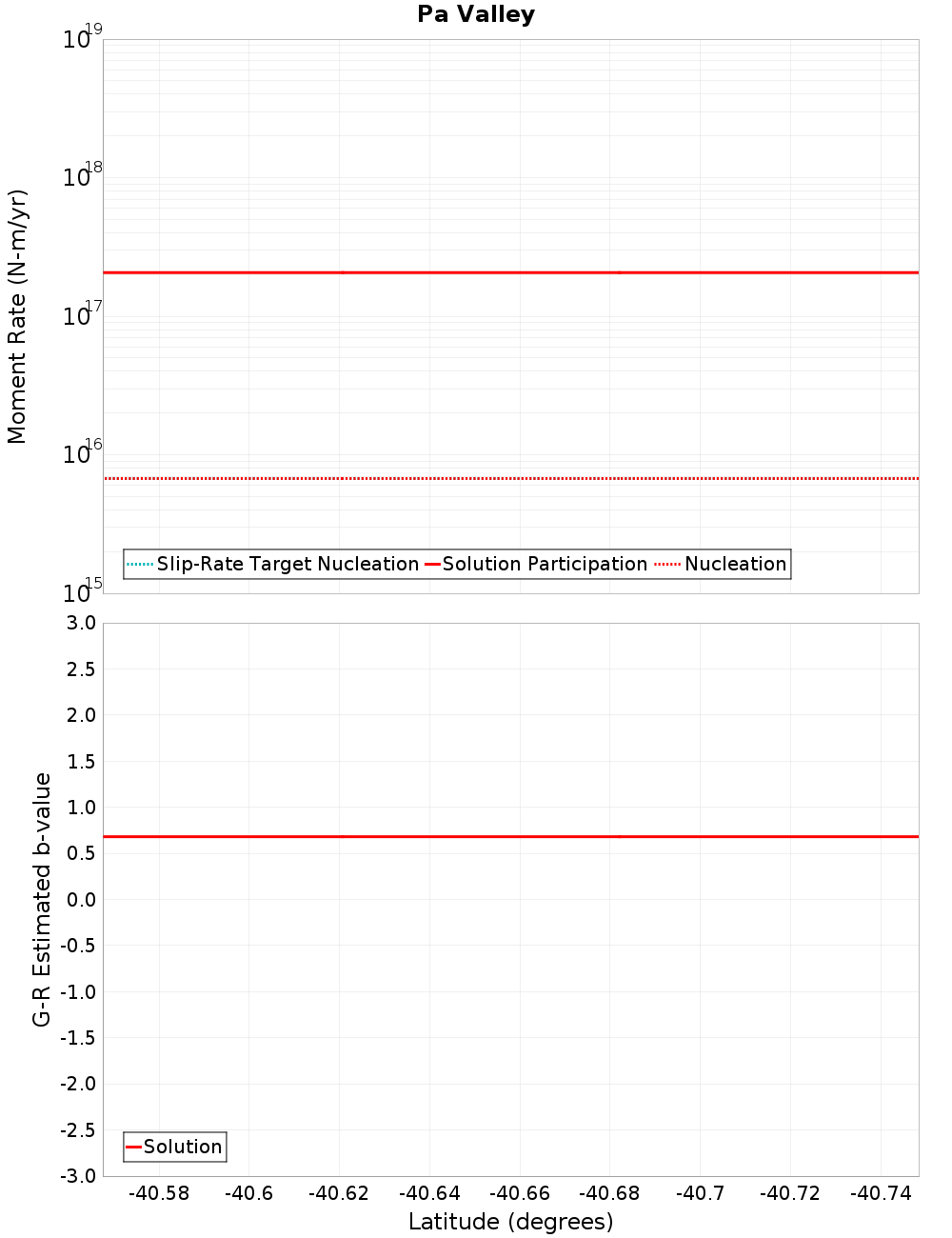

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0.07 km away
Dreyers Rock, 0.08 km away
Alfredton North, 0.21 km away
Saunders Road, 0.65 km away
Makuri - Waewaepa, 1.73 km away
Wairarapa: 3, 5.36 km away
Mokonui Northeast, 9.8 km away
Mokonui Southwest, 9.8 km away
Pahiatua, 14.33 km away
Waipukaka, 15.6 km away
Waitawhiti, 16.71 km away
Tokomaru, 17.93 km away
Wellington: Pahiatua, 19.21 km away

Alfredton South, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate0.0

Dreyers Rock, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count2,084
Co-rupture Rate1.888021E-4

Alfredton North, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Saunders Road, 0.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count1,111
Co-rupture Rate6.2776635E-5

Makuri - Waewaepa, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count1,094
Co-rupture Rate2.4983857E-4

Wairarapa: 3, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count3,548
Co-rupture Rate3.1261522E-4

Mokonui Northeast, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Mokonui Southwest, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate0.0

Pahiatua, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipukaka, 15.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate1.7891389E-5

Waitawhiti, 16.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 19.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
