Ranfurly Details

PropertyValue
Rupture Count119
Ruptures Above Sect Min Mag119
Ruptures w/ Nonzero Rates34
Magnitude Range[7.04, 7.98]
Length Range[24, 198] km
Total Rate3.0667386E-5 /yr
Multi-Fault Rate2.6415672E-5 /yr (86.14%)
Directly-Connected Faults5
All Co-Rupturing Faults18

Table Of Contents

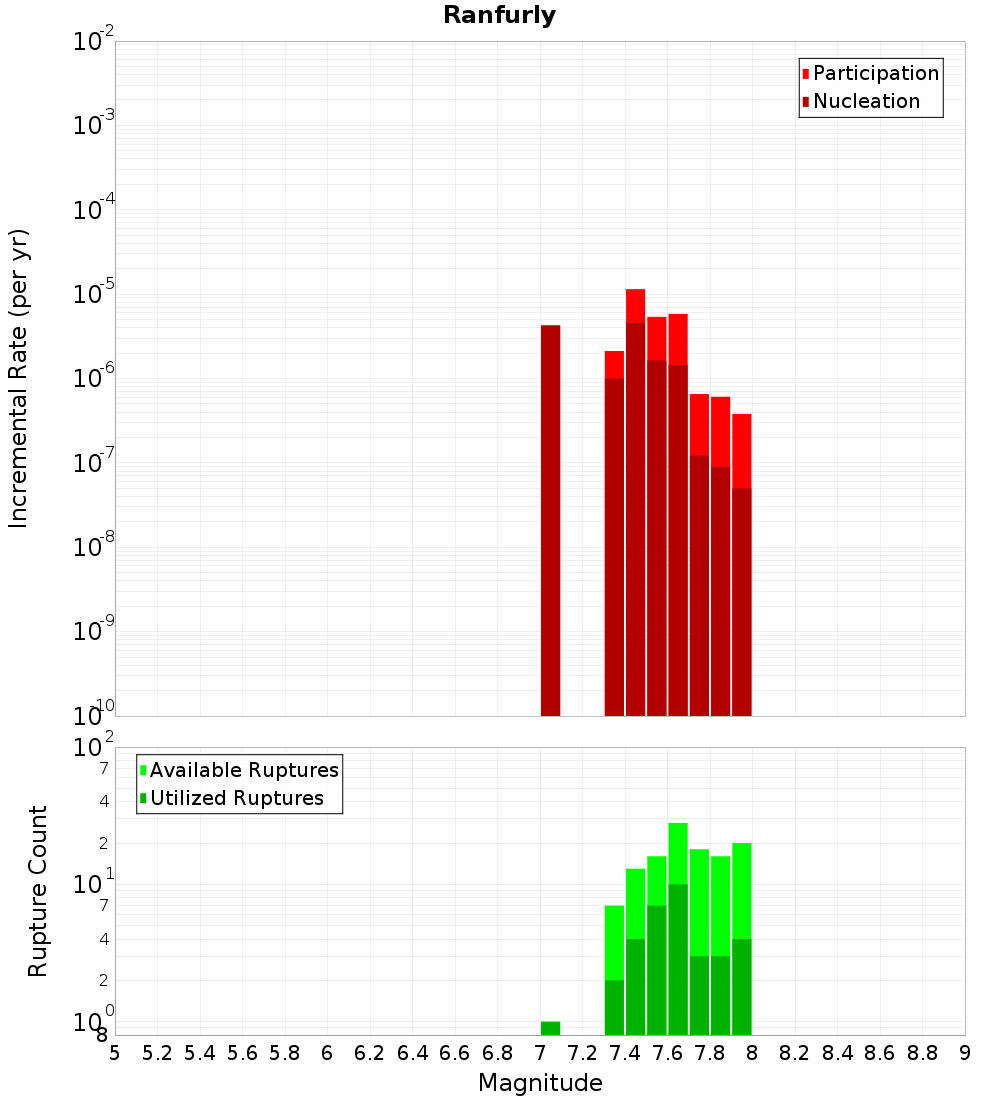

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

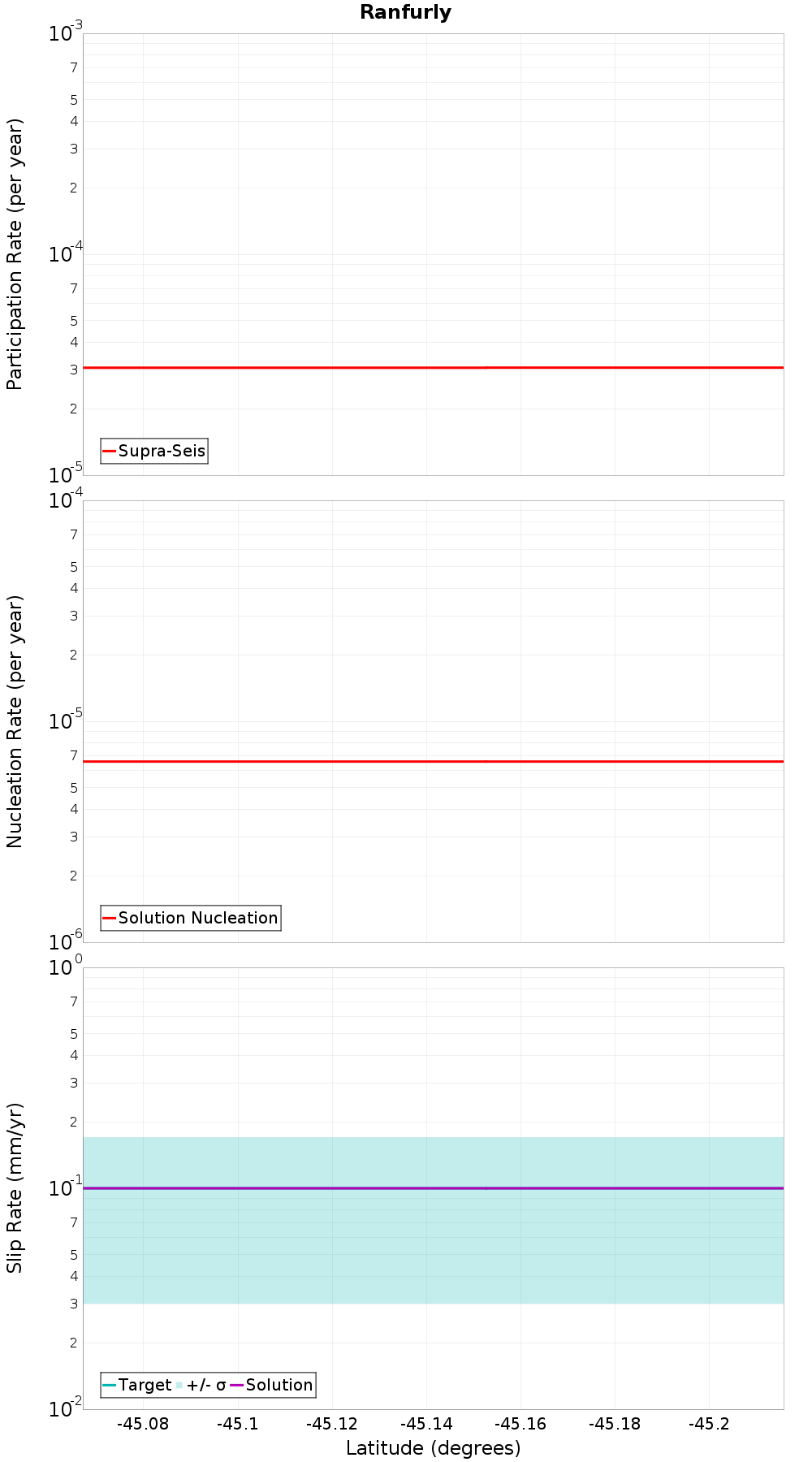

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde North, 0.06 km away
Horse Flat, 0.12 km away
Billys Ridge, 0.13 km away
Murphys Creek, 0.76 km away
Waipiata, 2.79 km away
Cross Eden, 4.43 km away
Dunback Hill, 4.86 km away
Gimmerburn, 4.96 km away
Waihemo, 5.63 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Flat Stream - Glenpark, 13.03 km away
Pylap, 13.83 km away
Long Valley, 18.55 km away
Logan Burn, 19.66 km away

Hyde North, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate1.28277E-5

Horse Flat, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate1.7717092E-8

Billys Ridge, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate1.0363894E-5

Murphys Creek, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate2.2418915E-8

Waipiata, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate6.5207323E-6

Cross Eden, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 4.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate1.403435E-6

Gimmerburn, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.575856E-7

Pylap, 13.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate5.1673624E-6

Long Valley, 18.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.790191E-8
