Wairarapa: 3 Details

PropertyValue
Rupture Count11,476
Ruptures Above Sect Min Mag11,472
Ruptures w/ Nonzero Rates156
Magnitude Range[6.63, 8.63]
Length Range[15, 1,112] km
Total Rate0.0013373307 /yr
Multi-Fault Rate0.001307378 /yr (97.76%)
Directly-Connected Faults4
All Co-Rupturing Faults83

Table Of Contents

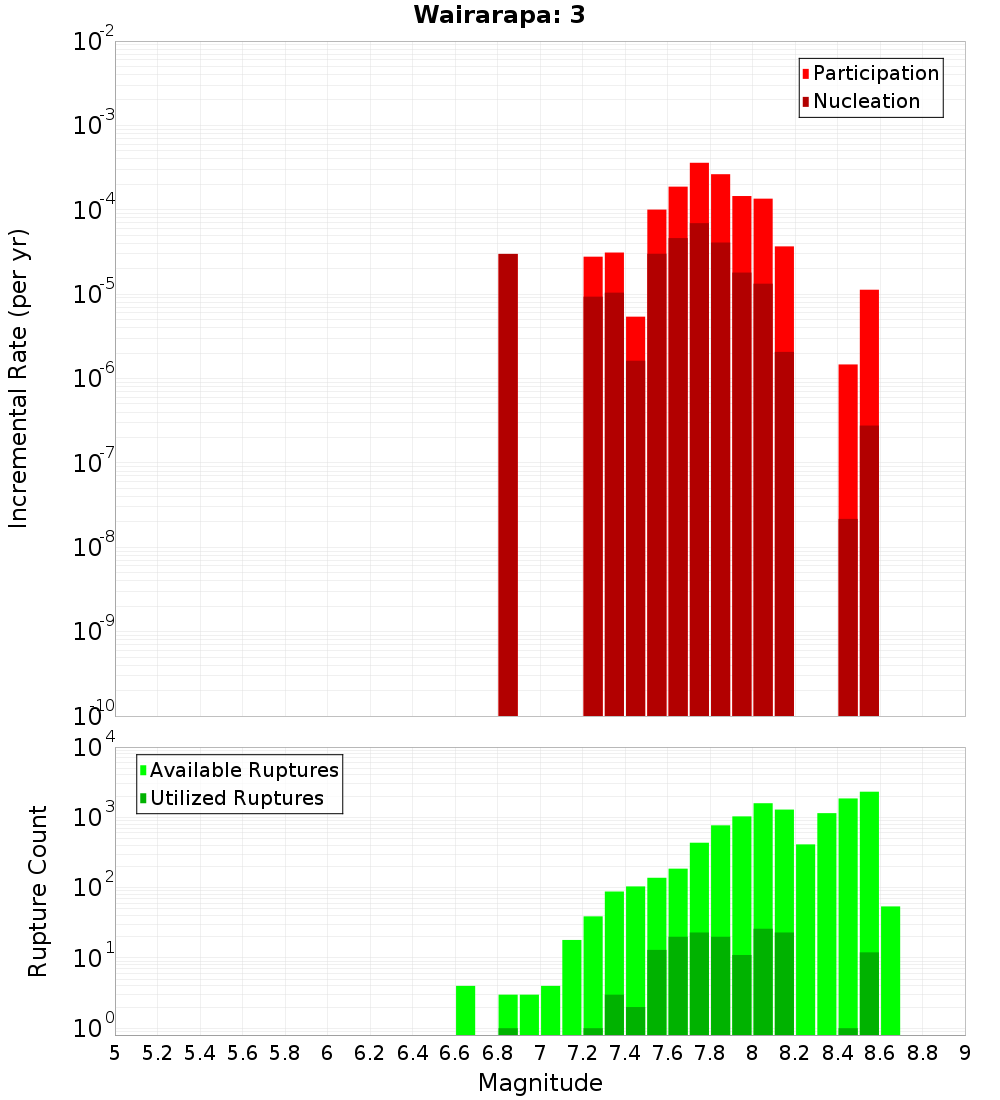

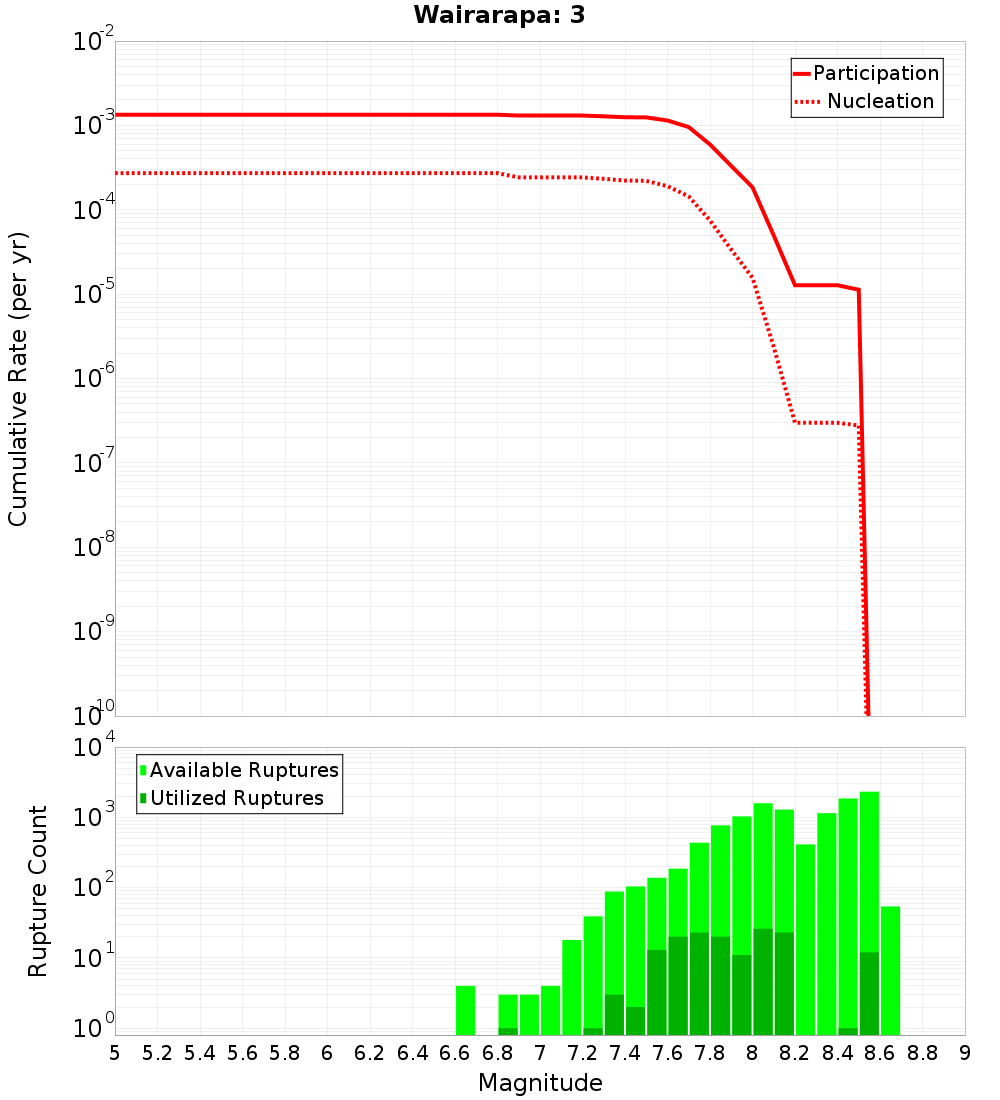

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

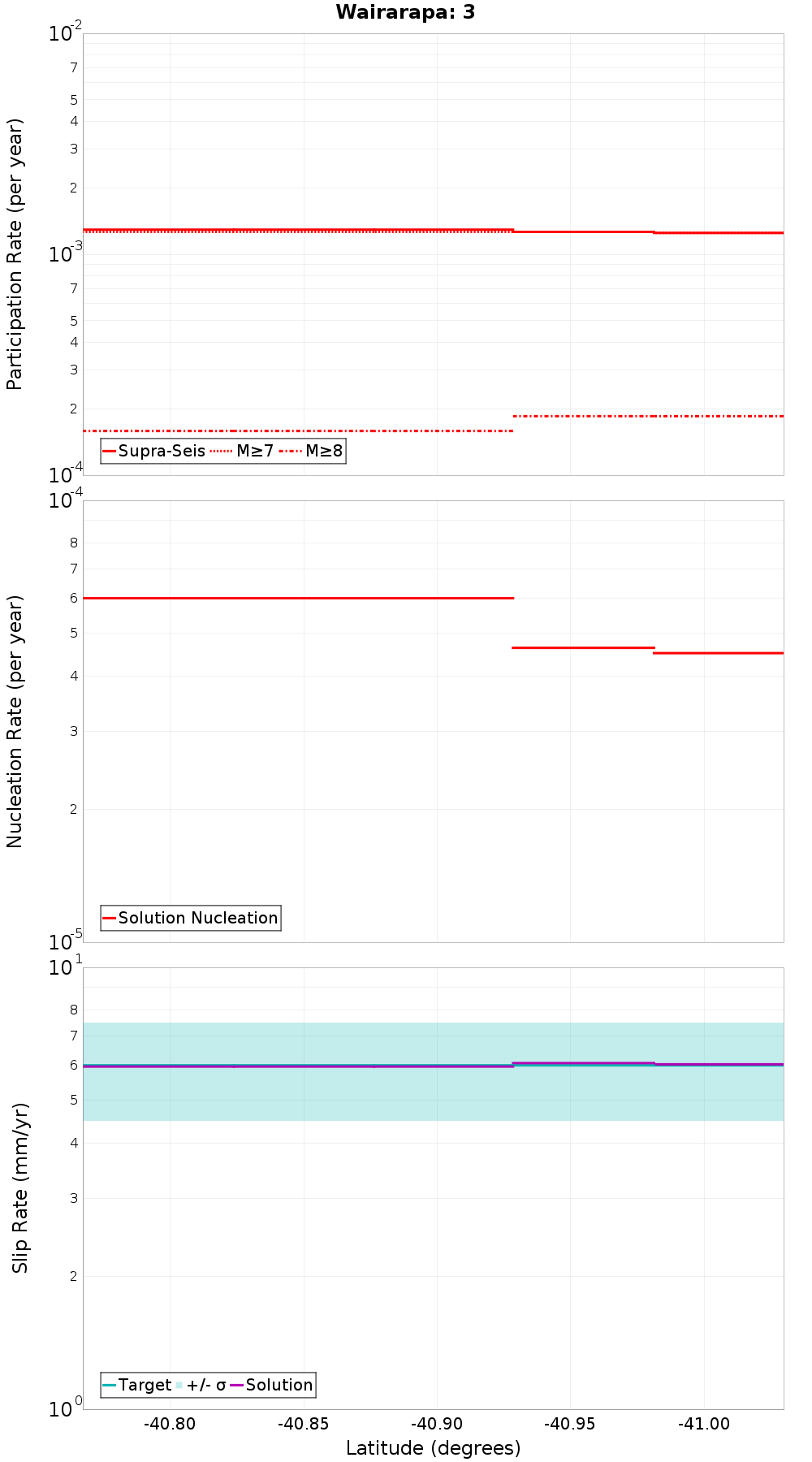

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

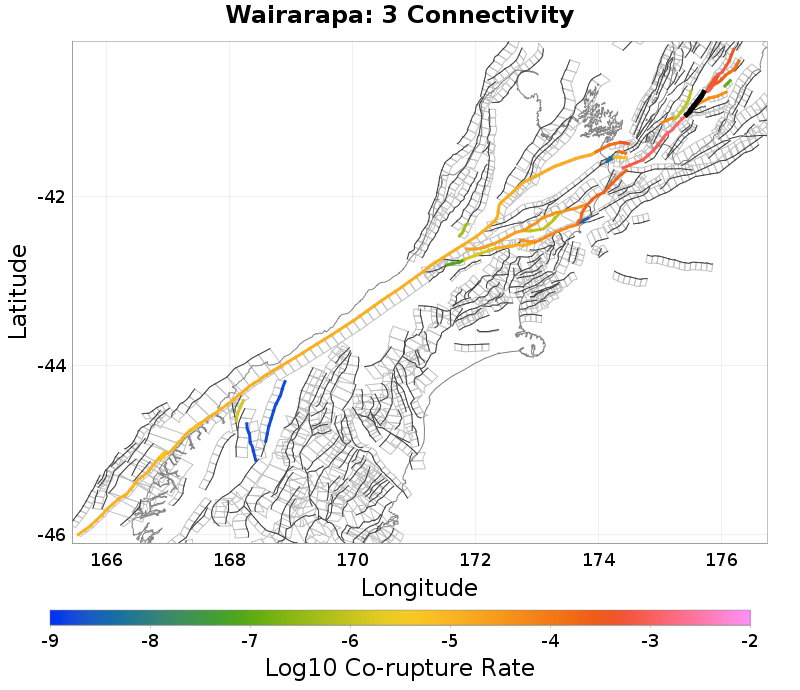

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Carterton, 0.02 km awayBidwill, 10.11 km away
Wairarapa: 2, 0.03 km awayMokonui Northeast, 10.14 km away
Mokonui Southwest, 0.12 km awayTokomaru, 11.99 km away
Masterton, 0.33 km awayWellington: Tararua 1, 13.27 km away
Dreyers Rock, 0.46 km awayWellington: Pahiatua, 13.85 km away
Pa Valley, 5.36 km awayAlfredton North, 15.44 km away
Alfredton South, 7.46 km awayOtaki Forks: 2, 16.33 km away
Wellington: Tararua 2, 7.95 km awaySaunders Road, 16.72 km away
Wellington: Tararua 3, 9.13 km awayDry River - Huangarua: 3, 17.91 km away
Martinborough, 9.53 km awayWellington Hutt Valley: 5, 19.01 km away

Carterton, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairarapa: 2, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count11,353
Co-rupture Rate0.0012484649

Mokonui Southwest, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count2,266
Co-rupture Rate4.5123852E-5

Masterton, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count5,771
Co-rupture Rate0.0010676405

Pa Valley, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?true
Co-rupture Count3,548
Co-rupture Rate3.1261522E-4

Alfredton South, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count2,249
Co-rupture Rate7.697861E-4

Wellington: Tararua 2, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate8.3516596E-7

Wellington: Tararua 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate8.3516596E-7

Martinborough, 9.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count1,161
Co-rupture Rate4.8506045E-5

Tokomaru, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 1, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate8.3516596E-7

Wellington: Pahiatua, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton North, 15.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count1,553
Co-rupture Rate5.066835E-4

Otaki Forks: 2, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Saunders Road, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count2,196
Co-rupture Rate3.0987186E-4

Dry River - Huangarua: 3, 17.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NDEuMEg4N3BS
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate6.137995E-5
