Greendale Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.55, 6.85] |
| Length Range | [14, 29] km |
| Total Rate | 1.2407763E-4 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

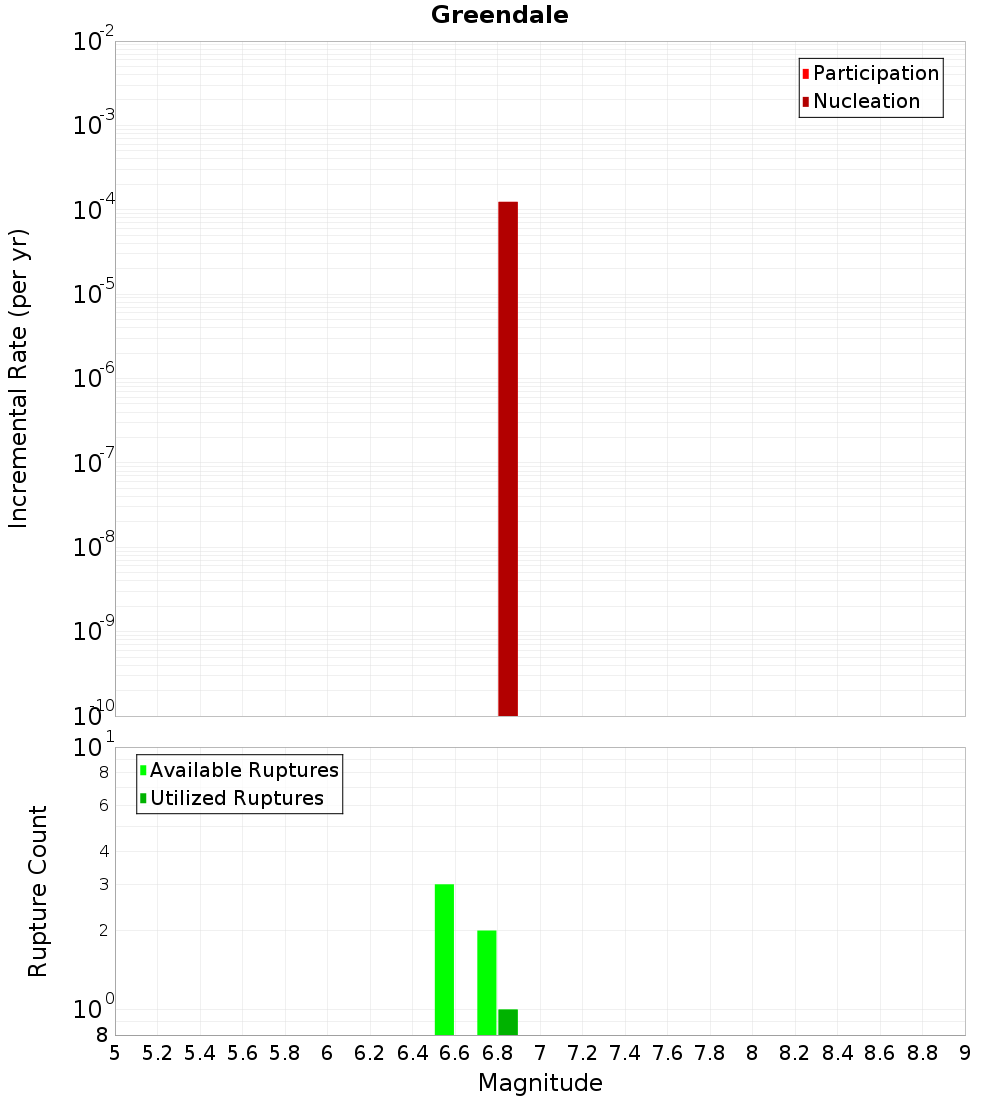

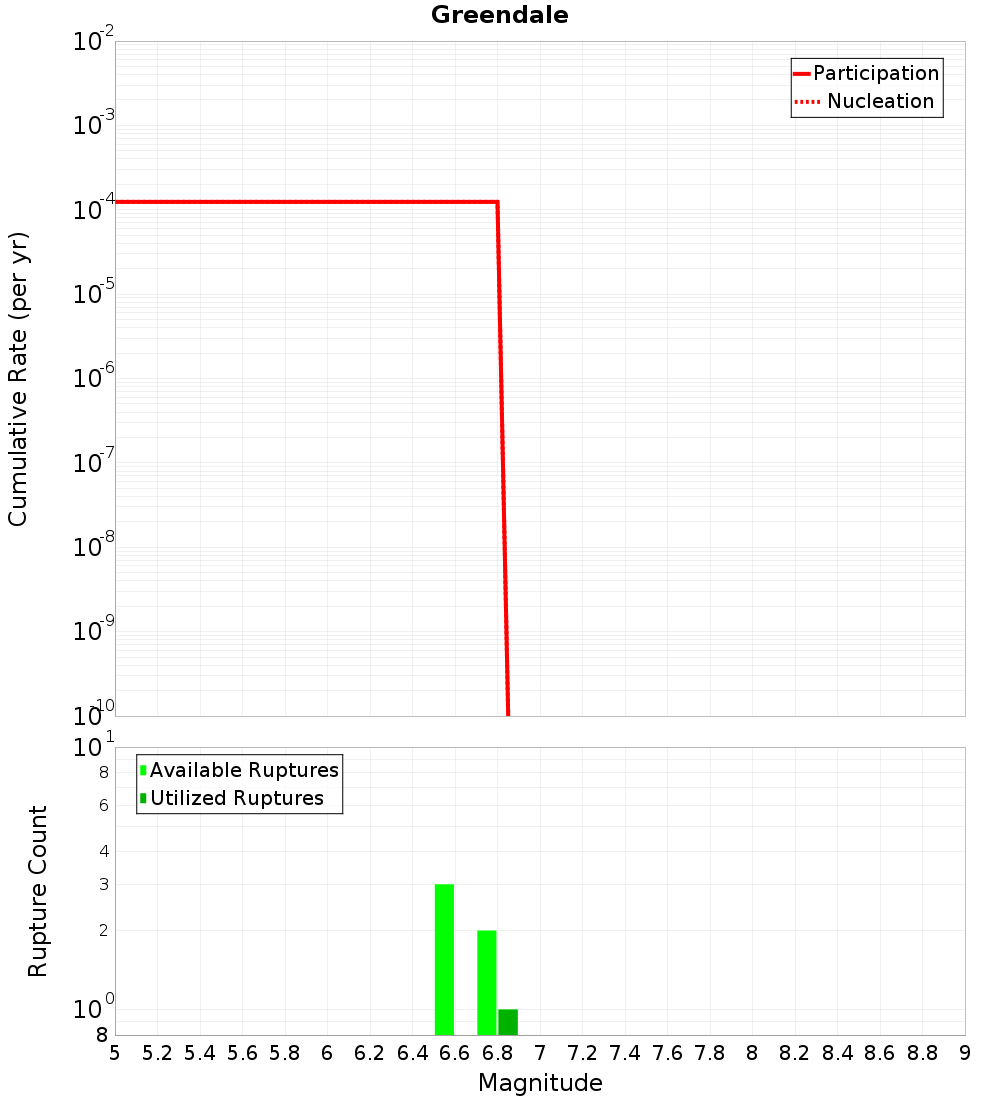

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

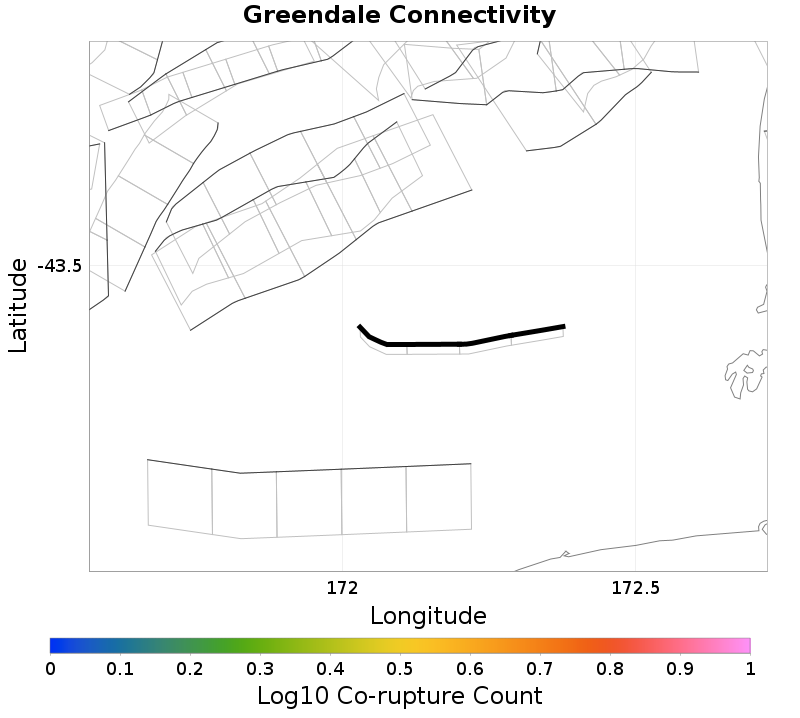

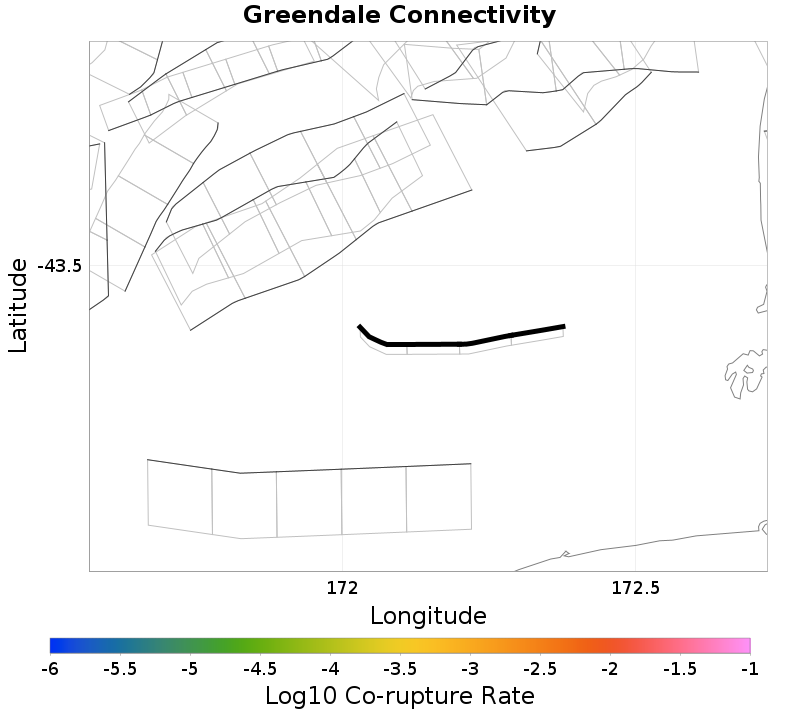

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hororata, 10.04 km away |
| High Peak - Sheffield, 14.22 km away |
| Rakaia, 16.39 km away |
Hororata, 10.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTAuMDlMbXVy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
High Peak - Sheffield, 14.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTAuMDlMbXVy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rakaia, 16.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTAuMDlMbXVy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
