Opouawe - Uruti Details

PropertyValue
Rupture Count32,067
Ruptures Above Sect Min Mag32,055
Ruptures w/ Nonzero Rates278
Magnitude Range[6.81, 8.62]
Length Range[20, 1,204] km
Total Rate7.0951466E-4 /yr
Multi-Fault Rate7.0951466E-4 /yr (100.00%)
Directly-Connected Faults12
All Co-Rupturing Faults92

Table Of Contents

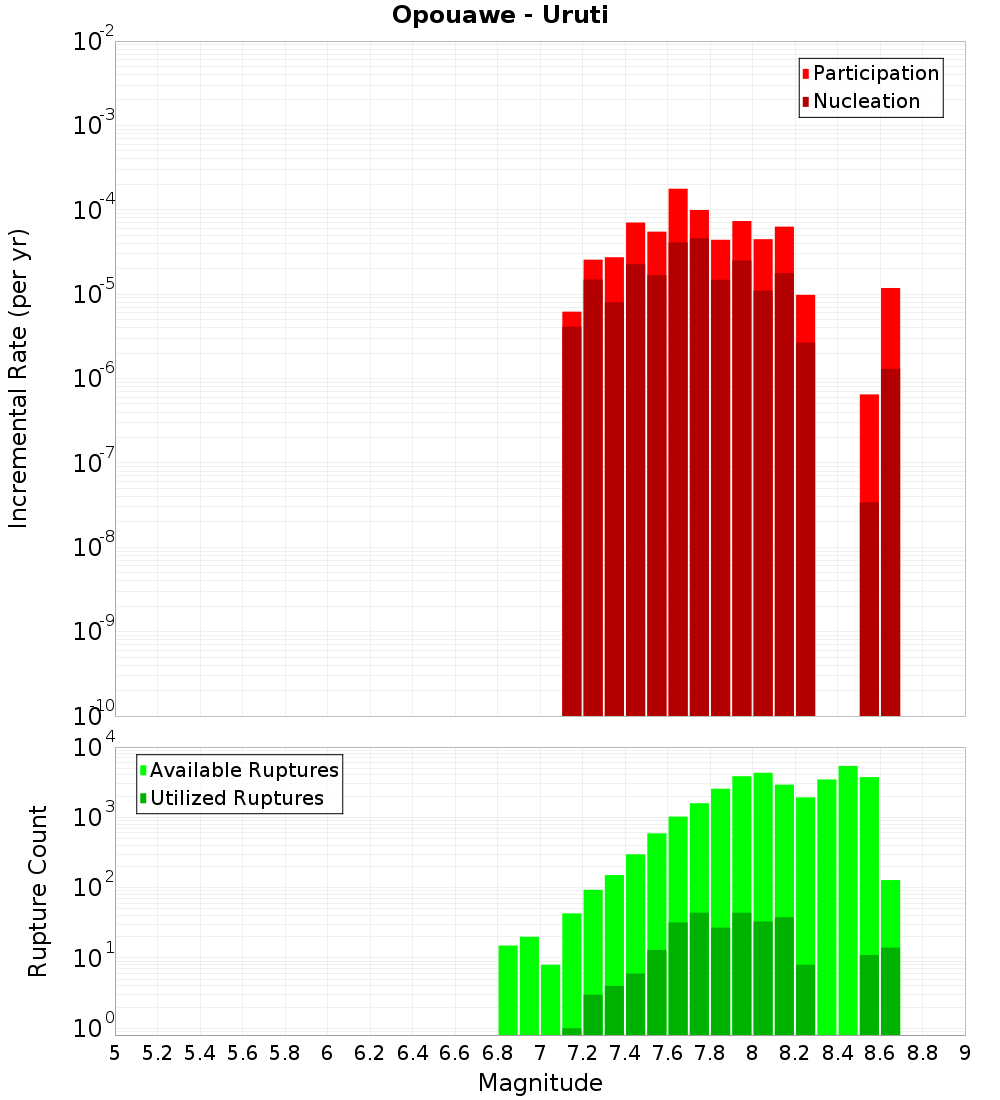

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

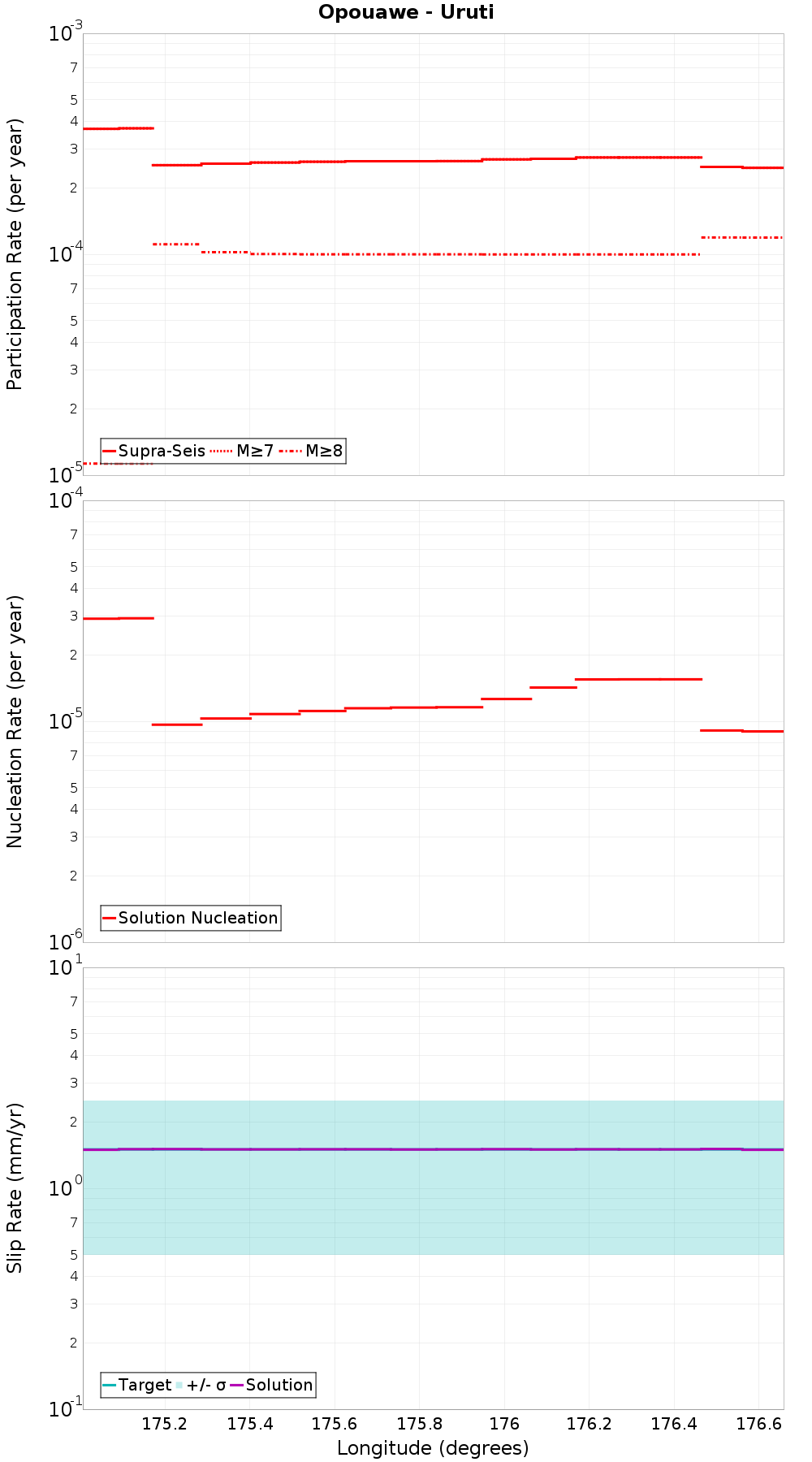

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
BooBoo, 0.13 km awayOtaraia, 7.95 km away
Uruti Basin 2, 0.14 km awayPalliser - Kaiwhata, 8.58 km away
Uruti Basin, 0.16 km awayUpper Slope, 13.4 km away
Te Rapa 2, 0.25 km awayUruti North, 13.46 km away
Uruti Ridge 2, 2.43 km awayCampbell Bank, 13.93 km away
Pahaua, 2.68 km awayDry River - Huangarua: 1, 14.3 km away
Kekerengu Bank, 5.25 km awayWhareama Bank, 15.36 km away
Uruti East - PorWest 1, 5.54 km awayRiversdale, 18.85 km away
Honeycomb, 5.87 km away

BooBoo, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count11,030
Co-rupture Rate1.6600768E-4

Uruti Basin 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count1,220
Co-rupture Rate1.2169501E-4

Uruti Basin, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count3,036
Co-rupture Rate6.696752E-5

Te Rapa 2, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count12,531
Co-rupture Rate2.7613248E-6

Uruti Ridge 2, 2.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count9,325
Co-rupture Rate7.0436494E-5

Pahaua, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count2,665
Co-rupture Rate5.4640557E-5

Kekerengu Bank, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count4,851
Co-rupture Rate3.9138424E-4

Uruti East - PorWest 1, 5.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count12,496
Co-rupture Rate5.205894E-5

Honeycomb, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count513
Co-rupture Rate5.172971E-5

Otaraia, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?false
Co-rupture Count514
Co-rupture Rate1.0557331E-5

Palliser - Kaiwhata, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count1,919
Co-rupture Rate3.442711E-5

Upper Slope, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?false
Co-rupture Count479
Co-rupture Rate1.0355983E-5

Uruti North, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count2,952
Co-rupture Rate1.4553886E-4

Campbell Bank, 13.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?false
Co-rupture Count1,034
Co-rupture Rate7.750815E-5

Dry River - Huangarua: 1, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?true
Co-rupture Count231
Co-rupture Rate2.0082202E-4

Whareama Bank, 15.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0

Riversdale, 18.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTEuME1KbkNj
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0
