Edgecumbe 1987 Details

Property	Value
Rupture Count	14,314
Ruptures Above Sect Min Mag	14,314
Ruptures w/ Nonzero Rates	79
Magnitude Range	[6.79, 8.34]
Length Range	[20, 608] km
Total Rate	5.7932327E-4 /yr
Multi-Fault Rate	5.7932327E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

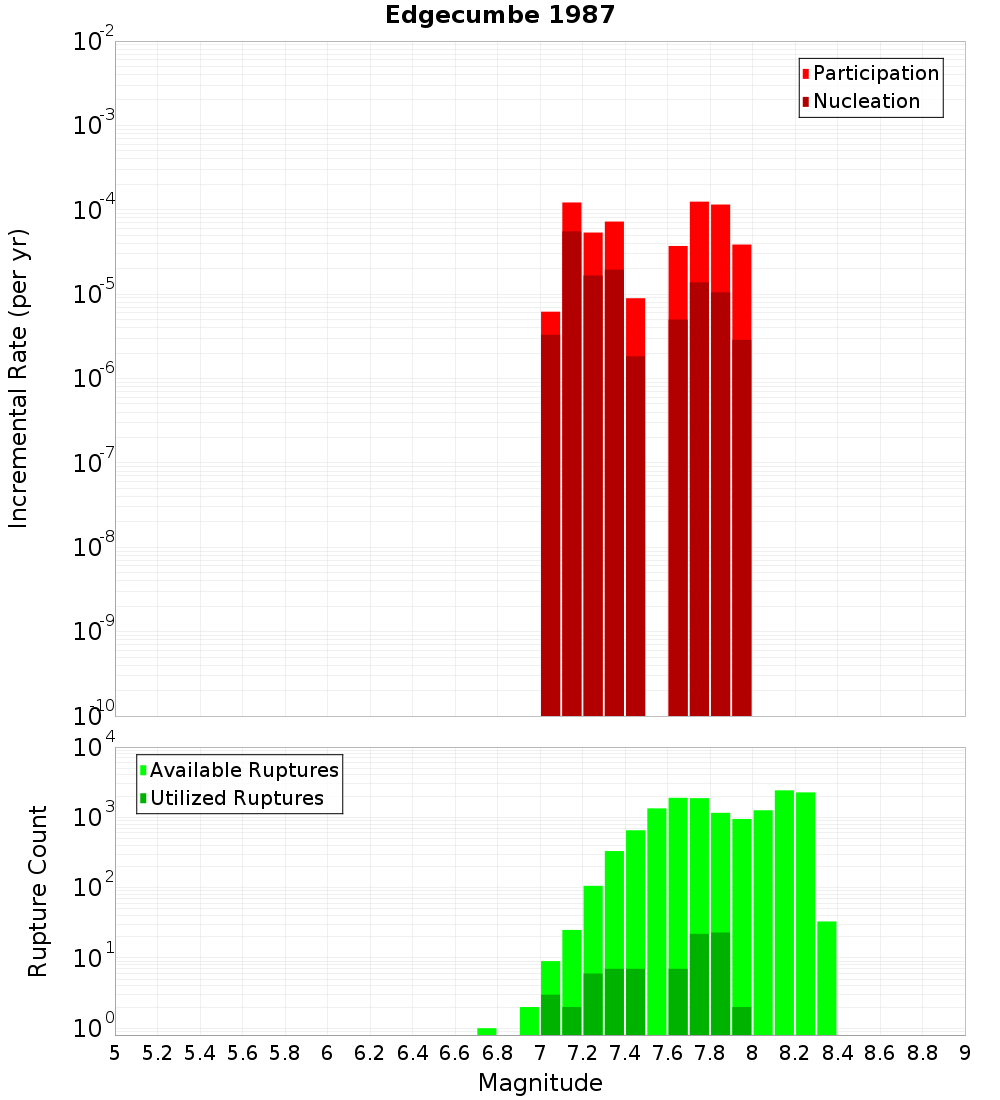

Magnitude-Frequency Distribution

Incremental	Cumulative

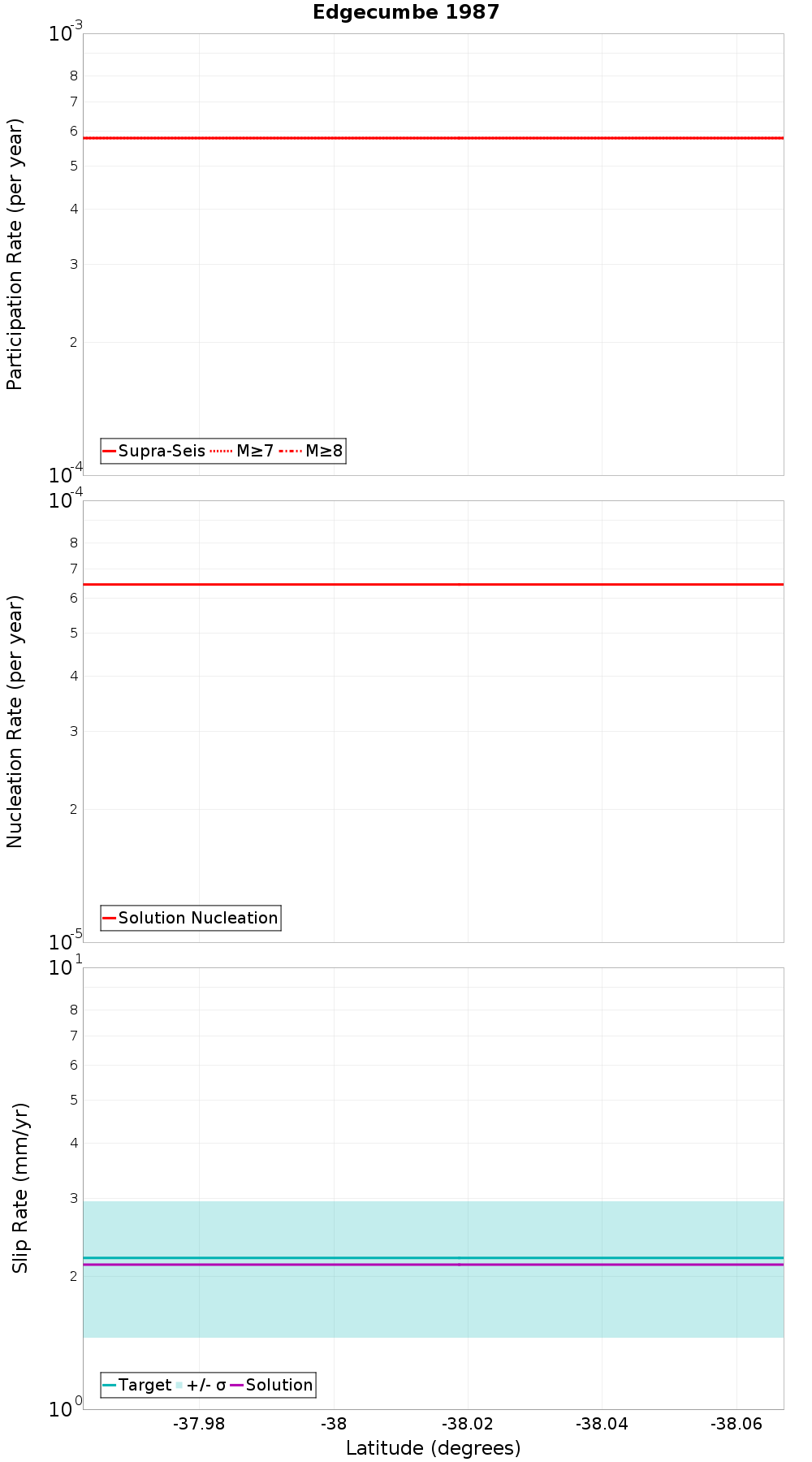

Along-Strike Values

Moment-Rates and b-Values

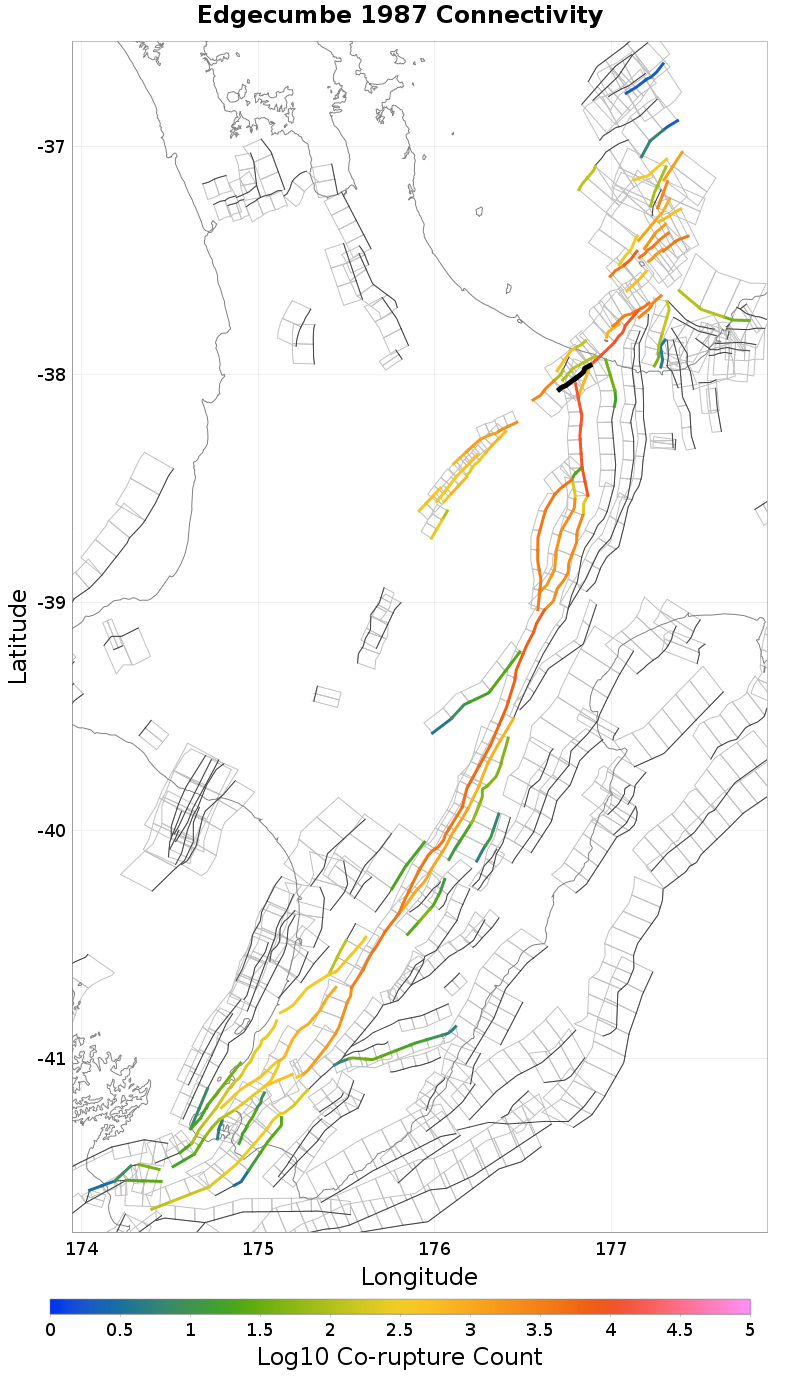

Connectivity

Nearby Sections

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	false
Co-rupture Count	658
Co-rupture Rate	5.2462724E-6

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	true
Co-rupture Count	11,626
Co-rupture Rate	5.7771284E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	1.336828E-4

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	false
Co-rupture Count	558
Co-rupture Rate	1.4163338E-5

Braemar, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	true
Co-rupture Count	2,874
Co-rupture Rate	3.102808E-4

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	true
Co-rupture Count	11,698
Co-rupture Rate	5.5897322E-5

White Island 1, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	true
Co-rupture Count	11,570
Co-rupture Rate	1.5595558E-4

Whakatane: North, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	1.081819E-4

Rangitaiki 1, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NTkuMHVoNE5k
Connected?	true
Directly Connected?	false
Co-rupture Count	762
Co-rupture Rate	1.6007289E-4
