Huxley Details

Property	Value
Rupture Count	1,389
Ruptures Above Sect Min Mag	1,388
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.86, 8.41]
Length Range	[18, 735] km
Total Rate	6.71166E-6 /yr
Multi-Fault Rate	6.71166E-6 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	106

Table Of Contents

Magnitude-Frequency Distribution

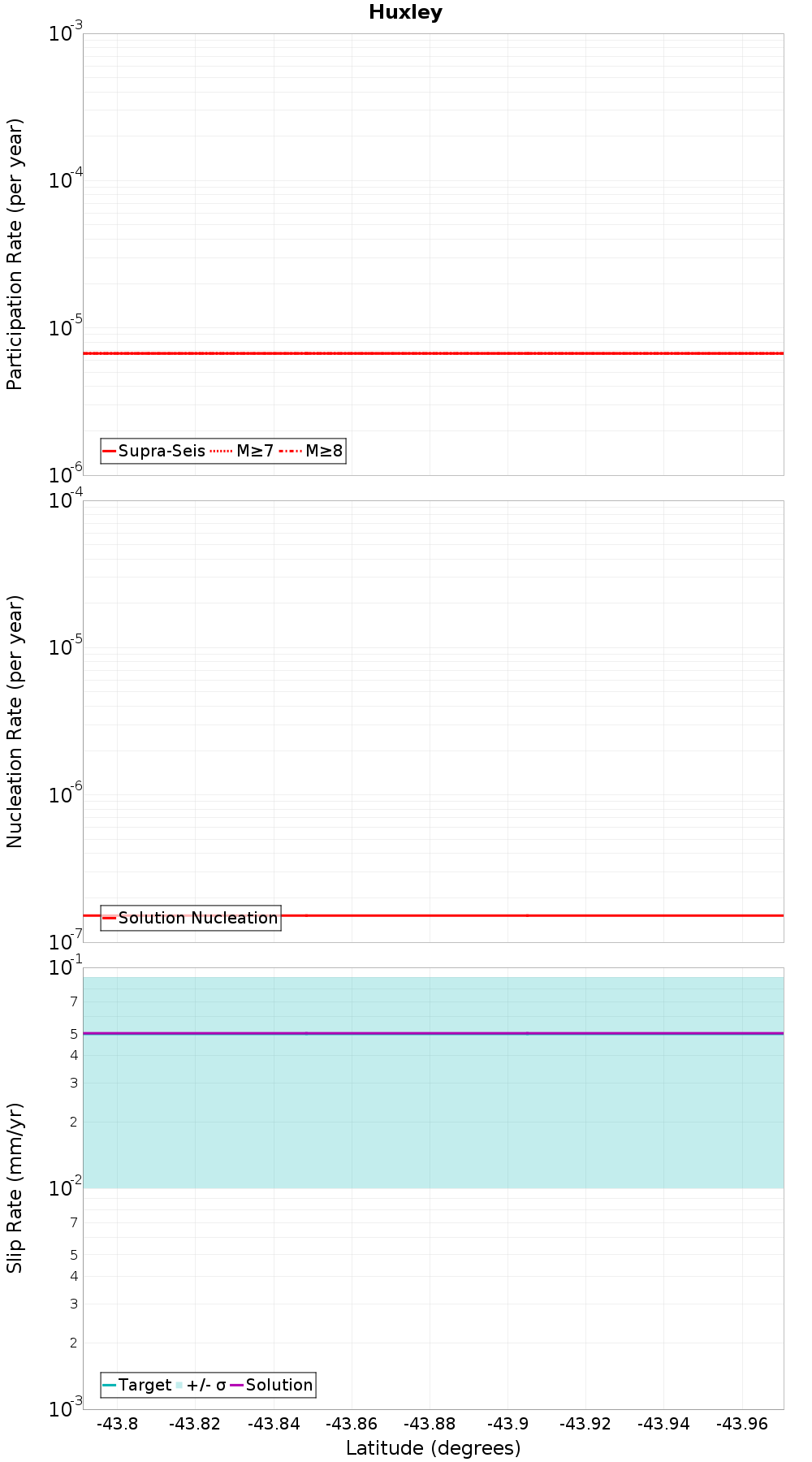

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

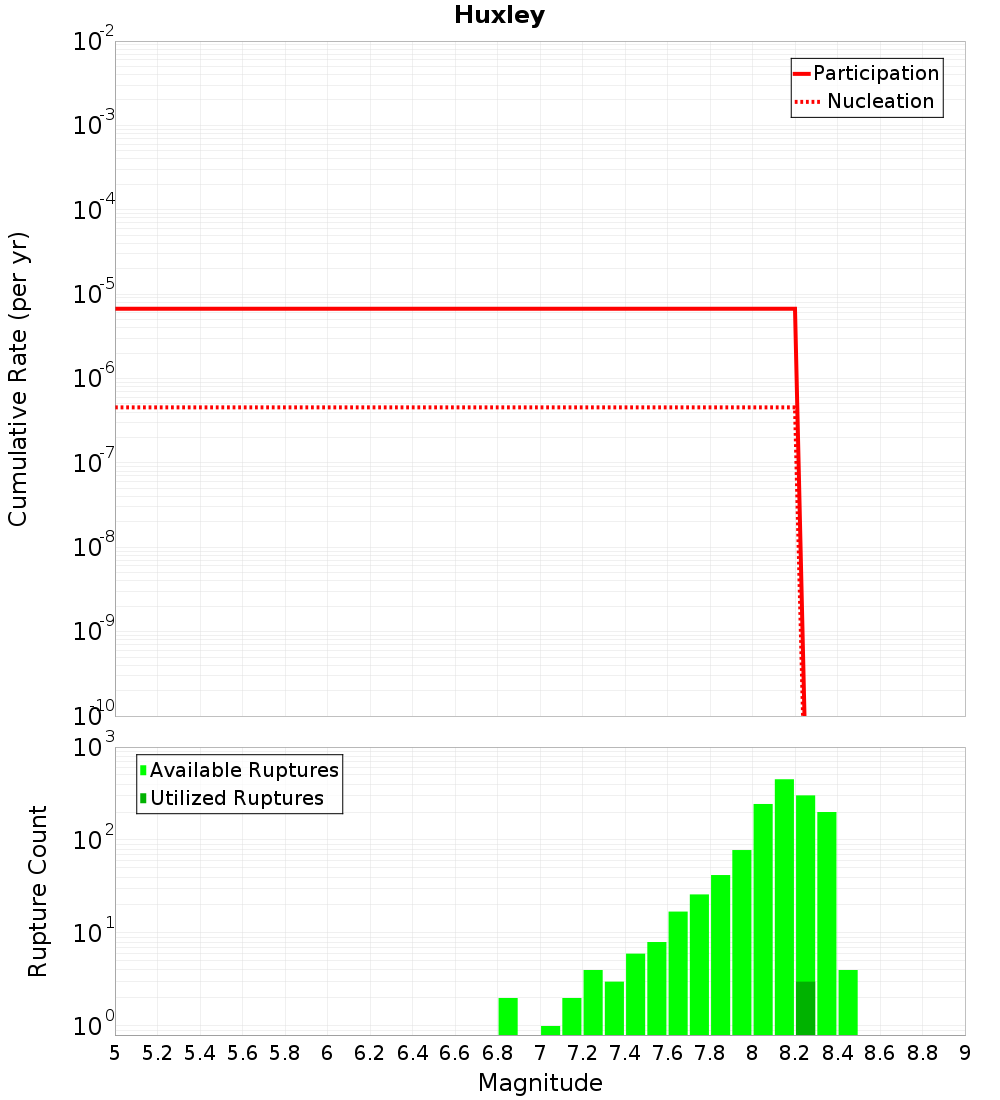

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

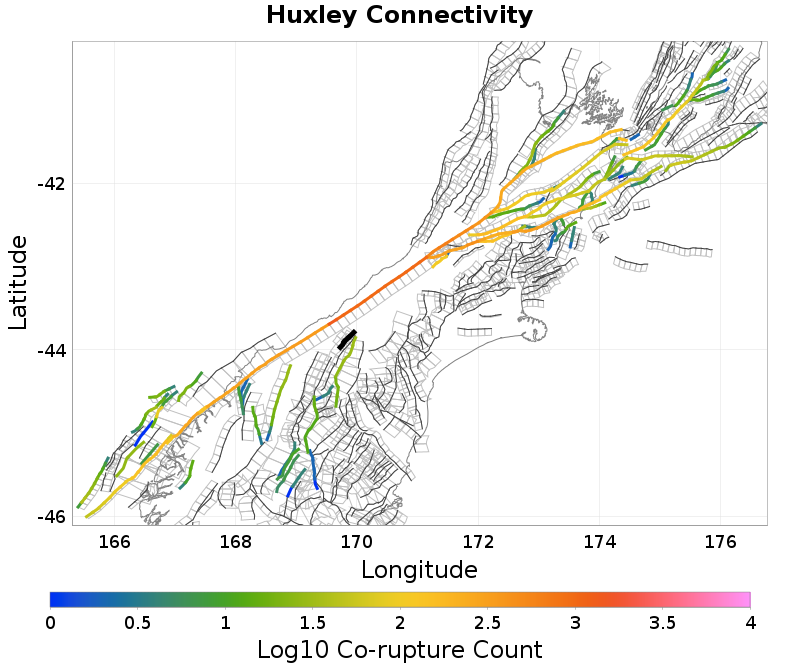

Connectivity

Nearby Sections

Fault Section
Alpine: Jacksons to Kaniere, 1.8 km away
Hopkins, 3.39 km away
Barrier Range, 5.8 km away
Ostler North, 10.38 km away
Hunter Valley, 18.02 km away
Wanaka, 19.24 km away

Alpine: Jacksons to Kaniere, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	1,356
Co-rupture Rate	6.71166E-6

Hopkins, 3.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barrier Range, 5.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	30
Co-rupture Rate	0.0

Ostler North, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hunter Valley, 18.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wanaka, 19.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
