Jordan Details

Property	Value
Rupture Count	9,720
Ruptures Above Sect Min Mag	9,720
Ruptures w/ Nonzero Rates	62
Magnitude Range	[7.15, 8.54]
Length Range	[29, 975] km
Total Rate	0.0025131186 /yr
Multi-Fault Rate	0.0025131186 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

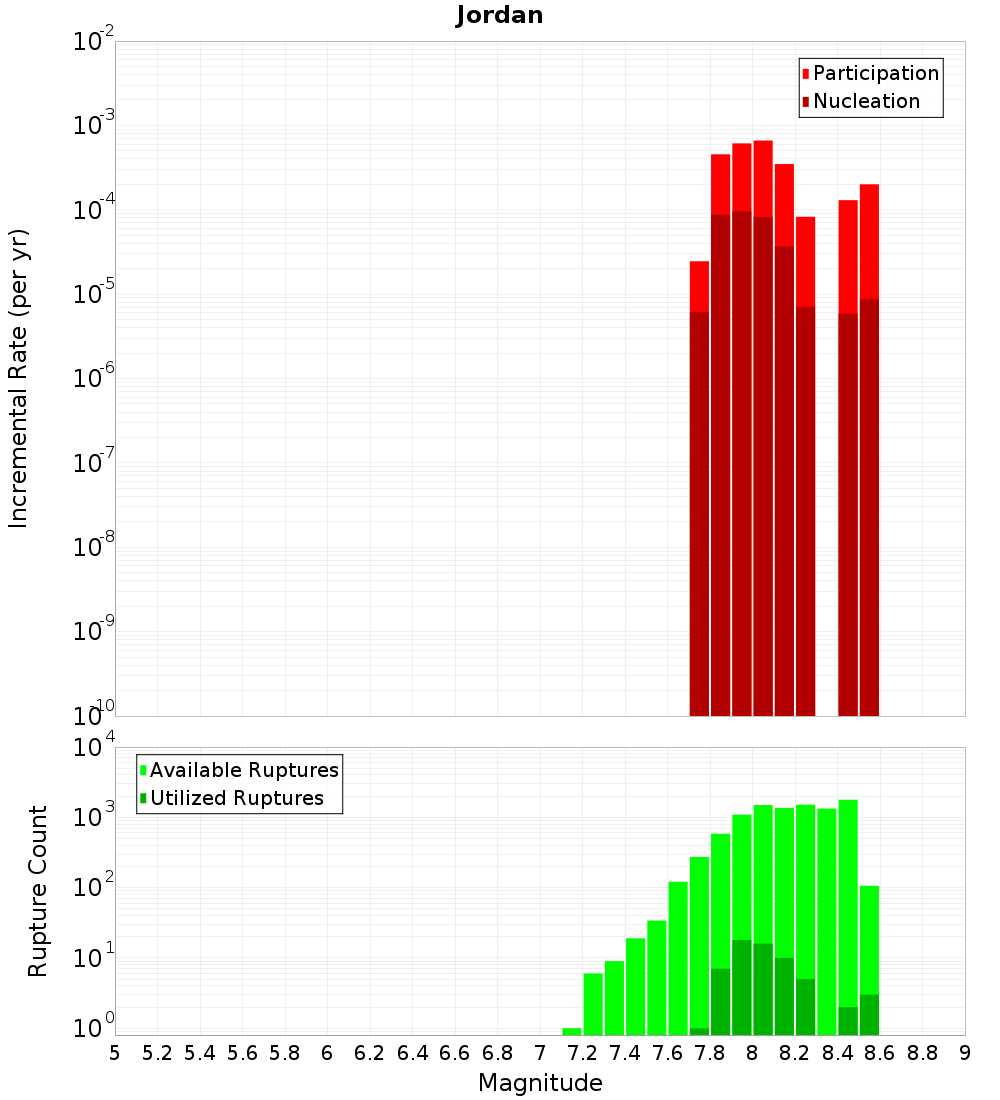

Magnitude-Frequency Distribution

Incremental	Cumulative

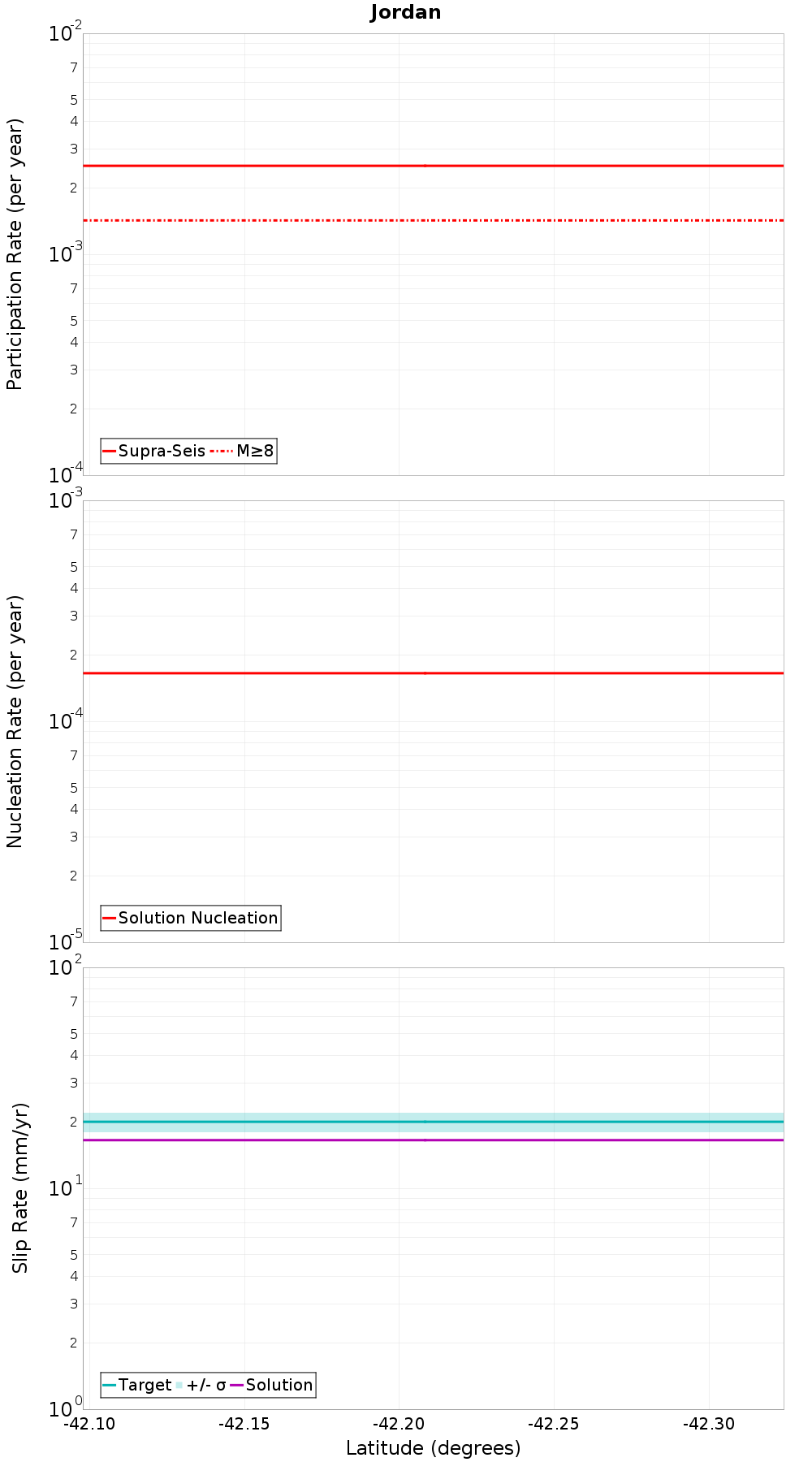

Along-Strike Values

Moment-Rates and b-Values

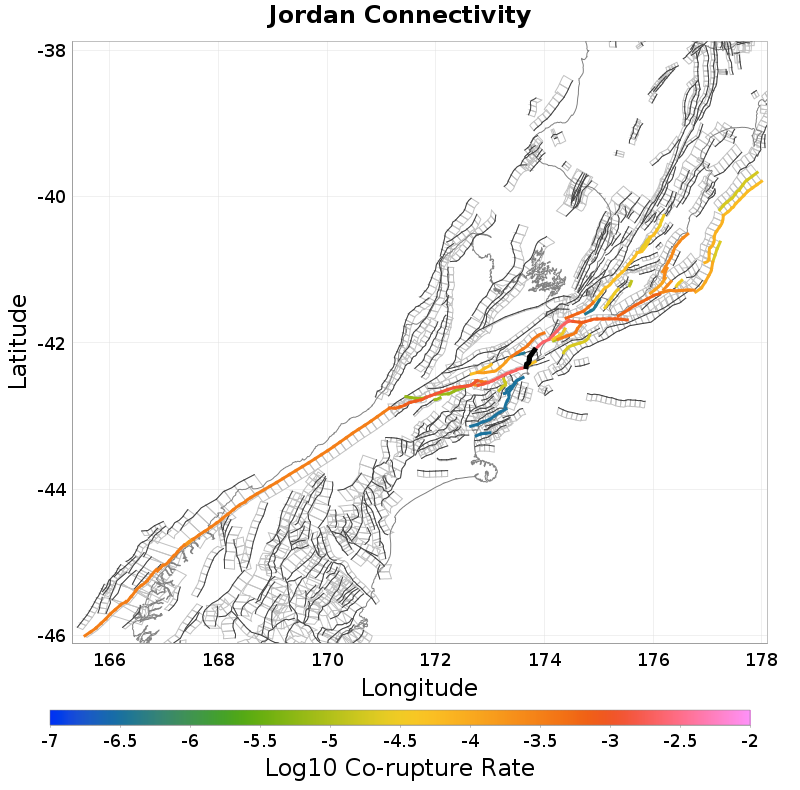

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Papatea, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Clarence: Northeast, 0.78 km away
Kaikoura - Mangamaunu, 2.75 km away
Clarence: Central, 7.52 km away
Elliott, 9.78 km away
Awatere: Northeast 1, 12.64 km away
Hundalee, 15.34 km away
Awatere: Southwest, 16.38 km away
Hope: Te Rapa, 18.18 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	8,978
Co-rupture Rate	0.0019580107

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	5,093
Co-rupture Rate	0.0022652836

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	290
Co-rupture Rate	3.881259E-7

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	4.9893584E-5

Clarence: Northeast, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	1,711
Co-rupture Rate	3.9152554E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Clarence: Central, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	5.4049702E-5

Elliott, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	1.440209E-4

Awatere: Northeast 1, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	true
Co-rupture Count	2,313
Co-rupture Rate	0.0

Hundalee, 15.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	3.3040305E-7

Awatere: Southwest, 16.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	true
Directly Connected?	false
Co-rupture Count	640
Co-rupture Rate	0.0

Hope: Te Rapa, 18.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
