Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 42 |
| Ruptures Above Sect Min Mag | 40 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.90, 7.49] |
| Length Range | [20, 75] km |
| Total Rate | 4.531135E-4 /yr |
| Multi-Fault Rate | 4.531135E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 9 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

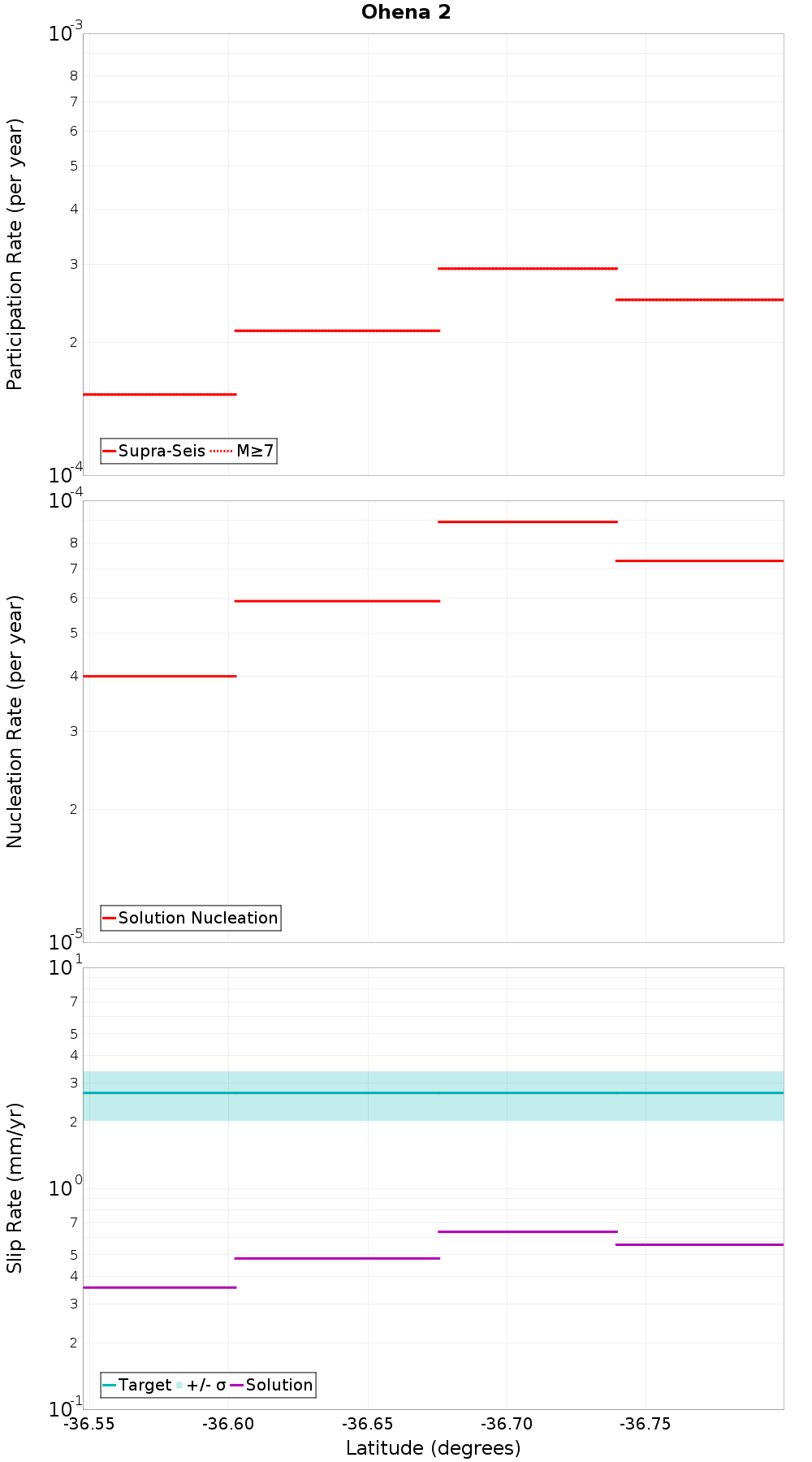

Along-Strike Values

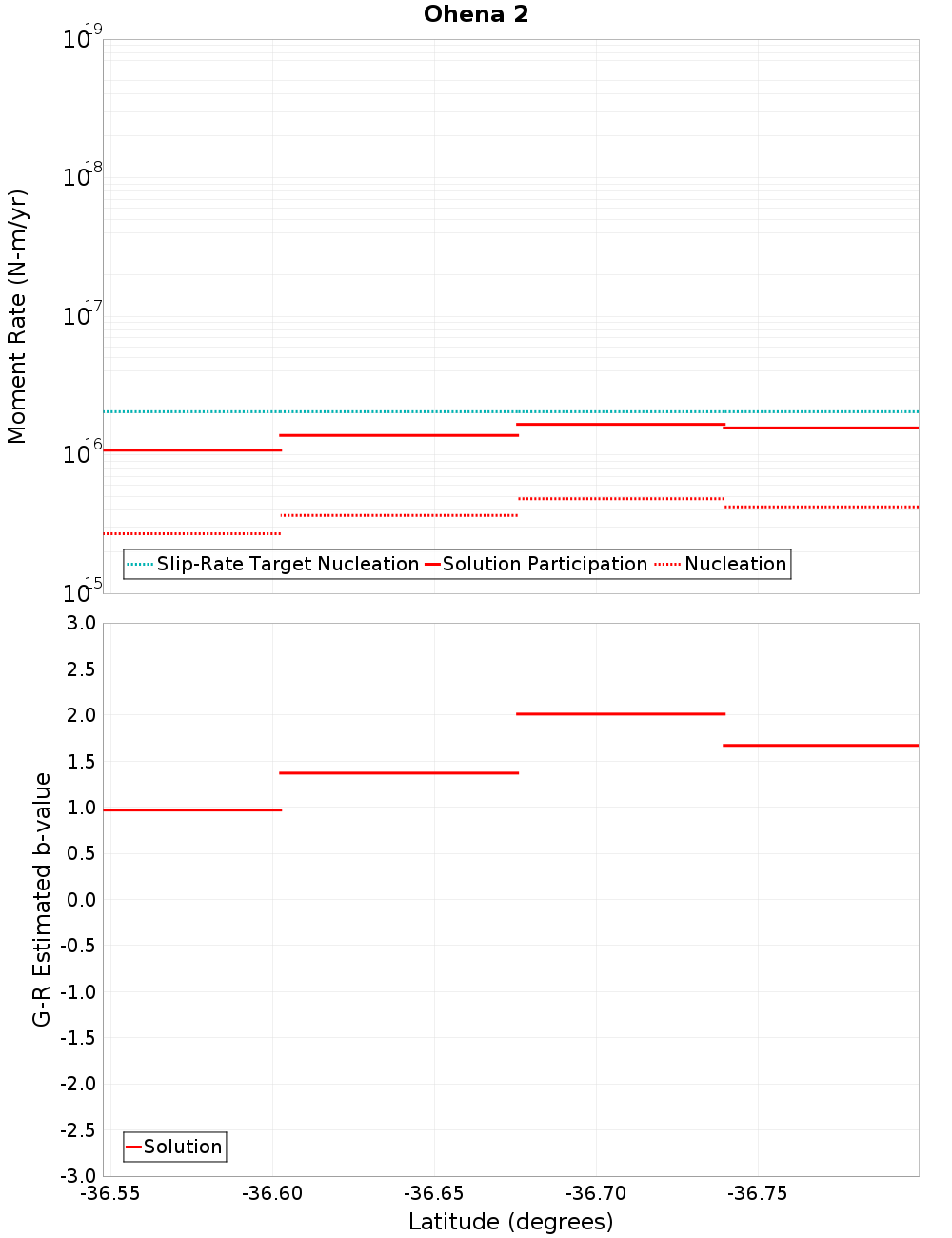

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough West 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 2.4470315E-5 |
Ngatoro South 5, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 4.4468633E-4 |
Ohena 3, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Tauranga Trough East 2, 2.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Ohena 4, 4.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ngatoro South 2, 6.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Otara West 2, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Tuakana 7, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
