Te Arawa 1 Details

PropertyValue
Rupture Count376
Ruptures Above Sect Min Mag376
Ruptures w/ Nonzero Rates9
Magnitude Range[6.87, 7.50]
Length Range[19, 95] km
Total Rate3.265871E-4 /yr
Multi-Fault Rate3.265871E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults24

Table Of Contents

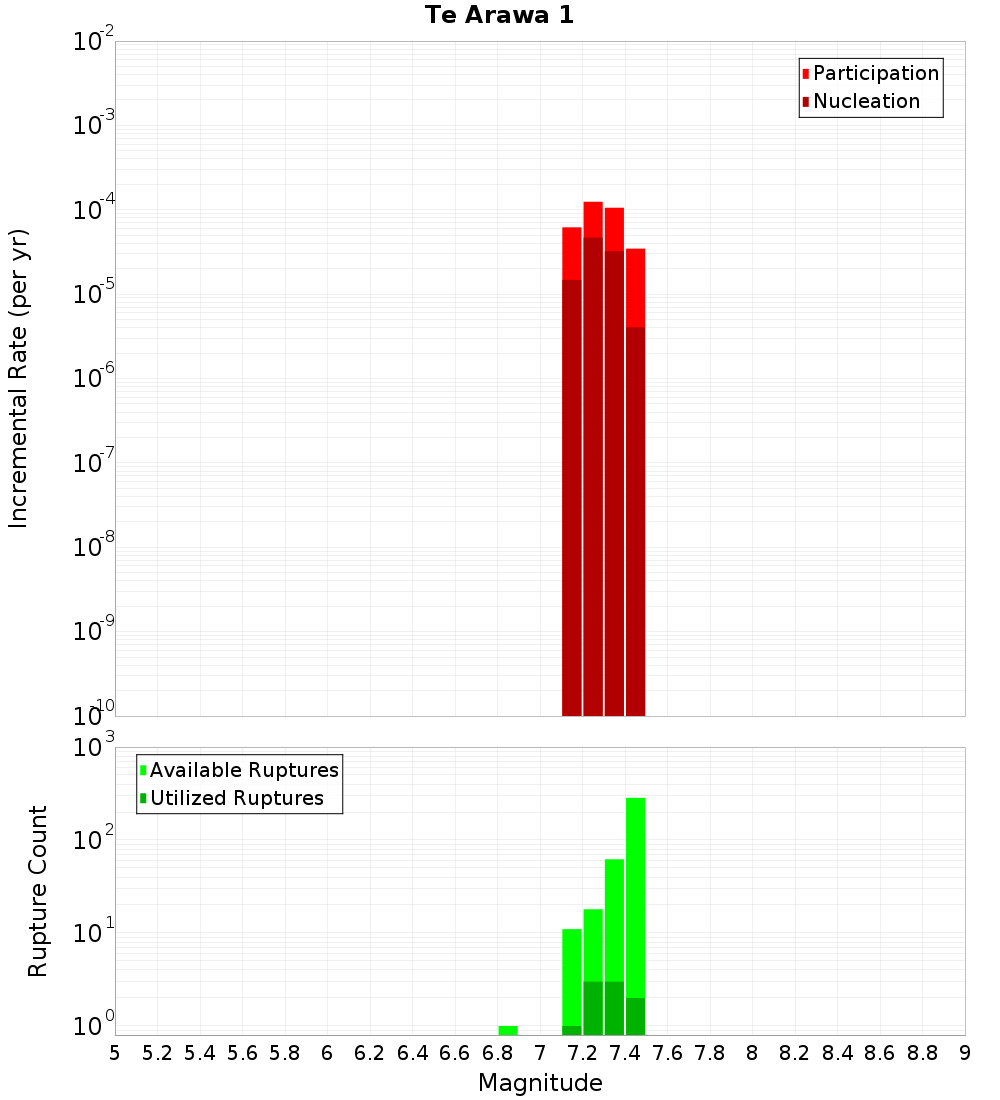

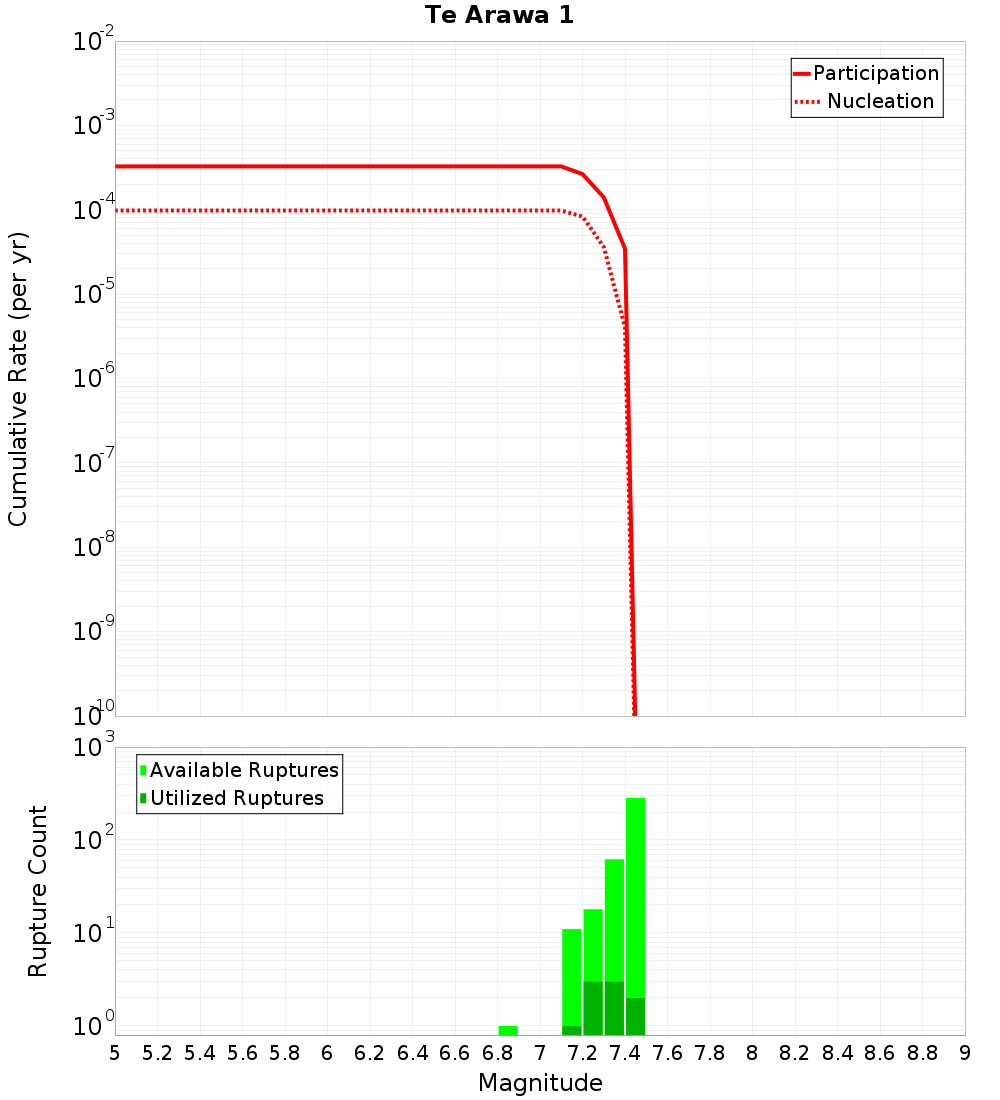

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

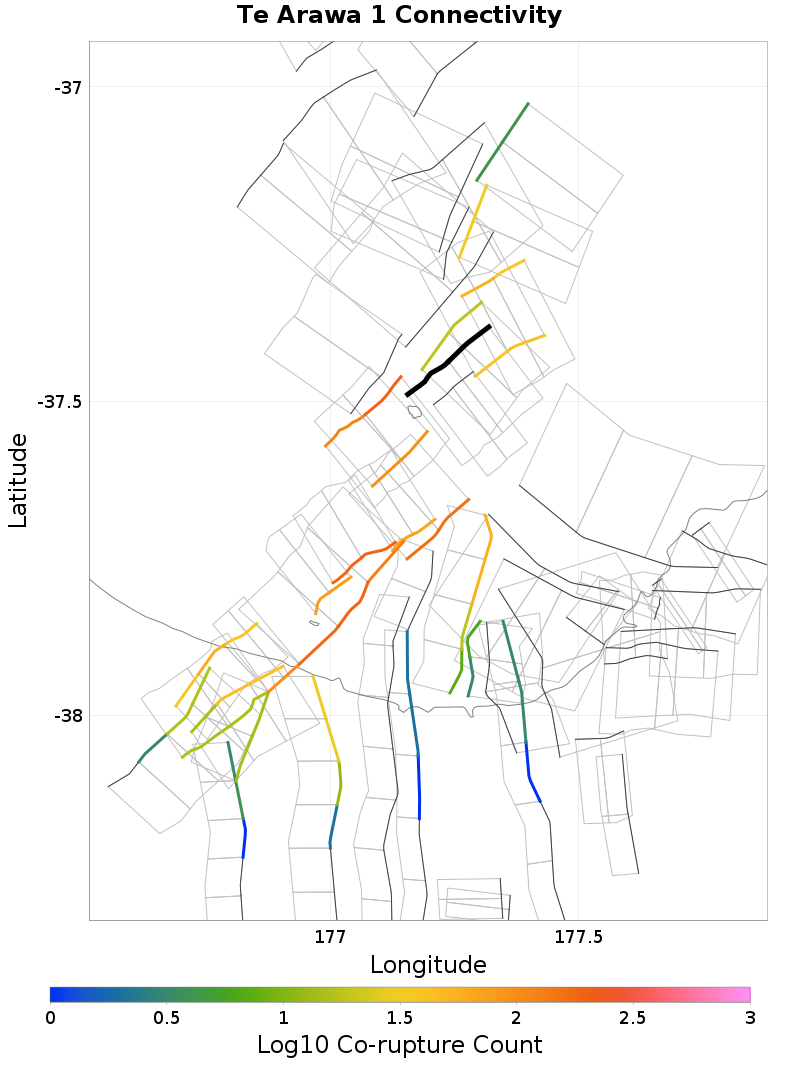

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tuatoru 2, 0.34 km awayOpotiki 3, 7.5 km away
Te Arawa 2, 1.19 km awayOhiwa 1, 8.65 km away
Calypso 2, 1.54 km awayOtara West 1, 11.56 km away
Whakaari 4, 2.25 km awayOtara East 1, 11.84 km away
Hariki, 2.72 km awayOtara West 2, 15.92 km away
Tuatoru 1, 3.09 km awayRangitaiki 2, 16.46 km away
White Island 2, 3.53 km awayWaimanawa - Waikaremoana, 16.98 km away
Te Arawa 3, 5.29 km awayOhae 1, 17.93 km away
Volkner 3, 5.74 km awayWhite Island 1, 18.12 km away
Volkner 4, 6.45 km away

Tuatoru 2, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate0.0

Te Arawa 2, 1.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Calypso 2, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate1.08503074E-4

Whakaari 4, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate1.3414462E-4

Hariki, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count159
Co-rupture Rate7.808107E-5

Te Arawa 3, 5.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate2.3008311E-4

Volkner 3, 5.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate1.0236231E-4

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate6.515684E-5

Otara West 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

Otara West 2, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate3.789442E-5

Waimanawa - Waikaremoana, 16.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjAuMERnR0Va
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate5.8836436E-10
