Awamoa Details
| Property | Value |
|---|---|
| Rupture Count | 8 |
| Ruptures Above Sect Min Mag | 8 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.92, 7.70] |
| Length Range | [22, 136] km |
| Total Rate | 5.409155E-5 /yr |
| Multi-Fault Rate | 3.4905431E-6 /yr (6.45%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

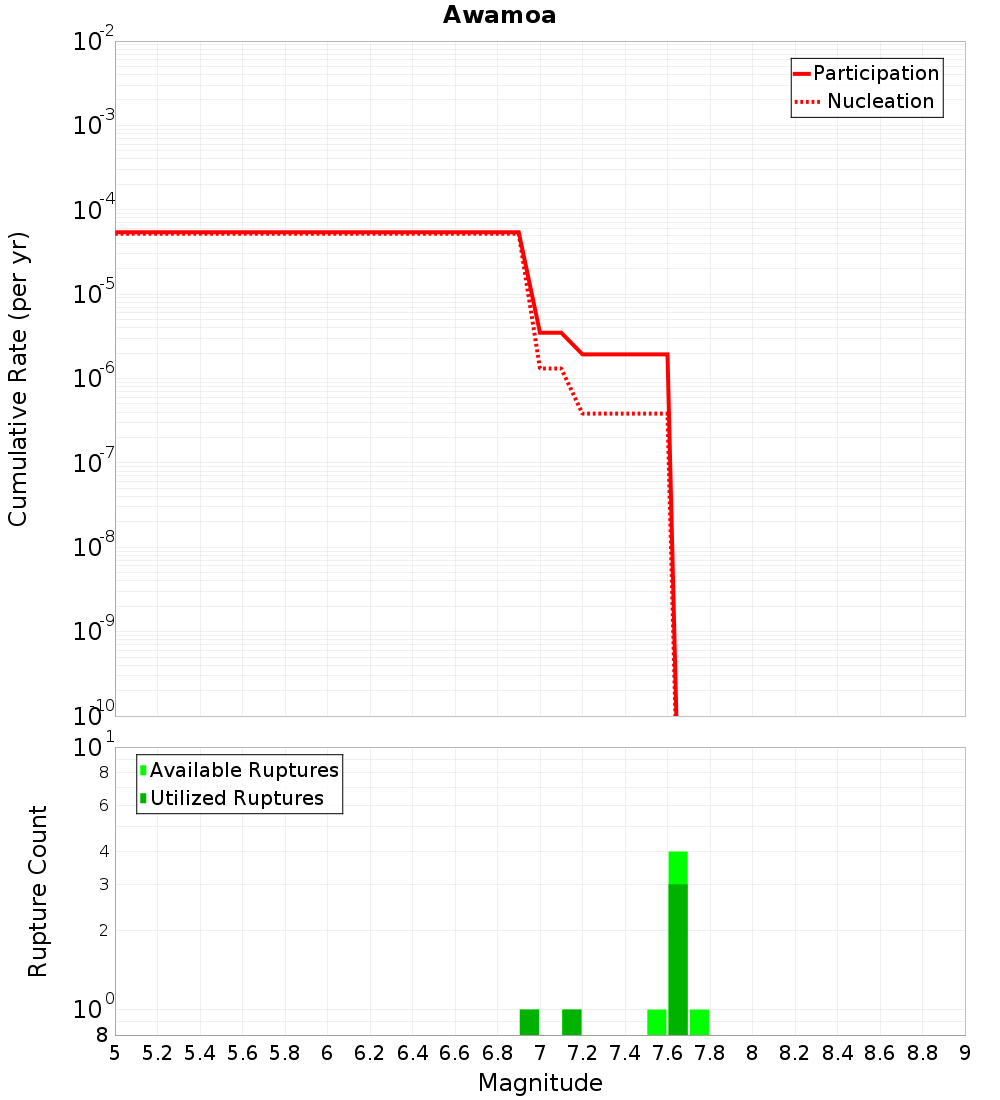

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

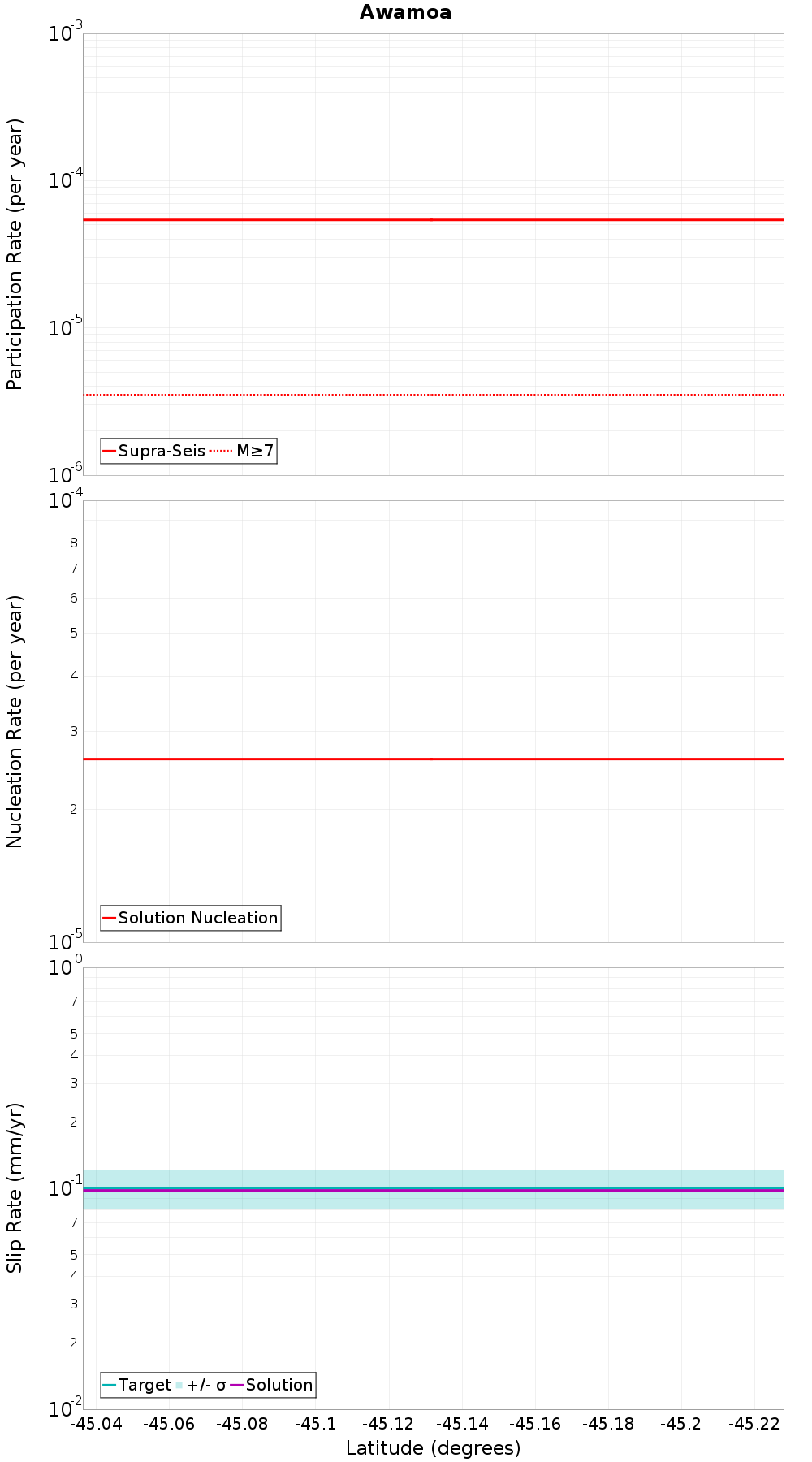

Along-Strike Values
Moment-Rates and b-Values

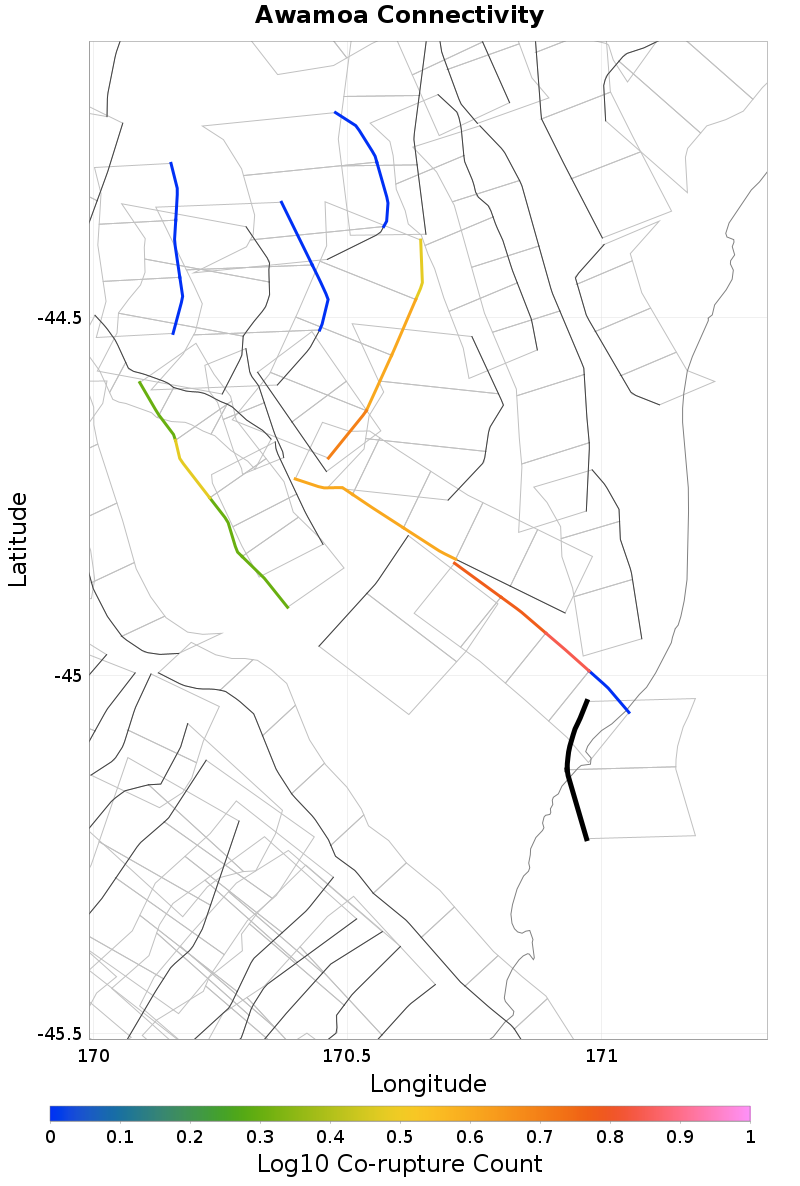

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waitaki, 0.28 km away |
| Waimate, 8.62 km away |
| Stonewall, 14.16 km away |
Waitaki, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 3.4905431E-6 |
Waimate, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 14.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.1208658E-7 |
