CenPeg1n2 Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.57, 6.87] |
| Length Range | [14, 29] km |
| Total Rate | 6.1650906E-5 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

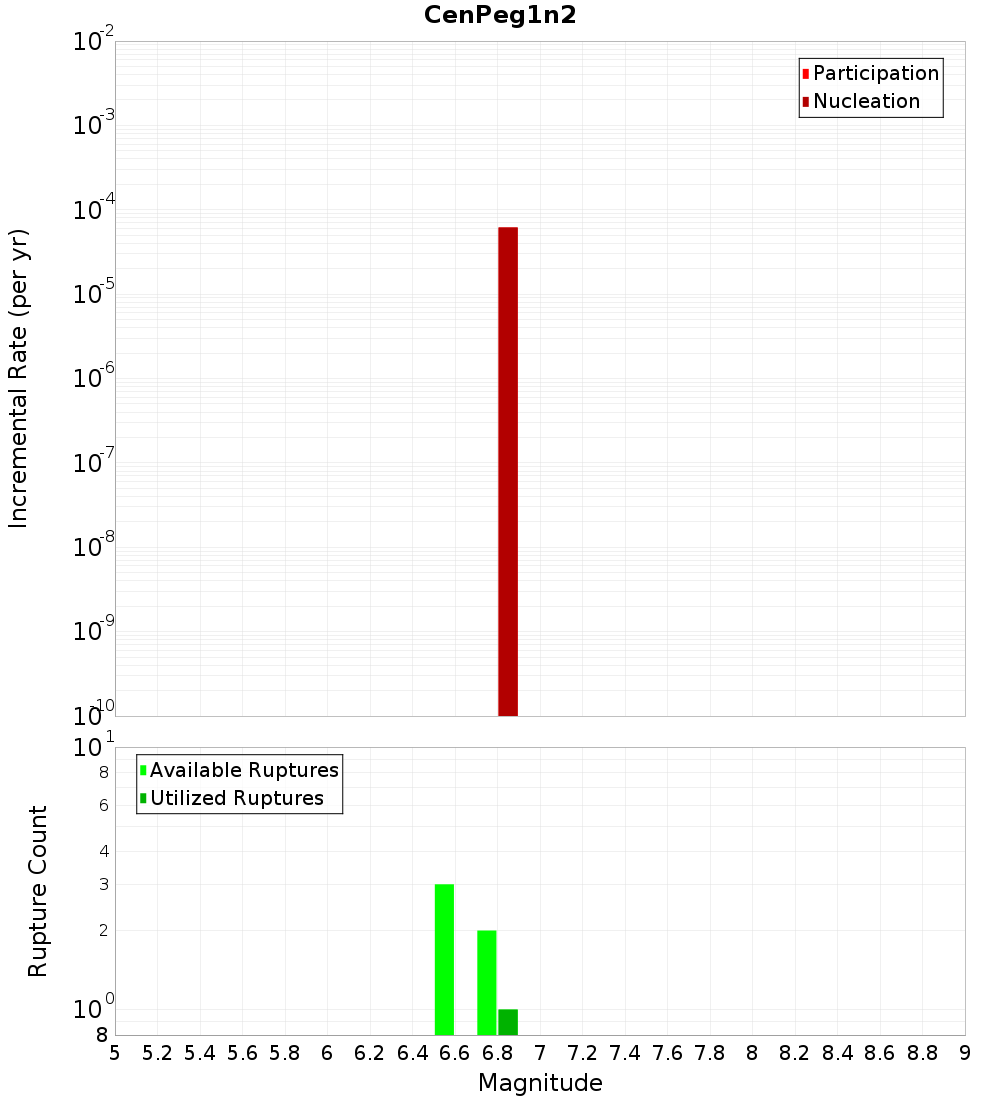

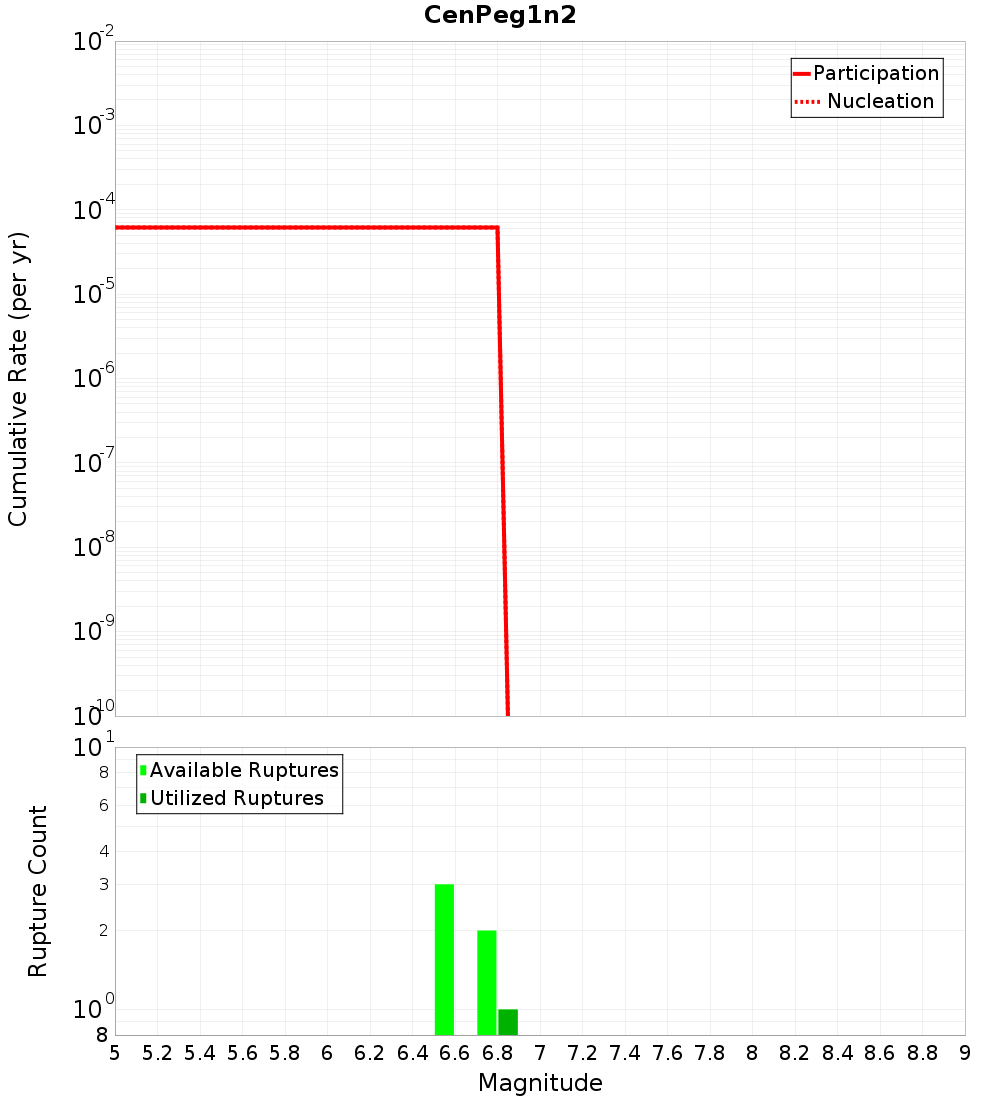

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

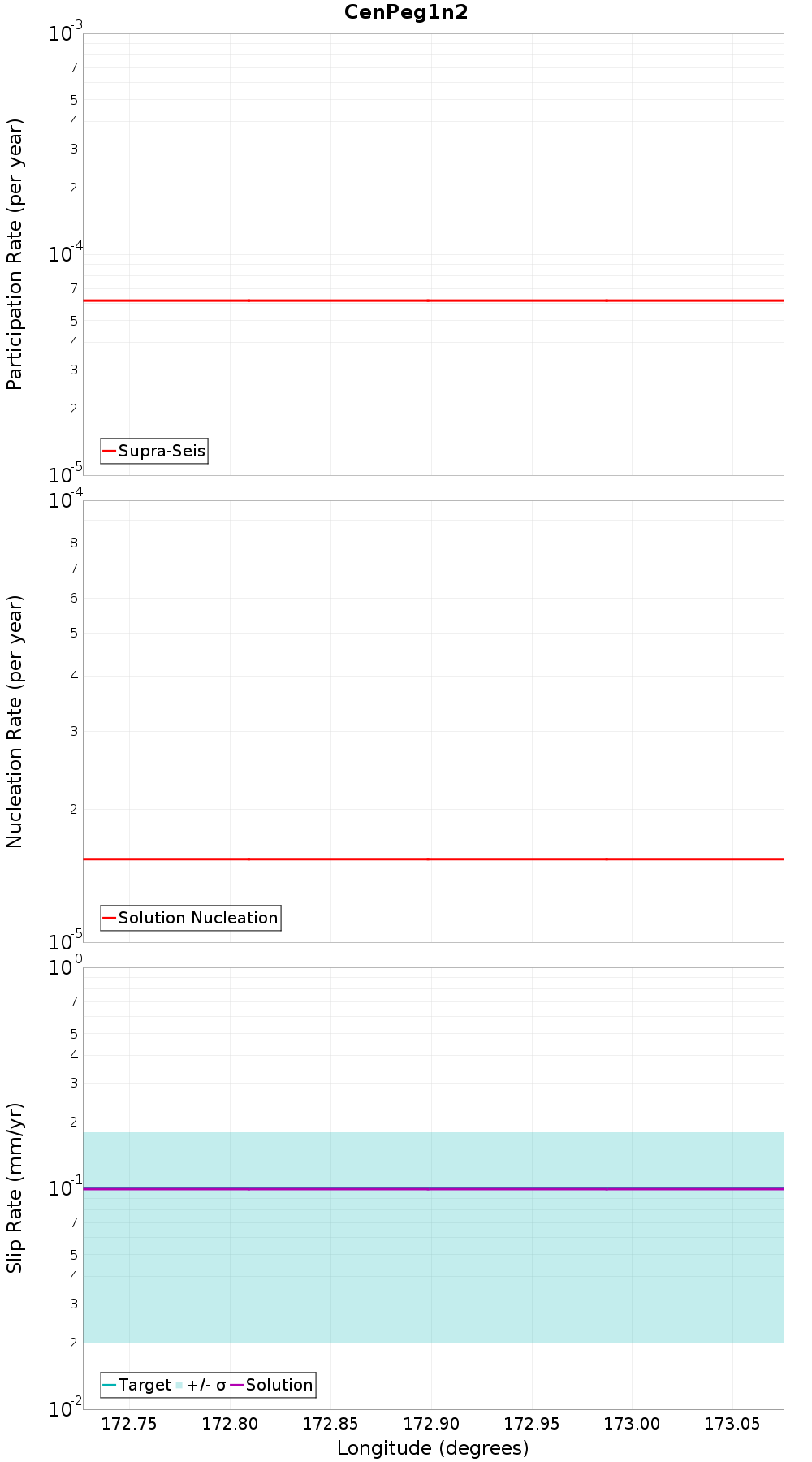

Along-Strike Values

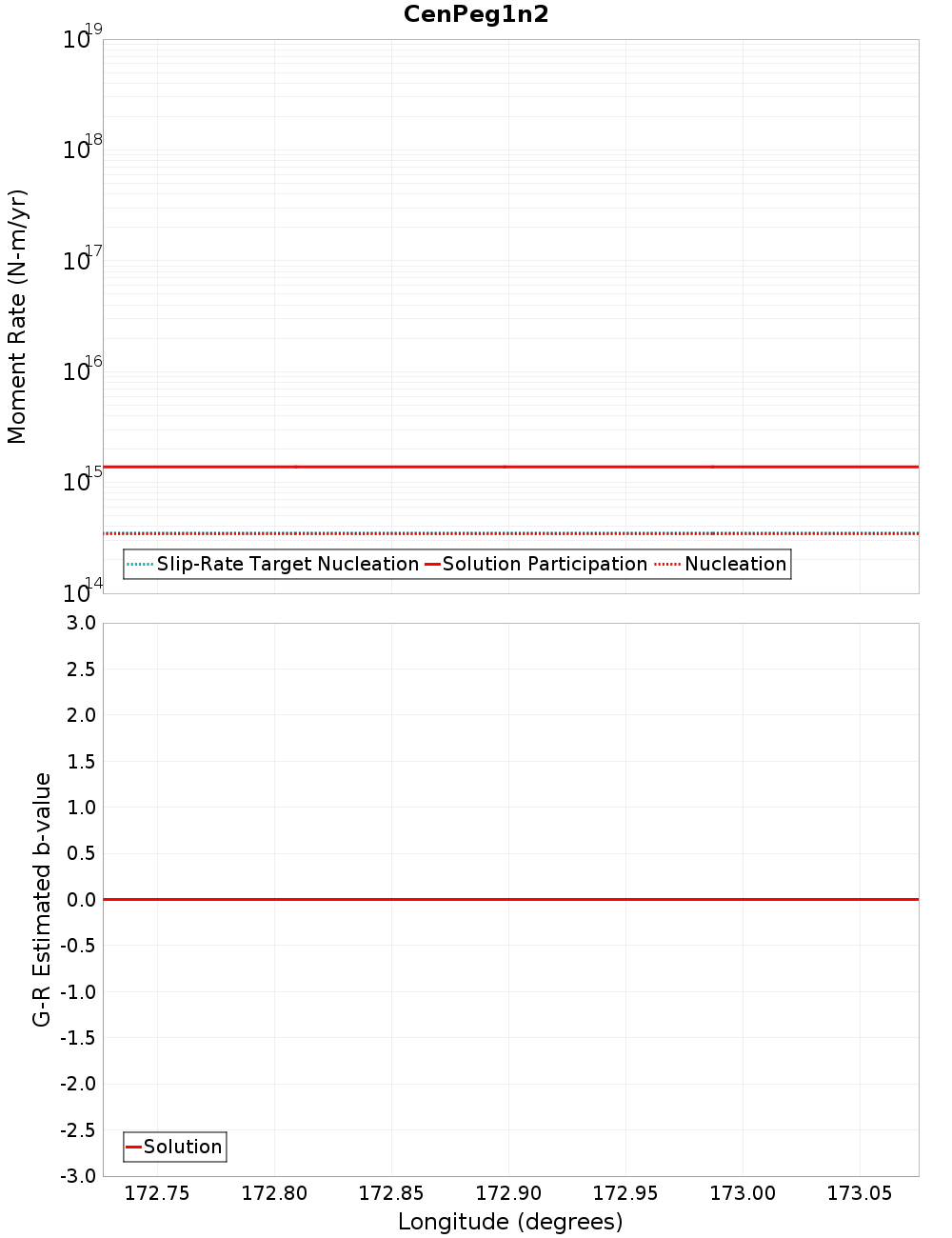

Moment-Rates and b-Values

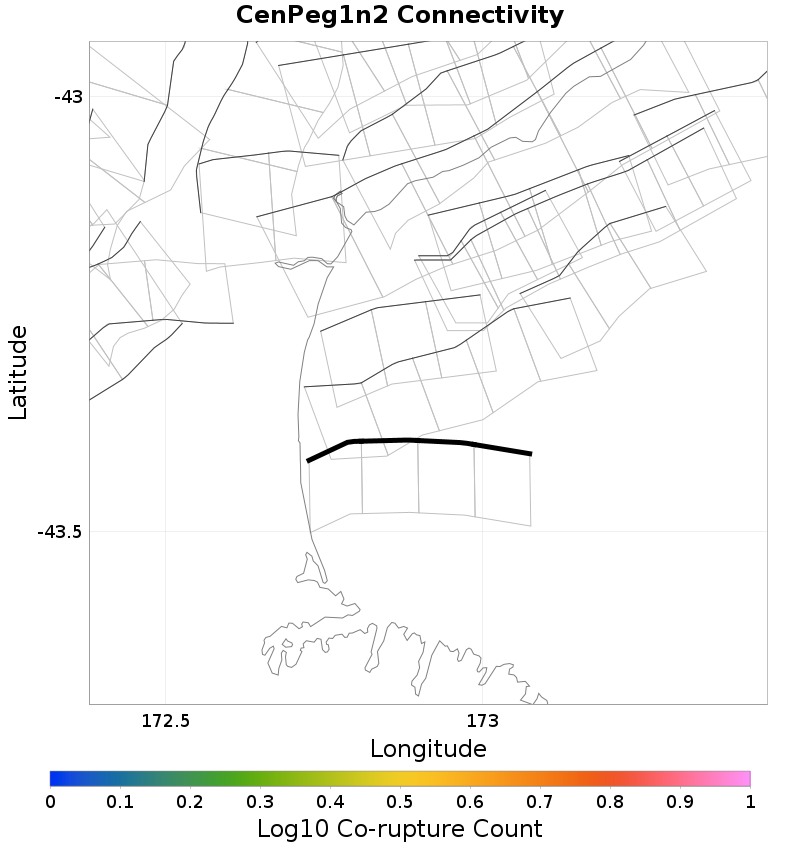

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pegasus Bay, 6.09 km away |
| Waikuku, 11.9 km away |
| North Canterbury Shelf 4, 17.71 km away |
| Leithfield - NCVI - NCVII, 19.55 km away |
Pegasus Bay, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikuku, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Canterbury Shelf 4, 17.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leithfield - NCVI - NCVII, 19.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
