Otakiri Details

Property	Value
Rupture Count	3,807
Ruptures Above Sect Min Mag	3,806
Ruptures w/ Nonzero Rates	36
Magnitude Range	[6.60, 8.00]
Length Range	[13, 299] km
Total Rate	5.999829E-4 /yr
Multi-Fault Rate	5.999829E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

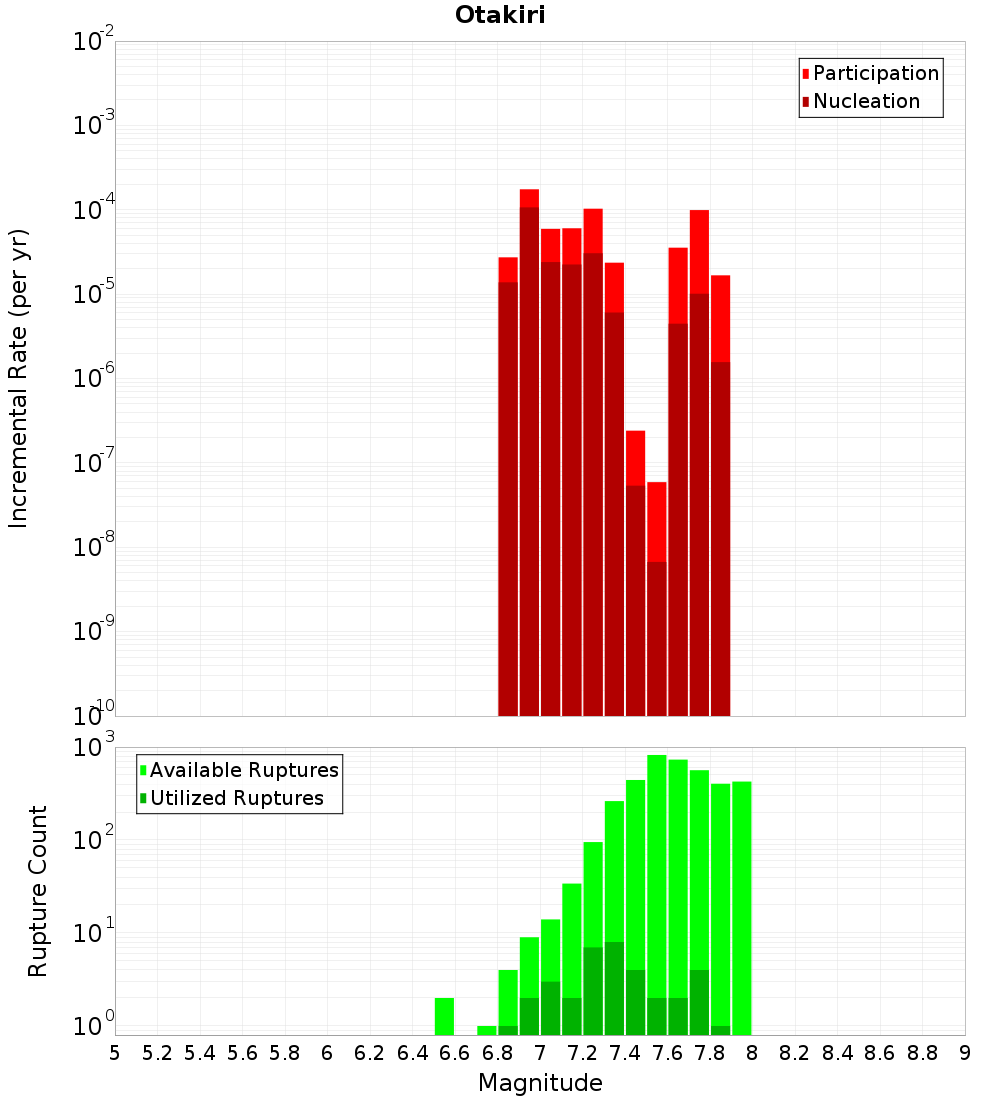

Magnitude-Frequency Distribution

Incremental	Cumulative

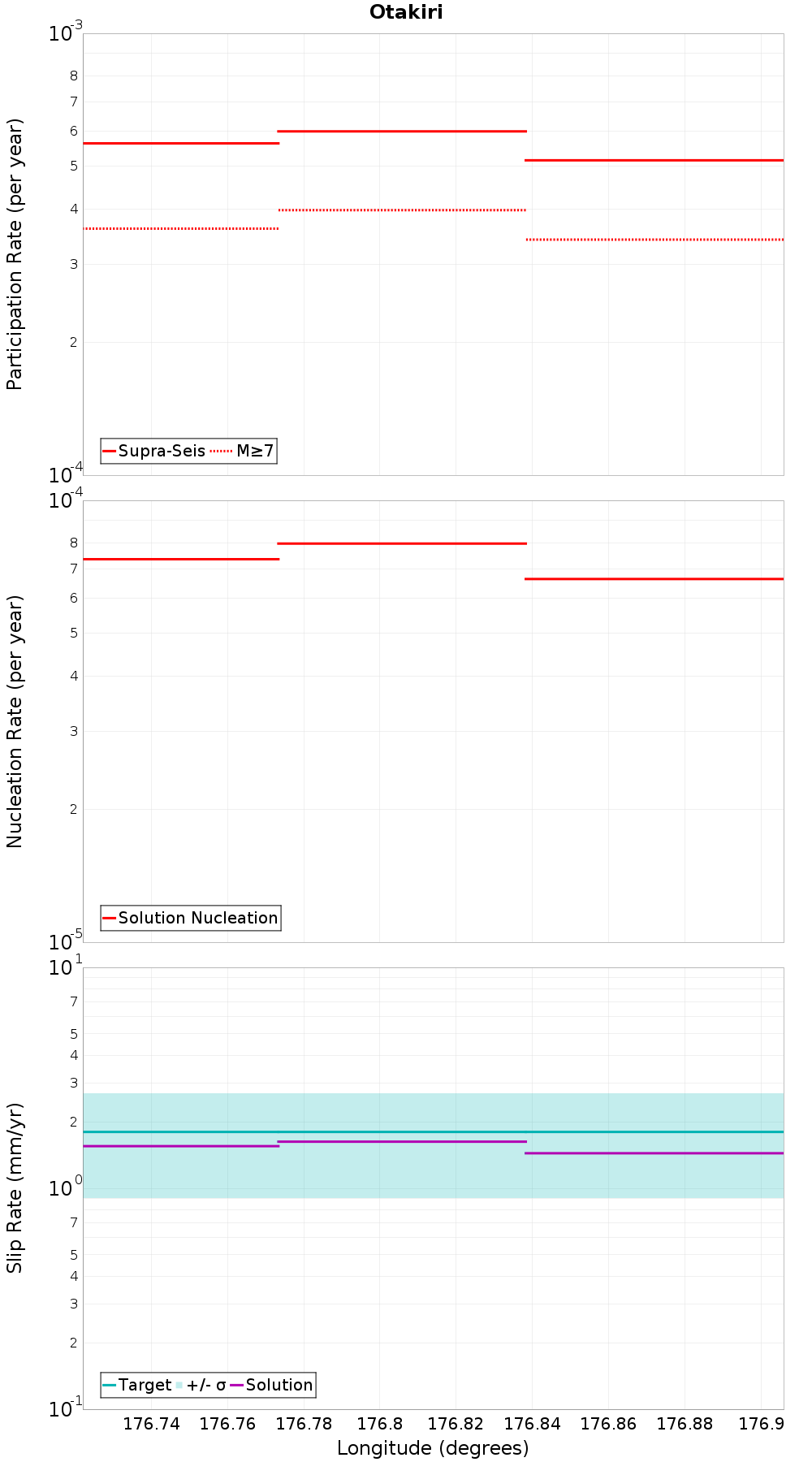

Along-Strike Values

Moment-Rates and b-Values

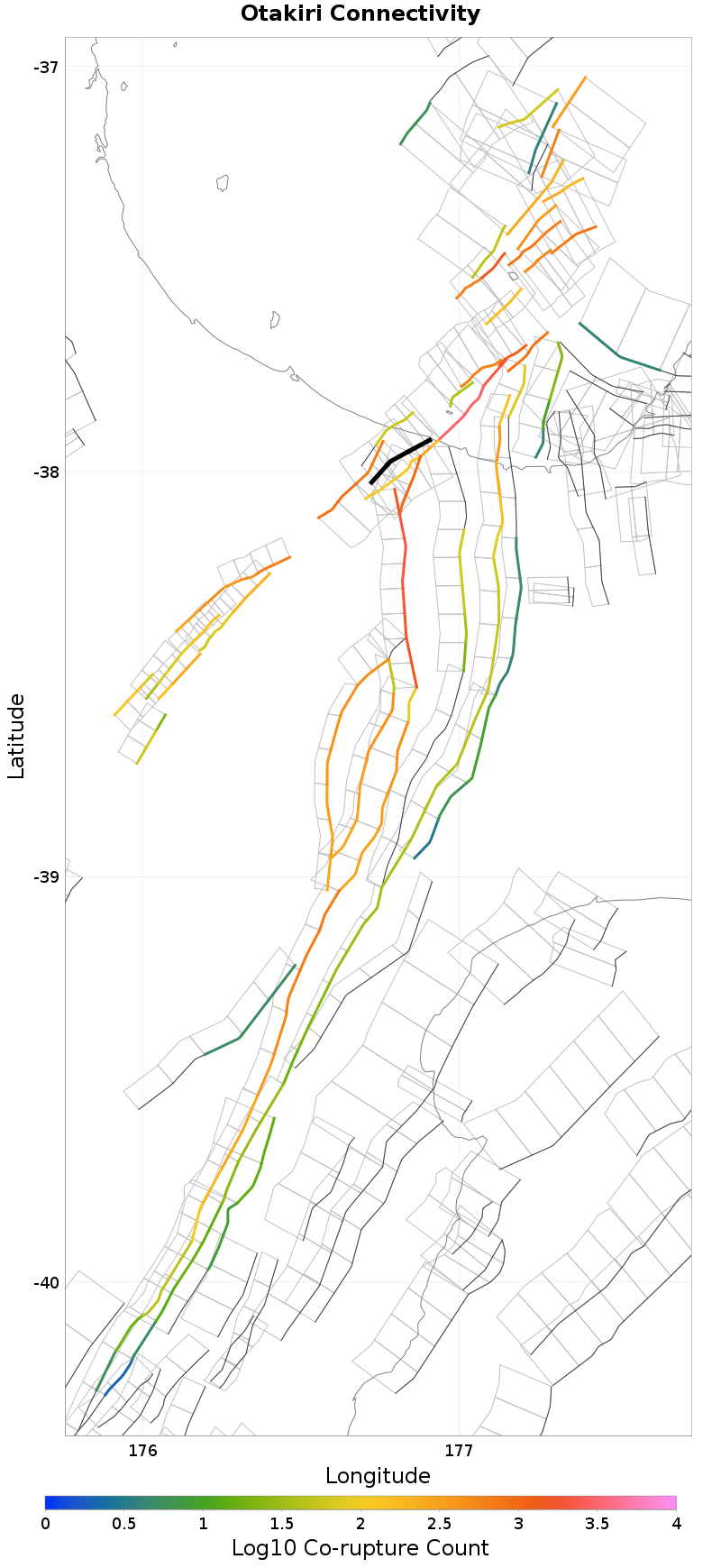

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	1.3059654E-4

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	969
Co-rupture Rate	0.0

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	61
Co-rupture Rate	1.5228445E-4

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	7.388556E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	2.757184E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,166
Co-rupture Rate	0.0

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,933
Co-rupture Rate	1.15830364E-4

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	4.160857E-5

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	378
Co-rupture Rate	0.0

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	5.6710982E-5

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	601
Co-rupture Rate	4.222279E-5

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
