Pahaua Details

Property	Value
Rupture Count	6,418
Ruptures Above Sect Min Mag	6,405
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.78, 8.20]
Length Range	[19, 498] km
Total Rate	3.2205225E-4 /yr
Multi-Fault Rate	3.2205225E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	52

Table Of Contents

Magnitude-Frequency Distribution

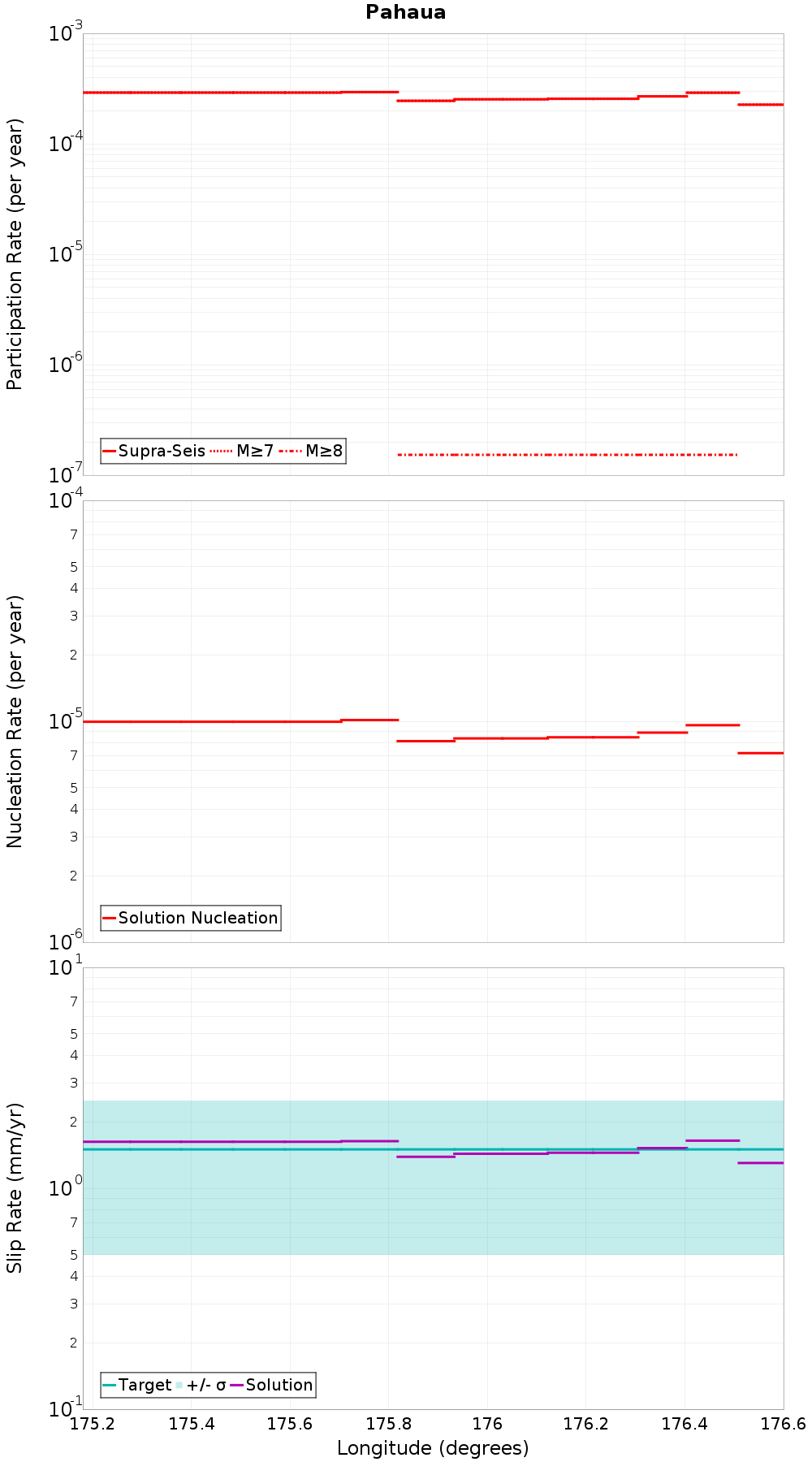

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

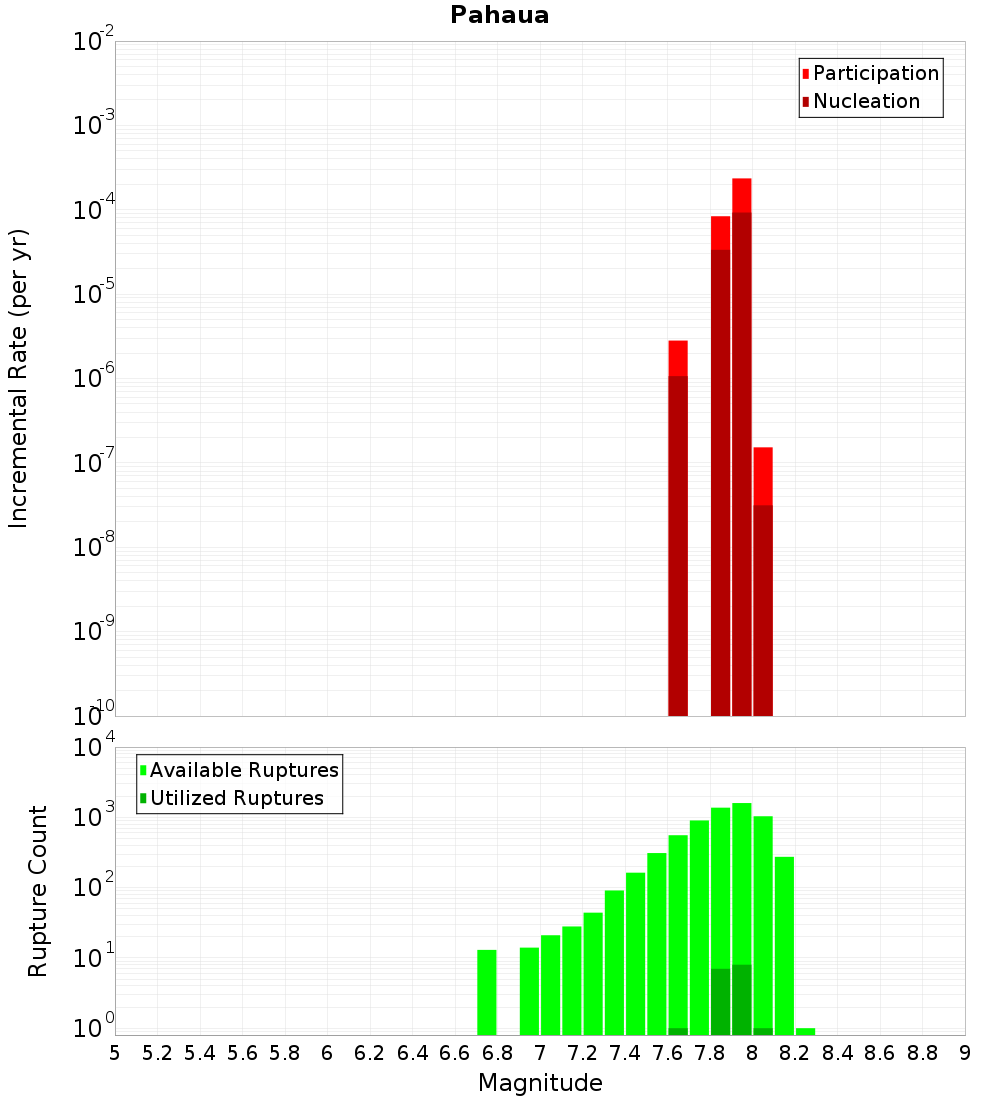

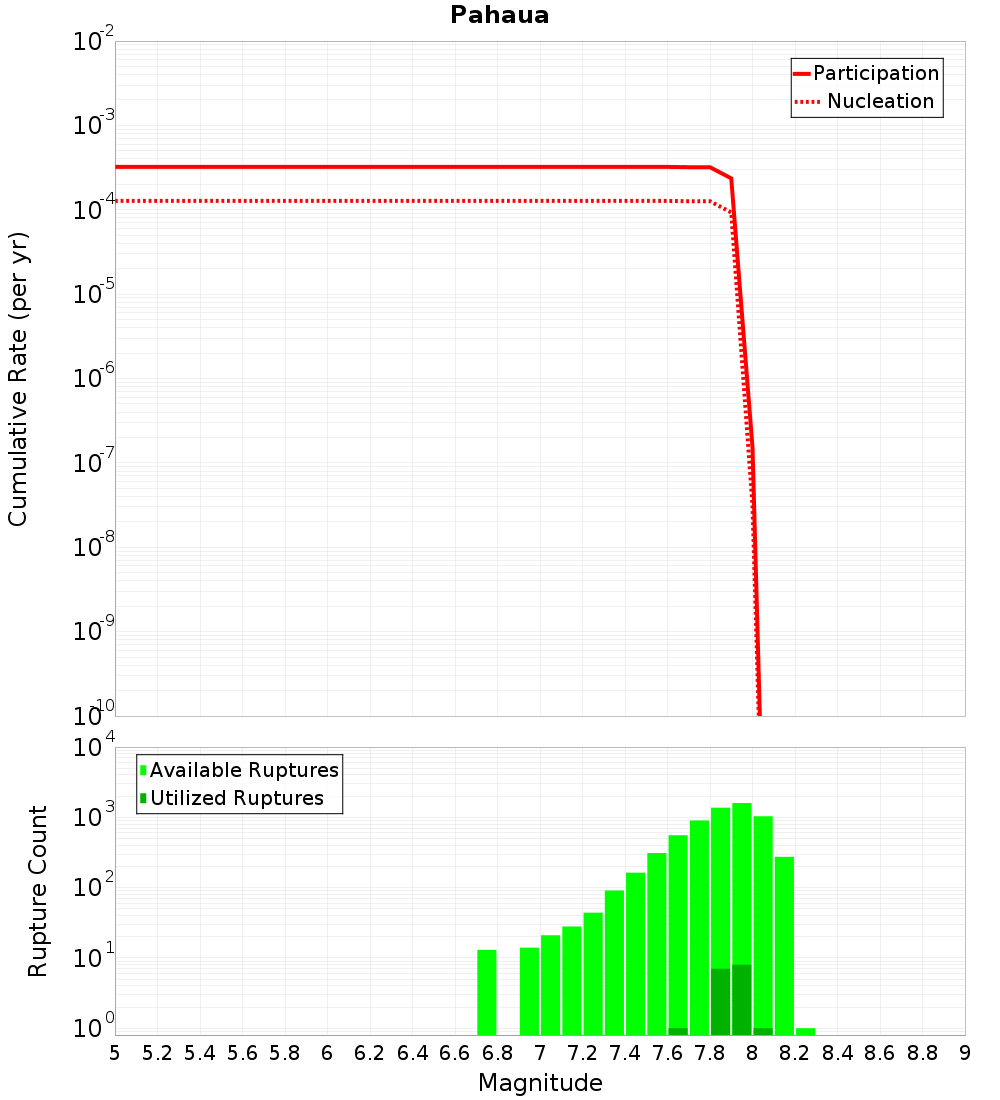

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 0 km away
Uruti Basin 2, 0.14 km away
BooBoo, 0.16 km away
Uruti Basin, 0.28 km away
Opouawe - Uruti, 2.68 km away
Uruti East - PorWest 1, 7.19 km away
Te Rapa 2, 10.36 km away
Uruti Ridge 2, 12.05 km away
Honeycomb, 13.47 km away
Palliser - Kaiwhata, 13.63 km away
Whareama Bank, 18.07 km away
Otaraia, 18.34 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,465
Co-rupture Rate	2.986184E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	802
Co-rupture Rate	6.5889544E-5

BooBoo, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	811
Co-rupture Rate	2.0617861E-5

Uruti Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,947
Co-rupture Rate	2.3466776E-4

Opouawe - Uruti, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,661
Co-rupture Rate	1.3524312E-5

Uruti East - PorWest 1, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,922
Co-rupture Rate	7.1504287E-6

Te Rapa 2, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	105
Co-rupture Rate	0.0

Uruti Ridge 2, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,043
Co-rupture Rate	0.0

Honeycomb, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,103
Co-rupture Rate	5.928646E-5

Palliser - Kaiwhata, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	204
Co-rupture Rate	2.0617861E-5

Whareama Bank, 18.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaraia, 18.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjUuMGZQWkJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0
