Hope: Conway Details

PropertyValue
Rupture Count48,122
Ruptures Above Sect Min Mag48,115
Ruptures w/ Nonzero Rates129
Magnitude Range[6.64, 8.59]
Length Range[16, 1,147] km
Total Rate0.0025503237 /yr
Multi-Fault Rate0.0025503237 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults132

Table Of Contents

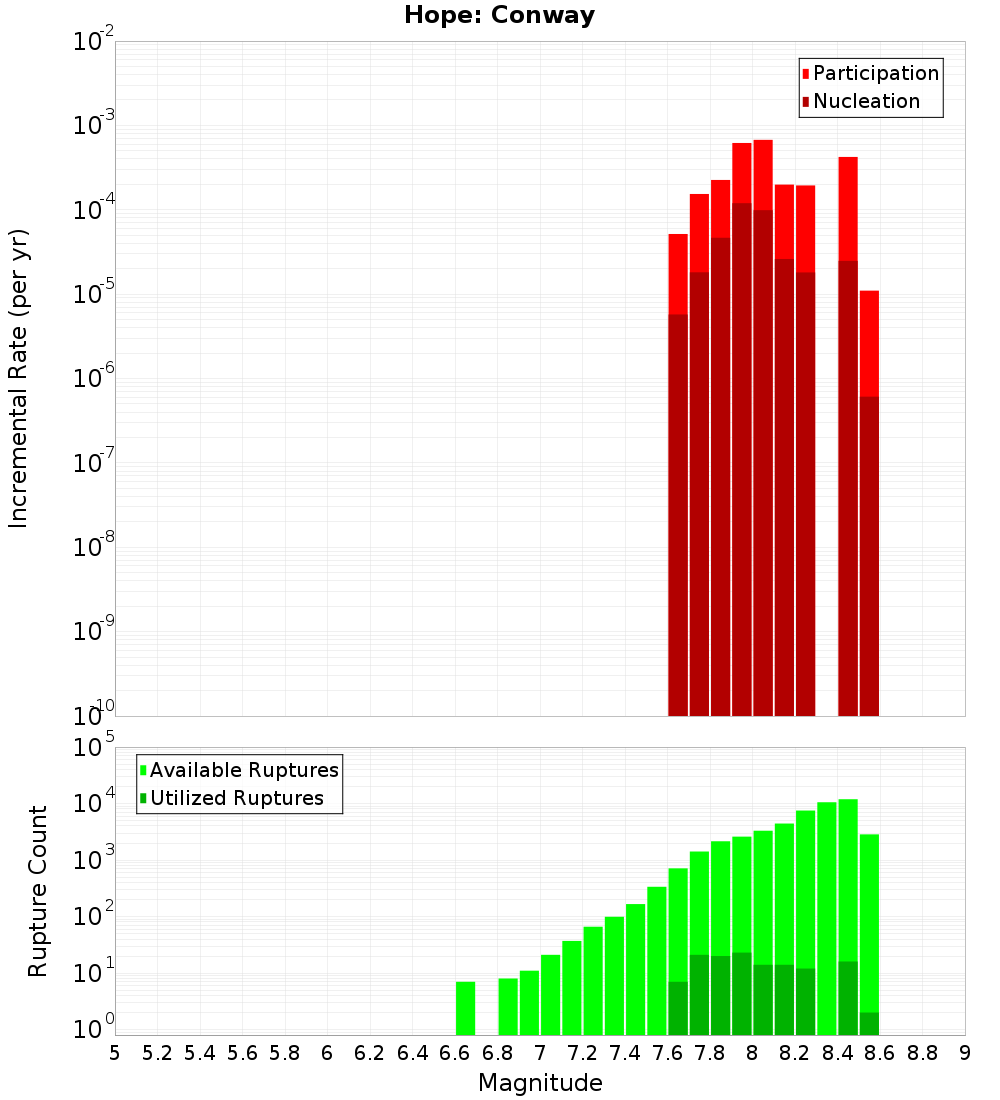

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

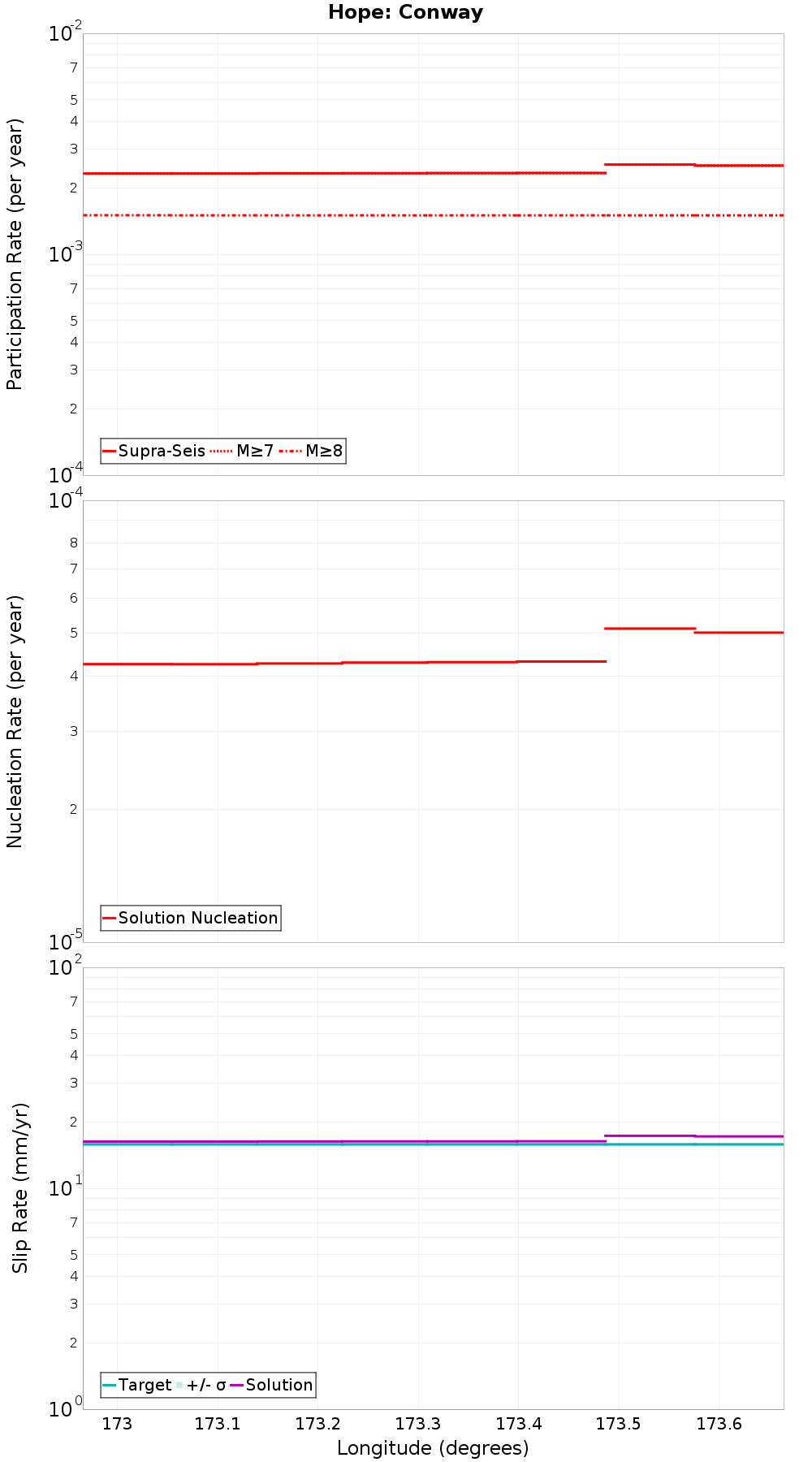

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

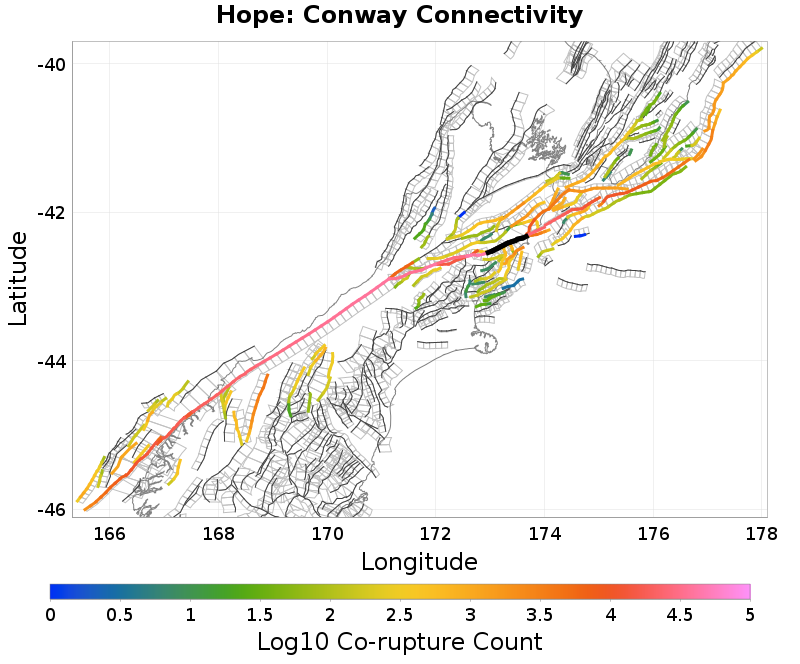

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Jordan, 0 km awayPapatea, 10.19 km away
Hope: Seaward, 0 km awayThe Humps, 10.44 km away
Hanmer, 0 km awayElliott, 11.08 km away
Hope: Hamner SE, 0 km awayMt Culverden, 12.62 km away
Leader: North, 0.2 km awayHope: Hanmer NW, 12.84 km away
StoneJug, 0.26 km awayHope: Hamner SW, 13.75 km away
Kaikoura - Mangamaunu, 3.18 km awayFidget, 17.56 km away
Leader: Central, 4.85 km awayLeonard Mound, 18.07 km away
Leader: South, 6.39 km awayHawkswood, 18.44 km away
Kaiwara North, 6.51 km awayConway Trough West, 19.7 km away
Hundalee, 7.09 km away

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count8,978
Co-rupture Rate0.0017210582

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count26,035
Co-rupture Rate5.015845E-4

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate3.458532E-4

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count44,861
Co-rupture Rate0.0019363335

Leader: North, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count310
Co-rupture Rate2.092581E-5

StoneJug, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count697
Co-rupture Rate4.458508E-7

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count4,444
Co-rupture Rate1.3139147E-4

Leader: Central, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count625
Co-rupture Rate1.8051254E-5

Leader: South, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count132
Co-rupture Rate1.8051254E-5

Kaiwara North, 6.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count376
Co-rupture Rate2.4627532E-5

Hundalee, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count2,551
Co-rupture Rate2.3844908E-4

Papatea, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count348
Co-rupture Rate1.6192667E-4

The Humps, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count170
Co-rupture Rate0.0

Elliott, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count142
Co-rupture Rate2.2366407E-6

Mt Culverden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count9,732
Co-rupture Rate0.0015678407

Hope: Hamner SW, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count34,852
Co-rupture Rate3.6849277E-4

Fidget, 17.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate0.0

Leonard Mound, 18.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hawkswood, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count329
Co-rupture Rate1.7815792E-4

Conway Trough West, 19.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count521
Co-rupture Rate3.5663637E-5
