Rangitaiki 2 Details

PropertyValue
Rupture Count1,155
Ruptures Above Sect Min Mag1,155
Ruptures w/ Nonzero Rates14
Magnitude Range[6.66, 7.50]
Length Range[13, 124] km
Total Rate4.912921E-4 /yr
Multi-Fault Rate4.912921E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults31

Table Of Contents

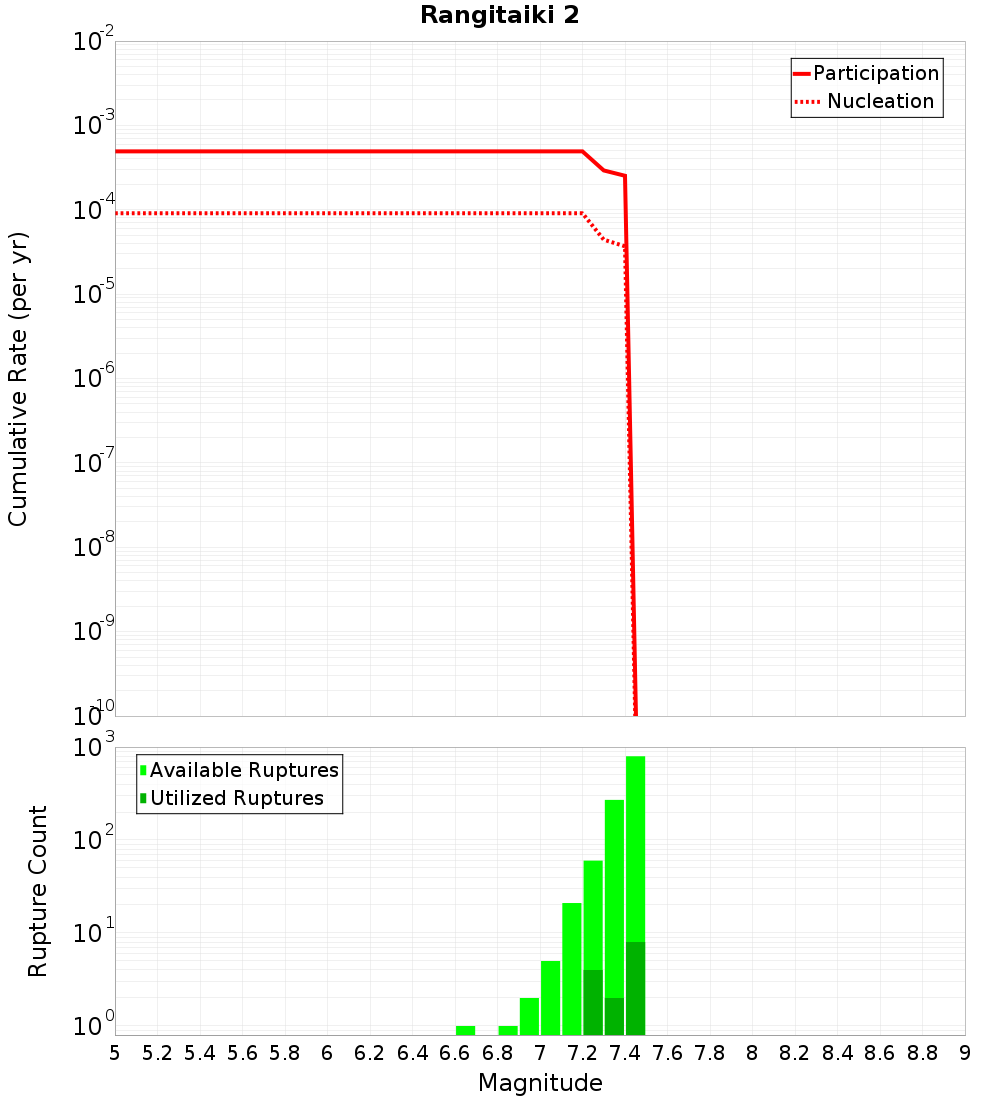

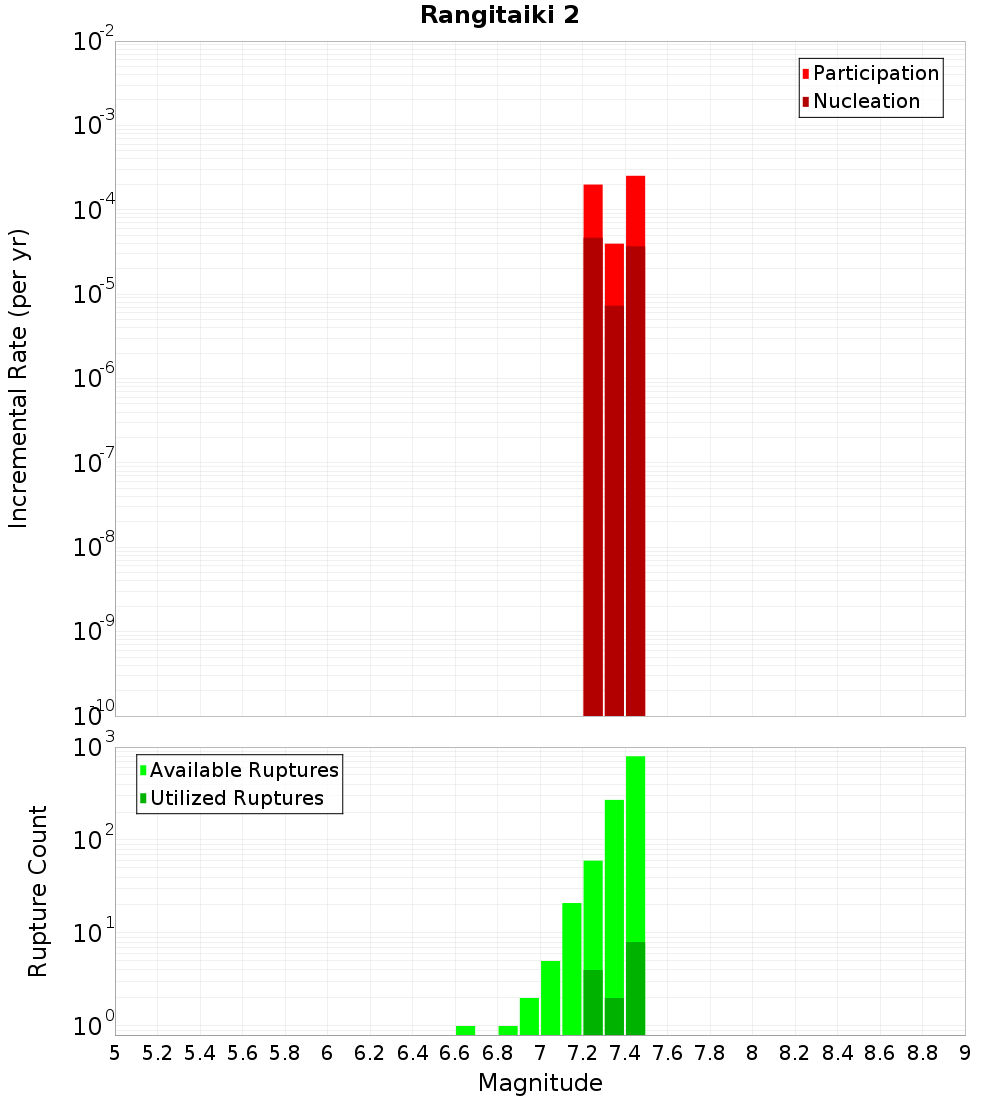

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

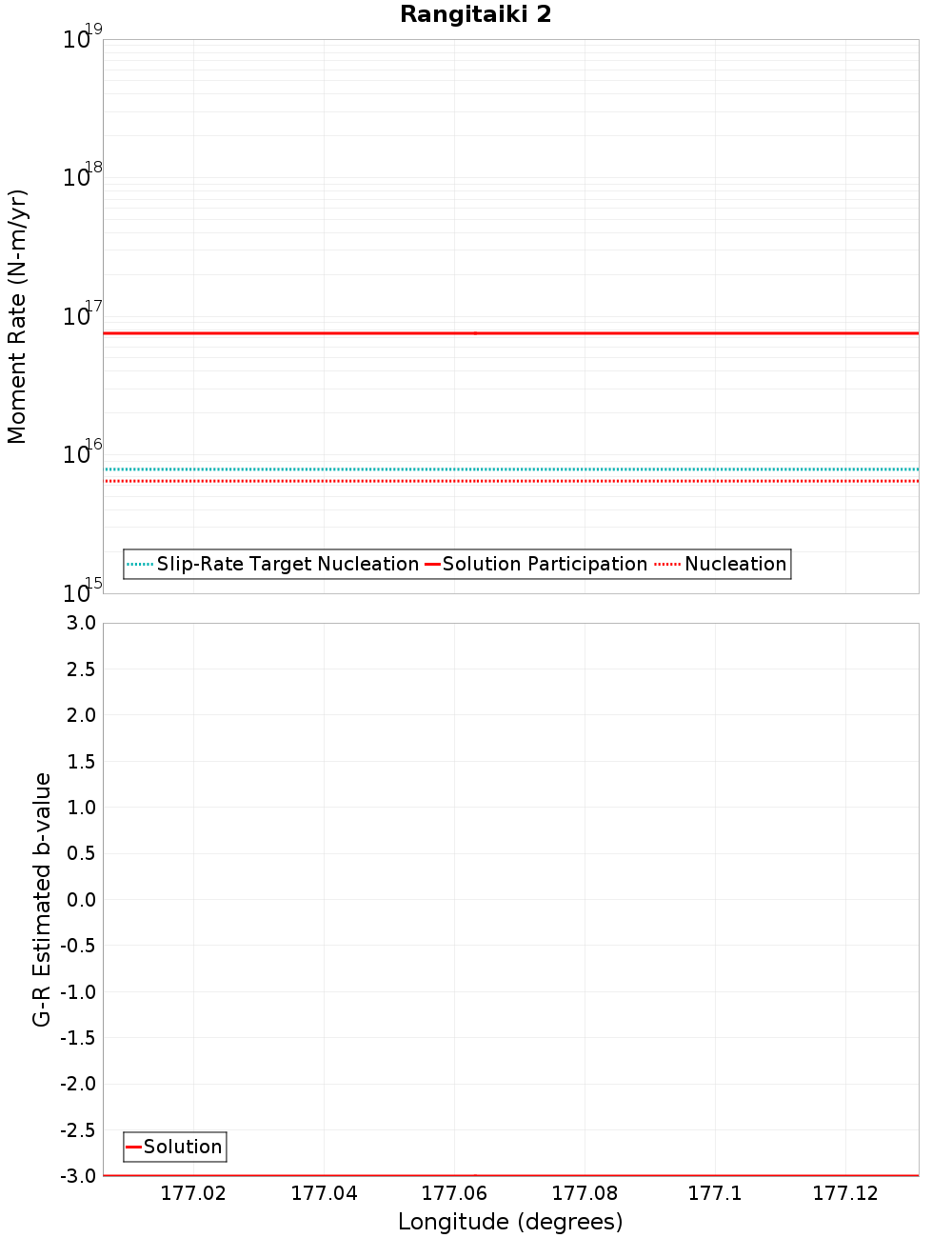

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohiwa 1, 0.42 km awayOhae 1, 14.97 km away
Whakaari 4, 0.45 km awayOpotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km awayMatata, 15.14 km away
White Island 1, 0.77 km awayTe Arawa 1, 16.46 km away
White Island 2, 2.66 km awayWhakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km awayOtakiri, 17.19 km away
Calypso 2, 8.01 km awayVolkner 3, 17.97 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count297
Co-rupture Rate6.4348096E-5

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count402
Co-rupture Rate1.2626882E-4

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count401
Co-rupture Rate4.277768E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count684
Co-rupture Rate0.0

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count251
Co-rupture Rate1.7800035E-4

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate2.3817571E-4

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count576
Co-rupture Rate4.000383E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate5.8279403E-7

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate1.04899904E-4

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate2.1349794E-4

Otakiri, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count166
Co-rupture Rate4.4688277E-5

Volkner 3, 17.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NjkuMGZvVHla
Connected?true
Directly Connected?false
Co-rupture Count188
Co-rupture Rate4.7017224E-5
