Whangamata West Details

PropertyValue
Rupture Count1,054
Ruptures Above Sect Min Mag1,051
Ruptures w/ Nonzero Rates10
Magnitude Range[6.29, 7.50]
Length Range[10, 143] km
Total Rate0.0010459181 /yr
Multi-Fault Rate0.0010459181 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

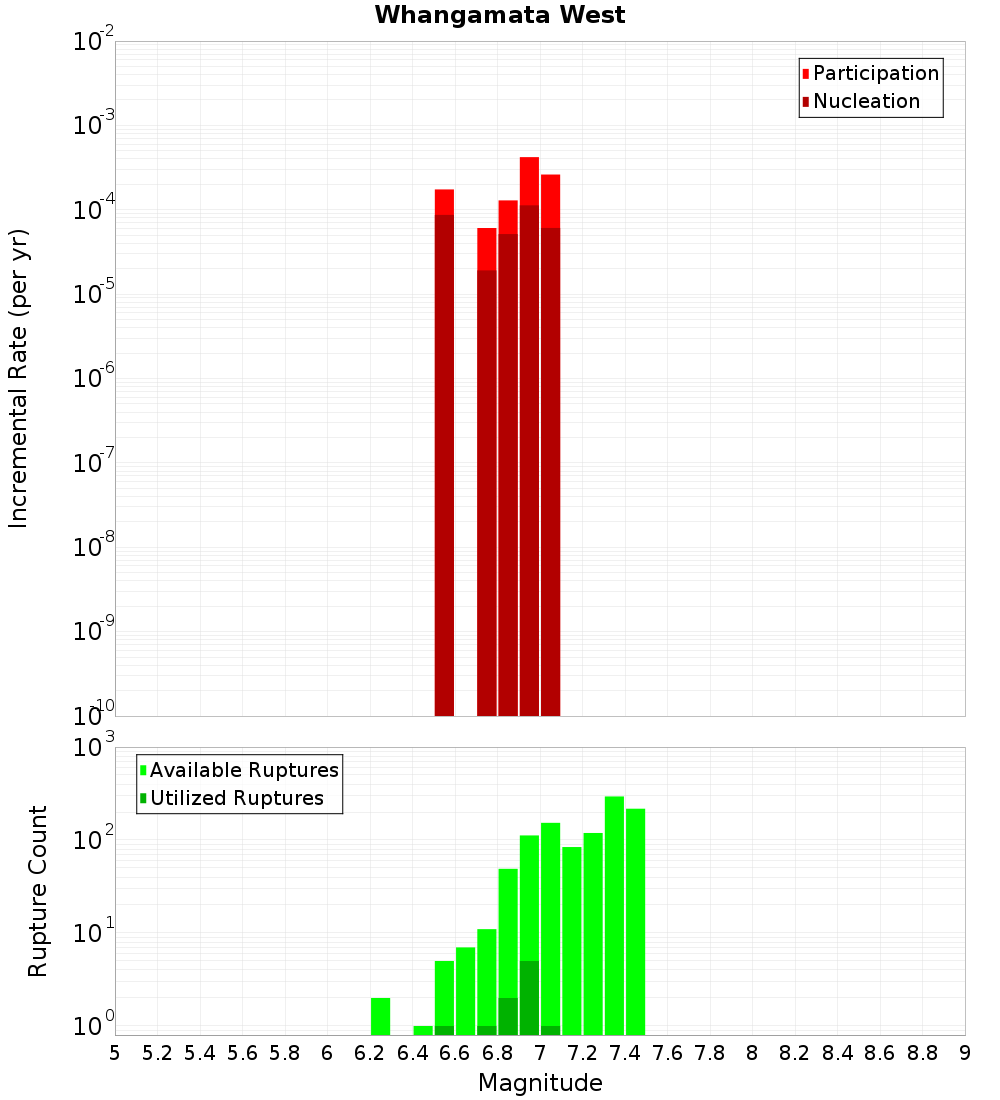

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

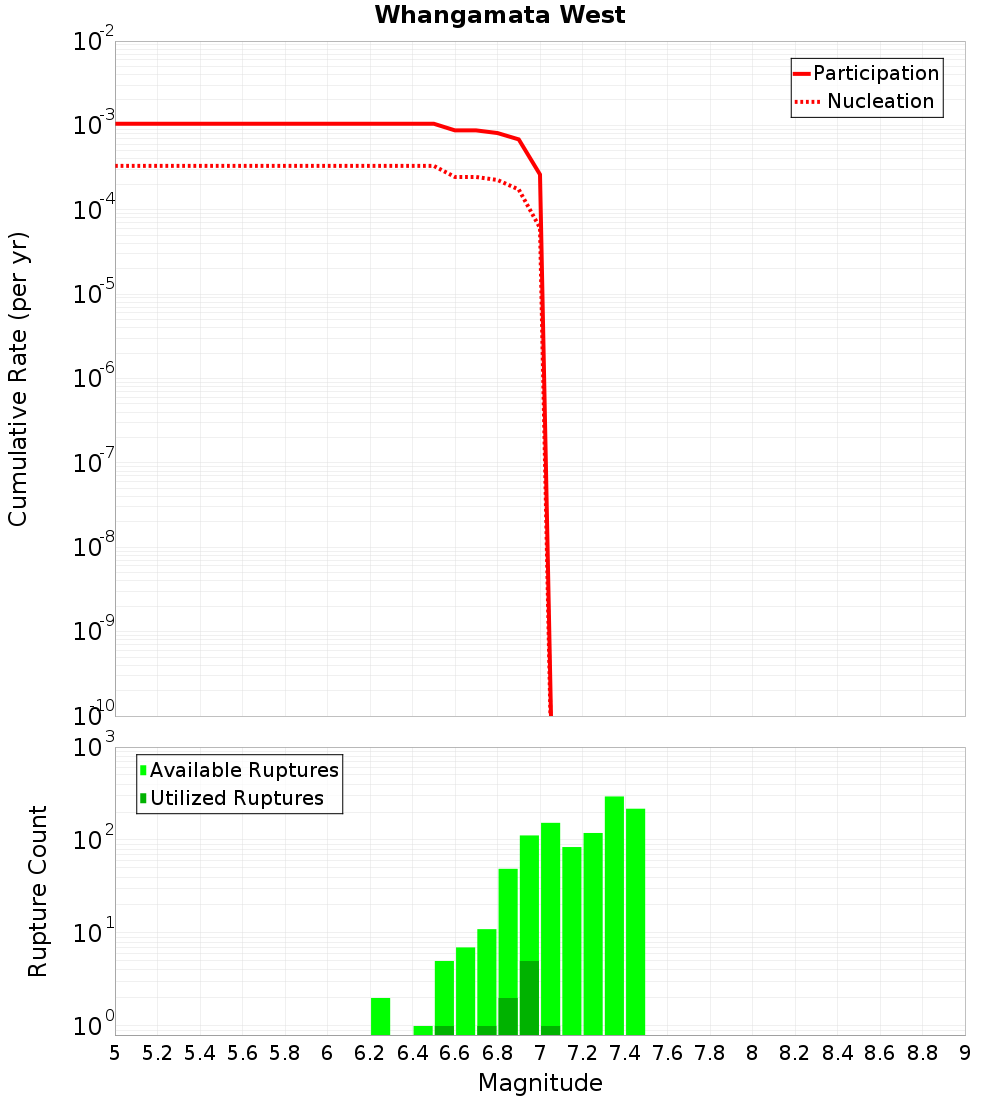

Incremental PlotCumulative Plot

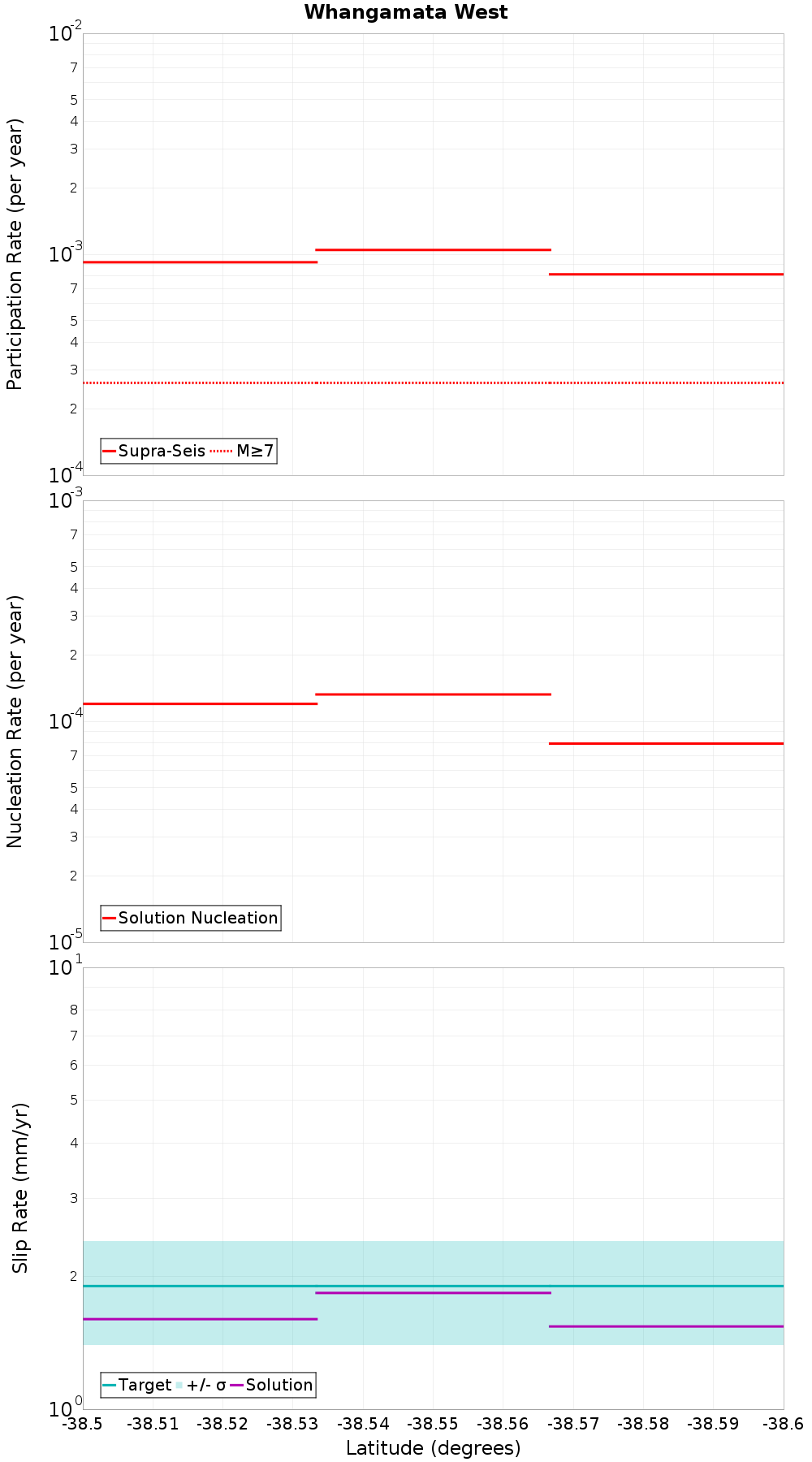

Along-Strike Values

(top)

Along-strike plot

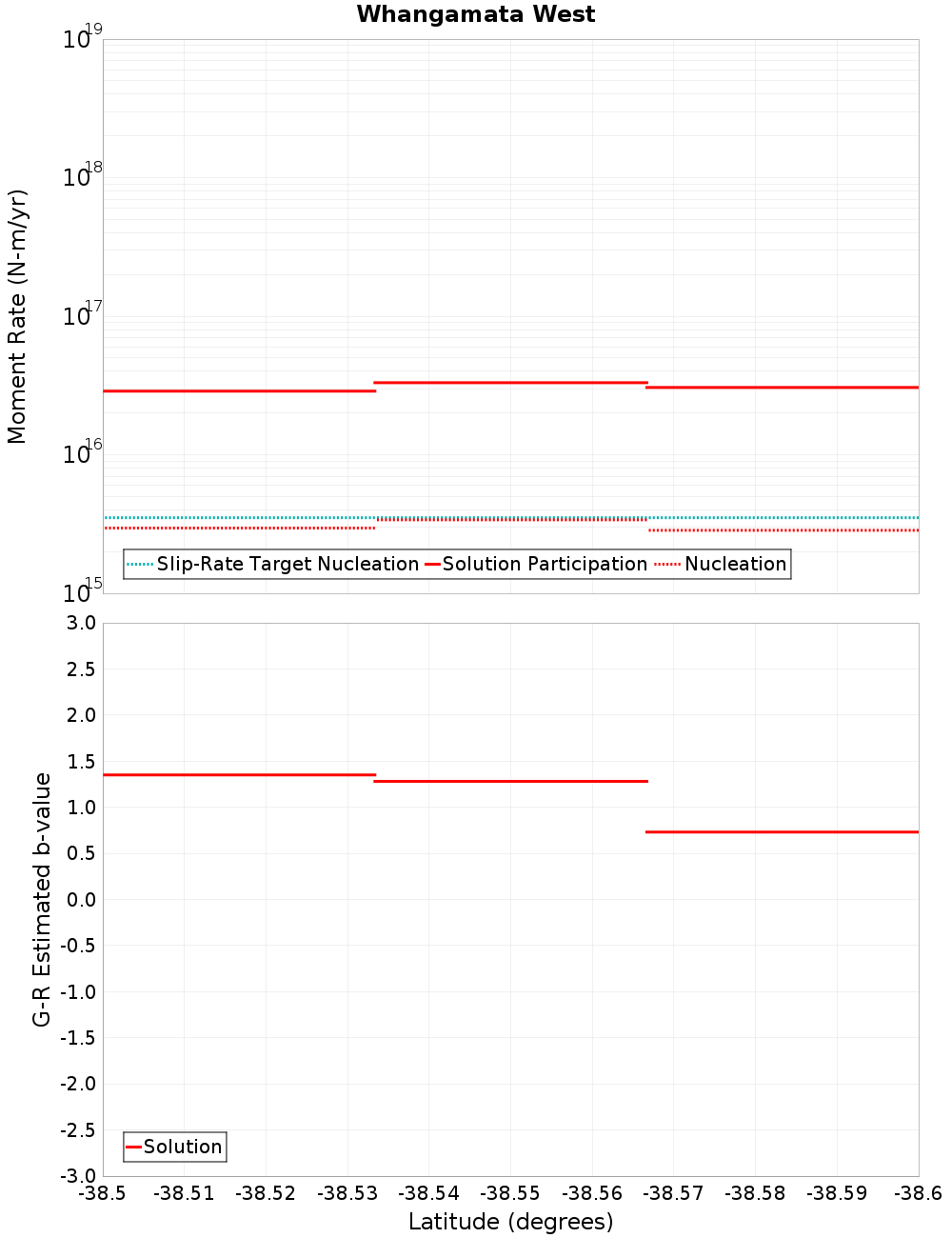

Moment-Rates and b-Values

(top)

Along-strike plot

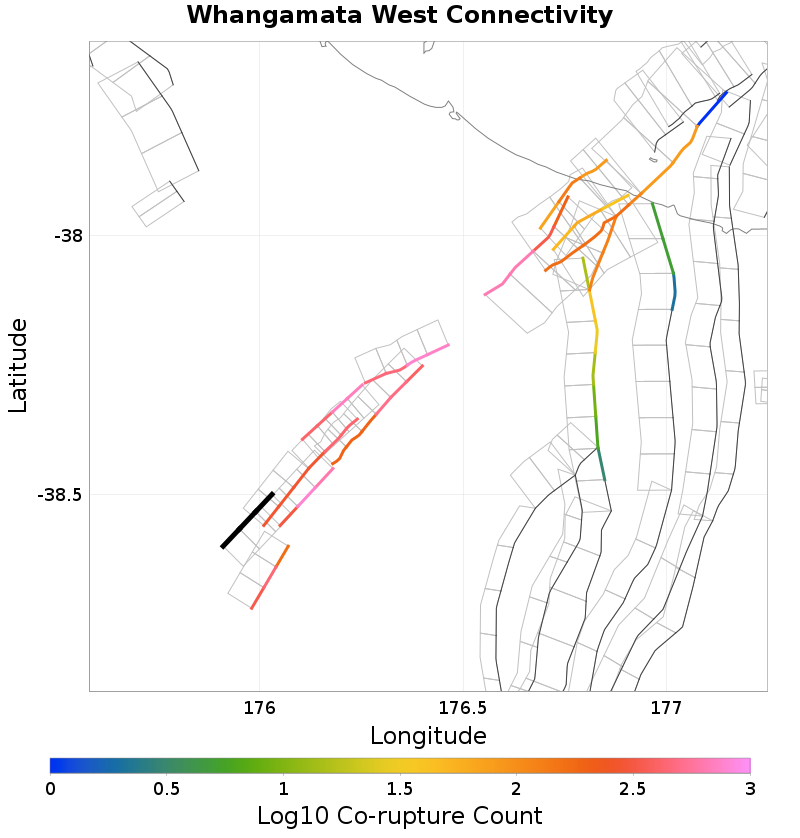

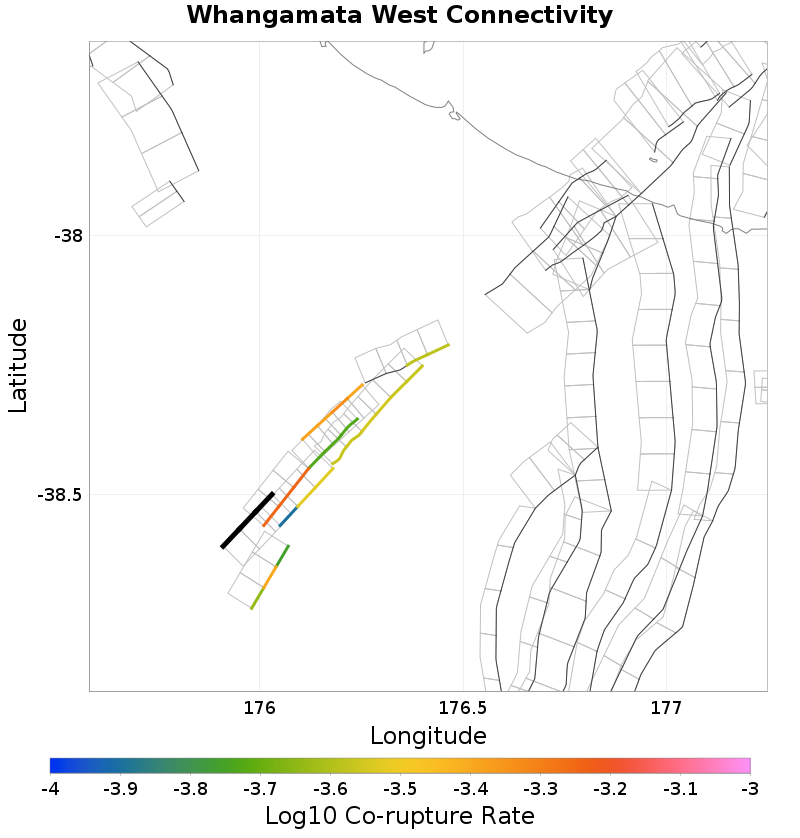

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?true
Co-rupture Count277
Co-rupture Rate5.724843E-4

Orakeikorako, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?true
Co-rupture Count770
Co-rupture Rate2.9927425E-4

Kaiapo, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?true
Co-rupture Count439
Co-rupture Rate4.012463E-4

Puketerata North, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?false
Co-rupture Count426
Co-rupture Rate1.8608866E-4

Maleme, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?false
Co-rupture Count706
Co-rupture Rate5.9135555E-4

Paeroa, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3NzkuMDdzNHNY
Connected?true
Directly Connected?false
Co-rupture Count523
Co-rupture Rate2.8040295E-4
