Wairarapa: 1 Details

PropertyValue
Rupture Count49,368
Ruptures Above Sect Min Mag49,366
Ruptures w/ Nonzero Rates212
Magnitude Range[6.81, 8.63]
Length Range[20, 1,119] km
Total Rate0.0022140585 /yr
Multi-Fault Rate0.0022140585 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults120

Table Of Contents

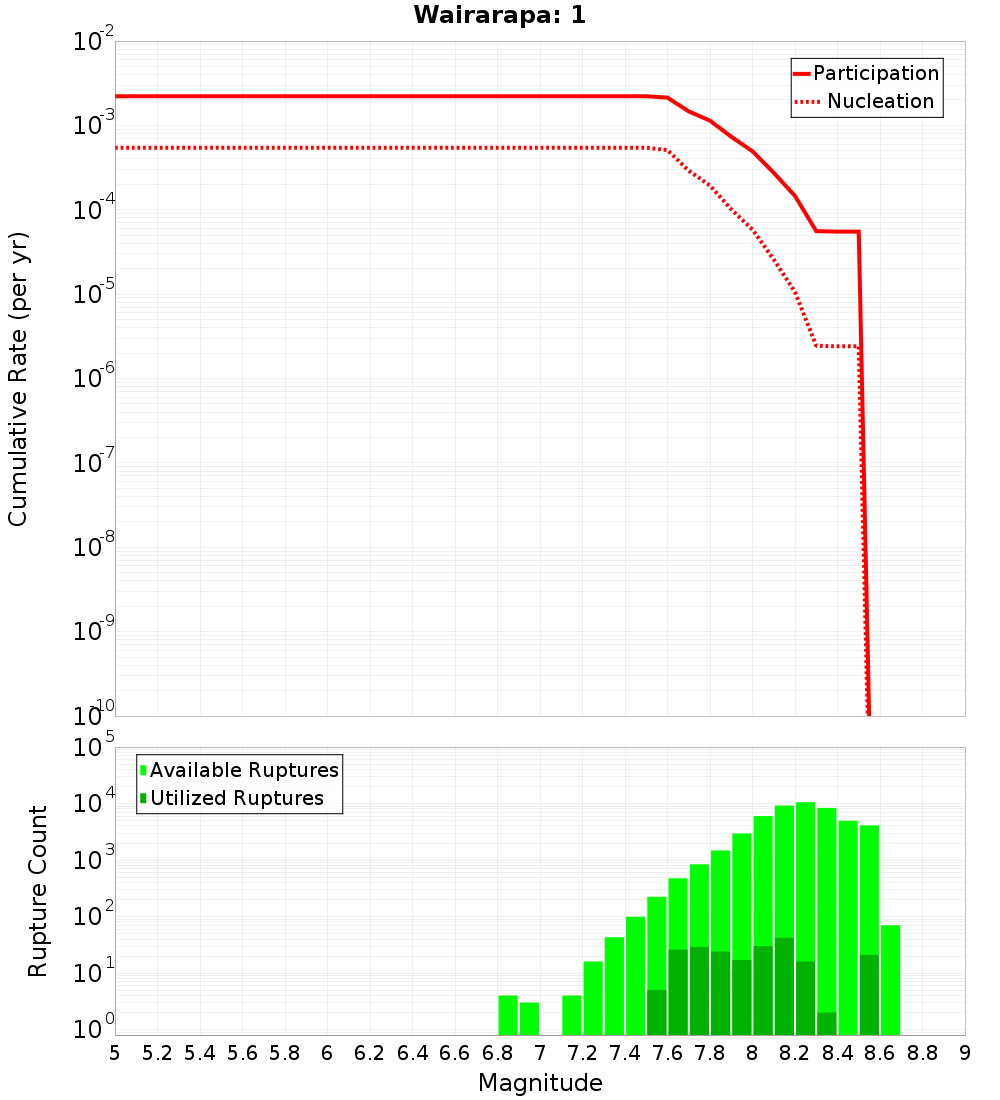

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

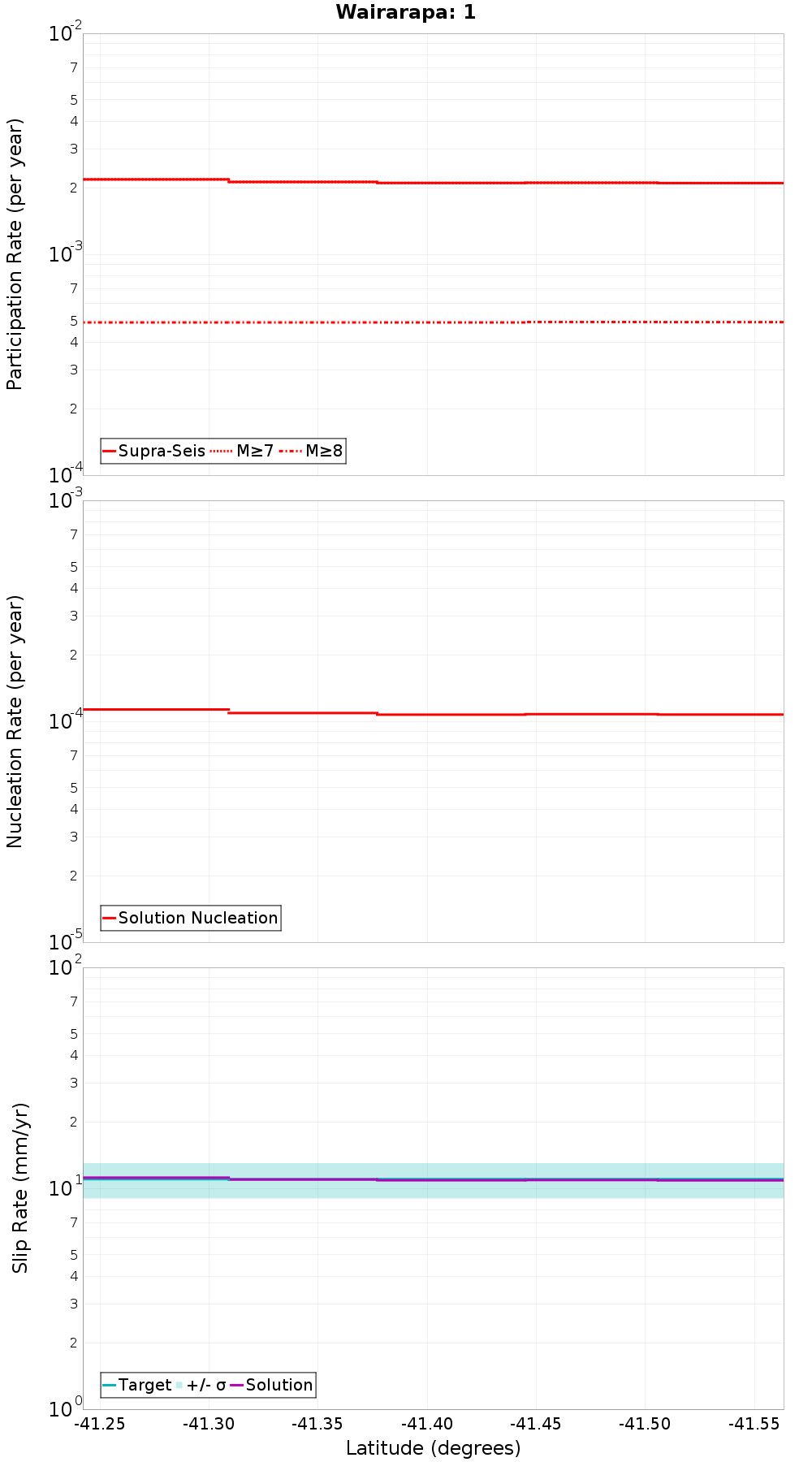

Along-Strike Values

(top)

Along-strike plot

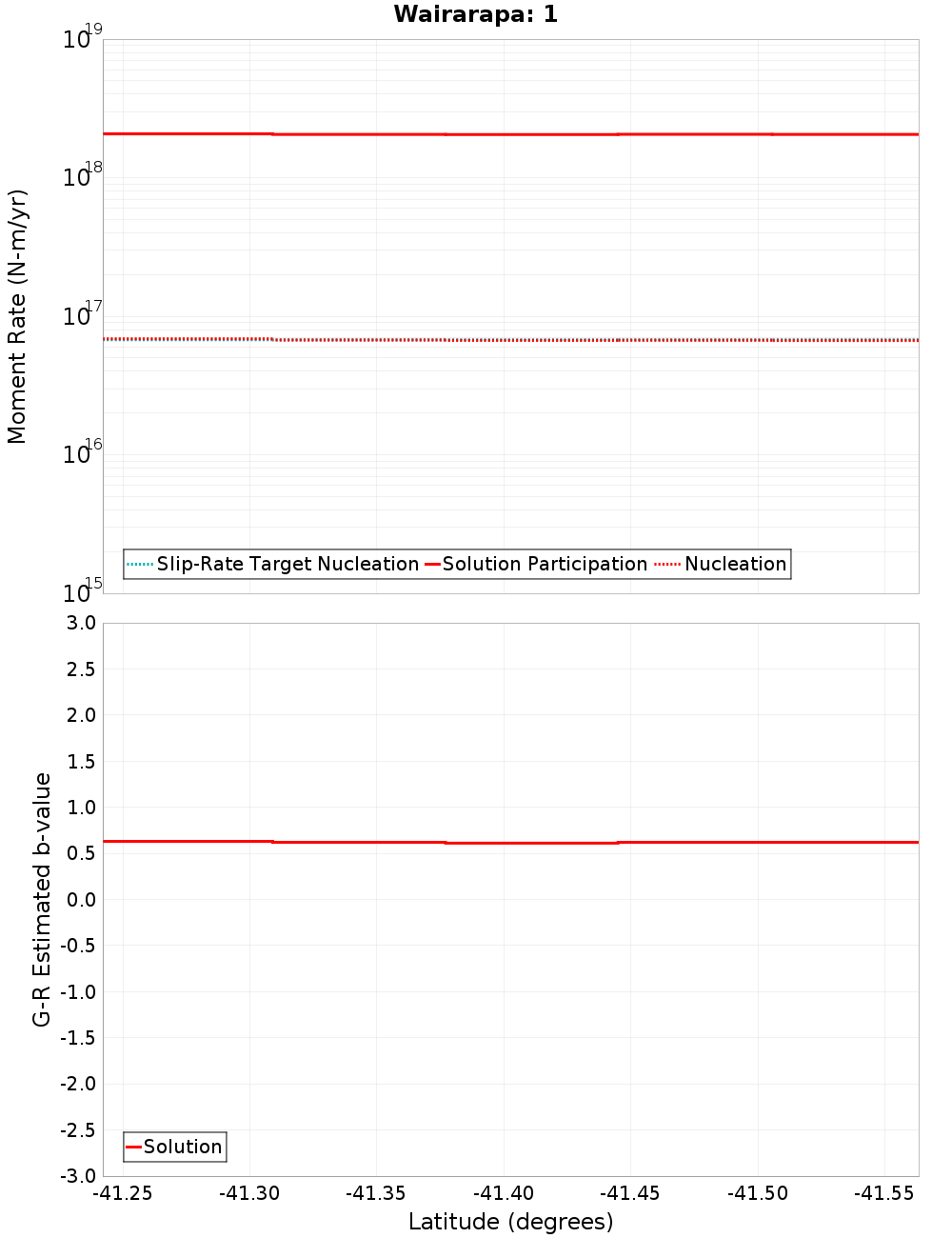

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 2, 0 km awayOhariu, 14.45 km away
Wairarapa: Needles, 0 km awayBooBoo, 14.76 km away
Wharekauhau, 0.2 km awayWellington Hutt Valley: 1, 15.62 km away
Wellington Hutt Valley: 5, 0.94 km awayOtaraia, 16.28 km away
Aotea - Evans Bay, 1.28 km awayBidwill, 17.4 km away
Wellington Hutt Valley: 4, 2.73 km awayWairau 3, 17.5 km away
Whitemans Valley, 5.26 km awayCampbell Bank, 17.51 km away
Akatarawa, 12.63 km awayDry River - Huangarua: 1, 17.75 km away
Wellington Hutt Valley: 2, 12.7 km awayMartinborough, 18.81 km away
Wellington Hutt Valley: 3, 12.73 km awayWellington: Tararua 1, 19.11 km away
Moonshine, 13.22 km away

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?true
Co-rupture Count30,638
Co-rupture Rate0.00216919

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?true
Co-rupture Count45,735
Co-rupture Rate0.0018896653

Wharekauhau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?true
Co-rupture Count1,151
Co-rupture Rate3.287385E-5

Wellington Hutt Valley: 5, 0.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?true
Co-rupture Count16,826
Co-rupture Rate6.955901E-5

Aotea - Evans Bay, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.3151834E-5

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count219
Co-rupture Rate5.8090254E-6

Akatarawa, 12.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate0.0

Ohariu, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

BooBoo, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count120
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 15.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 16.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count466
Co-rupture Rate8.9344074E-4

Campbell Bank, 17.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Dry River - Huangarua: 1, 17.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 18.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate4.99828E-6

Wellington: Tararua 1, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODUuMHd5R0FO
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate1.3552547E-6
