Northern Ohariu Details

PropertyValue
Rupture Count14,867
Ruptures Above Sect Min Mag14,865
Ruptures w/ Nonzero Rates296
Magnitude Range[6.97, 8.31]
Length Range[22, 558] km
Total Rate3.466948E-4 /yr
Multi-Fault Rate3.4435384E-4 /yr (99.32%)
Directly-Connected Faults5
All Co-Rupturing Faults92

Table Of Contents

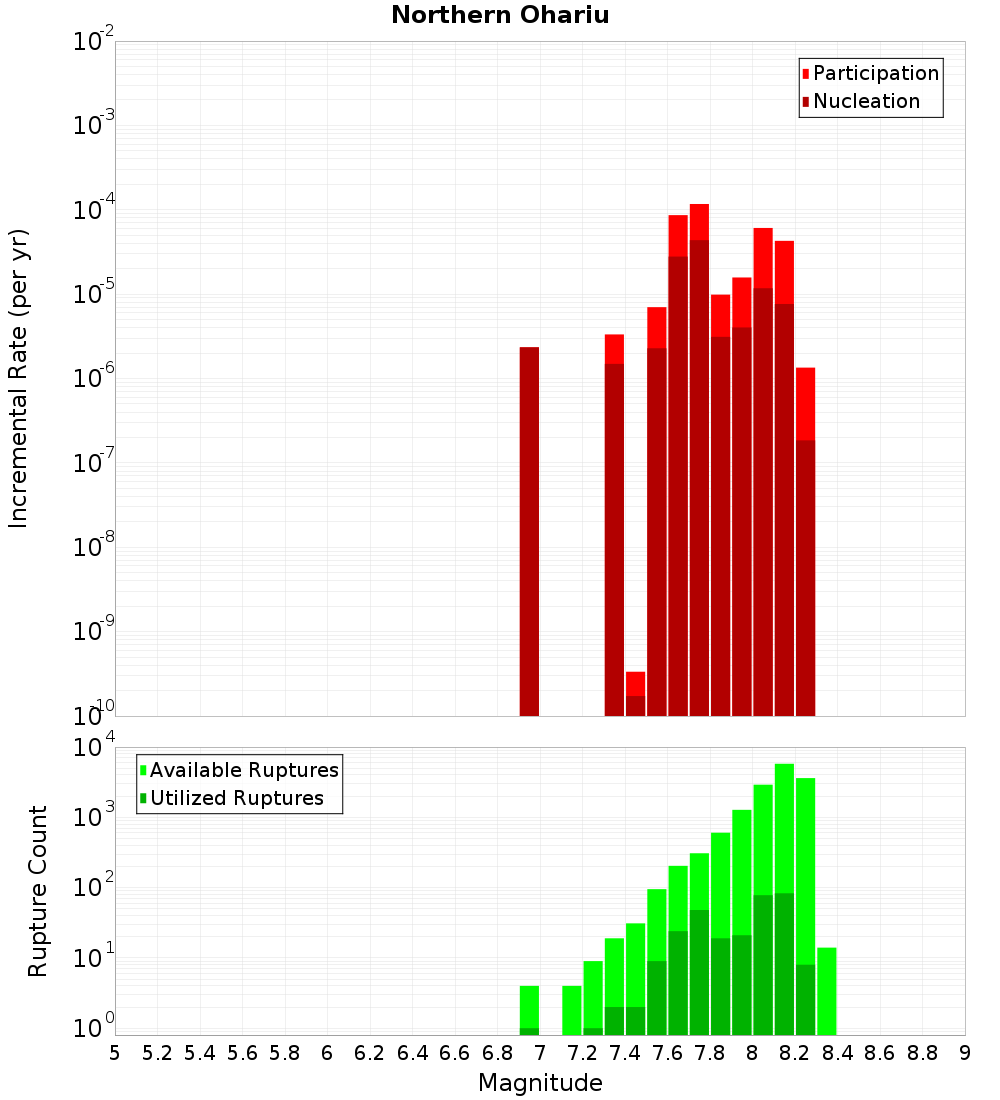

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

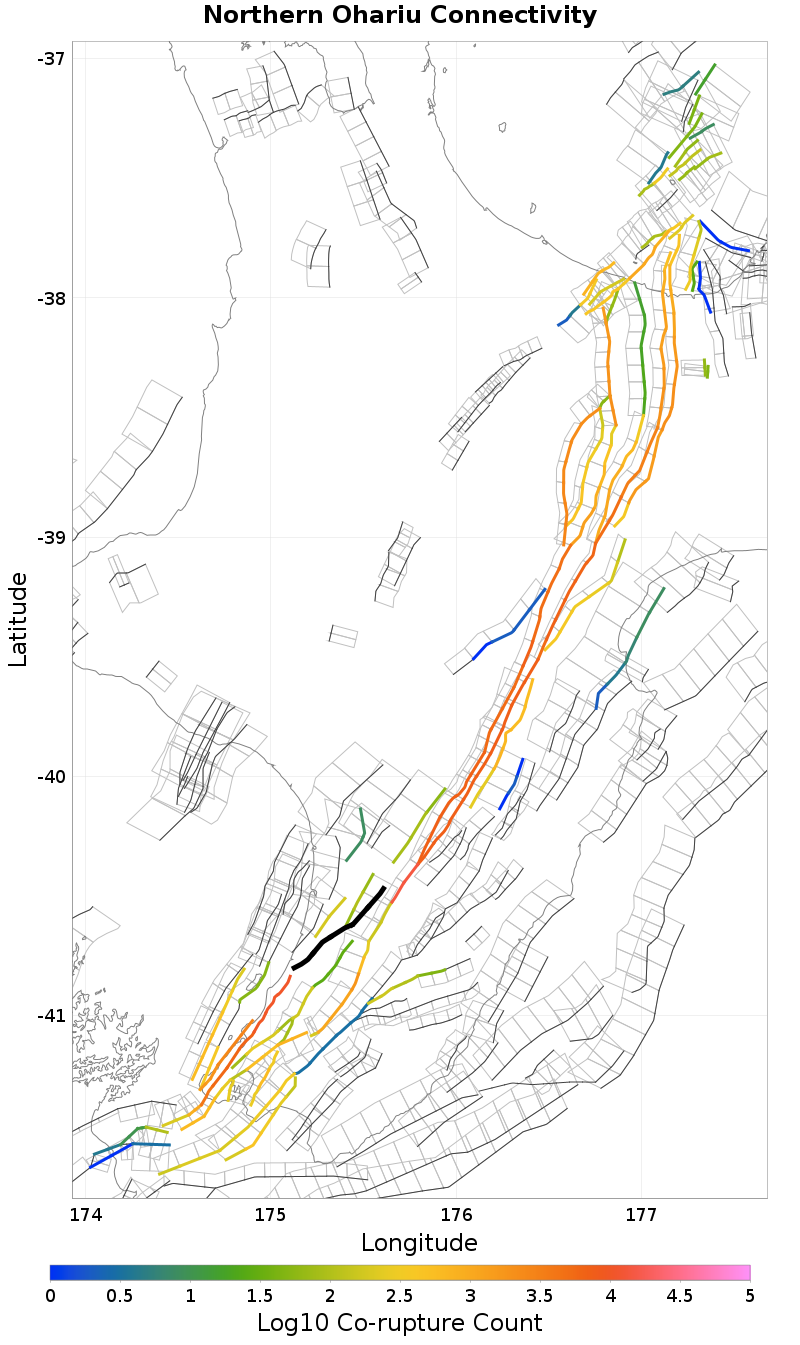

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tokomaru, 0.33 km awayPohangina, 13.14 km away
Wellington: Tararua 3, 1.86 km awayOnepoto, 15.04 km away
Wellington: Pahiatua, 2.46 km awayHimatangi, 15.18 km away
Levin Anticline, 4.08 km awayPahiatua, 15.24 km away
Ohariu, 4.32 km awayMascarin, 16.4 km away
Poroutawhao, 6.82 km awayWellington: Tararua 2, 17.89 km away
Otaki Forks: 2, 7.03 km awayFisherman 3, 18.1 km away
Otaki Forks: 1, 7.3 km awayMohaka: South, 18.2 km away
Otaheke North, 11.55 km awayRuahine: South, 18.29 km away
Otaheke South, 11.86 km awayTaonui, 19.61 km away
Rangitikei Offshore 1, 12.23 km awayFisherman 2, 19.86 km away

Tokomaru, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?true
Co-rupture Count127
Co-rupture Rate4.1851752E-5

Wellington: Tararua 3, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?true
Co-rupture Count1,775
Co-rupture Rate3.1397376E-5

Wellington: Pahiatua, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?true
Co-rupture Count14,422
Co-rupture Rate1.6074313E-4

Levin Anticline, 4.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?true
Co-rupture Count179
Co-rupture Rate3.8837374E-5

Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?true
Co-rupture Count11,138
Co-rupture Rate3.040643E-4

Poroutawhao, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate2.8802075E-5

Otaki Forks: 1, 7.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate2.8801698E-5

Otaheke North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate1.6989472E-11

Rangitikei Offshore 1, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate1.9814197E-5

Onepoto, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 15.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 16.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 2, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count1,228
Co-rupture Rate3.0806314E-5

Fisherman 3, 18.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count9,402
Co-rupture Rate7.706302E-5

Ruahine: South, 18.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?true
Directly Connected?false
Co-rupture Count7,036
Co-rupture Rate4.9564187E-5

Taonui, 19.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3ODYuMGdTNnpB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
