Waitotara 10 & 11 Details

Property	Value
Rupture Count	35
Ruptures Above Sect Min Mag	33
Ruptures w/ Nonzero Rates	13
Magnitude Range	[7.18, 7.88]
Length Range	[28, 143] km
Total Rate	8.612796E-5 /yr
Multi-Fault Rate	5.311725E-5 /yr (61.67%)
Directly-Connected Faults	6
All Co-Rupturing Faults	6

Table Of Contents

Magnitude-Frequency Distribution

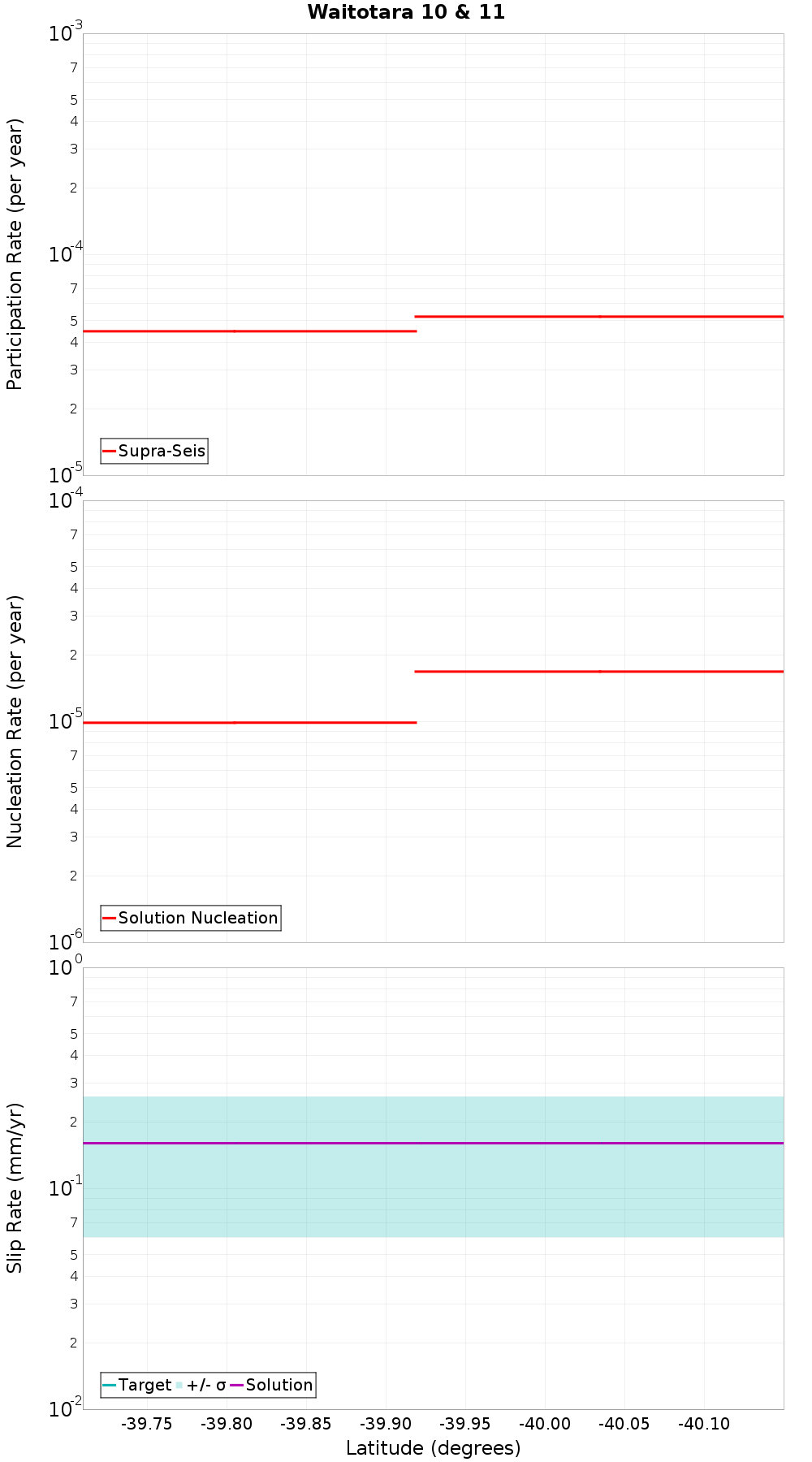

Along-Strike Values

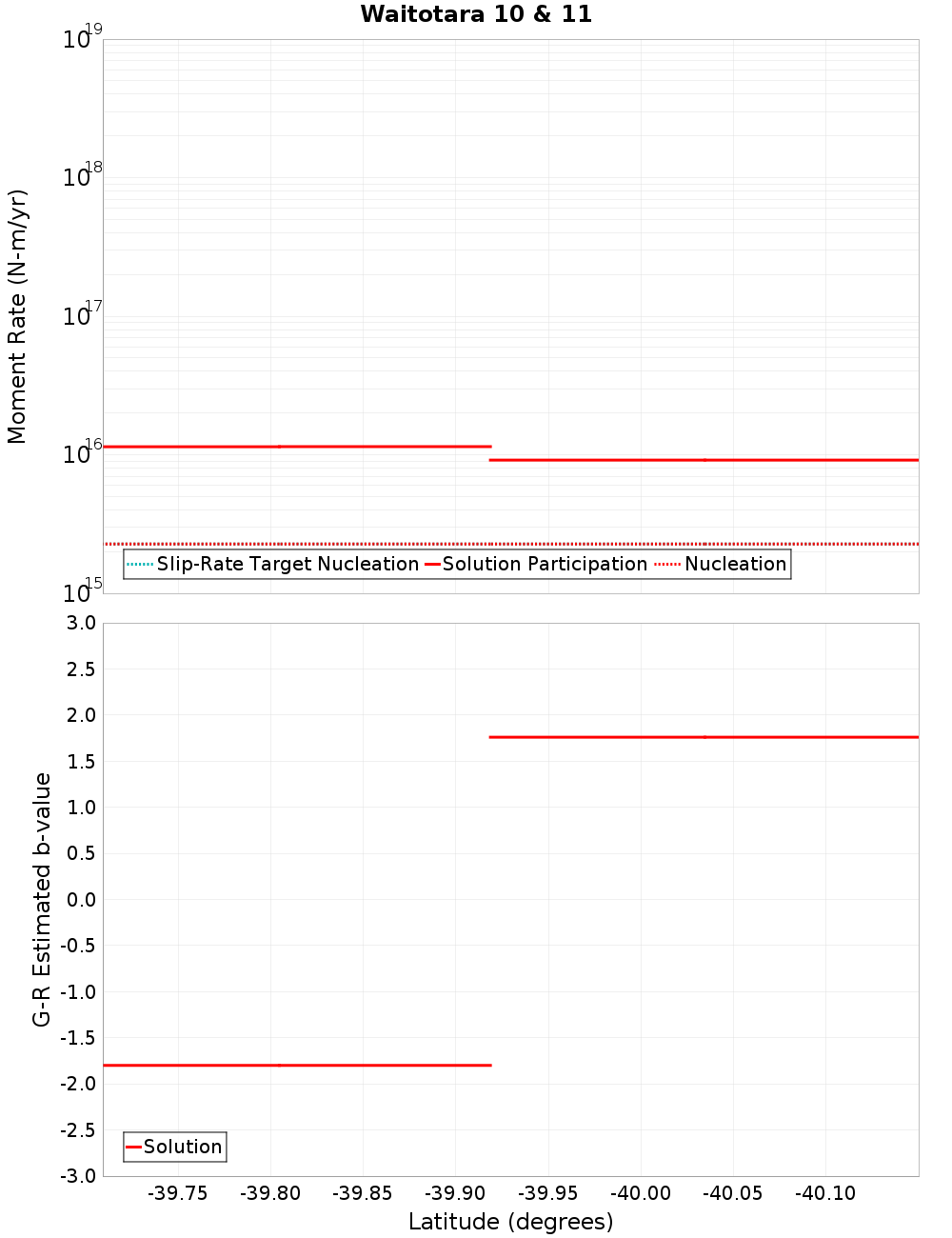

- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waverley - Okaia 1, 0.14 km away
Okaia 5, 0.23 km away
Okaia 3, 0.35 km away
Moumahaki - Okaia 4, 0.36 km away
Ridge Road - Okaia 2, 0.52 km away
Waitotara 8 & 9, 0.72 km away
Nukumuru - Waitotara 1-6, 2.59 km away
Ararata, 11.98 km away

Waverley - Okaia 1, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	2.5484393E-8

Okaia 5, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okaia 3, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	8.305458E-6

Moumahaki - Okaia 4, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	1.6965412E-5

Ridge Road - Okaia 2, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	1.0955447E-9

Waitotara 8 & 9, 0.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	3.0079584E-5

Nukumuru - Waitotara 1-6, 2.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	5.4339293E-6

Ararata, 11.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTEuMGVmYUY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
