Kelly Details

PropertyValue
Rupture Count51,067
Ruptures Above Sect Min Mag51,061
Ruptures w/ Nonzero Rates68
Magnitude Range[6.71, 8.62]
Length Range[17, 1,196] km
Total Rate0.001982544 /yr
Multi-Fault Rate0.001982544 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults132

Table Of Contents

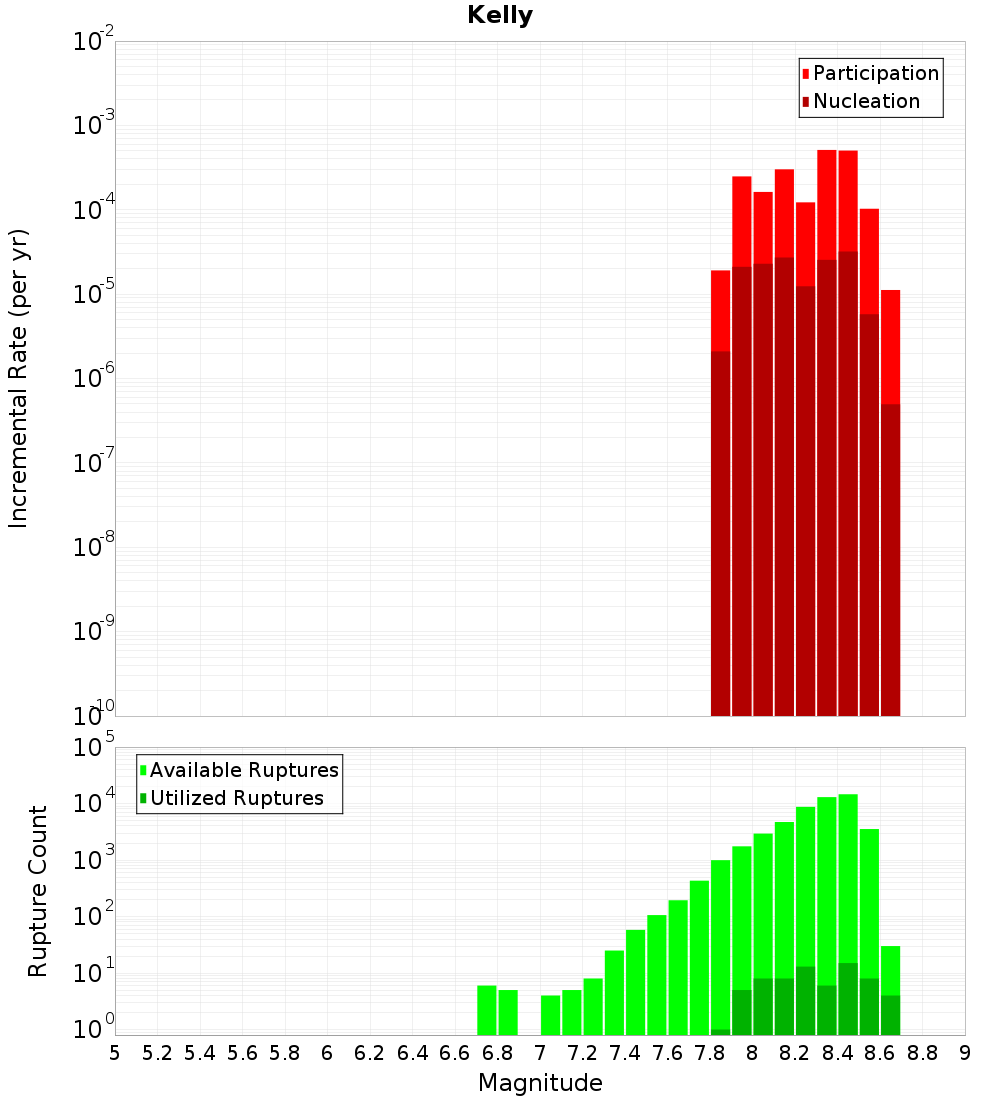

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

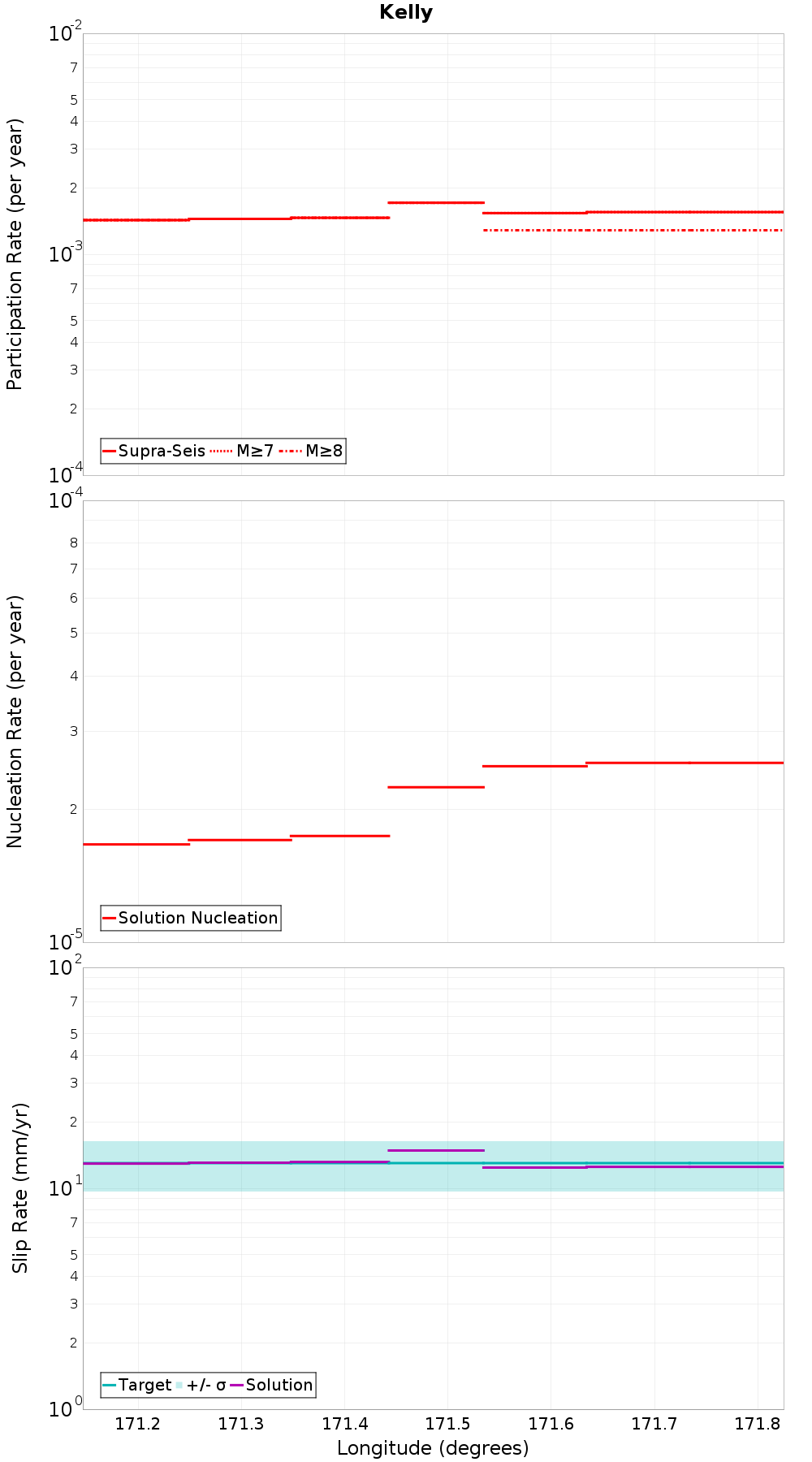

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

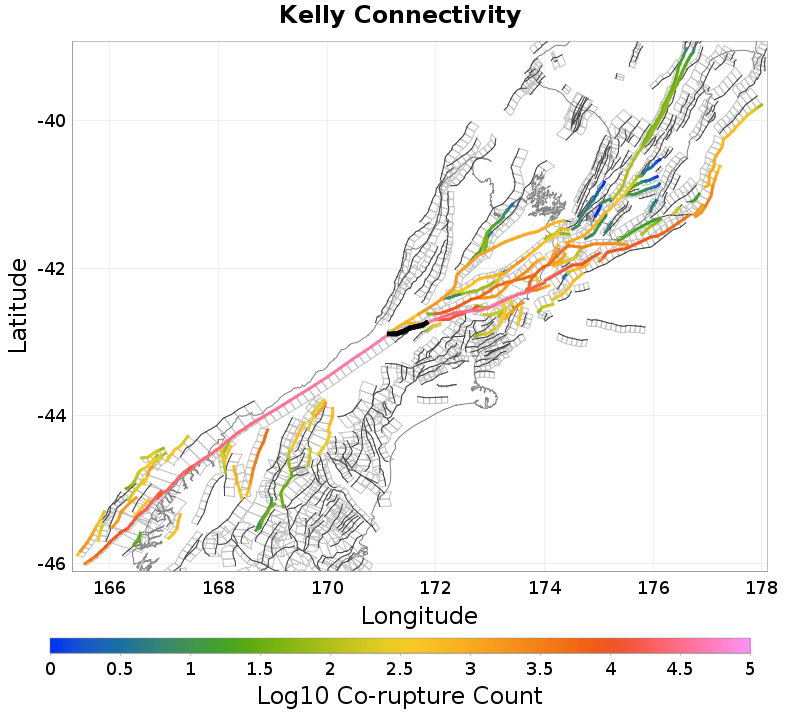

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.1 km away
Poulter, 9.5 km away
Cape Foulwind 1, 11.56 km away
Clarence: Southwest, 13.14 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away
Maimai: Brunner Anticline, 17.48 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?true
Co-rupture Count47,424
Co-rupture Rate0.0012619764

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?true
Co-rupture Count47,331
Co-rupture Rate0.0015502713

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?true
Co-rupture Count714
Co-rupture Rate4.3190818E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?true
Co-rupture Count2,067
Co-rupture Rate3.6454327E-7

Browning Pass, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate4.4895975E-7

Cape Foulwind 1, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?false
Co-rupture Count7,952
Co-rupture Rate1.119822E-5

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?false
Co-rupture Count13,321
Co-rupture Rate4.720017E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?true
Directly Connected?false
Co-rupture Count34,346
Co-rupture Rate0.0010782697

Maimai: Brunner Anticline, 17.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMGp3S2NZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
