Ohena 2 Details

PropertyValue
Rupture Count52
Ruptures Above Sect Min Mag50
Ruptures w/ Nonzero Rates11
Magnitude Range[6.90, 7.65]
Length Range[20, 98] km
Total Rate9.696812E-4 /yr
Multi-Fault Rate9.696812E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

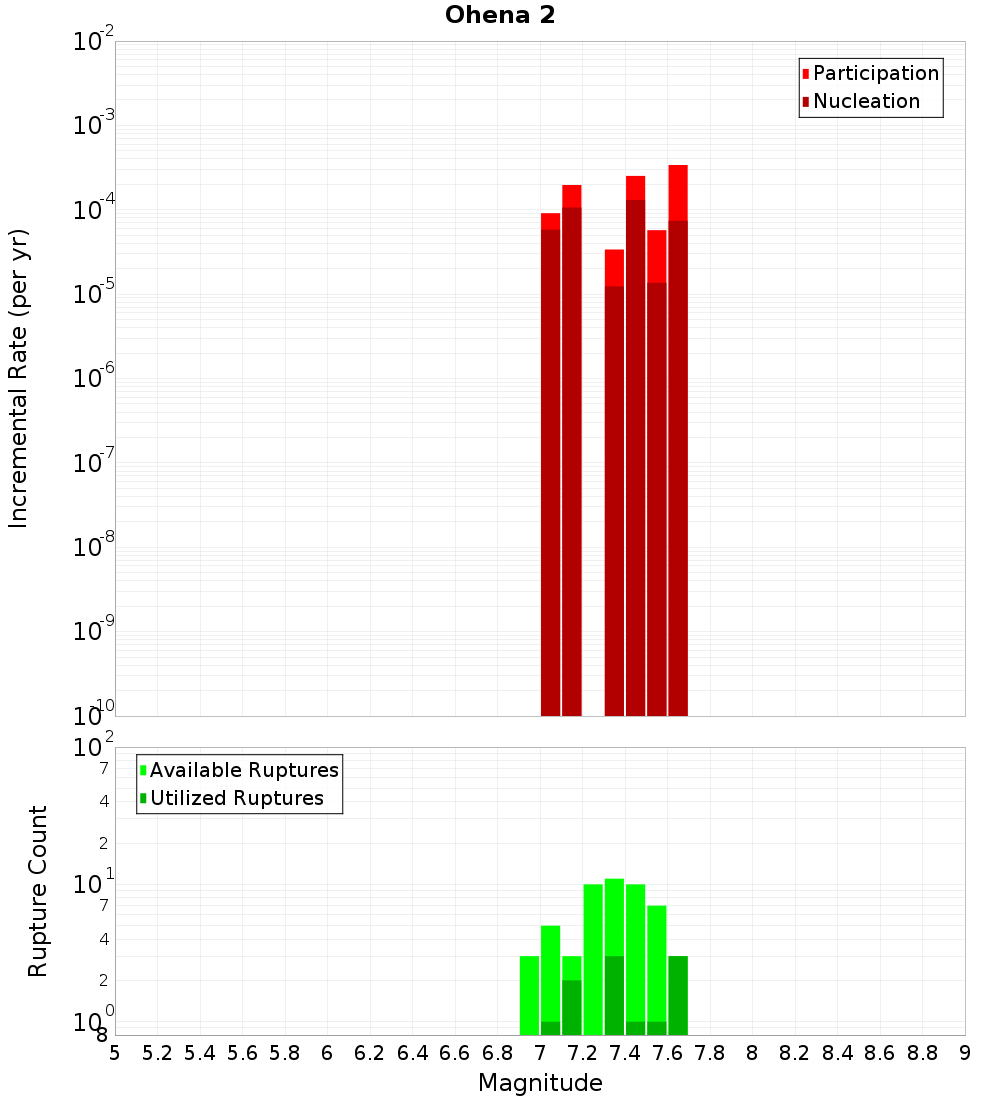

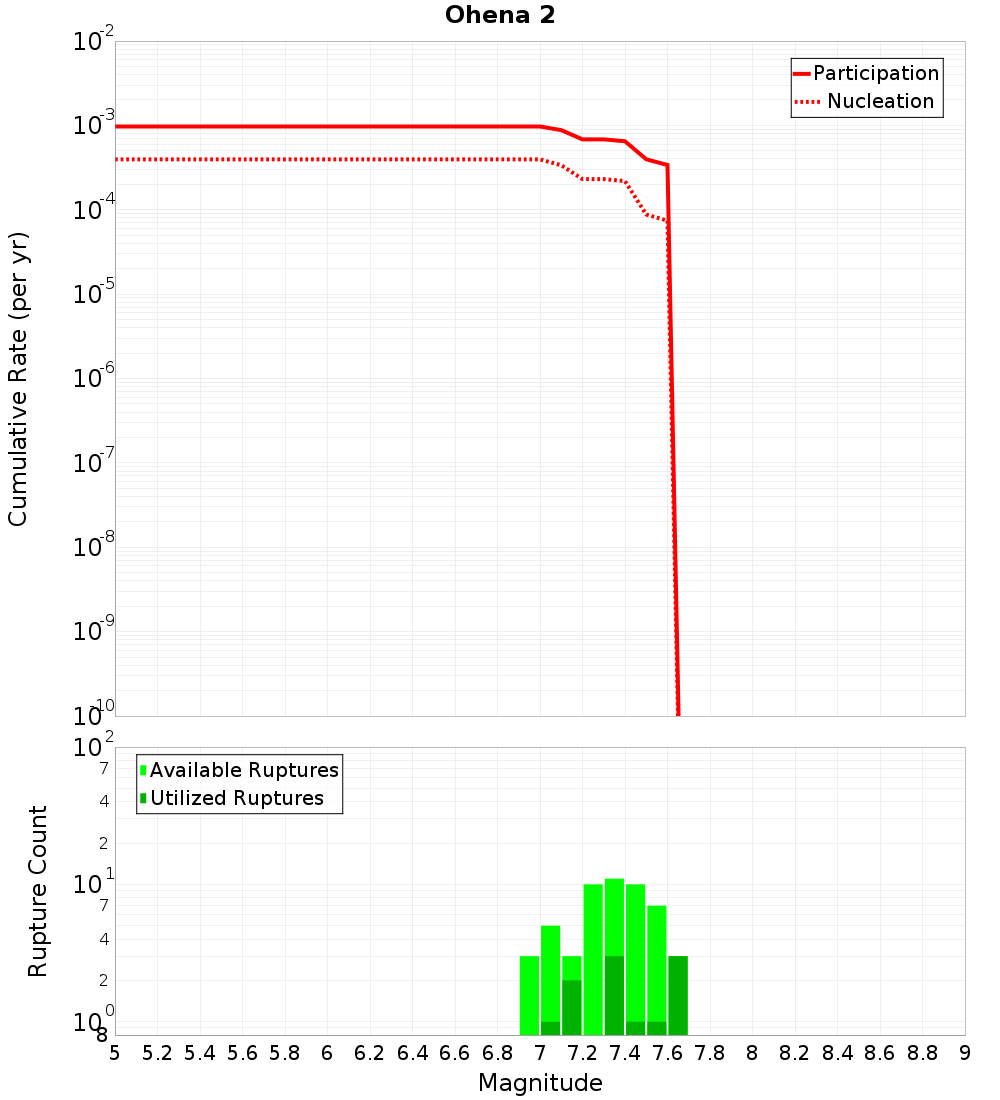

Incremental PlotCumulative Plot

Along-Strike Values

(top)

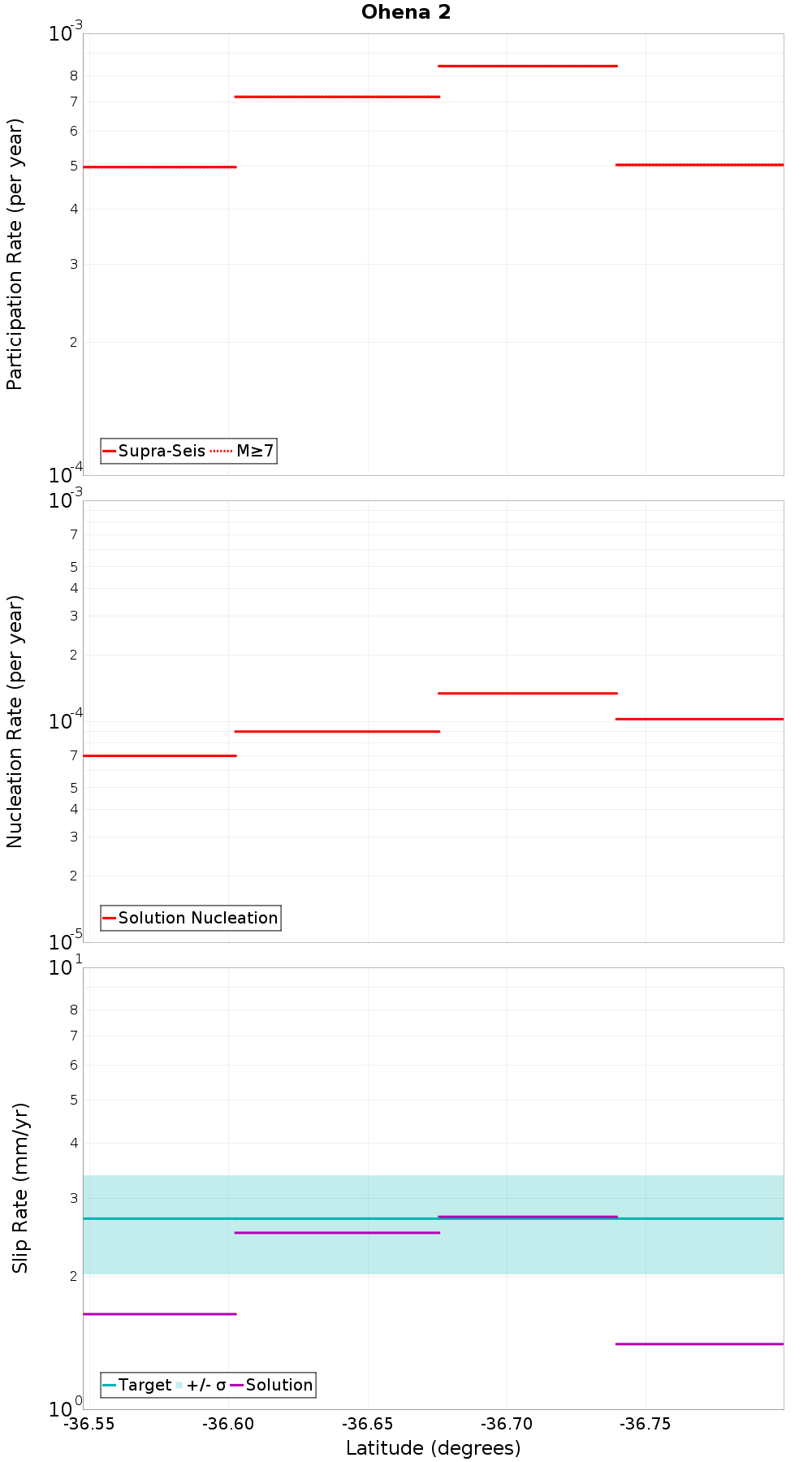

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

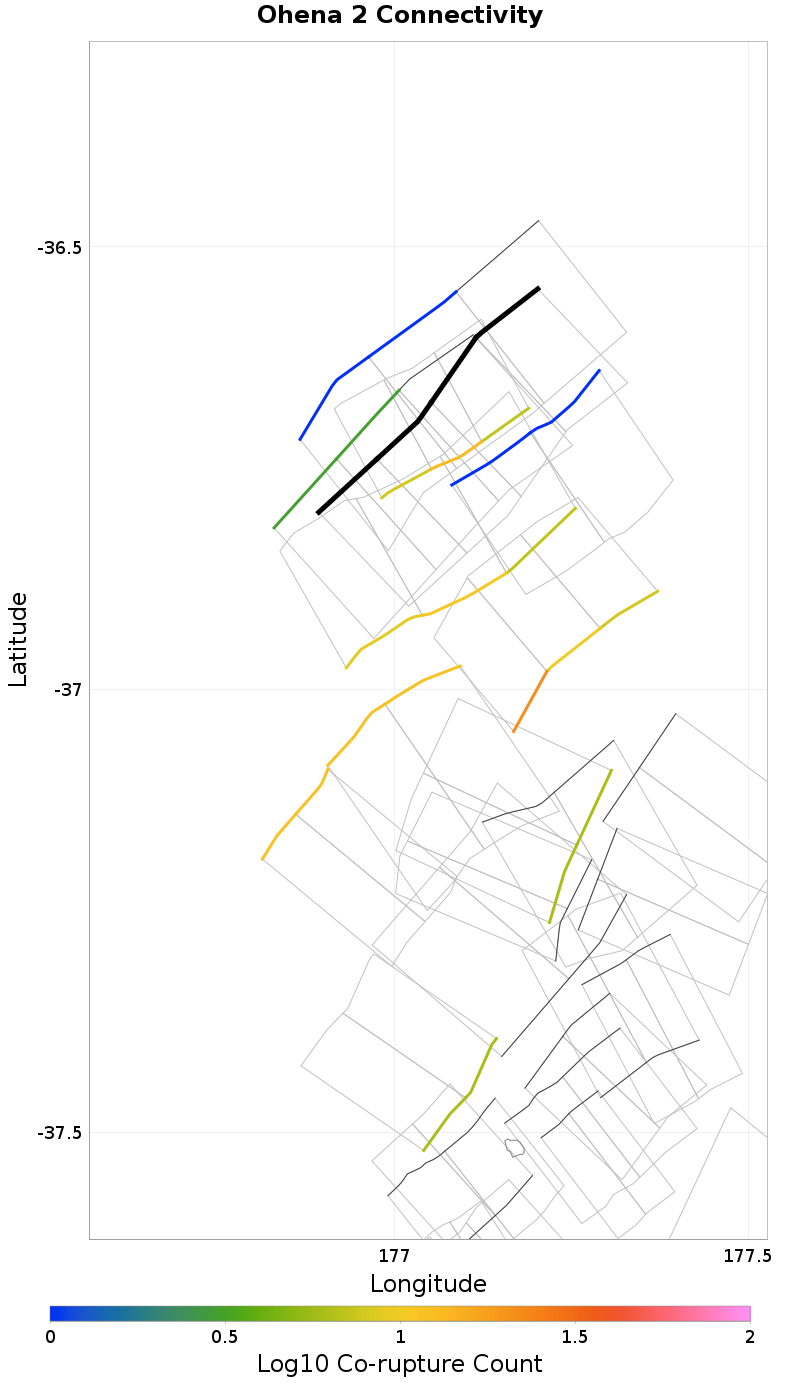

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.13 km away
Ngatoro South 5, 0.16 km away
Ohena 3, 0.49 km away
Tauranga Trough East 2, 2.52 km away
Ohena 4, 4.59 km away
Ngatoro South 2, 6.63 km away
Otara West 2, 14.35 km away
Tuakana 7, 19.33 km away

Tauranga Trough West 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate3.0917575E-4

Ngatoro South 5, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.2115227E-4

Ohena 3, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate5.7288165E-5

Tauranga Trough East 2, 2.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate3.3917092E-4

Ohena 4, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.8225583E-7

Ngatoro South 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.3193544E-5

Otara West 2, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.6311776E-4

Tuakana 7, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.7605316E-4
