Pakarae Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 5 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [5.98, 7.20] |
| Length Range | [4, 62] km |
| Total Rate | 0.0010832886 /yr |
| Multi-Fault Rate | 0.0010832886 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

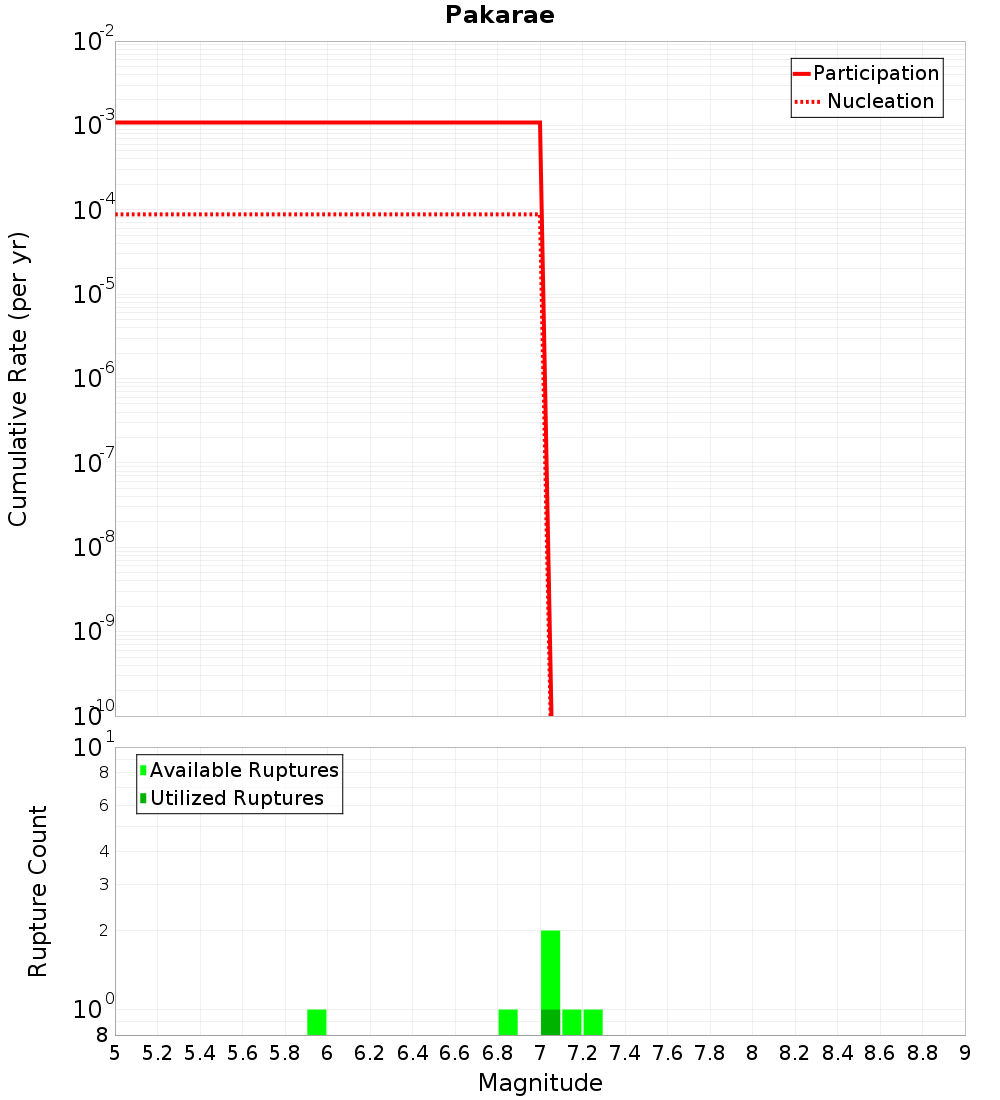

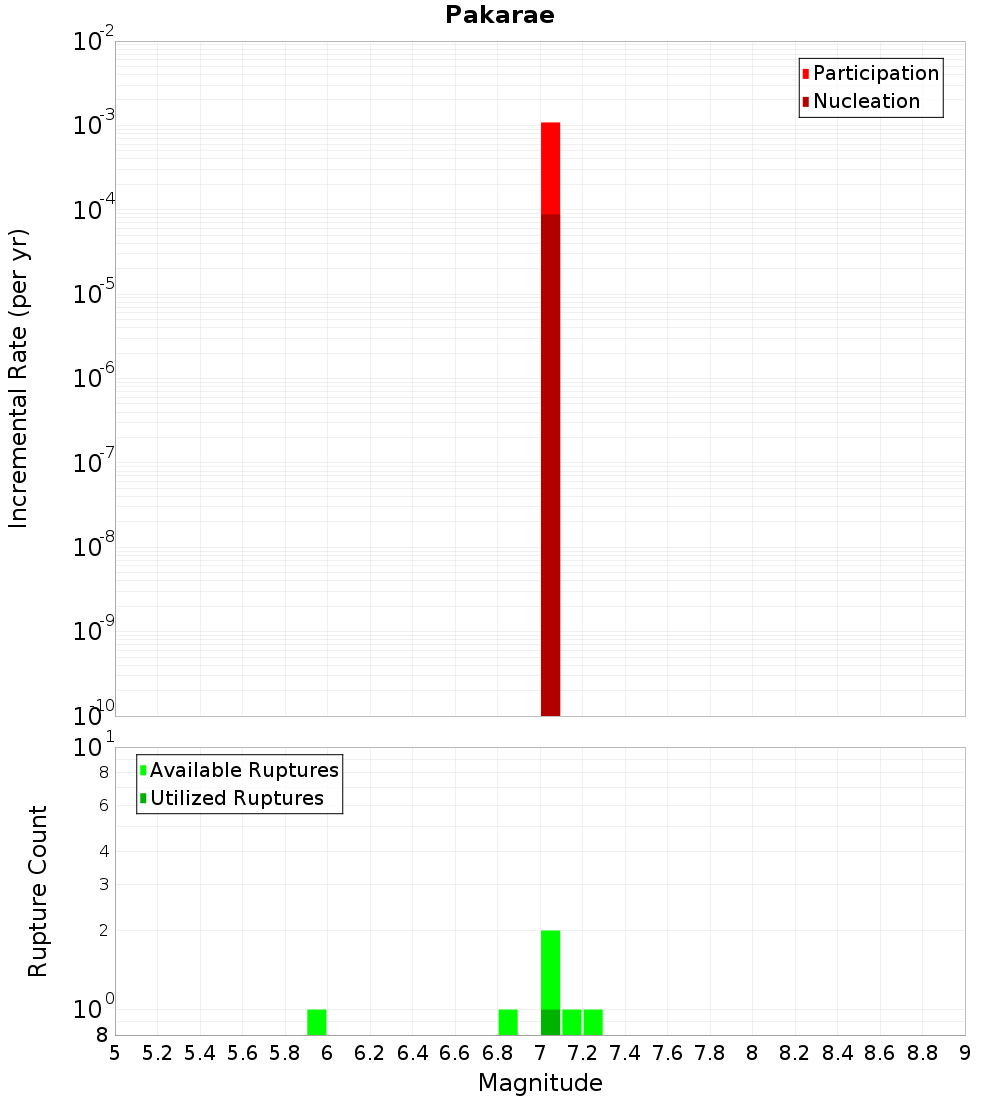

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

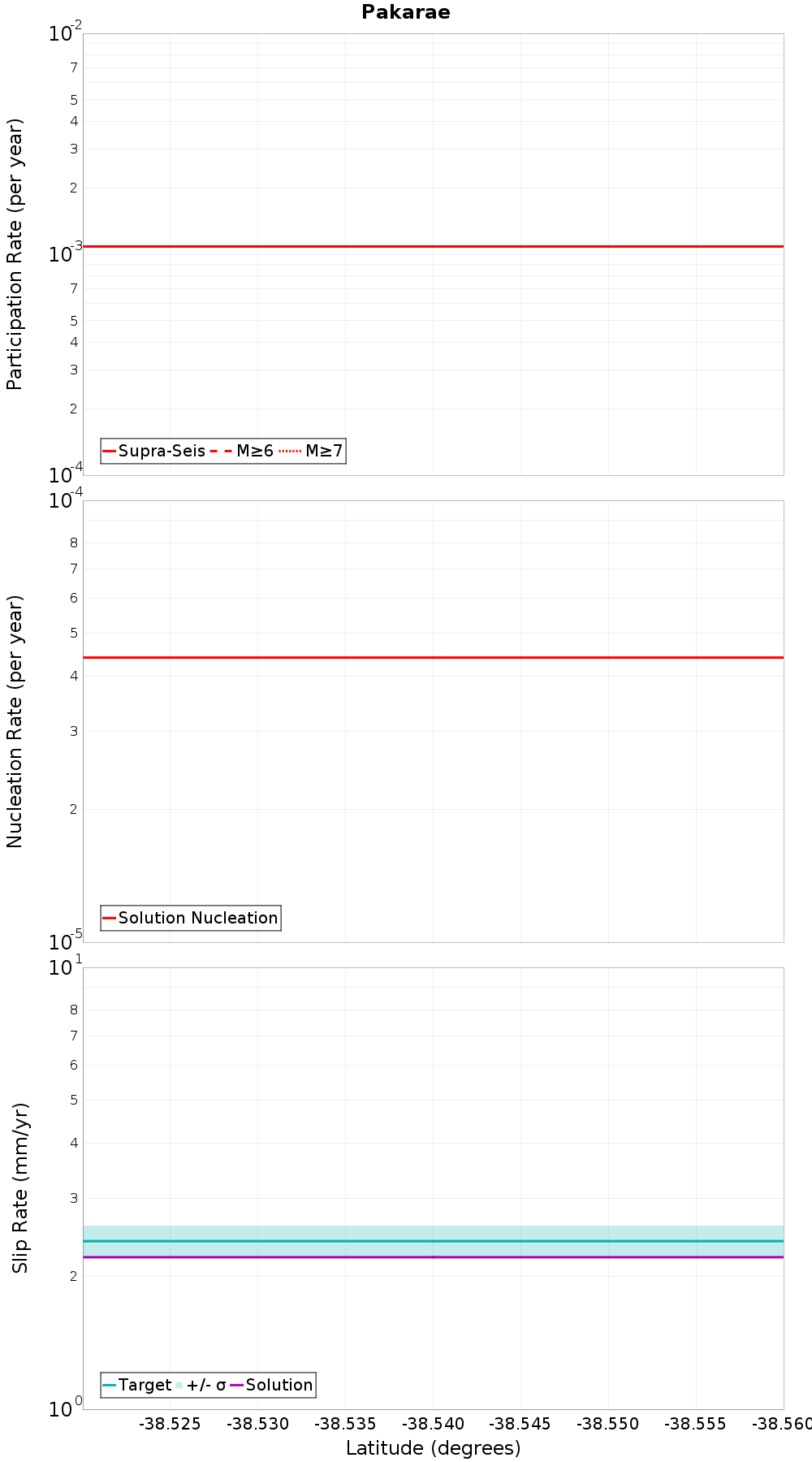

Along-Strike Values
Moment-Rates and b-Values

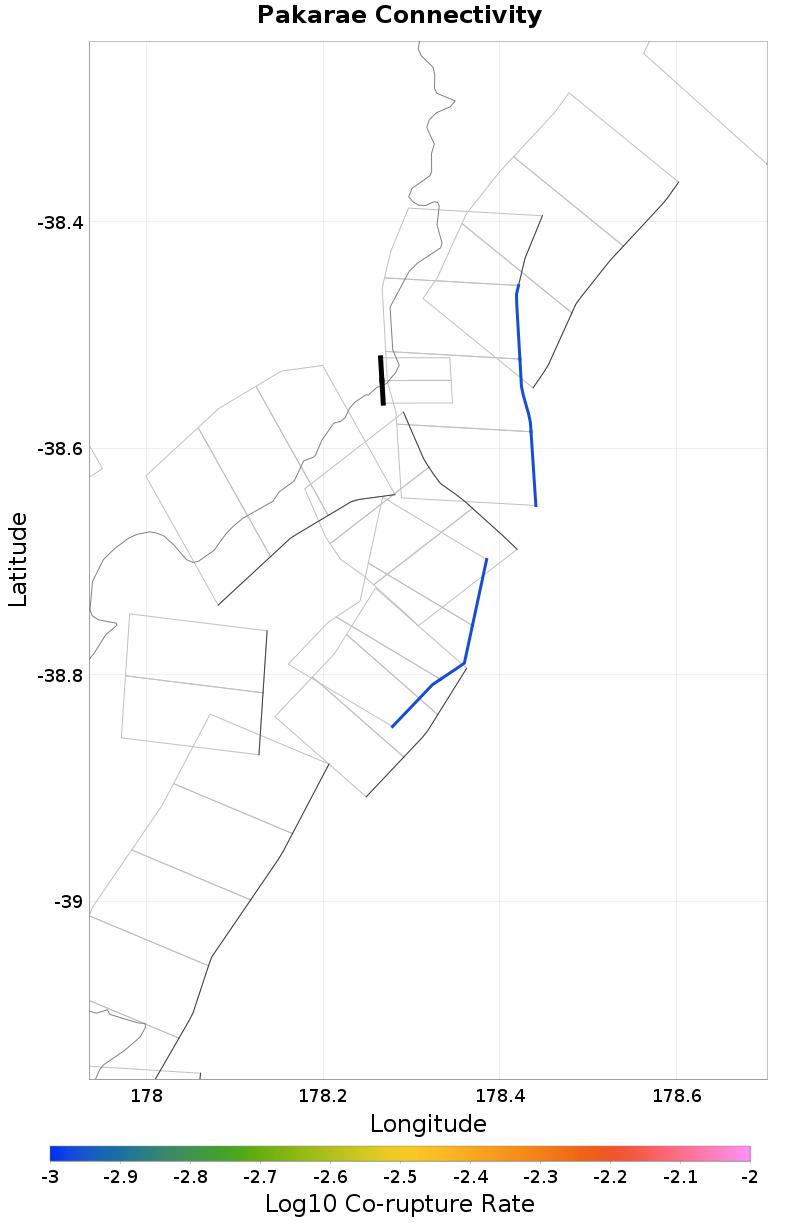

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Gable End North, 0.48 km away |
| Te Ikaarongamai, 1.64 km away |
| Ariel Bank 2, 3.93 km away |
| Gable End South, 5.55 km away |
| Ariel Bank, 10.5 km away |
| Ariel East, 19.05 km away |
Gable End North, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0010832886 |
Te Ikaarongamai, 1.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel Bank 2, 3.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gable End South, 5.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel Bank, 10.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0010832886 |
Ariel East, 19.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTQuMHhYTkw1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
