Tuakana 7 Details

PropertyValue
Rupture Count28
Ruptures Above Sect Min Mag28
Ruptures w/ Nonzero Rates14
Magnitude Range[7.06, 7.65]
Length Range[21, 98] km
Total Rate0.0011862097 /yr
Multi-Fault Rate8.4384525E-4 /yr (71.14%)
Directly-Connected Faults3
All Co-Rupturing Faults6

Table Of Contents

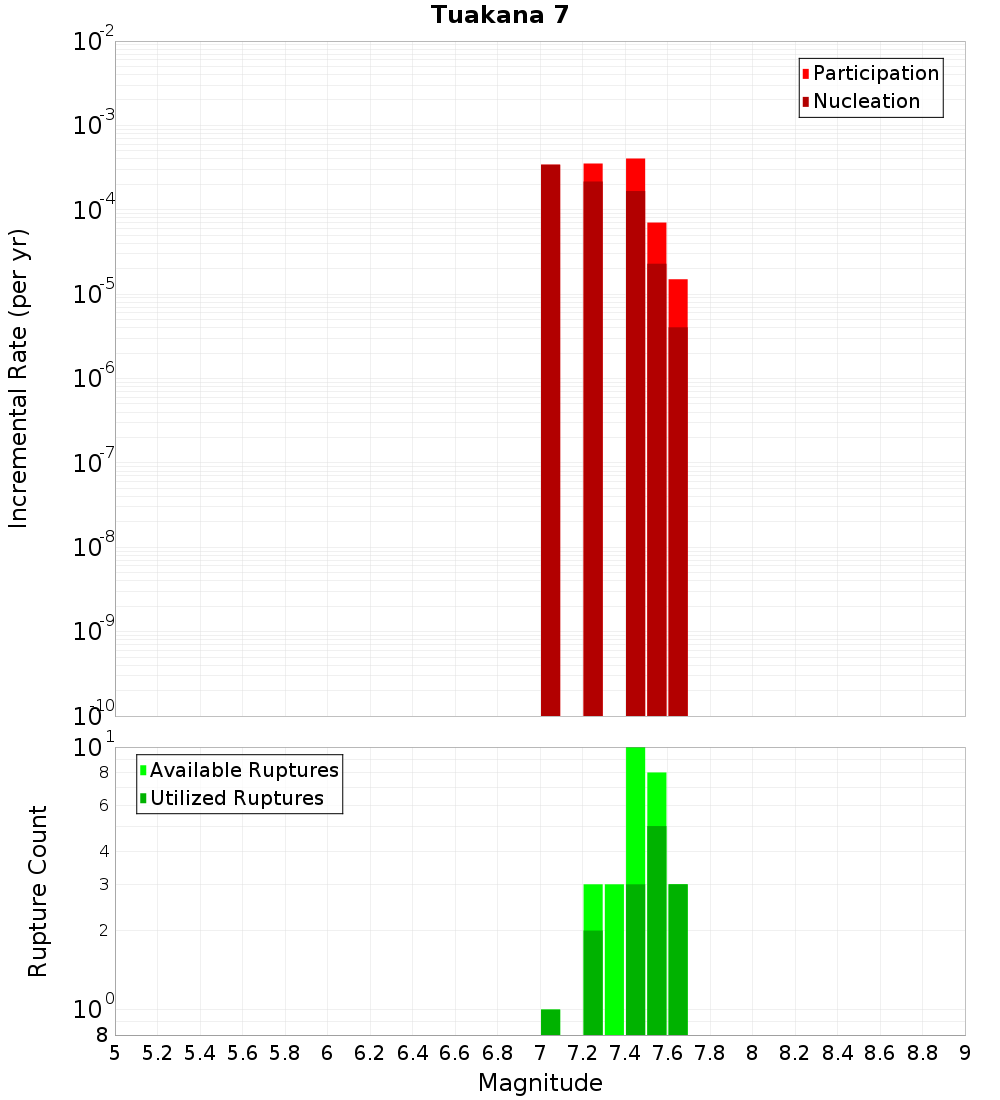

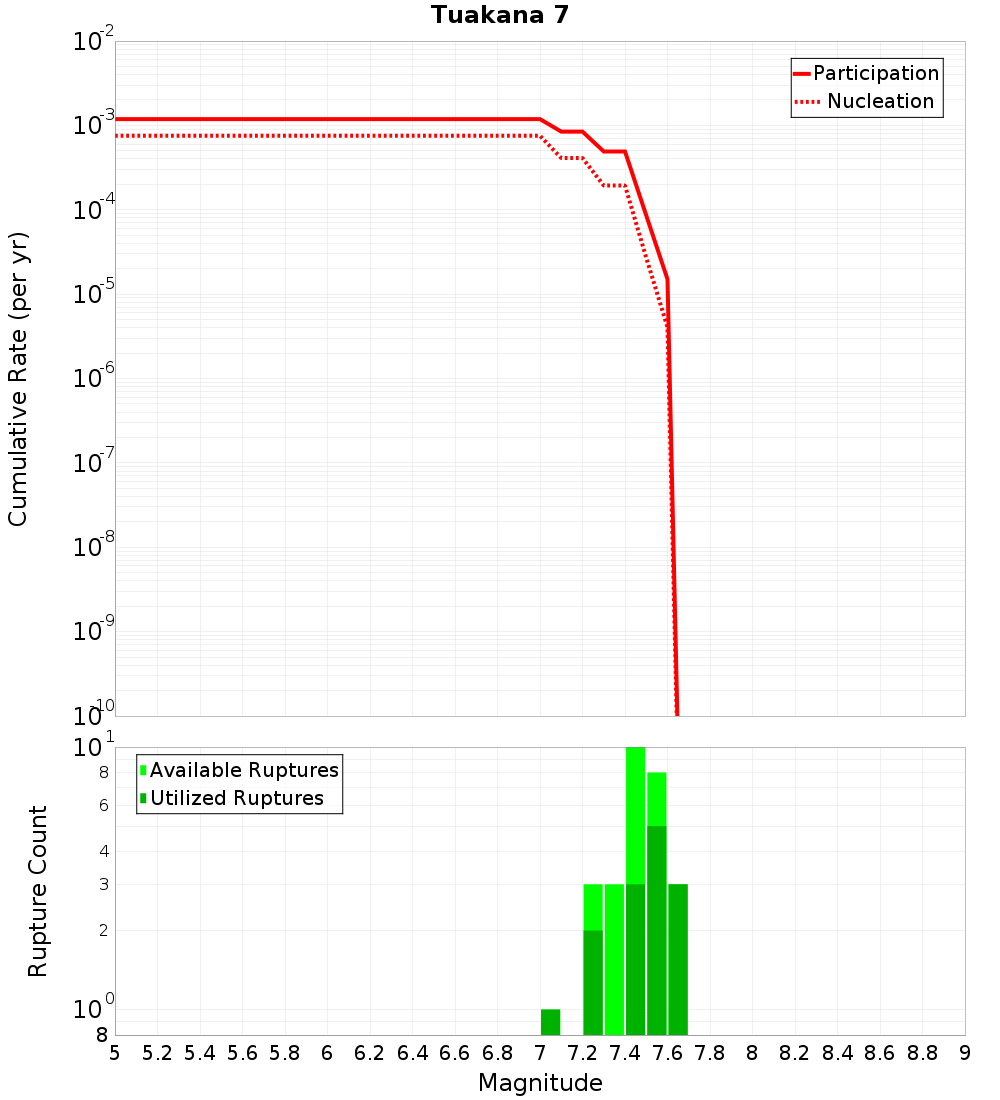

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 4, 0.13 km away
Otara West 2, 0.26 km away
Otara West 1, 0.36 km away
Tuakana 6, 0.39 km away
Tauranga Trough East 2, 0.69 km away
Tauranga Trough West 2, 6.47 km away
Volkner 3, 9.15 km away
Tuatoru 2, 12.24 km away
Otara West 3, 14.6 km away
Ngatoro South 2, 19.01 km away
Ohena 2, 19.33 km away

Volkner 4, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate5.7523407E-4

Tuakana 6, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate2.6861115E-4

Tauranga Trough East 2, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate3.7596948E-4

Tauranga Trough West 2, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.5235278E-4

Tuatoru 2, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 3, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate4.7503534E-5

Ohena 2, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMEZHQXVB
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate1.5237759E-5
