Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count4,548
Ruptures Above Sect Min Mag4,541
Ruptures w/ Nonzero Rates137
Magnitude Range[6.95, 8.55]
Length Range[23, 925] km
Total Rate1.6253696E-4 /yr
Multi-Fault Rate5.7294543E-5 /yr (35.25%)
Directly-Connected Faults5
All Co-Rupturing Faults47

Table Of Contents

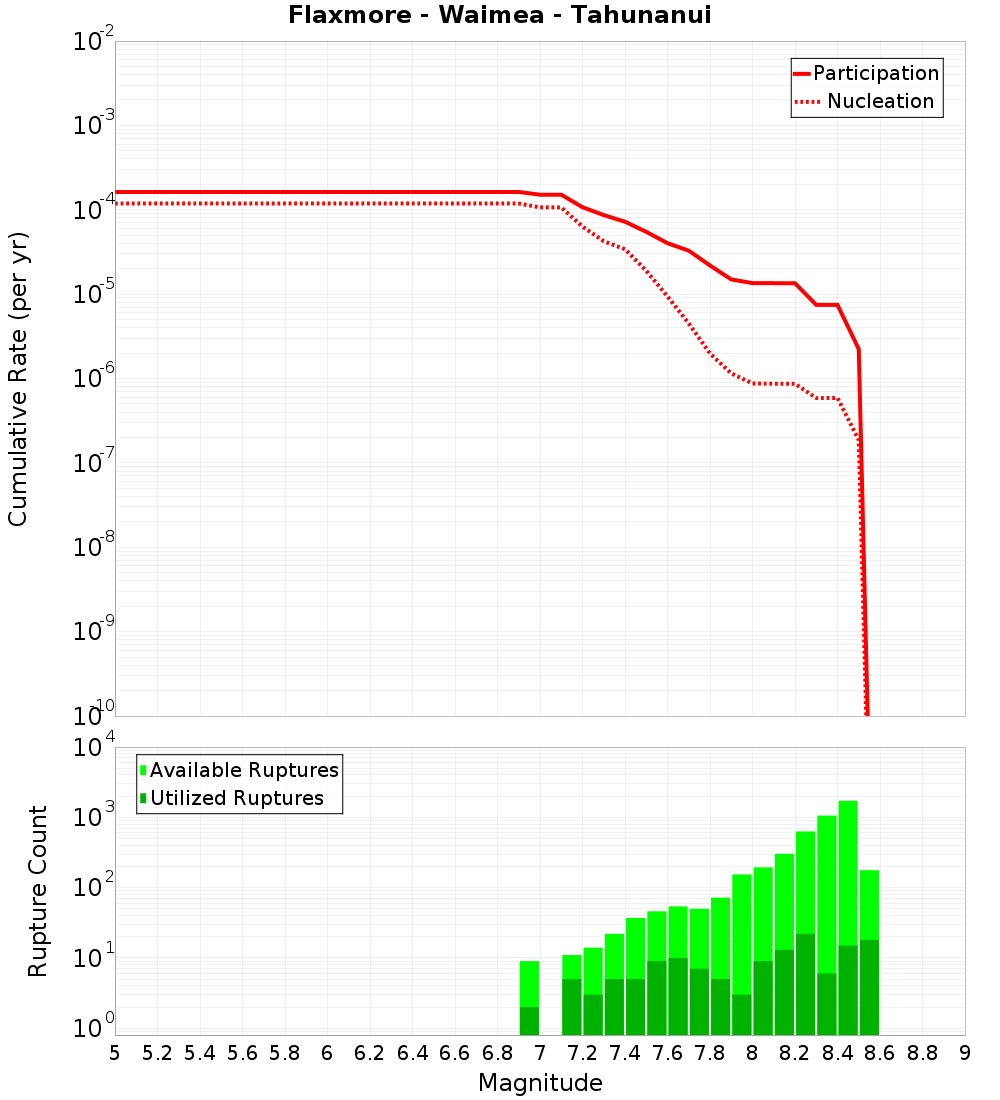

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

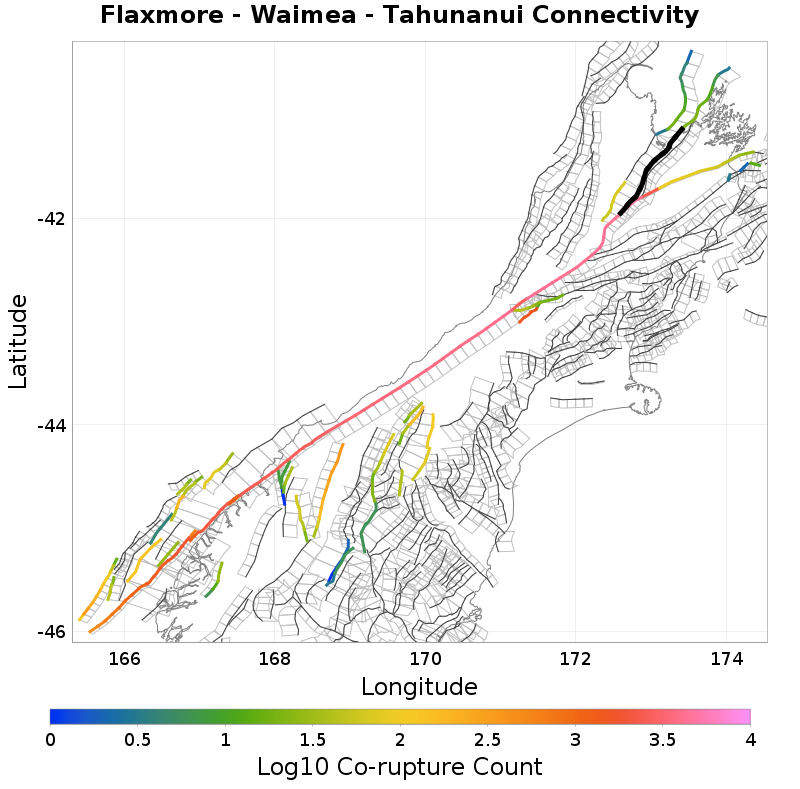

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.0950813E-5

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count2,456
Co-rupture Rate1.2764849E-5

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count4,389
Co-rupture Rate2.5862219E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tutaki, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate1.8798353E-5

Surville, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate1.8628048E-8

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
