Hope: Seaward Details

Property	Value
Rupture Count	26,530
Ruptures Above Sect Min Mag	26,525
Ruptures w/ Nonzero Rates	199
Magnitude Range	[6.62, 8.59]
Length Range	[16, 1,147] km
Total Rate	8.299713E-4 /yr
Multi-Fault Rate	8.299713E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	114

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

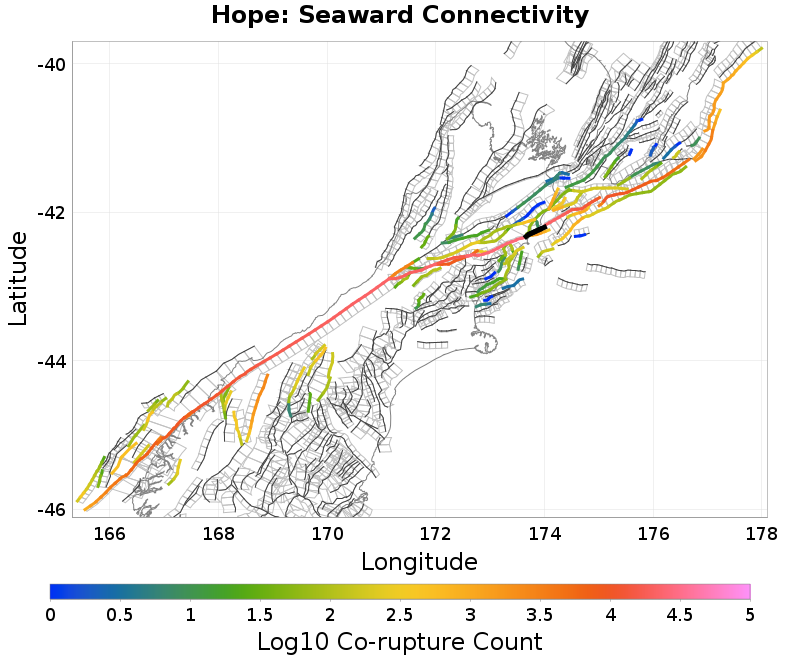

Connectivity
- Nearby Sections

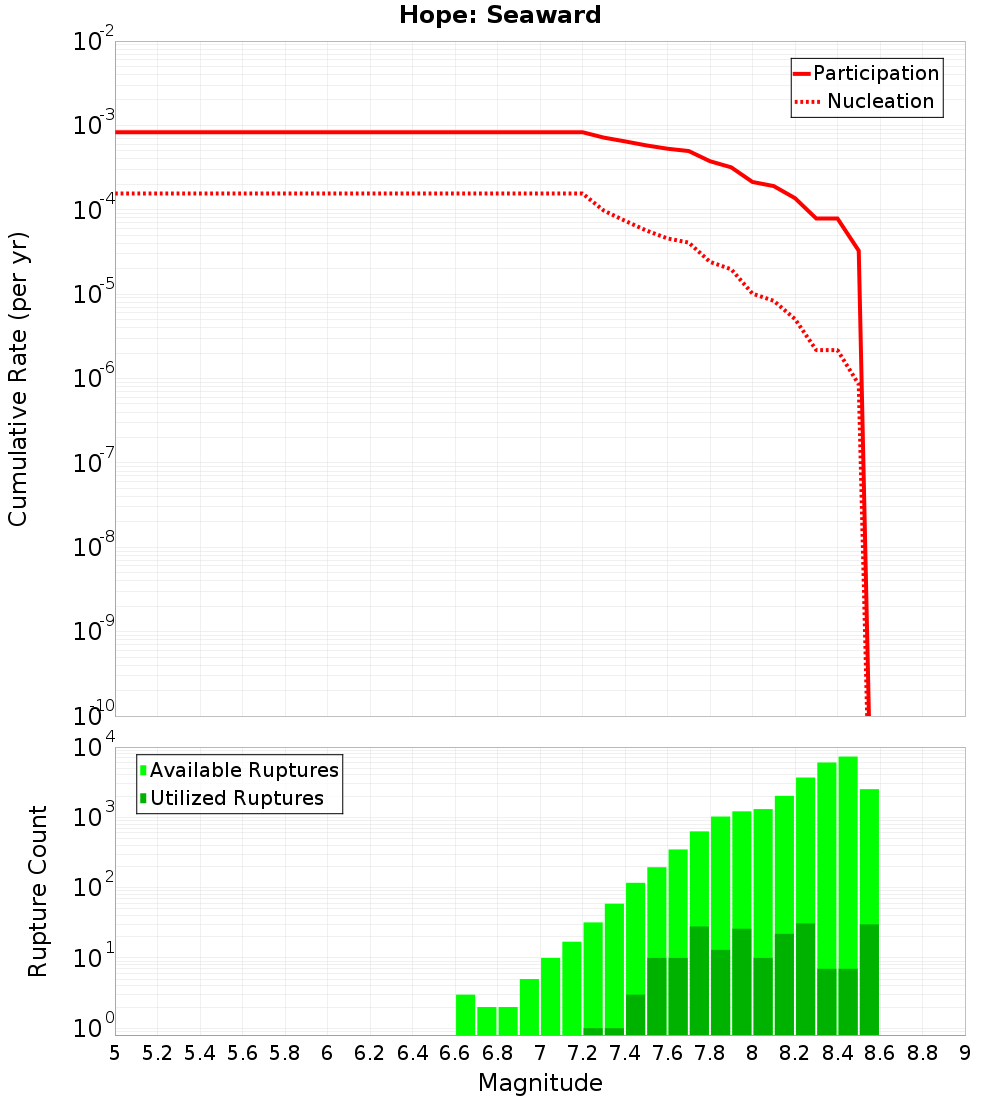

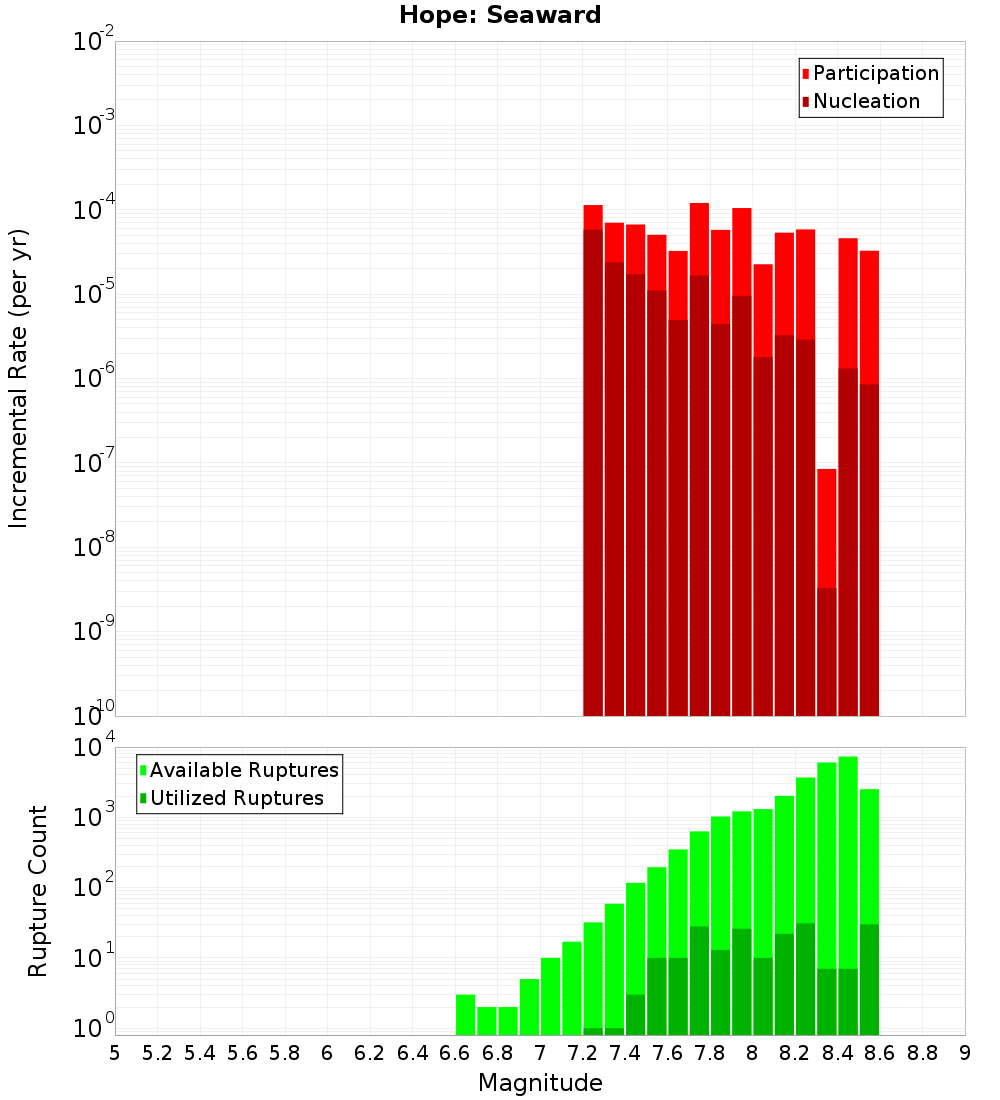

Magnitude-Frequency Distribution

Incremental	Cumulative

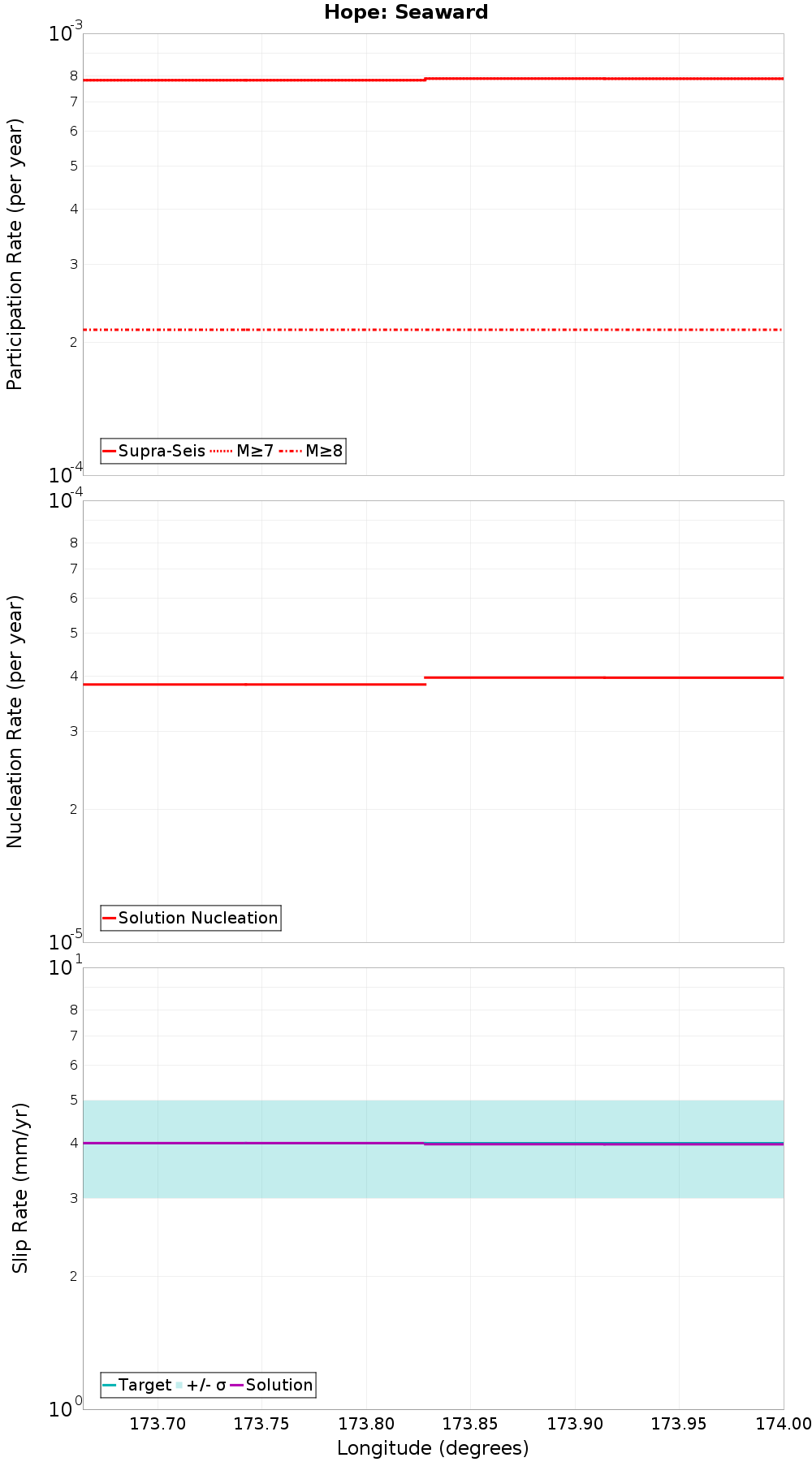

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Kaikoura - Mangamaunu, 1.03 km away
Hope: Te Rapa, 3.47 km away
Upper Slope, 10.39 km away
Fidget, 13.67 km away
Hundalee, 15.41 km away
Kekerengu 1, 16.34 km away
Kekerengu Bank, 17.14 km away
Marlborough Slope 2, 19.21 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	true
Co-rupture Count	26,035
Co-rupture Rate	7.07653E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	4.0233634E-5

Papatea, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	2.3551866E-4

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,628
Co-rupture Rate	1.2009822E-9

Hope: Te Rapa, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	true
Co-rupture Count	21,493
Co-rupture Rate	5.586642E-4

Upper Slope, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,006
Co-rupture Rate	9.271944E-6

Fidget, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	true
Co-rupture Count	539
Co-rupture Rate	2.2726214E-5

Hundalee, 15.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	206
Co-rupture Rate	5.77182E-5

Kekerengu 1, 16.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	4.0233634E-5

Kekerengu Bank, 17.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	950
Co-rupture Rate	3.757376E-5

Marlborough Slope 2, 19.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?	true
Directly Connected?	false
Co-rupture Count	151
Co-rupture Rate	0.0
